Graph Coloring: An In-Depth Exploration

Understanding the Fundamentals and Backtracking Algorithms

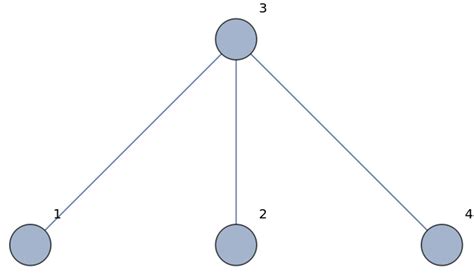

graph coloring scheme

Key Takeaways

  • Graph coloring assigns colors to vertices ensuring adjacent vertices have distinct colors.
  • The chromatic number is the minimum number of colors needed for proper coloring.
  • Backtracking is a fundamental technique used to solve the graph coloring problem efficiently.

What is Graph Coloring?

Graph coloring is a pivotal concept in graph theory, focusing on assigning colors to the vertices of a graph. The primary objective is to ensure that no two adjacent vertices share the same color. This fundamental problem not only serves theoretical interests but also has a plethora of practical applications in various domains.

Definitions and Concepts

Vertex Coloring Problem: Also known as the graph coloring problem, it involves assigning colors to each vertex of a graph such that no two adjacent vertices have the same color.

Chromatic Number: The smallest number of colors needed to achieve a proper vertex coloring of a graph is termed its chromatic number. Determining the chromatic number is a central question in graph coloring.

M-Coloring Problem: This is a variation where the task is to determine whether a graph can be colored using at most M colors. If such a coloring exists, the algorithm should provide one valid coloring configuration.

Applications of Graph Coloring

  • Scheduling: Assigning time slots to classes or employees such that no conflicts arise.
  • Register Allocation: Optimizing the use of CPU registers in compilers by assigning variables to registers without conflicts.
  • Map Coloring: Assigning colors to regions on a map so that no adjacent regions share the same color.
  • Frequency Assignment: Allocating frequencies to radio towers to avoid interference.

Graph Coloring Algorithms

Various algorithms exist to solve the graph coloring problem, each with its advantages and computational complexities. Among these, the backtracking algorithm stands out for its systematic approach and effectiveness in finding solutions.

Backtracking Approach

Backtracking is a recursive algorithmic technique that incrementally builds candidates to the solutions and abandons a candidate ("backtracks") as soon as it determines that the candidate cannot possibly lead to a valid solution. In the context of graph coloring, backtracking systematically tries to assign colors to vertices while ensuring that the coloring constraints are satisfied.

Advantages of Backtracking

  • Finds all possible solutions if needed.
  • Efficient in practice for many graphs despite its exponential time complexity in the worst case.
  • Easy to implement and understand.

Disadvantages of Backtracking

  • Time complexity is O(m^V), where m is the number of colors and V is the number of vertices, making it impractical for large graphs.
  • Requires exponential space in the worst case due to the recursion stack.

Backtracking Algorithm for Graph Coloring

The backtracking algorithm assigns colors to vertices one by one, ensuring that no two adjacent vertices have the same color. If at any point, no valid color can be assigned to a vertex, the algorithm backtracks to the previous vertex and tries a different color.

Algorithm Steps

  1. Input: A graph represented as an adjacency matrix or adjacency list, the number of colors m, and the number of vertices V.
  2. Initialize: Create an array color of size V to store color assignments for each vertex. Initialize all entries as 0 (no color assigned).
  3. Recursive Coloring:
    • Start with the first vertex and assign it the first color.
    • Move to the next vertex and assign the lowest possible color that does not conflict with its adjacent vertices.
    • If no valid color is found, backtrack to the previous vertex and try a different color.
    • Repeat the process until all vertices are colored or no valid coloring is possible.
  4. Output: If a valid coloring is found, return the color assignments. Otherwise, indicate that no valid coloring exists with the given number of colors.

Pseudocode Implementation

def is_safe(graph, vertex, color, c):
    """
    Check if it's safe to assign color c to vertex.
    """
    for i in range(len(graph)):
        if graph[vertex][i] == 1 and color[i] == c:
            return False
    return True

def graph_coloring_util(graph, m, color, vertex):
    """
    Recursively assign colors to vertices.
    """
    # Base case: All vertices are colored
    if vertex == len(graph):
        return True

    # Try different colors for the current vertex
    for c in range(1, m + 1):
        if is_safe(graph, vertex, color, c):
            color[vertex] = c
            # Recur to assign colors to the rest of the vertices
            if graph_coloring_util(graph, m, color, vertex + 1):
                return True
            # Backtrack
            color[vertex] = 0

    # If no color can be assigned, return False
    return False

def graph_coloring(graph, m):
    """
    Solve the graph coloring problem using backtracking.
    """
    V = len(graph)
    color = [0] * V

    if not graph_coloring_util(graph, m, color, 0):
        print(f"No solution exists with {m} colors.")
        return False

    print("Solution Exists: Following are the assigned colors:")
    for i in range(V):
        print(f"Vertex {i} ---> Color {color[i]}")
    return True

Explanation of the Code

  1. is_safe Function: Determines whether it's permissible to assign a particular color to a given vertex by checking all adjacent vertices.
  2. graph_coloring_util Function: Attempts to assign colors to vertices recursively. If it successfully assigns a color to all vertices, it returns true. Otherwise, it backtracks.
  3. graph_coloring Function: Initializes the color array and initiates the backtracking process. It also handles the output based on whether a solution is found.

Example Usage

# Example graph represented as an adjacency matrix
graph = [
    [0, 1, 1, 1],
    [1, 0, 1, 0],
    [1, 1, 0, 1],
    [1, 0, 1, 0]
]
m = 3  # Number of colors

graph_coloring(graph, m)

Output:


Solution Exists: Following are the assigned colors:
Vertex 0 ---> Color 1
Vertex 1 ---> Color 2
Vertex 2 ---> Color 3
Vertex 3 ---> Color 2


Visualization of the Example

Consider the following graph:

Vertex Color Assigned
0 1
1 2
2 3
3 2

In this configuration, no two adjacent vertices share the same color, thus achieving a valid graph coloring with 3 colors.


Complexity Analysis

Time Complexity

The backtracking algorithm for graph coloring has a time complexity of O(m^V), where m is the number of colors and V is the number of vertices. This is because, in the worst case, the algorithm explores all possible color assignments for each vertex.

Space Complexity

The space complexity is O(V), which arises from the recursion stack and the color assignment array used to store the color of each vertex.

Optimizations

  • Pruning: Assign colors to vertices in a specific order (e.g., highest degree first) to reduce the search space.
  • Memoization: Store and reuse solutions to subproblems to avoid redundant computations.
  • Forward Checking: After assigning a color to a vertex, eliminate incompatible color assignments for adjacent vertices ahead of time.

Conclusion

Graph coloring is a quintessential problem in graph theory with far-reaching applications in computer science and engineering. The backtracking algorithm, despite its exponential time complexity, provides a systematic and effective approach to solving the graph coloring problem. By exploring all possible color assignments and intelligently backtracking upon encountering conflicts, the algorithm ensures that a valid coloring, if it exists, is found.

Understanding and implementing graph coloring algorithms not only enhances one's grasp of graph theory but also equips practitioners with tools to tackle complex real-world problems related to scheduling, resource allocation, and more.
