Unveiling the Powerhouse: A Deep Dive into Graphics Card Components
Explore the intricate anatomy and essential functions of a graphics card, the unsung hero behind stunning visuals and high-performance computing.
Key Insights into Graphics Card Anatomy
- The GPU is the Brain: At the core of every graphics card lies the Graphics Processing Unit (GPU), a highly parallel processor specialized for rendering complex graphics and accelerating computationally intensive tasks like AI and deep learning.
- VRAM: The GPU's Dedicated Workspace: Video Random Access Memory (VRAM) is crucial for storing graphical data, textures, and frame buffers, enabling the GPU to rapidly access the information it needs for smooth, high-resolution visual output.
- Cooling and Power are Critical: Effective cooling solutions (heatsinks and fans, or even liquid cooling) are essential to manage the immense heat generated by the GPU and VRAM, while robust Voltage Regulator Modules (VRMs) ensure stable and efficient power delivery to these hungry components.
A graphics card, often referred to as a video card, display card, or graphics adapter, is a fundamental component of any modern computer system, especially for tasks involving visual output, gaming, or demanding computational workloads. It acts as the bridge between your computer's brain (the CPU) and your display, converting digital information into the images you see on your screen. While integrated graphics processors exist within some CPUs or motherboards, dedicated graphics cards are separate hardware devices offering superior performance for complex graphics and parallel computing applications.
The Core Components of a Graphics Card
No matter the manufacturer or model, all graphics cards share a common set of essential components working in concert to render graphics and accelerate data processing. Understanding these parts is key to appreciating how a graphics card achieves its impressive feats.
The Graphics Processing Unit (GPU): The Heart of Visual Computation
The Graphics Processing Unit (GPU) is arguably the most vital component of a graphics card. Often mistakenly used interchangeably with "graphics card" itself, the GPU is a specialized electronic circuit designed specifically for accelerating computer graphics and image processing. Unlike a Central Processing Unit (CPU), which excels at sequential processing, a GPU is optimized for highly parallel computations. This means it can handle thousands of concurrent operations, making it incredibly efficient for tasks like rendering 3D graphics, processing video, and accelerating general-purpose computing (GPGPU) workloads such as scientific simulations, artificial intelligence, and cryptocurrency mining.
Modern GPUs are composed of numerous processing elements and a sophisticated memory hierarchy. Key subcomponents within the GPU include:
Shader Cores and Stream Processors
These are the fundamental computational units that perform mathematical calculations necessary for rendering images. Shaders are responsible for determining the light, dark, and color of pixels, while stream processors handle various other parallel tasks. NVIDIA's CUDA cores and AMD's stream processors are examples of these highly parallel execution units.
Texture Mapping Units (TMUs)
TMUs apply textures (image data) to the surfaces of 3D objects, adding detail and realism. They work in conjunction with shader cores to make scenes appear lifelike.
Render Output Units (ROPs)
ROPs are responsible for the final output of pixels to the frame buffer, handling tasks like anti-aliasing (smoothing jagged edges) and blending. They play a crucial role in the final image quality.
Video Memory (VRAM): The GPU's High-Speed Workspace
Video Random Access Memory (VRAM) is dedicated, high-speed memory specifically for the graphics card. It stores all the data the GPU needs to process, including textures, models, frame buffers (completed images ready for display), and shader programs. The amount and speed of VRAM directly impact a graphics card's performance, especially at higher resolutions or with more graphically intensive applications.
VRAM chips are essential for storing graphical data, directly impacting performance.
Unlike system RAM, VRAM is often dual-ported, meaning the GPU can read from it and write to it simultaneously, ensuring rapid data transfer. Common types of VRAM include GDDR (Graphics Double Data Rate) variants like GDDR5, GDDR6, and the newer GDDR6X, each offering increasing bandwidth and efficiency.

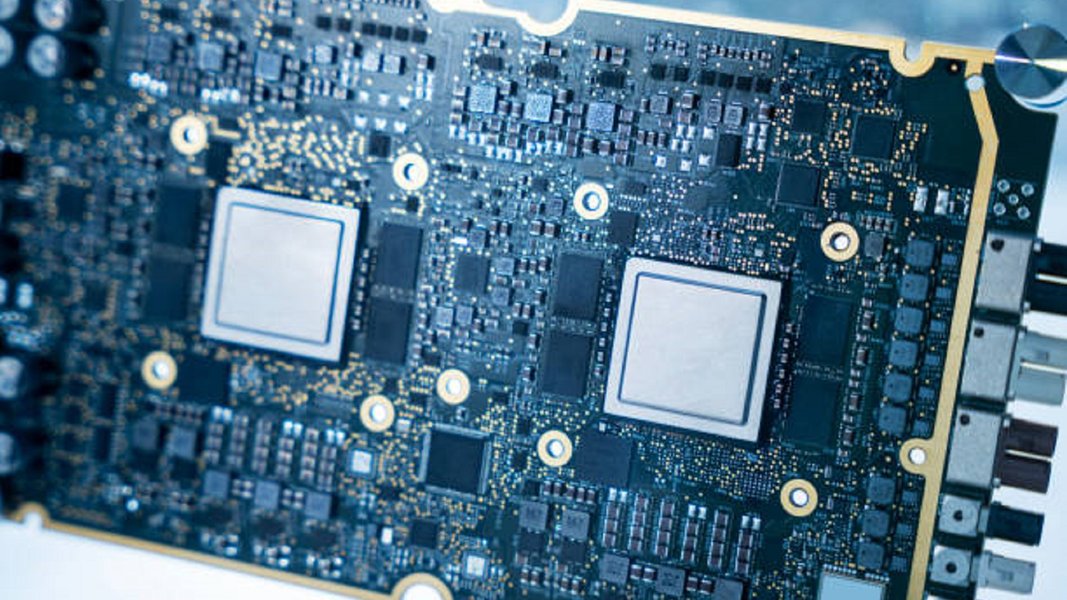

The Printed Circuit Board (PCB): The Foundation
The Printed Circuit Board (PCB) serves as the backbone of the graphics card. It's the green or black board to which all other components are soldered. The PCB provides the electrical connections and pathways for data and power to flow between the GPU, VRAM, VRMs, and other integrated circuits. The layout and quality of the PCB are crucial for signal integrity, power delivery, and overall card stability.
The PCB provides the crucial electrical connections for all components.
Voltage Regulator Module (VRM): Powering the Beast
The Voltage Regulator Module (VRM) is a complex power delivery system on the graphics card. It takes the power supplied by the power supply unit (PSU) and converts it into the precise voltages required by the GPU and VRAM. A robust VRM design with multiple power phases is essential for stable operation, especially during high loads and overclocking, as it ensures clean and consistent power delivery to the sensitive components.
Cooling Solution: Taming the Heat
Graphics cards, especially high-performance models, generate a significant amount of heat. An efficient cooling solution is paramount to prevent thermal throttling (where the card reduces its performance to prevent overheating) and ensure longevity. Common cooling components include:
Heatsinks
These are metal blocks (often copper or aluminum) with numerous fins designed to maximize surface area. They draw heat away from the GPU and VRAM.
Fans
Fans are mounted on top of the heatsink to actively dissipate heat by blowing air across the fins. High-end cards often feature multiple fans for optimal airflow.

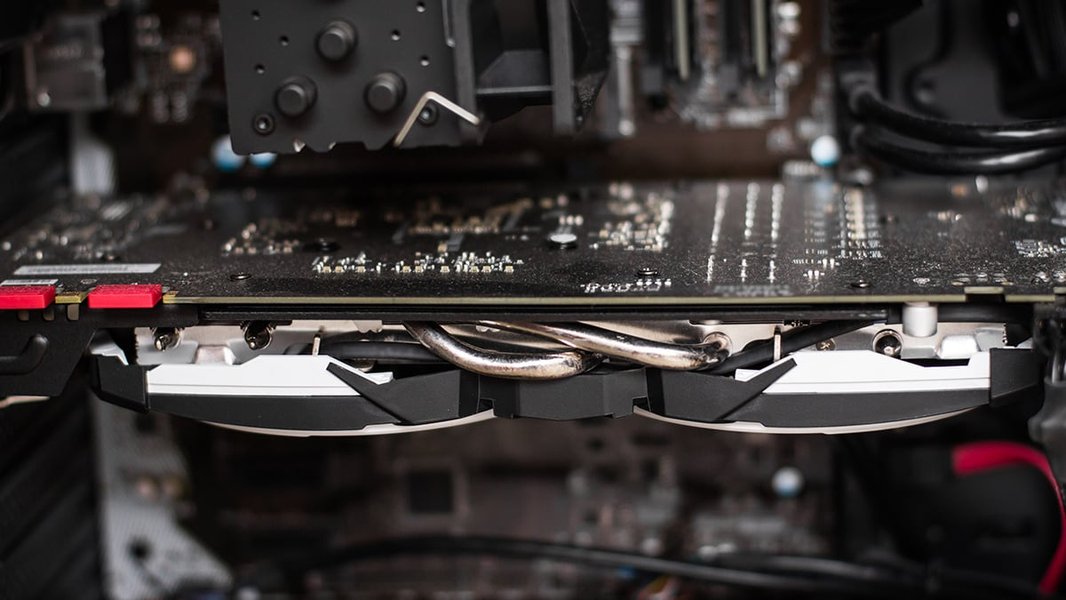

Heat Pipes
Heat pipes are sealed copper tubes containing a working fluid that rapidly transfers heat from the GPU die to the heatsink fins.
Some premium graphics cards utilize liquid cooling solutions for even more effective heat dissipation.
Effective cooling is crucial for maintaining optimal GPU performance and longevity.
Motherboard Interface (PCIe Connector)
The graphics card connects to the computer's motherboard via an expansion slot, most commonly a PCI Express (PCIe) x16 slot. This interface allows for high-speed data transfer between the GPU and the CPU, enabling the CPU to send instructions and data to the graphics card and receive processed information back. The latest standard, PCIe 5.0, offers even greater bandwidth for future high-performance GPUs.
Display Outputs: Connecting to Your Screen
Graphics cards feature various output ports that connect to your monitor or display. Common display outputs include:
- HDMI (High-Definition Multimedia Interface): Widely used for both video and audio transmission to TVs and monitors.
- DisplayPort: A versatile digital display interface, increasingly popular for high-resolution and high-refresh-rate gaming monitors.
- DVI (Digital Visual Interface): An older digital interface, still found on some monitors.
- VGA (Video Graphics Array): An older analog interface, largely phased out in favor of digital alternatives, often requiring a RAMDAC on the card.
How Graphics Cards Work in Harmony
The process of rendering an image on your screen is a complex dance involving the CPU, graphics card, and display. Here's a simplified breakdown:
- The CPU, working with software applications (like a game or video player), sends information about the image to be displayed to the graphics card. This information isn't a raw image but rather a set of drawing instructions and data.
- The GPU interprets these instructions. For 3D graphics, it first creates a "wireframe" model of the scene using lines and vertices.
- The GPU then applies textures, colors, and lighting effects to this wireframe, filling in the details. This is where the shader cores and TMUs come into play, performing billions of calculations per second.
- The processed image data is temporarily stored in the VRAM, often as a frame buffer.
- Finally, the graphics card sends the completed image signal through its display outputs to the monitor, where it is displayed. This process repeats many times per second (measured in frames per second, or FPS) to create the illusion of smooth motion.
The video below provides a more in-depth visual explanation of how graphics cards function and the architectural nuances of GPUs.
This video elucidates the complex operations and architectural elements that enable graphics cards to render visuals and accelerate computing tasks.
Comparing Key Graphics Card Features
To further illustrate the relative importance and characteristics of different graphics card components, the radar chart below provides an opinionated analysis of their impact on overall performance, complexity, and power consumption.
This radar chart illustrates the relative importance and typical performance levels of different graphics card components across various usage scenarios. For instance, high-end gaming and professional workstations demand top-tier GPU processing power and ample VRAM, along with robust cooling and VRMs. In contrast, entry-level cards for casual use or basic computing have lower requirements across the board. PCIe Bandwidth is generally high for all modern cards but becomes critically important as GPU and VRAM performance scale up. Display Output Versatility is more about the number and type of ports, which might vary but are generally sufficient for their respective tiers.
Detailed Overview of Graphics Card Components and Their Impact
Each component plays a critical role in the overall performance and functionality of a graphics card. Here's a table summarizing their functions and impact:
| Component | Primary Function | Impact on Performance/Experience |
|---|---|---|
| Graphics Processing Unit (GPU) | Processes graphics data, performs parallel computations, renders images. | Determines overall graphical processing power, frame rates, and ability to handle complex visual effects and GPGPU tasks. |
| Video Memory (VRAM) | Stores textures, frame buffers, and other graphical data for quick GPU access. | Affects performance at higher resolutions, texture quality, and ability to handle large datasets in professional applications. |
| Printed Circuit Board (PCB) | Physical foundation, provides electrical connections between components. | Influences signal integrity, power delivery stability, and overall card durability. |
| Voltage Regulator Module (VRM) | Converts and regulates power supplied to the GPU and VRAM. | Ensures stable power delivery, crucial for card stability under load and during overclocking. |
| Cooling Solution (Heatsink, Fans, Heat Pipes) | Dissipates heat generated by the GPU and VRAM. | Prevents thermal throttling, maintains optimal performance, and extends component lifespan. |
| PCI Express (PCIe) Interface | Connects the graphics card to the motherboard for data and power. | Determines bandwidth for data transfer between the CPU and GPU; faster versions (e.g., PCIe 4.0/5.0) enable higher performance. |
| Display Outputs (HDMI, DisplayPort, DVI, VGA) | Provides physical connections for monitors and display devices. | Dictates the number and type of displays supported, maximum resolution, and refresh rates. |
| BIOS/Firmware | Contains essential boot-up instructions and operating parameters for the card. | Manages card initialization and low-level hardware control. |
| Power Connectors (e.g., 6-pin, 8-pin, 12VHPWR) | Provides supplemental power from the Power Supply Unit (PSU). | Ensures sufficient power delivery for high-performance GPUs, especially for modern high-wattage cards. |
Integrated vs. Dedicated Graphics
It's important to distinguish between integrated graphics and dedicated graphics cards. While this discussion focuses on dedicated cards, here's a brief comparison:
Integrated Graphics Processors (IGPs)
Integrated graphics are typically built directly into the CPU (e.g., Intel's Iris Xe, AMD's Radeon Graphics on Ryzen APUs) or integrated as a separate chip on the motherboard. They share system RAM for video memory, making them less powerful but more power-efficient and cost-effective. IGPs are suitable for basic computing, media consumption, and light gaming.
Dedicated Graphics Cards
As discussed, dedicated graphics cards are standalone expansion cards with their own GPU, VRAM, and cooling solution. They offer significantly higher performance and are essential for demanding tasks like AAA gaming, professional content creation (video editing, 3D rendering), and scientific computing.
Understanding GPU Architecture and Parallelism
The fundamental difference between a CPU and a GPU lies in their architectural design and how they approach computational problems. While CPUs are designed for general-purpose tasks with a few powerful cores optimized for sequential processing, GPUs are built for massive parallelism.
A GPU's architecture is characterized by thousands of smaller, specialized processing units (shader cores/stream processors) working in parallel. This Single Instruction, Multiple Data (SIMD) or Single Instruction, Multiple Thread (SIMT) approach allows GPUs to efficiently execute the same instruction on large sets of data simultaneously. This is precisely what's needed for graphics rendering, where millions of pixels and vertices need to be processed concurrently.
For example, to render a scene, the GPU doesn't process one pixel at a time sequentially. Instead, it processes many pixels or vertices in parallel, significantly accelerating the rendering pipeline. This parallel processing capability is also why GPUs have become indispensable for artificial intelligence and machine learning, where vast amounts of data need to be crunched simultaneously during training phases.
FAQ: Graphics Card Components
Conclusion
A graphics card is a marvel of modern engineering, integrating several sophisticated components into a single, powerful unit. From the parallel processing prowess of the GPU to the rapid data access of VRAM, the stable power delivery of the VRM, and the essential heat management of the cooling system, each part plays a crucial role in bringing digital worlds to life on your screen. Whether for immersive gaming, professional content creation, or cutting-edge AI research, understanding these components helps users appreciate the technological sophistication behind high-performance computing.
Recommended Further Exploration
- How do GPUs compare to CPUs in architecture and performance?
- What are the different types of VRAM and their impact on gaming?
- Deep dive into GPU cooling technologies and their effectiveness
- Understanding PCIe generations and their relevance to graphics cards
