Resolving GRUB Menu Hang Issues with Serial Console Cables

Comprehensive Guide to Troubleshooting GRUB Stuck Scenarios Due to Serial Console Configurations

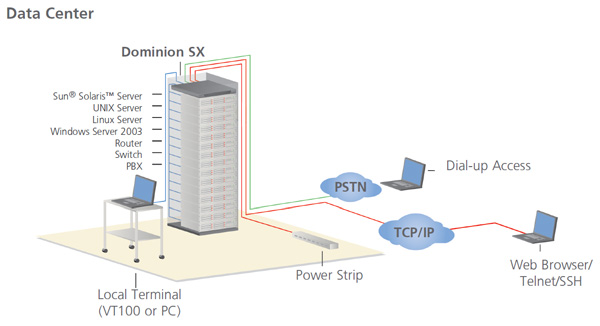

server room serial connections

Key Takeaways

  • GRUB's serial console configuration is a common cause for menu hanging when remote ends are disconnected.
  • Proper serial port settings and hardware connections are essential to prevent boot process interruptions.
  • Adjusting GRUB configurations and BIOS settings can effectively resolve serial console-induced boot hangs.

Introduction

The GRUB (GRand Unified Bootloader) menu is a critical component in the Linux boot process, allowing users to select the operating system or kernel they wish to boot. However, issues can arise when GRUB is configured to use a serial console, particularly when a serial console cable is connected without anything attached to its remote end. This misconfiguration can cause the GRUB menu to become unresponsive, leading to a halted boot process. This guide offers a detailed analysis of why this issue occurs and provides step-by-step solutions to ensure a seamless boot experience.

Understanding the Issue

GRUB and Serial Console Basics

GRUB is a versatile bootloader capable of interfacing with various input/output devices, including serial consoles. A serial console allows for remote management and interaction with a system, which is particularly useful for headless servers or systems without a dedicated monitor and keyboard. However, improper configuration of the serial console settings within GRUB can lead to scenarios where the boot process becomes stalled.

Common Causes of GRUB Menu Hang

  1. Serial Console Misconfiguration: GRUB might be set to output to a serial console improperly. If the remote end of the serial cable is not connected or configured correctly, GRUB may wait indefinitely for input or output signals that never arrive.

  2. Handshaking Issues: Serial connections rely on proper handshaking protocols to establish communication. A disconnected or improperly connected remote end can prevent successful handshaking, causing GRUB to hang.

  3. BIOS/UEFI Conflicts: The system's firmware (BIOS or UEFI) may have settings that conflict with GRUB's serial console configurations, leading to inconsistent UART behaviors that prevent the boot process from proceeding.

  4. Absence of Remote Device: Without a device connected to the remote end of the serial cable, GRUB may not receive the necessary acknowledgments or inputs, causing it to await indefinitely.

  5. Timeout and Menu Settings: GRUB's timeout settings might not be adequately configured, especially when a serial console is detected, leading to scenarios where it does not proceed automatically.


Detailed Troubleshooting Steps

1. Verifying Serial Cable and Connection

The first step in troubleshooting is to ensure that the physical serial connection is secure and functional. A faulty or improperly connected serial cable can prevent successful communication between GRUB and the remote device.

  • Check Cable Integrity: Inspect the serial cable for any physical damage or wear that might impair functionality. Replace the cable if any defects are found.
  • Ensure Proper Connection: Confirm that both ends of the serial cable are securely connected. The local end should be connected to the system's serial port, while the remote end should interface with a terminal or another computer configured to handle serial input/output.
  • Use Appropriate Cable Type: Depending on the devices involved, a null-modem cable or straight-through cable might be required. Using the incorrect type can lead to communication failures.
  • Verify Remote Device Status: Ensure that the device on the remote end of the serial cable is powered on and operational. A powered-off or unresponsive remote device will prevent GRUB from communicating effectively.

2. Reviewing and Adjusting GRUB Configuration

Misconfigurations within GRUB's settings are often the culprits behind the hanging menu when using a serial console. Adjusting these settings to match the hardware specifications and intended use can resolve the issue.

  • Edit GRUB Configuration File: Access the GRUB configuration file, typically located at /etc/default/grub. Use a text editor with appropriate permissions (e.g., sudo nano /etc/default/grub).
  • Set GRUB_TERMINAL Appropriately: Ensure that the GRUB_TERMINAL parameter includes the serial console correctly. For example:
    GRUB_TERMINAL="console serial"
    This configuration directs GRUB to output to both the console and the serial terminal.
  • Configure Serial Command: Define the serial communication parameters accurately using the GRUB_SERIAL_COMMAND directive. For example:
    GRUB_SERIAL_COMMAND="serial --speed=115200 --unit=0 --word=8 --parity=no --stop=1"
    Ensure these settings align with the hardware's specifications.
  • Set GRUB_CMDLINE_LINUX: To ensure that the kernel interacts correctly with the serial console, adjust the GRUB_CMDLINE_LINUX parameter:
    GRUB_CMDLINE_LINUX="console=tty0 console=ttyS0,115200n8"
    Replace ttyS0 with the appropriate serial port identifier if necessary.
  • Update GRUB Configuration: After making changes to the configuration file, apply them by running:
    sudo update-grub
    This command regenerates the grub.cfg file with the updated settings.

3. Disabling Serial Console if Unnecessary

If the serial console is not required for your setup, disabling it can prevent GRUB from waiting for input/output over the disconnected serial port.

  • Edit GRUB Configuration: Open /etc/default/grub with a text editor.
  • Remove or Comment Out Serial Console Lines: Locate and comment out any lines related to the serial console, such as:
    #GRUB_TERMINAL="serial"
    and
    #GRUB_SERIAL_COMMAND="serial --speed=9600 --unit=0 --word=8 --parity=no --stop=1"
  • Set GRUB_TERMINAL to Console Only: Ensure the terminal is set to console-only:
    GRUB_TERMINAL=console
  • Update GRUB and Reboot: Apply the changes by running:
    sudo update-grub
    Then reboot the system:
    sudo reboot

4. Implementing Proper Timeout Settings

Configuring appropriate timeout settings ensures that GRUB does not wait indefinitely for serial input, allowing the boot process to continue even if the serial console is disconnected.

  • Set a Reasonable Timeout: In /etc/default/grub, adjust the GRUB_TIMEOUT parameter to a finite value, such as 5 seconds:
    GRUB_TIMEOUT=5
  • Define Timeout Style: To ensure GRUB displays the menu without awaiting input:
    GRUB_TIMEOUT_STYLE=menu
  • Apply Changes: After editing, update GRUB and reboot:
    sudo update-grub

    sudo reboot

5. Utilizing Terminal Emulators for Serial Connection

Using terminal emulators can help verify and establish proper communication with the serial console, ensuring that GRUB can interact effectively without hanging.

  • Choose a Terminal Emulator: Tools such as minicom, screen, or putty can be used to manage serial connections.
  • Configure the Emulator Correctly: Match the baud rate, parity, and stop bits to those specified in the GRUB configuration. For example:
    minicom -b 115200 -o -D /dev/ttyS0
  • Test Communication: Ensure that messages from GRUB are visible in the terminal emulator and that inputs are correctly transmitted back to GRUB.

6. Checking Hardware and BIOS/UEFI Settings

Conflicting settings at the firmware level can interfere with GRUB's serial console operations. Ensuring that the BIOS or UEFI settings align with GRUB's configurations is crucial.

  • Access BIOS/UEFI Settings: During system startup, enter the BIOS or UEFI setup (commonly by pressing keys like F2, DEL, or F10).
  • Disable Serial Console Support if Not Needed: If the serial console is unnecessary, disable it within the firmware settings to prevent conflicts.
  • Enable or Configure Serial Ports Appropriately: If serial console usage is required, ensure that the serial ports are enabled and configured correctly in the firmware settings, matching GRUB's specifications.
  • Check for Legacy USB Support: If using USB-to-serial adapters, ensure that legacy USB support is enabled to allow proper communication.

Advanced Solutions

Modifying Boot Modes (BIOS vs. UEFI)

System firmware modes, such as BIOS and UEFI, can influence how GRUB handles serial console configurations. Switching between these modes may resolve conflicts that lead to the GRUB menu hanging.

  • Determine Current Boot Mode: Identify whether the system is booting in BIOS or UEFI mode by checking system information or using commands like ls /sys/firmware/efi. If the directory exists, the system is in UEFI mode.
  • Switch Boot Modes if Necessary: If conflicts are suspected, try switching from BIOS to UEFI mode or vice versa. Note that this process can be complex and may require reinstalling or reconfiguring the operating system.
  • Update Firmware: Ensure that the system's BIOS or UEFI firmware is up to date, as updates can resolve known issues related to serial console handling.

Debugging GRUB Output

To gain deeper insights into why GRUB is hanging, enabling additional debugging output can be beneficial.

  • Enable GRUB Debugging: Modify the GRUB configuration to increase verbosity. For example, add GRUB_TERMINAL=console serial and GRUB_DEBUG=true.
  • Check GRUB Logs: After attempting to boot, review any available logs or console messages that might indicate where the process is stalling.
  • Utilize Advanced Logging Tools: Tools like journalctl or system-specific logging mechanisms can capture detailed information about the boot process and GRUB's actions.

Handling Console Configuration Conflicts

Sometimes, GRUB's serial console settings can conflict with other console configurations, such as multiple serial or virtual consoles. Resolving these conflicts involves aligning the configurations to ensure smooth communication.

  • Review Console Assignments: Ensure that console assignments in GRUB do not overlap or conflict with other system components that utilize serial communication.
  • Standardize Serial Port References: Use consistent serial port identifiers across configurations to prevent mismatches and communication issues.
  • Consolidate Console Outputs: Direct GRUB to output to specific consoles, avoiding duplication or conflicting directives that might confuse the communication pathways.

Preventive Measures

Ensuring Consistent Serial Port Configuration

Consistency in serial port settings across GRUB and system firmware ensures reliable communication and prevents unexpected boot interruptions.

  • Standardize Baud Rates and Communication Parameters: Ensure that all devices and configurations involved in serial communication use the same baud rate, parity, stop bits, and data bits settings.
  • Maintain Alignment Between GRUB and BIOS Settings: The serial port settings in GRUB should match those configured in the system's firmware. Discrepancies can lead to communication failures.

Regularly Testing Hardware Connections

Periodic testing of serial connections helps in early detection of hardware issues that could disrupt the boot process.

  • Perform Routine Cable Inspections: Regularly check the physical condition of serial cables and replace them at the first sign of wear or damage.
  • Test Serial Ports: Use terminal emulators or other testing tools to verify the functionality of serial ports, ensuring that they transmit and receive data as expected.

Documentation and Configuration Management

Maintaining thorough documentation of GRUB configurations and serial port settings facilitates easier troubleshooting and reduces the likelihood of configuration errors.

  • Document Configuration Changes: Keep records of all changes made to GRUB and firmware configurations, including dates and reasons for changes.
  • Use Configuration Management Tools: Tools like Ansible, Puppet, or Chef can help manage and enforce consistent configurations across multiple systems.

Conclusion

Encountering a stuck GRUB menu due to a disconnected serial console cable can be a significant hindrance to managing and booting systems, especially in headless or remote environments. By understanding the underlying causes—ranging from misconfigurations in GRUB and firmware conflicts to physical hardware issues—administrators can implement targeted solutions to resolve and prevent these issues. Whether by adjusting GRUB settings, ensuring proper hardware connections, or aligning firmware configurations, a systematic approach to troubleshooting can restore normal boot operations and enhance system reliability.
