PowerShell Scripts for Hyper-V Network Automation

Mastering Hyper-V network tasks using PowerShell commands and automation techniques

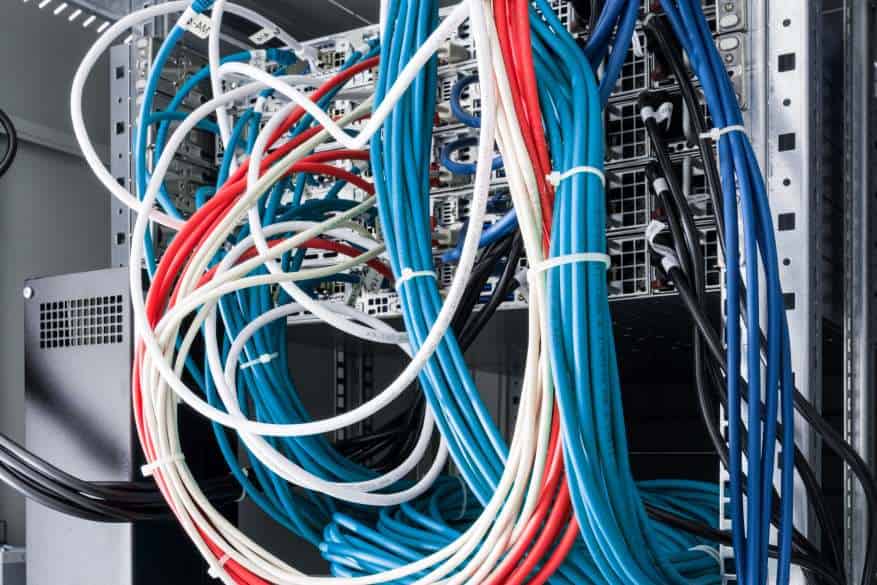

physical server rack with network cables

Key Insights & Essential Takeaways

Effective Virtual Switch Management: Use PowerShell to create, modify, and remove virtual switches and virtual networks effortlessly.
Robust VM Network Configuration: Automate the setup of network adapters, including IP addressing, VLANs, and DNS, ensuring consistency across deployments.
Automation for Consistency and Efficiency: Leverage PowerShell scripting to streamline deployments, troubleshoot network configurations, and enhance operational efficiency in Hyper-V environments.

Introduction

PowerShell is an indispensable tool for managing virtualization environments, particularly when working with Hyper-V network configurations. Its scripting capabilities allow administrators to automate the creation and management of virtual machines (VMs), virtual switches, and network adapters. This comprehensive guide is designed to walk you through key concepts, example scripts, and best practice recommendations, ensuring that your Hyper-V network automation is both efficient and reliable.

Core Areas of Hyper-V Network Automation

1. Virtual Switch Management

Virtual switches are the backbone of Hyper-V networking, providing connectivity between virtual machines and the physical network. Using PowerShell, you can create, configure, and remove virtual switches with ease.

Creating a Virtual Switch

One of the most common tasks is creating an external virtual switch that connects to a physical network adapter. The following PowerShell command exemplifies how to create a virtual switch named "ExternalSwitch" that is linked to a physical adapter called "Ethernet":

# Create a new virtual switch connected to a physical adapter
$vSwitchName = "ExternalSwitch"
$NetAdapterName = "Ethernet"
New-VMSwitch -Name $vSwitchName -NetAdapterName $NetAdapterName -AllowManagementOS $true

Removing a Virtual Switch

When the need arises to decommission a virtual switch, using the Remove-VMSwitch cmdlet ensures a smooth removal without disrupting the overall configuration. For example:

# Remove an existing virtual switch
$vSwitchName = "ExternalSwitch"
Remove-VMSwitch -Name $vSwitchName -Force

2. VM Network Adapter Configuration

Configuring network adapters for virtual machines is vital for ensuring reliable network connectivity. PowerShell allows for the addition, updating, and detailed configuration of VM adapters.

Adding a Virtual Network Adapter

To associate a VM with a virtual switch, the Add-VMNetworkAdapter cmdlet is employed. The command below demonstrates how to add a network adapter to a virtual machine called "MyVM" and link it with the "ExternalSwitch":

# Add a network adapter to a virtual machine
$vmName = "MyVM"
$vSwitchName = "ExternalSwitch"
Add-VMNetworkAdapter -VMName $vmName -SwitchName $vSwitchName

Configuring IP Address and Subnet Settings

Automating network configuration for VMs including setting static IPs, subnet masks, and default gateways can drastically reduce manual errors. In the snippet below, a static IP configuration is applied to a network adapter:

# Configure a static IP address and subnet mask for a VM
$vmName = "MyVM"
$ipAddress = "192.168.1.100"
$subnetMask = "255.255.255.0"
# Retrieve the network adapter and set its IP configuration
Get-VMNetworkAdapter -VMName $vmName | Set-VMNetworkAdapter -IPAddresses $ipAddress -SubnetMasks $subnetMask

Setting Up DNS Servers

Proper DNS configuration is essential to maintain network stability. The following PowerShell command shows how to set the DNS server for a specified virtual machine:

# Configure a DNS server for a VM network adapter
$vmName = "MyVM"
$dnsServer = "192.168.1.1"
Get-VMNetworkAdapter -VMName $vmName | Set-VMNetworkAdapter -DnsServer $dnsServer

VLAN Configuration

VLAN tagging is a commonplace requirement in segmented networks. PowerShell provides the Set-VMNetworkAdapterVlan cmdlet to configure VLAN IDs on VM adapters. This ensures that networking policies are consistently enforced:

# Configure VLAN on a VM network adapter
$vmName = "MyVM"
$VlanId = 100
Set-VMNetworkAdapterVlan -VMName $vmName -Access -VlanId $VlanId

3. VM Deployment Automation

Automating the deployment of virtual machines can be streamlined by integrating network configuration tasks within the same script. This ensures uniform environment settings across all deployed VMs.

Deploying a New VM with Custom Network Settings

The following example demonstrates the process of creating a VM, assigning it the appropriate network adapter, and configuring network settings such as IP addresses and DNS servers:

# Define VM settings and network configuration parameters
$vmName = "CustomVM"
$memory = 4GB
$cpuCount = 2
$diskPath = "C:\VMs\CustomVM.vhdx"
$ipAddress = "192.168.1.110"
$subnetMask = "255.255.255.0"
$gateway = "192.168.1.1"
$dnsServers = @("192.168.1.2", "192.168.1.3")
$vSwitchName = "ExternalSwitch"

# Create a new VM with specified resources
New-VM -Name $vmName -MemoryStartupBytes $memory -SwitchName $vSwitchName -VHDPath $diskPath

# Add network adapter and configure network settings
Add-VMNetworkAdapter -VMName $vmName -SwitchName $vSwitchName
Set-VMNetworkAdapter -VMName $vmName -IPAddresses $ipAddress -SubnetMasks $subnetMask
# To configure the gateway and DNS settings, these commands may be executed within the guest OS
# using PowerShell Direct or additional network configuration scripts

# Start the virtual machine
Start-VM -Name $vmName

Utilizing DHCP for Dynamic Network Settings

Not all deployments require static IP configurations. In environments where dynamic IP allocation is preferred, network adapters can be configured to obtain settings via DHCP:

# Create a VM and configure network settings with DHCP
$vmName = "DHCPVM"
$memory = 1GB
$diskPath = "C:\VMs\DHCPVM.vhdx"
$vSwitchName = "Default Switch"

New-VM -Name $vmName -MemoryStartupBytes $memory -SwitchName $vSwitchName -VHDPath $diskPath
# Configure VM network adapter to use DHCP typically using the DHCP flag in network adapter settings
Set-VMNetworkAdapter -VMName $vmName -DHCP
Start-VM -Name $vmName

4. Comprehensive Automation & Best Practices

To achieve consistency and efficiency in Hyper-V network automation, structure your scripts for modularity and reuse. Below are some best practices:

Modular Script Design

Break down recurring tasks into functions. For example, separate functions for creating a VM, adding network adapters, and configuring IP settings allow for easier maintenance and scalability.

Parameterization

Use parameters and variables to allow your scripts to be more flexible. Accepting variables for VM names, IP addresses, and switch names means your script can be used across different environments.

Error Handling and Testing

Always implement error handling and test scripts in a controlled environment. Commands such as Try and Catch blocks can help identify issues before running scripts in production.

Logging and Auditing

Enable logging within your scripts. Capturing the output of cmdlets not only helps in troubleshooting but also in auditing changes within your Hyper-V environment.

Comprehensive Script Overview Table

Script Task	Cmdlet/Method	Description
Create Virtual Switch	New-VMSwitch	Establishes a new virtual switch based on a physical network adapter.
Add VM Network Adapter	Add-VMNetworkAdapter	Attaches a network adapter to a specified VM and links it to a virtual switch.
Configure Static IP	Set-VMNetworkAdapter	Assigns a specific IP address and subnet mask to a VM's network adapter.
Configure DNS	Set-VMNetworkAdapter	Sets the DNS server for a VM's network adapter.
Set VLAN	Set-VMNetworkAdapterVlan	Configures VLAN tagging on a VM network adapter.
Remove Virtual Switch	Remove-VMSwitch	Deletes an existent virtual switch from the Hyper-V setup.

Additional Scripts and Advanced Scenarios

1. Script for Automated VM Creation and Network Settings

Combining the creation of a VM with immediate network configuration can reduce manual setup time and improve consistency across environments. This sample script defines settings for a new VM and immediately configures network adapters:

# Define parameters for automated VM deployment
$vmName = "AutomatedVM"
$memory = 2GB
$cpuCount = 1
$diskPath = "C:\VMs\AutomatedVM.vhdx"
$ipAddress = "192.168.1.101"
$subnetMask = "255.255.255.0"
$gateway = "192.168.1.1"
$dnsServers = @("192.168.1.2", "192.168.1.3")
$vSwitchName = "ExternalSwitch"

# Create the new VM and attach it to the designated virtual switch
New-VM -Name $vmName -MemoryStartupBytes $memory -SwitchName $vSwitchName -VHDPath $diskPath
Add-VMNetworkAdapter -VMName $vmName -SwitchName $vSwitchName

# Configure network settings for the VM adapter
Set-VMNetworkAdapter -VMName $vmName -IPAddresses $ipAddress -SubnetMasks $subnetMask
# Network gateway and DNS may require additional commands or guest OS level configuration

# Start the VM after configuration
Start-VM -Name $vmName

2. Configuring VM Network Settings Using DHCP

In scenarios where static IP addressing is not desired, you can configure the VM's network adapter to use DHCP. This approach uses a special flag or additional commands, depending on the Windows version. See the code sample below:

# Define the VM using DHCP for network configuration
$vmName = "DHCPConfiguredVM"
$memory = 1GB
$diskPath = "C:\VMs\DHCPConfiguredVM.vhdx"
$vSwitchName = "Default Switch"

# Create the new VM
New-VM -Name $vmName -MemoryStartupBytes $memory -SwitchName $vSwitchName -VHDPath $diskPath
# Set network adapter to obtain IP from DHCP (this assumes the default network adapter properties enable DHCP)
Set-VMNetworkAdapter -VMName $vmName -DHCP
Start-VM -Name $vmName

3. Script for VLAN-Tagged Networks

Virtual LAN (VLAN) configurations are particularly useful when segmenting traffic in larger networks. Below is a script that creates a VM and applies a VLAN tag to its network adapter:

# Parameters for VLAN setup
$vmName = "VLANVM"
$memory = 2GB
$diskPath = "C:\VMs\VLANVM.vhdx"
$vSwitchName = "ExternalSwitch"
$vlanId = 10

# Create the new VM
New-VM -Name $vmName -MemoryStartupBytes $memory -SwitchName $vSwitchName -VHDPath $diskPath
Add-VMNetworkAdapter -VMName $vmName -SwitchName $vSwitchName

# Configure VLAN on the VM network adapter
Set-VMNetworkAdapterVlan -VMName $vmName -Access -VlanId $vlanId
Start-VM -Name $vmName

Troubleshooting & Best Practice Recommendations

Troubleshooting Techniques

Effective troubleshooting is essential to maintain network stability in any virtualized environment. Here are some quick tips:

Use Diagnostic Cmdlets

Regularly use Get-VM, Get-VMSwitch, and Get-VMNetworkAdapter to review configurations and identify inconsistencies or issues.

Event Log Monitoring

Monitor Windows and Hyper-V event logs for error messages that may indicate network configuration issues. This is crucial for early detection of impending problems.

Testing in a Staging Environment

Before applying changes to a production Hyper-V host, test your scripts in an isolated staging environment to ensure they work as intended.
