Unlocking Coal's Secrets: A Deep Dive into the ICCP Vitrinite Classification
Discover the intricate system used by scientists to categorize vitrinite, a crucial component revealing coal's history and quality.
Vitrinite, one of the primary organic constituents (macerals) found in coal and other sedimentary rocks, plays a pivotal role in understanding the thermal history and quality of these geological materials. The International Committee for Coal and Organic Petrology (ICCP) has developed a standardized classification system to categorize vitrinite, known as the ICCP System 1994. This system is essential for geologists and engineers worldwide, providing a common language for describing and analyzing coal.
Key Insights into Vitrinite Classification
- Systematic Framework: The ICCP System 1994 divides the vitrinite maceral group into three distinct subgroups: Telovitrinite, Detrovitrinite, and Gelovitrinite.
- Detailed Differentiation: Each subgroup is further broken down into two specific macerals, resulting in six primary types of vitrinite, distinguished by their origin, morphology, and degree of alteration.
- Critical for Analysis: This classification is fundamental for determining coal rank, assessing thermal maturity (especially for hydrocarbon exploration), and understanding coal utilization potential.
The Foundation: What is Vitrinite?
Vitrinite is predominantly derived from the humic substances originating from the cell wall material (woody tissues like lignin and cellulose) of terrestrial vascular plants. During the coalification process, this plant matter undergoes complex biochemical and geochemical transformations due to increasing temperature and pressure. Vitrinite is typically the most abundant maceral group in many coals, often making up 50% to 90% of their composition. Its optical property, known as vitrinite reflectance (\(V_R\)), is a widely used indicator of thermal maturity.

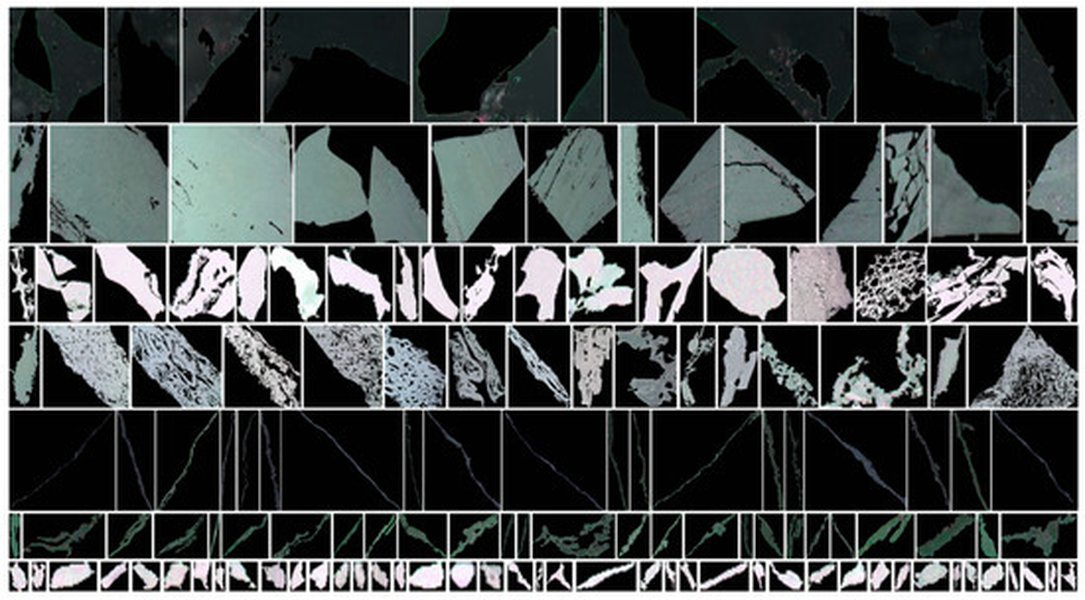

Photomicrograph illustrating different macerals in coal: (a) Vitrinite, (b) Inertinite, and (c) Liptinite. Vitrinite (a) often appears as grey, relatively homogeneous bands or particles.
The ICCP System 1994: Vitrinite Group Classification
The ICCP System 1994 classifies the vitrinite group based on the degree of preservation of the original plant cell structure, the physical form of the maceral (e.g., fragments, groundmass, infillings), and the extent of gelification (a process of homogenization and "jellying" of plant material). This systematic approach ensures consistency in petrographic analysis across different laboratories and studies.
Vitrinite Subgroups and Macerals
The classification divides vitrinite into three subgroups, each containing two macerals:
1. Telovitrinite Subgroup
Telovitrinite is characterized by the relatively good preservation of plant cell structures. It represents vitrinite derived from identifiable plant tissues where the original cellular details are still discernible to some extent.
- Telinite: This maceral shows clearly defined, well-preserved plant cell walls. The lumens (cavities within cells) may be open or filled. It provides direct evidence of the precursor plant material.
- Collotelinite: In collotelinite, the plant cell structures are still evident but are more homogenized and compacted than in telinite. Cell walls may appear swollen or fused, and lumens are typically compressed or filled with collinite (a structureless vitrinitic gel). It is often the preferred maceral for vitrinite reflectance measurements due to its homogeneity.
2. Detrovitrinite Subgroup
Detrovitrinite consists of fragmented vitrinitic material. These fragments may be derived from the degradation and reworking of larger telovitrinite pieces or other humic materials. The original plant structures are typically less evident or entirely obliterated.
- Vitrodetrinite: This maceral comprises small, discrete, angular to sub-rounded fragments of vitrinite, usually less than 10 micrometers in size. These particles are often found dispersed within a matrix of other macerals or mineral matter.
- Collodetrinite: Collodetrinite is a matrix or groundmass of fine-grained vitrinitic detritus, where individual particles may be indistinguishable. It often binds other macerals and mineral components. It appears more homogenous and gelified than vitrodetrinite.
3. Gelovitrinite Subgroup
Gelovitrinite is characterized by its highly gelified, amorphous, and often structureless appearance. It forms from the precipitation of humic gels in voids or through the complete gelification of plant tissues, obscuring original structures.
- Corpogelinite: This maceral occurs as discrete, typically rounded or ovoid bodies of gelified vitrinite. These can be infillings of plant cell lumens (phlobaphinite in older classifications), desiccation cracks, or other cavities. They appear homogeneous and lack internal structure.
- Gelinite: Gelinite forms larger, massive, and structureless bands or lenses of vitrinitic gel. It can occur as infillings of larger voids, cleats, or fractures within the coal seam. It is distinguished by its highly uniform, gel-like appearance.
Comparative Characteristics of Vitrinite Subgroups
The different vitrinite subgroups and their macerals exhibit varying degrees of structural preservation, gelification, and fragmentation. The radar chart below provides an illustrative comparison of these characteristics for the three main vitrinite subgroups. This helps in visualizing their distinguishing features which are critical for petrographic identification.
This chart illustrates generalized characteristics on a relative scale from 1 (low/small) to 10 (high/large). For example, Telovitrinite scores high on 'Cell Structure Preservation' and 'Original Tissue Integrity', while Gelovitrinite scores high on 'Degree of Gelification' and 'Structural Homogeneity'. Detrovitrinite is characterized by a high 'Level of Fragmentation'.
Hierarchical View: Vitrinite Classification Mindmap
To better understand the relationships within the ICCP vitrinite classification, the following mindmap illustrates the hierarchy from the main maceral group down to individual macerals. This visual representation clarifies how each component fits into the broader system.
(Preserved cell structures)"] id1a["Telinite
(Clear cell walls)"] id1b["Collotelinite
(Homogenized, cell structure still evident)"] id2["Detrovitrinite Subgroup
(Fragmented vitrinitic material)"] id2a["Vitrodetrinite
(Small, discrete fragments)"] id2b["Collodetrinite
(Fine-grained vitrinitic groundmass)"] id3["Gelovitrinite Subgroup
(Highly gelified, amorphous)"] id3a["Corpogelinite
(Discrete gelified bodies, cell infillings)"] id3b["Gelinite
(Massive, structureless gel)"]
This mindmap shows the three primary subgroups—Telovitrinite, Detrovitrinite, and Gelovitrinite—branching from the Vitrinite Group, with each subgroup further divided into its two constituent macerals along with brief descriptions.
Summary Table of ICCP Vitrinite Classification
The following table provides a concise summary of the ICCP System 1994 classification for the vitrinite group, outlining the subgroups, their respective macerals, and their principal distinguishing characteristics.
| Subgroup | Maceral | Principal Characteristics |
|---|---|---|
| Telovitrinite | Telinite | Well-preserved plant cell walls; original cellular structure clearly discernible. |
| Collotelinite | Homogenized layers; cell structures present but less distinct, often fused or swollen. Key maceral for reflectance. | |
| Detrovitrinite | Vitrodetrinite | Small (typically <10µm), angular or irregularly shaped vitrinitic fragments; detrital origin. |
| Collodetrinite | Fine vitrinitic groundmass binding other components; more gelified and less distinct fragments than vitrodetrinite. | |
| Gelovitrinite | Corpogelinite | Discrete, often ovoid or rounded bodies of gelified vitrinite; commonly cell infillings (e.g., phlobaphinite in older systems) or gel droplets. |
| Gelinite | Massive, structureless, homogeneous vitrinitic gel; often fills larger voids, cleats, or fractures. |
Significance in Coal Petrology and Beyond
The ICCP classification of vitrinite is not merely an academic exercise. It has profound practical implications:
- Coal Rank Determination: Vitrinite reflectance (\(V_R\)\%), primarily measured on collotelinite, is the most widely used method for determining the rank of coal, from lignite through bituminous coal to anthracite.
- Thermal Maturity Assessment: In petroleum geology, \(V_R\)\% values are crucial for assessing the thermal maturity of sedimentary source rocks, indicating whether they have entered the oil or gas generation windows. Typically, oil generation begins around 0.5–0.6\% \(V_R\), and gas generation around 1.0–1.3\% \(V_R\).
- Understanding Coal Properties: The type and abundance of different vitrinite macerals can influence coal's technological properties, such as its coking ability, combustibility, and liquefaction potential.
- Geological Interpretation: The maceral composition, including vitrinite types, provides insights into the depositional environment of the original peat, the types of precursor plant material, and the diagenetic history of the coal seam.
- Standardization: The ICCP system provides a global standard, ensuring consistency and comparability of data from different researchers and laboratories worldwide. This is vital for resource evaluation and scientific research. Standard procedures like ISO 7404-5 and ASTM D2798/D7708 govern the measurement of vitrinite reflectance.
