Unlock Seamless Serverless Workflows: Mastering AWS Lambda Pipelines

Implementing a pipeline for AWS Lambda functions is crucial for automating processes, enhancing reliability, and accelerating development in serverless architectures. Whether you need to streamline the deployment of individual functions (CI/CD) or coordinate complex workflows involving multiple functions, AWS offers a suite of powerful services and established best practices to help you succeed.

Essential Insights

Key Takeaways for Effective Lambda Pipelines

Automate Everything: Leverage services like AWS CodePipeline, CodeBuild, and CodeDeploy for robust CI/CD, automating building, testing, and deploying Lambda functions to reduce errors and increase release frequency.
Orchestrate Complex Workflows: Utilize AWS Step Functions to visually design, manage state, handle errors, and coordinate the execution of multiple Lambda functions in sequential or parallel patterns.
Embrace Best Practices: Design stateless functions, optimize configurations (memory, timeout), implement security through IAM least privilege, ensure thorough monitoring, and use Infrastructure as Code (IaC) for repeatable deployments.

Understanding the Types of Lambda Pipelines

Choosing the Right Approach for Your Needs

Before diving into implementation, it's important to distinguish between the primary types of Lambda pipelines:

CI/CD Deployment Pipelines: Focus on automating the software delivery lifecycle for individual Lambda functions or serverless applications. The goal is to reliably move code changes from source control to production through automated build, test, and deployment stages.
Workflow/Orchestration Pipelines: Focus on coordinating the execution of multiple Lambda functions (and potentially other AWS services) to accomplish a larger business process or data transformation task. These pipelines manage state, sequence, parallelism, and error handling across functions.
Event-Driven Pipelines: Often overlap with orchestration, these pipelines are triggered by events (e.g., file uploads to S3, messages in SQS, database changes) and typically involve a chain of Lambda functions processing data asynchronously.

While distinct, these pipeline types often complement each other. For example, a CI/CD pipeline is used to deploy and update the Lambda functions that participate in an orchestration workflow managed by Step Functions.

Implementing CI/CD Pipelines for Lambda Functions

Automating Your Serverless Deployments

Continuous Integration and Continuous Deployment (CI/CD) pipelines are fundamental for managing Lambda functions effectively, especially in team environments or for applications requiring frequent updates. AWS provides a native toolchain for building these pipelines.

Core AWS Services for CI/CD

AWS CodePipeline: Orchestrates the entire pipeline workflow, defining stages (Source, Build, Test, Deploy) and transitions.
AWS CodeCommit (or GitHub/Bitbucket): Serves as the source control repository where your Lambda function code and definition files (e.g., SAM templates) are stored. Changes pushed here trigger the pipeline.
AWS CodeBuild: A fully managed build service that compiles source code, runs unit tests, and packages your Lambda function and its dependencies into deployment artifacts. Build steps are defined in a buildspec.yml file.
AWS CodeDeploy: Manages the deployment of your Lambda function, enabling strategies like canary or linear deployments to gradually shift traffic to the new version, minimizing risk. It works seamlessly with Lambda versions and aliases.
AWS CloudFormation / AWS SAM (Serverless Application Model): Used for defining your Lambda function, associated resources (like API Gateway endpoints or DynamoDB tables), and deployment configurations as Infrastructure as Code (IaC). SAM provides a simplified syntax specifically for serverless applications.

Reference architecture showing a CI/CD pipeline using CodePipeline, CodeBuild, and deploying to Lambda.

Typical CI/CD Pipeline Stages

Source Stage: Connects to your repository (e.g., CodeCommit). A push to the specified branch triggers the pipeline.
Build Stage: Invokes CodeBuild. CodeBuild uses the buildspec.yml file to:
- Install dependencies.
- Run static code analysis and unit tests.
- Package the Lambda function code and dependencies (e.g., using sam package or aws cloudformation package).
- Produce deployment artifacts (e.g., packaged code zip, updated CloudFormation/SAM template).
Test Stage (Optional but Recommended): Can involve running integration tests against a staging environment deployed in a previous step.
Deploy Stage: Uses CodeDeploy (or CloudFormation directly) to deploy the new function version. CodeDeploy manages traffic shifting between the old and new versions using Lambda aliases.

CI/CD Implementation Example with SAM

Infrastructure as Code tools like AWS SAM simplify defining serverless resources. Below is a snippet from a template.yaml file defining a simple Lambda function, which would be processed during the build and deploy stages:

AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: >
  Sample SAM Template for a Lambda function

Resources:
  MyLambdaFunction:
    Type: AWS::Serverless::Function # More info: https://github.com/awslabs/serverless-application-model/blob/master/versions/2016-10-31.md#awsserverlessfunction
    Properties:
      FunctionName: my-cool-function
      CodeUri: src/ # Path to your function code
      Handler: app.lambda_handler # File and function name
      Runtime: python3.9
      MemorySize: 256
      Timeout: 30
      Description: A sample Lambda function deployed via CI/CD.
      Policies: # Define required IAM permissions here
        - AWSLambdaBasicExecutionRole
      Events:
        HelloWorld:
          Type: Api # More info: https://github.com/awslabs/serverless-application-model/blob/master/versions/2016-10-31.md#api
          Properties:
            Path: /hello
            Method: get
      AutoPublishAlias: live # Creates an alias named 'live'
      DeploymentPreference: # Configures CodeDeploy for safe deployments
        Type: Linear10PercentEvery1Minute # Example: Shift 10% traffic every minute
        Alarms:
          # Optional: CloudWatch alarms to trigger rollback
          - !Ref AliasErrorMetricGreaterThanZeroAlarm
        Hooks:
          # Optional: Lambda functions for pre/post traffic validation
          PreTraffic: !Ref PreTrafficHookLambdaFunction
          PostTraffic: !Ref PostTrafficHookLambdaFunction

Outputs:
  # API Gateway endpoint URL
  HelloWorldApi:
    Description: "API Gateway endpoint URL for Prod stage for Hello World function"
    Value: !Sub "https://${ServerlessRestApi}.execute-api.${AWS::Region}.amazonaws.com/Prod/hello/"
  MyLambdaFunctionArn:
    Description: "Lambda Function ARN"
    Value: !GetAtt MyLambdaFunction.Arn
  MyLambdaFunctionIamRoleArn:
    Description: "Implicit IAM Role created for Hello World function"
    Value: !GetAtt MyLambdaFunctionRole.Arn

Visual Guide: Deploying Lambda with AWS CI/CD Tools

This video provides a practical walkthrough of setting up a CI/CD pipeline for an AWS Lambda function using CodePipeline, CodeBuild, and CodeDeploy, illustrating many of the concepts discussed above.

Implementing Workflow/Orchestration Pipelines

Coordinating Multiple Lambda Functions

When your application involves multiple steps or requires coordination between several Lambda functions, simple event chaining can become complex and difficult to manage. AWS Step Functions is the recommended service for building robust, stateful, and observable orchestration pipelines.

Why Use AWS Step Functions?

Visual Workflows: Define your pipeline as a state machine using a JSON-based language (Amazon States Language) or visually in the AWS console. This makes complex logic easier to understand and maintain.
State Management: Step Functions automatically tracks the state of your workflow, passing data between steps (Lambda functions, other AWS services) reliably.
Built-in Error Handling & Retries: Define retry logic and fallback states directly in the workflow definition, simplifying error handling within your Lambda functions.
Integration with AWS Services: Natively integrates with Lambda, SQS, SNS, DynamoDB, Batch, ECS, API Gateway, and more, allowing you to orchestrate diverse services.
Durability & Scalability: Workflows can run for up to a year, and Step Functions handles scaling automatically.
Observability: Provides detailed execution history, visual debugging, and integrates with CloudWatch for logging and monitoring.

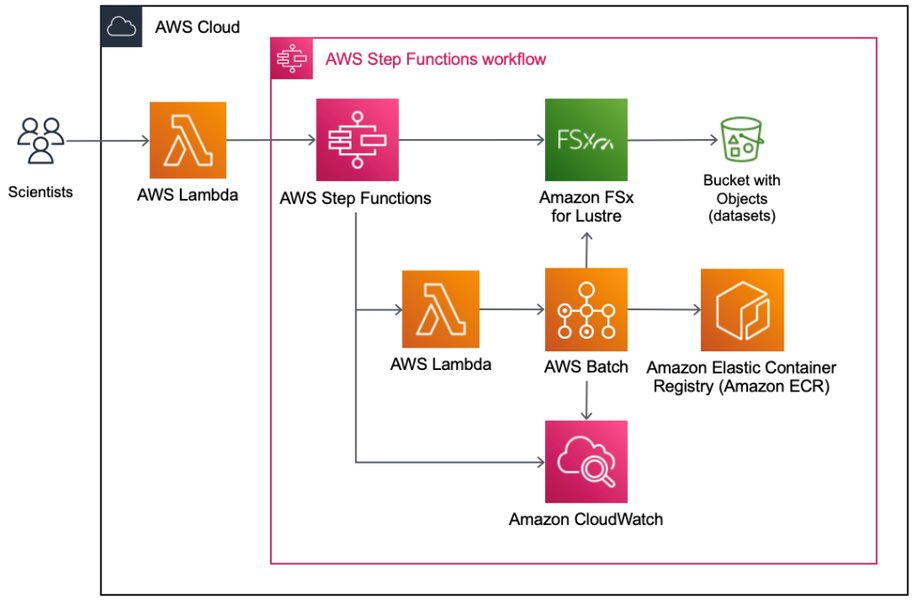

Example architecture using Step Functions to orchestrate a workflow involving Lambda and other AWS services.

Common Step Functions Patterns for Lambda Pipelines

Sequencing: Execute Lambda functions one after another, passing output from one as input to the next.
Parallel Processing: Execute multiple Lambda functions concurrently and wait for all (or some) to complete.
Branching Logic: Execute different Lambda functions based on the output of a previous step (Choice state).
Human Approval Steps: Pause the workflow and wait for an external signal (e.g., via API call) before proceeding.
Error Handling: Catch errors from Lambda functions and route to specific error-handling functions or states.

Mindmap: Orchestrating Lambda with Step Functions

This mindmap illustrates the key concepts involved in using AWS Step Functions to build Lambda orchestration pipelines.

mindmap root["AWS Lambda Orchestration Pipeline
(Step Functions)"] id1["Workflow Definition (ASL)"] id1_1["States (Task, Choice, Parallel, Wait, Map)"] id1_2["Transitions"] id1_3["Error Handling (Catch, Retry)"] id1_4["Input/Output Processing"] id2["Core Features"] id2_1["State Management"] id2_2["Visual Workflow Monitoring"] id2_3["Integration with AWS Services"] id2_4["Durability (Long-Running Workflows)"] id2_5["Scalability"] id3["Lambda Integration"] id3_1["Invoking Functions (Task State)"] id3_2["Passing Data (Input/Output)"] id3_3["Handling Function Errors"] id4["Common Use Cases"] id4_1["ETL Processes"] id4_2["Microservice Orchestration"] id4_3["Data Processing Pipelines"] id4_4["Business Process Automation"] id4_5["Batch Processing"] id5["Best Practices"] id5_1["Idempotent Functions"] id5_2["Modular Function Design"] id5_3["Optimize State Size"] id5_4["Use Appropriate State Types"] id5_5["Implement Robust Error Handling"]

Event-Driven Pipelines

Asynchronous Processing with Lambda

Many Lambda pipelines are inherently event-driven. Lambda functions can be triggered by a variety of AWS service events, forming loosely coupled pipelines:

Amazon S3 Events: Trigger a Lambda function when an object is created or deleted (e.g., image processing, data ingestion).
Amazon DynamoDB Streams: Process item-level changes in a DynamoDB table in near real-time.
Amazon SQS Queues: Decouple services; a Lambda function processes messages from a queue. Use DLQs (Dead-Letter Queues) for failed messages.
Amazon SNS Topics: Broadcast messages to multiple Lambda subscribers.
Amazon EventBridge (CloudWatch Events): Respond to custom application events, AWS service events, or scheduled events. EventBridge Pipes offer a low-code way to connect event producers and consumers (including Lambda).
API Gateway: Trigger Lambda functions in response to HTTP requests.

While simple event chaining can work for basic pipelines, Step Functions often provides better manageability, visibility, and error handling for more complex event-driven workflows involving multiple steps.

Example of an event-driven pipeline using SQS and Lambda for reliable messaging.

Comparing Pipeline Implementation Approaches

CI/CD Pipelines vs. Step Functions Orchestration

This radar chart provides a comparative view of using AWS CodePipeline (for CI/CD) versus AWS Step Functions (for workflow orchestration) based on several factors. Note that these are often used together – CodePipeline deploys the functions orchestrated by Step Functions.

This comparison highlights that CodePipeline excels at automating the deployment process itself, while Step Functions provides superior capabilities for managing the runtime execution flow, state, and error handling of multi-step workflows.

Best Practices for Lambda Functions within Pipelines

Building Robust and Efficient Serverless Components

Regardless of the pipeline type, adhering to Lambda best practices is crucial for building reliable, scalable, and cost-effective serverless applications.

Key Best Practice Areas

Category	Best Practice	Description
Design & Code	Statelessness	Functions should not rely on local state across invocations. Persist state externally (e.g., DynamoDB, S3).
	Modularity / Single Purpose	Keep functions focused on a single task. Break down complex logic into smaller, manageable functions orchestrated by Step Functions or events.
	Minimize Package Size	Include only necessary dependencies. Use layers for shared libraries to keep deployment packages small, reducing cold start times.
	Avoid Non-Public APIs	Do not use undocumented internal AWS APIs, as they can change without notice.
Configuration	Right-size Memory/CPU	Allocate sufficient memory (which also determines CPU power). Test and adjust based on performance metrics. Start low and increase as needed.
	Set Appropriate Timeout	Configure a timeout slightly longer than the expected maximum execution time (e.g., p99 latency) based on load testing. Avoid excessively long timeouts.
	Use Environment Variables	Store configuration settings like table names or API endpoints, not sensitive secrets.
Security	IAM Least Privilege	Grant only the minimum necessary permissions to the Lambda execution role.
	Manage Secrets Securely	Use AWS Secrets Manager or Parameter Store (SecureString) for sensitive data like API keys or database credentials. Do not hardcode secrets.
	Integrate Security Scanning	Include vulnerability scanning tools (e.g., Snyk, SonarQube) in your CI/CD pipeline build stage.
Performance	Optimize Cold Starts	Minimize package size, use interpreted languages (like Python/Node.js) if possible, enable Provisioned Concurrency for predictable workloads.
	Reuse Connections	Initialize database connections, SDK clients, etc., outside the main handler function to reuse them across invocations within the same execution environment.
	Optimize Dependencies	Reduce external library dependencies and load them efficiently.
Deployment (CI/CD)	Infrastructure as Code (IaC)	Define functions and related resources using SAM, CloudFormation, or Terraform for versionable, repeatable deployments.
	Versioning and Aliases	Use Lambda versions to track code changes and aliases (e.g., `dev`, `staging`, `prod`) to point to specific versions.
	Safe Deployments	Employ canary or blue/green deployments using CodeDeploy and aliases to roll out changes gradually and safely.
	Automated Testing	Include unit, integration, and potentially load tests in your CI/CD pipeline.
Error Handling	Use Dead-Letter Queues (DLQs)	Configure an SQS queue or SNS topic as a DLQ for asynchronous invocations to capture failed events for analysis or reprocessing.
	Implement Idempotency	Design functions so that processing the same event multiple times produces the same result without adverse effects (crucial for retries).
	Use Circuit Breakers	Implement patterns to prevent repeated calls to failing downstream services.
Monitoring	Leverage CloudWatch	Monitor key metrics (invocations, duration, errors, throttles), create alarms, and analyze logs.
	Enable AWS X-Ray	Use X-Ray for distributed tracing to understand performance bottlenecks and dependencies across services in your pipeline.

Frequently Asked Questions (FAQ)

What's the difference between a CI/CD pipeline and a workflow pipeline for Lambda?

A CI/CD pipeline (using services like CodePipeline, CodeBuild, CodeDeploy) automates the build, testing, and deployment of Lambda function code updates. Its goal is reliable software delivery.

A workflow/orchestration pipeline (typically using AWS Step Functions) manages the runtime execution logic involving multiple Lambda functions (and other services) to achieve a business process. It controls the sequence, parallelism, state, and error handling of the running application.

They are often used together: CI/CD pipelines deploy the Lambda functions that are then orchestrated by Step Functions.

Which AWS service is best for coordinating multiple Lambda functions?

AWS Step Functions is the recommended and most powerful service for coordinating multiple Lambda functions in a workflow. It provides visual state machines, built-in state management, error handling, retries, parallel execution capabilities, and integrations with numerous AWS services. While simple event chaining (e.g., Lambda -> SQS -> Lambda) is possible, Step Functions offers significantly more control, visibility, and resilience for complex orchestrations.

How can I make my Lambda deployments safer?

Implement these strategies within your CI/CD pipeline:

Use Lambda Versions and Aliases: Create immutable versions for each deployment and use aliases (e.g., `prod`) to point to the stable version.
Leverage AWS CodeDeploy: Configure CodeDeploy deployment preferences within your SAM/CloudFormation template (e.g., `Linear10PercentEvery1Minute`, `Canary10Percent5Minutes`) to gradually shift traffic to the new version.
Implement Automated Rollbacks: Configure CloudWatch alarms on key metrics (like error rates). Link these alarms to CodeDeploy to automatically roll back the deployment if metrics degrade.
Use Pre/Post Traffic Hooks: Implement Lambda functions triggered by CodeDeploy before and after traffic shifting to run validation tests against the new version.
Thorough Automated Testing: Include comprehensive unit, integration, and potentially canary tests in your pipeline before deploying to production.

What are the key security considerations for Lambda pipelines?

Least Privilege IAM Roles: Ensure the Lambda execution role, CodePipeline role, CodeBuild role, and CodeDeploy role have only the minimum permissions required.
Secure Secrets Management: Never hardcode secrets (API keys, passwords). Use AWS Secrets Manager or AWS Systems Manager Parameter Store (SecureString) and grant the Lambda execution role permission to retrieve them at runtime.
Input Validation: Validate and sanitize any input data received by Lambda functions (e.g., from API Gateway, S3 events) to prevent injection attacks.
Dependency Scanning: Integrate tools into your CI/CD build stage to scan your code and dependencies for known vulnerabilities.
Network Security: If Lambdas need VPC access, configure security groups and network ACLs appropriately. Only grant VPC access if necessary.
Secure CI/CD Pipeline: Protect access to your source code repository and CodePipeline itself. Ensure build environments are secure.

How do I optimize Lambda performance within a pipeline?

Minimize Cold Start Latency: Keep deployment package sizes small by including only essential code and dependencies. Use Lambda Layers for shared components. Consider Provisioned Concurrency for latency-sensitive applications.
Right-Size Memory: Lambda CPU allocation is proportional to memory. Test your function with different memory settings to find the optimal balance between performance and cost. Use tools like AWS Lambda Power Tuning.
Reuse Resources: Initialize SDK clients, database connections, and other heavy objects outside the main function handler to leverage execution environment reuse.
Optimize Code: Profile your function code to identify bottlenecks. Choose efficient algorithms and data structures.
Monitor Performance: Use CloudWatch metrics (Duration, Throttles) and AWS X-Ray tracing to identify performance issues and track improvements.
Choose Appropriate Runtime: While often negligible, compiled languages might offer slight performance benefits over interpreted ones after the initial cold start, but interpreted languages generally have faster cold starts.
