Understanding InSAR Technology

A comprehensive exploration of radar-based deformation mapping

Key Insights

Principles and Mechanism: InSAR relies on phase differences between radar signals to measure minute surface deformations and topographical changes.
Applications and Utility: It is extensively used to monitor natural hazards, tectonic movements, land subsidence, and environmental changes with high precision.
Technological Advances: Modern satellite missions like Sentinel-1 and upcoming projects have expanded InSAR's capabilities, offering global and precise Earth observation data.

Introduction to InSAR

Interferometric Synthetic Aperture Radar (InSAR) is a sophisticated remote sensing technique that has revolutionized the way scientists and engineers monitor the Earth's surface. By analyzing radar signals collected from satellites or airborne sensors, InSAR is capable of measuring even the smallest deformations in the landscape. This technology combines two or more Synthetic Aperture Radar (SAR) images acquired at different times over the same geographical area, allowing researchers to determine changes in elevation or displacement with exceptional precision.

The Fundamentals of InSAR Technology

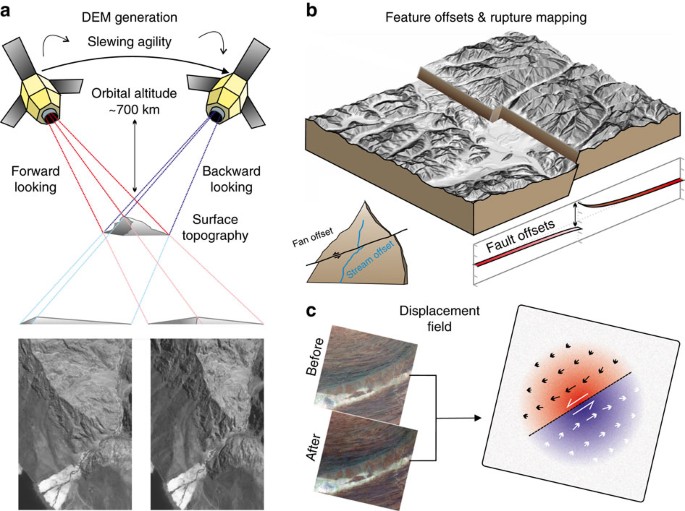

At its core, InSAR works by comparing the phase information of the radar waves that bounce off the Earth’s surface during multiple passes. Each SAR image carries a unique phase value that corresponds to the distance between the satellite and the target on the ground. By analyzing the phase difference between sequential images, scientists create an "interferogram"—a map featuring fringe patterns that visually represent variations in elevation or surface displacement.

Mechanism of Operation

The process comprises several steps:

Data Acquisition: A satellite such as Sentinel-1 collects radar images over a specific area. The advantage of radar over optical sensors is that radar waves can penetrate cloud cover and operate in darkness, ensuring reliable data regardless of weather or time of day.
Phase Comparison: The technique involves comparing the phase information of two or more images taken at different times. The differences in phase provide a measure of the physical change in the distance from the satellite to the ground.
Interferogram Generation: The phase differences are combined to produce an interferogram where colored fringe patterns indicate surface changes. Each fringe typically corresponds to a specific increment of displacement or elevation change.
Data Interpretation: Detailed analyses of the interferogram can reveal not only the extent of deformation but also its location, which is critical for assessing geological activity.

Technical Overview and Resolution

InSAR's precision often reaches the millimeter level, making it one of the most sensitive techniques available for detecting ground movement. The radar's phase data, when accurately calibrated, allow for precise measurements that have significant implications for both natural hazard assessment and infrastructure monitoring.

Leveraging Phase Information

The success of InSAR is largely based on how well phase information is captured and processed. By converting phase differences into meaningful measures of displacement, researchers can:

Identify faults in tectonic plates and monitor seismic activities, which can provide early warnings of earthquakes.
Map volcanic deformation, giving insights into magma movement and potential volcanic eruptions.
Detect patterns of ground subsidence, which are often linked to groundwater extraction, mining, or natural sediment compaction.

Applications of InSAR

The widespread applicability of InSAR spans a number of fields including geology, civil engineering, and environmental monitoring. Its ability to acquire detailed measurements makes it invaluable in various scenarios.

Natural Hazard Monitoring

Perhaps one of the most important uses of InSAR is in the identification and monitoring of natural hazards. By measuring even subtle shifts in the Earth's surface, InSAR systems provide crucial insights that help in:

Earthquakes: Detailed interferograms can pinpoint fault lines and measure pre- and post-seismic deformations. This data is not only useful for immediate disaster response but also for long-term seismic hazard assessments.
Volcanic Activities: InSAR provides real-time monitoring of volcanic domes, characterizes magma chamber dynamics, and clarifies the structural changes preceding an eruption.
Landslides and Sinkholes: The fine resolution of InSAR makes it possible to detect the early stages of landslides or subsidence phenomena, which can be particularly useful in urban environments.

Infrastructure and Urban Monitoring

Urban areas are dynamic environments where infrastructure integrity is paramount. InSAR is applied to various scenarios:

Monitoring Bridges and Buildings: InSAR techniques can reveal small structural deformations in bridges, skyscrapers, and other critical structures, thus supporting maintenance efforts and safety regulations.
Subsidence due to Urbanization: The extraction of groundwater, as well as heavy construction activities, can lead to ground subsidence. InSAR helps to monitor these changes over long periods, thereby facilitating urban planning and development.

Environmental and Geodetic Applications

Beyond hazard assessment and urban monitoring, InSAR plays a vital role in environmental studies and geodetic surveys. Its ability to observe changes over time has led to breakthroughs in understanding various natural processes such as:

Glacial Movements: InSAR is instrumental in tracking the flow and melting patterns of glaciers, which in turn provides data crucial for climate change studies.
Vegetation and Biomass Changes: Although primarily used for topographical mapping, InSAR data can sometimes support agricultural monitoring by indicating how terrain modifications affect vegetation growth.
Monitoring Land Subsidence: Environmental factors such as prolonged droughts or water-extraction activities result in subsidence, and InSAR offers a long-term perspective on these slow changes.

Technological Advancements and Future Prospects

The field of InSAR has seen significant technological progress over recent years. Enhancements in satellite technology, sensor precision, and data processing algorithms continue to expand the boundaries of what is possible in Earth observation.

Satellite Missions and Data Acquisition

The success of InSAR is closely tied to advancements in satellite missions. Prominent programs and missions have greatly improved the availability and frequency of high-quality data:

Sentinel-1: Operated by the European Space Agency (ESA), Sentinel-1 has become a workhorse for InSAR applications. With its high revisit rate and global coverage, it offers consistent data that can be used to build long-term deformation records.
NASA-ISRO SAR Mission (NISAR): This upcoming mission represents a collaborative effort between NASA and ISRO, promising enhanced imaging capabilities that will further refine our capacity to monitor Earth's surface.

Improved Resolution and Data Processing

With each new generation of satellites, the resolution of radar data has improved. At the same time, advances in computational processing and algorithms have allowed for the robust analysis of interferograms. These developments mean that InSAR can now detect ground displacements on the order of millimeters. The high sensitivity and rapid revisit times offered by modern InSAR systems are transforming how researchers observe and mitigate natural hazards.

Challenges and Ongoing Research

Despite its advantages, InSAR also presents several challenges. Atmospheric disturbances, vegetation cover, and temporal decorrelation can interfere with phase measurements, sometimes complicating the interpretation of interferograms. Researchers continue to develop correction algorithms and enhanced processing methods to mitigate these effects.

Ongoing research aims to further integrate InSAR data with other remote sensing tools, such as LiDAR and optical imaging, to develop comprehensive models of Earth's dynamic processes. These interdisciplinary approaches are promising avenues for improving both the accuracy and applicability of deformation monitoring techniques.

Summary Table of InSAR Features

Feature	Description
Principle	Uses phase differences between SAR images for measuring ground displacement.
Precision	Capable of millimeter to centimeter resolution measurements.
Data Acquisition	Utilizes spaceborne sensors such as Sentinel-1 and upcoming missions like NASA-ISRO SAR Mission.
Applications	Natural hazard monitoring, urban infrastructure analysis, environmental studies, glacial dynamics.
Challenges	Atmospheric interference, temporal decorrelation, vegetation effects.
Processing	Utilizes interferogram generation and advanced correction algorithms.

Detailed Applications and Impact

InSAR delivers critical insights in various real-world scenarios. In natural disaster management, for example, the technology’s high sensitivity allows researchers to observe pre-seismic deformations that can act as precursors to earthquakes. Detailed maps generated via InSAR inform governments and emergency response teams about regions at increased risk, thus facilitating timely evacuations or infrastructural reinforcements.

In the realm of environmental monitoring, continuous satellite observations empower scientists to quantify the impacts of climate change on terrains such as glaciers, ice-sheets, and even coastal regions experiencing gradual subsidence due to rising sea levels. These measurements are indispensable for refining climate models and predicting future environmental trends.

Furthermore, urban planning benefits from InSAR’s capabilities. With accurate measurements of ground subsidence and structural movement, cities can optimize their utility networks, maintain bridges and buildings, and implement improvements in construction standards. The integration of InSAR data in civil engineering practices has paved the way for safer and more robust urban infrastructures.

The environmental benefits are equally profound. By detecting slow, progressive deformations, InSAR helps monitor the impacts of water extraction and mining activities—a vital feature for preserving natural resources and ensuring sustainable land use.
