Comprehensive Overview of IONICON PTR-TOF Instruments

Advanced Real-Time VOC Analysis with Cutting-Edge Mass Spectrometry

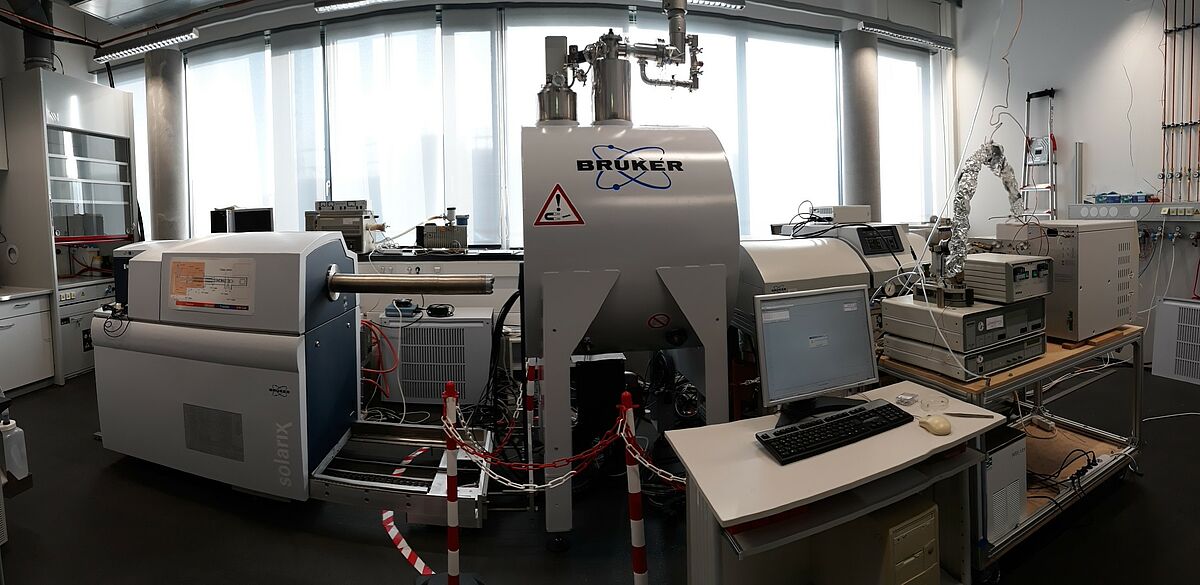

high resolution mass spectrometer in lab

Key Takeaways

Ultra-Sensitive Detection: IONICON PTR-TOF instruments offer sub-parts per trillion by volume (pptv) sensitivity, enabling the detection of trace volatile organic compounds (VOCs) in real-time.
High Mass Resolution: With mass resolutions exceeding 6000 m/Δm, these instruments can effectively separate isobaric compounds, ensuring accurate molecular identification.
Interference Mitigation Techniques: Advanced features such as dynamic humidity compensation, selective reagent ionization, and sophisticated ion guides minimize potential interferences, enhancing measurement reliability.

Introduction

The IONICON PTR-TOF (Proton Transfer Reaction Time-of-Flight) mass spectrometers represent a pinnacle in analytical instrumentation for the real-time detection and analysis of volatile organic compounds (VOCs). These instruments are pivotal in various fields, including environmental monitoring, industrial emissions analysis, food research, and breath analysis, owing to their exceptional sensitivity, high mass resolution, and rapid response times.

Principle Characteristics

Technology Overview

Proton Transfer Reaction Mass Spectrometry (PTR-MS) is the foundational technology behind IONICON PTR-TOF instruments. This technique involves the ionization of VOCs through proton transfer reactions, utilizing hydronium ions (H₃O⁺) to selectively protonate analyte molecules with higher proton affinity than water, resulting in the formation of protonated analyte ions (MH⁺). The Time-of-Flight (TOF) component subsequently determines the mass-to-charge ratios (m/z) of these ions based on their flight times in a high vacuum environment.

High Sensitivity and Detection Limits

IONICON PTR-TOF systems are engineered for ultra-sensitive detection, achieving limits as low as sub-parts per trillion by volume (pptv). The PTR-TOF 6000 X2 model, for instance, boasts detection limits below 1 pptv for specific compounds. This level of sensitivity is crucial for applications requiring the identification and quantification of trace-level VOCs in complex mixtures.

High Mass Resolution and Isobaric Separation

Mass resolution in PTR-TOF instruments ranges from 2000 to over 8000 m/Δm (Full Width at Half Maximum - FWHM), enabling the effective separation of isobaric compounds—those with identical nominal masses but different chemical structures. This high resolution is essential for accurately distinguishing and identifying compounds in environments with diverse VOC profiles.

Ionization Mechanism: Proton Transfer Reaction

The soft ionization process employed by PTR-MS minimizes fragmentation, preserving the molecular integrity of analyte ions. This selective ionization not only reduces spectral complexity but also enhances the precision of molecular identification. By targeting compounds with higher proton affinities, PTR-TOF instruments effectively filter out common atmospheric constituents like N₂, O₂, and CO₂, which do not undergo protonation under standard operating conditions.

Operational Features: Real-Time Analysis and Minimal Sample Preparation

One of the standout features of IONICON PTR-TOF systems is their ability to perform real-time analysis with response times of less than 100 milliseconds. The direct gas injection methodology eliminates the need for extensive sample preparation, facilitating continuous monitoring in dynamic sampling environments. This capability is particularly advantageous for tracking rapid changes in gas composition, such as those encountered in environmental monitoring or industrial processes.

Key Performance Features

Ultra-Sensitive Real-Time Trace Gas Analysis

IONICON PTR-TOF instruments excel in detecting VOCs at extremely low concentrations in real-time. Their sensitivity enables the identification of trace gases that are often undetectable by other analytical methods, making them invaluable tools in fields like atmospheric chemistry and medical diagnostics.

Broad Mass Range and High Resolution

The broad mass range, coupled with high mass resolution, allows IONICON PTR-TOF systems to detect and resolve a wide array of compounds, including those that are isobaric. This feature ensures comprehensive coverage of VOC profiles, essential for accurate environmental assessments and complex mixture analyses.

Minimal Sample Preparation

The gas-phase ionization under ambient conditions negates the need for sample pre-treatment, streamlining the analytical process. This attribute not only reduces operational complexity but also preserves the integrity of the sample, allowing for more accurate and reliable measurements.

Quantitative Performance and Dynamic Range

With excellent linearity over a wide concentration range and known reaction rate coefficients, IONICON PTR-TOF instruments provide robust quantitative data. Their dynamic range and fast ion-molecule reaction kinetics enable the tracking of rapid compositional changes, which is critical for dynamic monitoring applications.

Interference and Challenges

Fragmentation and Ionization Processes

Despite the soft ionization approach, IONICON PTR-TOF instruments can experience fragmentation and cluster formation under certain conditions, such as higher electric field strengths (E/N ratios). These processes can lead to the formation of water clusters like H₃O⁺(H₂O)n, complicating spectral interpretation and ion assignment.

Humidity Effects and Dynamic Humidity Compensation

Variations in ambient humidity can significantly impact ion chemistry, leading to enhanced cluster formation and altered proton transfer efficiencies. IONICON addresses this through Dynamic Humidity Compensation (DHC) technology, which adjusts measurement parameters in real-time to mitigate humidity-induced artifacts, ensuring consistent accuracy across diverse environmental conditions.

Overlapping Mass Peaks and Isobaric Compounds

Even with high mass resolution, complex mixtures may contain isobaric compounds that produce overlapping peaks. This spectral overlap can hinder accurate compound identification and quantification. To address this, IONICON PTR-TOF systems may employ additional separation techniques, such as fast gas chromatography (fastGC) or tandem mass spectrometry (MS/MS), to enhance compound differentiation.

Detector Aging and Mass Discrimination

Extended use can lead to aging of the micro-channel plate (MCP) detectors, resulting in mass discrimination and non-linearity effects. These changes can compromise measurement accuracy over time. Regular calibration and maintenance are essential to mitigate these issues and maintain instrument performance.

Background Ions and Chemical Noise

Ambient air contaminants and residual gases within the instrument can contribute to background signals and chemical noise, potentially obscuring target analyte signals. Implementing rigorous calibration protocols and maintaining instrument cleanliness are critical for minimizing these interferences.

Matrix Effects

In complex sampling environments, matrix components can influence ionization efficiency, leading to suppression or enhancement of target analyte signals. This matrix effect can skew quantification and necessitates the use of correction algorithms or targeted reagent ionization to ensure accurate measurements.

Interference Mitigation Strategies

Selective Ionization Techniques

By utilizing selective reagent ionization (SRI/SRI+), IONICON PTR-TOF instruments can target specific compounds, thereby reducing interference from non-target species. Options such as NO⁺, O₂⁺, or Kr⁺ ions allow for tailored ionization pathways, enhancing selectivity and minimizing spectral overlaps.

High Mass Resolution and Advanced Ion Guides

The incorporation of advanced ion guides like the ION-BOOSTER funnel and hexapole ION-GUIDE enhances ion transmission and resolution. These components focus and guide ions more effectively into the TOF analyzer, thereby improving mass resolution and reducing the likelihood of isobaric overlaps.

Dynamic Humidity Compensation (DHC)

To counteract humidity-related interferences, IONICON employs DHC technology, which dynamically adjusts instrument parameters based on real-time humidity measurements. This ensures consistent proton transfer efficiencies and minimizes the formation of water clusters, maintaining measurement accuracy across varying environmental conditions.

Pre-Separation Techniques

Integrating pre-separation methods such as fast gas chromatography (fastGC) can further distinguish between isobaric and complex compounds before ionization. This additional separation step enhances compound specificity and reduces spectral ambiguities, facilitating more accurate analysis.

Regular Calibration and Maintenance

Maintaining calibration standards and performing routine maintenance are essential practices for mitigating detector aging and ensuring consistent instrument performance. Regular calibration ensures that mass discrimination and non-linearity effects are accounted for, preserving the accuracy and reliability of measurements over time.

Operational Features and Functional Enhancements

Direct Gas Injection and Minimal Sample Handling

IONICON PTR-TOF systems are designed for direct gas injection, eliminating the need for extensive sample handling or preparation. This feature not only streamlines the analytical process but also preserves the integrity of the sample, allowing for more accurate real-time monitoring.

Real-Time Data Acquisition and High Temporal Resolution

The combination of fast ion-molecule reaction kinetics and TOF detection enables IONICON PTR-TOF instruments to acquire data in real-time with high temporal resolution. This capability is crucial for applications that require monitoring of rapid changes in VOC concentrations, such as industrial emission controls or breath analysis in medical diagnostics.

Optional Reagent Ion Flexibility

Optional features like Selective Reagent Ionization (SRI/SRI+) provide additional flexibility in targeting specific analytes. By selecting different reagent ions, users can tailor the ionization process to focus on particular compound classes, enhancing the specificity and sensitivity of the analysis.

Compact and Transportable Design

With a compact and transportable platform, IONICON PTR-TOF systems are suitable for field deployments and on-site analyses. This portability, combined with controlled ion source parameters, ensures reproducible and reliable measurements across diverse operational settings.

Comparison of IONICON PTR-TOF Models

Performance Specifications

Model	Detection Limit (cps/ppbv)	Mass Resolution (m/Δm)	Sensitivity (cps/ppbv)	Key Features
PTR-TOF 4000	6000 cps/ppbv	>4000	Up to 8000 cps/ppbv with X2	Compact, ultra-sensitive, high-resolution analysis
PTR-TOF 6000	2000 cps/ppbv	>6000	Up to 8000 cps/ppbv with X2	Incorporates TRU-E/N™ and X2 technology for enhanced sensitivity and resolution
PTR-TOF 1000	>200 cps/ppbv	>1500	Not specified	Entry-level instrument offering fast and sensitive detection for complex VOC mixtures

Advanced Technologies Enhancing IONICON PTR-TOF Performance

ION-BOOSTER Funnel

The ION-BOOSTER funnel is a critical component that enhances ion transmission efficiency, leading to increased sensitivity. By effectively funneling ions into the mass analyzer, it ensures that even low-concentration analytes are efficiently detected without significant loss.

Hexapole ION-GUIDE

The hexapole ION-GUIDE focuses and guides ions with precision, improving mass resolution and sensitivity. This advanced ion guide design minimizes ion losses and optimizes the flight path within the TOF analyzer, contributing to the instrument's overall performance.

TRU-E/N™ Technology

TRU-E/N™ technology refers to the optimized electric field and gas number density parameters within the PTR-TOF instrument. This optimization enhances the efficiency of proton transfer reactions, boosting both sensitivity and resolution while maintaining rapid response times.

Applications of IONICON PTR-TOF Instruments

Environmental Monitoring

In environmental studies, IONICON PTR-TOF instruments are employed to monitor atmospheric VOCs, enabling the assessment of air quality, detection of pollutants, and study of atmospheric chemistry. Their high sensitivity and real-time capabilities are essential for tracking dynamic changes in pollutant concentrations.

Industrial Emissions Analysis

Industries utilize PTR-TOF instruments to monitor emissions, ensuring compliance with environmental regulations. The ability to detect trace-level VOCs facilitates the identification of emission sources and the implementation of effective mitigation strategies.

Food and Beverage Research

In the food industry, PTR-TOF instruments analyze flavor compounds and monitor product quality. Their capability to detect a broad range of VOCs allows for comprehensive flavor profiling and quality control, ensuring product consistency and consumer satisfaction.

Medical Diagnostics and Breath Analysis

Medical applications include the analysis of breath samples for biomarkers associated with various diseases. The high sensitivity and specificity of IONICON PTR-TOF instruments enable the detection of trace biomarkers, aiding in non-invasive diagnostics and disease monitoring.

Challenges and Future Directions

Addressing Complex Interference Patterns

As applications of PTR-TOF instruments expand, the complexity of interference patterns increases, especially in highly varied sampling environments. Future developments aim to enhance computational algorithms for real-time spectral deconvolution and compound identification, further improving data accuracy and reliability.

Integration with Complementary Analytical Techniques

Integrating PTR-TOF instruments with complementary techniques such as mass spectrometry/mass spectrometry (MS/MS) or chromatographic separations can enhance compound specificity and resolve complex mixtures more effectively. This hybrid approach is a focus for advancing analytical capabilities and expanding application scopes.

Miniaturization and Portability Enhancements

Ongoing advancements aim to further miniaturize PTR-TOF systems, enhancing portability without compromising performance. Portable PTR-TOF devices would facilitate on-site and field analyses, broadening the range of applications and enabling more flexible deployment scenarios.

Enhanced Data Processing and Machine Learning Integration

Incorporating machine learning and advanced data processing techniques into PTR-TOF systems can significantly improve data interpretation and compound identification. These technologies enable automated pattern recognition and predictive analytics, streamlining operations and enhancing analytical precision.

Conclusion

IONICON PTR-TOF instruments stand at the forefront of real-time volatile organic compound analysis, offering unparalleled sensitivity, high mass resolution, and rapid response times. Their sophisticated ionization mechanisms and advanced detection technologies enable accurate and comprehensive monitoring across a multitude of applications, from environmental monitoring to medical diagnostics. While challenges such as fragmentation, humidity effects, and spectral overlaps exist, IONICON's innovative mitigation strategies and ongoing technological advancements continue to enhance the reliability and versatility of PTR-TOF systems. As analytical demands evolve, IONICON PTR-TOF instruments are poised to adapt and expand their capabilities, maintaining their pivotal role in advanced mass spectrometry applications.
