LED Project Troubleshooting Tips

Comprehensive Guide to Diagnosing and Fixing LED Issues

Highlights

Ensure proper power supply and wiring integrity – Matching voltage and current ratings is essential.
Inspect LED components meticulously – Evaluate drivers, connections, and potential damage or overheating.
Follow systematic troubleshooting steps – Isolate problems by testing individual segments and consulting manufacturer guidelines.

Introduction to LED Project Troubleshooting

Troubleshooting an LED project can seem daunting at first, especially when dealing with intricacies like varied voltage requirements, diverse wiring setups, and environmental factors. LEDs are energy-efficient and long-lasting; however, several issues may arise that hinder their optimal performance. This comprehensive guide details common problems encountered in LED projects and provides actionable steps to diagnose and effectively solve these issues. Whether you are a hobbyist or a professional installer, understanding the fundamentals of LED troubleshooting is crucial to ensure safety, efficiency, and longevity of your lighting systems.

Fundamentals of LED Technology and Common Issues

LED (Light Emitting Diode) technology is celebrated for its energy efficiency and long service life. However, since LEDs operate based on precise electrical requirements, even minor deviations in voltage, current, or temperature can cause performance issues. Common issues include flickering, dimness, uneven brightness, buzzing sounds, and complete failure of LED strips or fixtures. Many of these issues stem from problems with the power supply, wiring, LED drivers, and installation methods. A systematic approach to troubleshooting not only identifies the root causes but also prevents future occurrences by ensuring each component is compatible and properly installed.

Step-by-Step Troubleshooting Process

1. Power Supply Considerations

Checking Voltage and Current Requirements

The first and foremost step in troubleshooting any LED project is to examine the power supply. LEDs have specific voltage and current ratings which must be met. Use a multimeter to measure the voltage at the LED fixture’s input. If the measured voltage is significantly lower than the rated value, the LED may underperform or not illuminate entirely. Similarly, ensure that the current provided is adequate; an insufficient current supply may lead to dimness or intermittent functionality.

Additionally, verify that the power supply’s output rating is compatible with the overall load of your project. If multiple LED strips are being used, calculate the total wattage required and confirm that the power supply can support it. If not, consider upgrading to a larger capacity power source or distributing the load across multiple supplies.

Table: Power Supply and LED Compatibility

Parameter	Description	Recommended Check
Voltage	Ensure supply voltage matches LED specifications	Measure with a multimeter
Current	Supply current must match or exceed LED requirements	Calculate total wattage and verify output current
Wiring Quality	All connections must be secure and properly insulated	Inspect visually and test continuity

Proper verification of these parameters not only guarantees performance but also minimizes risks such as overheating and inefficient power use.

2. Wiring and Connection Integrity

Inspection and Verification

Wiring issues are among the most common causes of poor LED performance. A loose or damaged connection can manifest as flickering lights, dim output, or even complete failure of an LED segment. Here are the steps to ensure wiring integrity:

Visual Inspection: Check all connectors, solder points, and wiring paths. Look for signs of wear like frayed insulation, corrosion, or burn marks. If any portion appears damaged, switching out the wire or re-soldering is advised.
Continuity Testing: Using a multimeter, test for continuity in your wiring circuits. This confirms that electrical connections are uninterrupted and secure.
Secure Connections: Ensure that every connection, especially at junctions or LED terminations, is firmly attached. Loose connections can lead to unexpected voltage drops.

Attention to detail while inspecting and troubleshooting wiring can preempt many LED performance issues and also reduces risks related to short circuits and electrical hazards.

3. Examining LED Drivers and Controllers

Role of the LED Driver

An LED driver is designed to regulate the power supplied to the LEDs, ensuring consistent performance. Problems with the driver – such as inadequate power regulation or failure to meet the LED’s demand – often result in flickering or faint lighting. To troubleshoot:

Multimeter Testing: Measure the output voltage and current of the driver. Comparing these measurements with the LED’s specified requirements can highlight discrepancies.
Driver Replacement: If irregularities persist, replacing the driver with a high-quality, correctly rated unit might resolve the issues.
Compatibility Check: Confirm that the driver is intended for use with the particular type of LED you are employing. Mismatches in compatibility often lead to degraded performance.

Common Symptoms of Faulty LED Drivers

Typical signs of driver failure include intermittent lighting, flickering, buzzing sounds, or uneven brightness. Early driver failure may also lead to heat buildup, further impacting the performance and longevity of your LED project.

4. Identifying LED-Specific Faults

Testing Individual LED Segments

In projects that involve LED strips or arrays, a systematic isolation of individual LEDs or segments is vital. This method allows you to pinpoint the exact location of the malfunction. Steps include:

Segment Testing: Disconnect portions of the LED strip and test each segment independently to identify any anomalies.
Component Replacement: Should a particular section or LED prove faulty, replacing the malfunctioning unit often resolves the issue. In high-density LED arrays, even one dead element can impact overall performance.

Care must be taken to ensure that all components in the LED array, such as resistors, if present, and connectors, are intact and properly rated to prevent issues like color inconsistency or uneven output.

Uncovering Flickering and Inconsistent Lighting

Flickering is one of the most common complaints with LED installations. This can result from various factors:

Voltage Fluctuations: Even small discrepancies in the voltage supplied to the LEDs can cause noticeable flicker. Comparing voltage readings at various points in the circuit can help identify sources of such fluctuations.
Dimmer Incompatibility: Many LED setups incorporate dimmer switches. However, not all dimmers are compatible with LED technology, leading to unstable light output. Always ensure the dimmer switch is LED-compatible before installation.
Heat-Related Variations: Prolonged operation or improper heat dissipation may lead to temperature-induced flickering. Ensuring adequate ventilation and heat sinking helps mitigate this problem.

5. Environmental and Installation Considerations

Installation Best Practices

The installation environment can have a significant impact on LED performance. Factors such as ambient temperature, humidity, and even the physical mounting of the LED can affect the electrical characteristics:

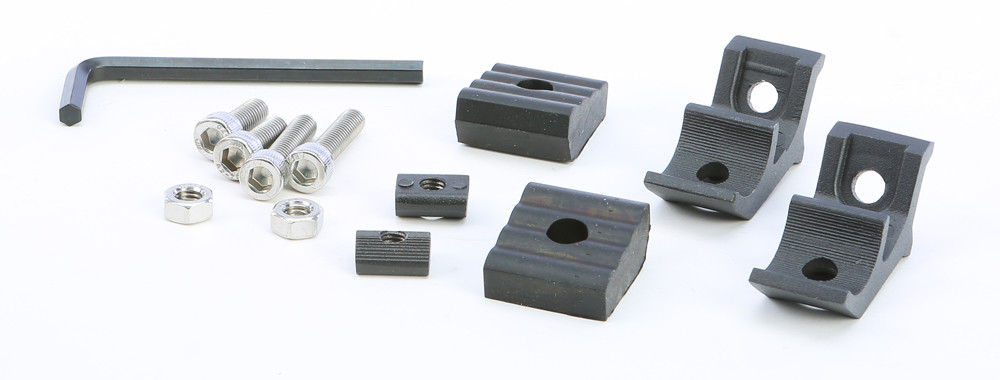

Proper Mounting: Ensuring that the LED fixtures are mounted securely and oriented correctly improves heat dissipation and performance.
Ventilation and Cooling: LEDs, especially high-powered ones, generate heat. Adequate ventilation and heat sinks are critical to prevent overheating, which can lead to premature failure or flickering.
Environmental Protection: Protecting LED installations from moisture, dust, and corrosive elements is essential. Using moisture-proofing measures and sealing vulnerable components can prevent damage over time.

Following manufacturer documentation and adhering to proper installation guidelines is crucial. Compatibility between fixtures, mounting surfaces, and electrical installations dramatically improves overall system performance.

Considering the Impact of Long Wire Runs

Especially in large-scale LED installations, the length of wiring can introduce challenges. Voltage drop may occur over extended wire runs, resulting in dimmer light output in distal sections of the installation.

Mitigating Voltage Drop: Consider using thicker wires or multiple power injection points along the LED strip. This ensures a more consistent voltage level throughout the project.

Proper planning during design and installation phases - such as performing calculations to determine optimal wire gauge and layout - can significantly reduce issues related to voltage drops and inconsistent lighting.

6. Safety Precautions During Troubleshooting

Pre-Troubleshooting Checks

Safety must always come first when working with electrical projects. LED systems, while generally low voltage, can still pose electrical hazards if handled carelessly.

Disconnect Power: Always disconnect the power source before initiating any troubleshooting or re-wiring activities. This prevents accidental shocks or short circuits.
Wear Safety Gear: Utilize appropriate safety gear such as gloves and safety goggles. This is particularly important when soldering or working with exposed connections.
Use Insulated Tools: Tools with proper insulation reduce the risk of accidental electrical contact.

Adhering to these safety precautions not only minimizes personal risk but also reduces the likelihood of inadvertently damaging the LED setup.

Advanced Troubleshooting Techniques

Circuit-Level Diagnostics

Utilizing a Multimeter

A multimeter is one of the most useful tools in diagnosing LED issues. By measuring provided voltage, current, and resistance, you can gain a comprehensive understanding of potential problems:

Voltage Measurement: Compare the measured voltage with the specified voltage requirements of your LEDs.
Current Verification: Ensure that the LED driver’s current output is adequate for the number of LEDs in the circuit.
Continuity Testing: Identify breaks or high resistance in wiring or solder joints.

Data collected from these tests can highlight subtle issues such as intermittent connections in a larger array or indicate the need for additional power injection.

Using a graph or voltage drop table can further assist in systematically troubleshooting longer LED installations:

Voltage Drop Considerations

Voltage drops are a common issue in extended LED circuits. This tends to occur due to long wiring runs or insufficient gauge wires. A good practice is to calculate the voltage drop over each segment using the formula:

\( V_{drop} = I \times R \)

where \( I \) is the current and \( R \) is the resistance of the wire segment. Ensuring that the voltage at the far end remains within acceptable limits is essential for proper LED function. If significant drop occurs, consider installer solutions such as reducing the wire length, using a thicker gauge, or adding additional power feeds along the strip.

Environmental Diagnostics

Monitoring Temperature and Humidity

Environmental factors like excessive heat or humidity can exacerbate LED issues. High ambient temperatures may lead to overheating of the LED and its driver, while high humidity can affect wiring integrity over time. Monitoring these variables is critical, especially for outdoor or industrial LED installations.

Consider installing temperature and humidity sensors near key LED installations to ensure that operating conditions remain within recommended ranges. If environmental conditions are found to be detrimental, implementing cooling solutions such as heat sinks or fans, and protective enclosures, can significantly prolong the lifespan of the LED system.

Systematic Troubleshooting Workflow

Methodical Approach to LED Troubleshooting

Step 1: Identification

Begin by identifying the symptom. Whether it is flickering, dim lighting, buzzing, or complete failure, understanding the specific issue helps guide the investigation. Create a checklist based on observed issues to systematically test each component.

Step 2: Isolation

Break down the LED system into individual components – the power supply, wiring, LED driver, and the LED array itself. Test each separately with the appropriate tools (multimeter, continuity tester) to isolate the area of concern.

Step 3: Verification

Once the problematic area is identified, verify the specifications against manufacturer guidelines. Check connection integrity, substitute components if necessary, and ensure that environmental and electrical requirements are being met.

Step 4: Remediation

Apply the necessary fixes, which could involve replacing a faulty LED driver, re-soldering a loose connection, upgrading the power supply, or providing better ventilation. After remediation, test the entire system to ensure that the issue has been resolved.

Using this systematic workflow not only fixes the present issue but also helps prevent future problems by highlighting areas that may require design improvements or regular maintenance.

Maintaining LED Projects: Preventive Measures

Regular Maintenance and Inspections

One of the most effective ways to minimize LED project issues is by implementing a maintenance plan. Regularly inspect your LED installations for wear, loose connections, and environmental damage. Scheduled maintenance can help catch minor issues before they escalate into major problems.

Routine Visual Inspections: Check for signs of discoloration, overheating, or physical damage.
Electrical Testing: Use tools like a multimeter to periodically verify that voltage and current remain within specified limits.
Cleaning and Dust Removal: Dust and debris can insulate heat, leading to overheating. Ensure fixtures and wiring are kept clean.

Documentation and Manufacturer Guidelines

Always refer to the manufacturer documentation for installation, wiring, and performance specifications. Take notes of any encountered issues and remedies applied. Over time, this documentation becomes invaluable for diagnosing recurring problems or upgrading the installation.

Additionally, staying informed with online forums, manufacturer support websites, and technical guides can provide insights into the latest troubleshooting techniques and common issues observed by others in the LED industry.

Conclusion and Final Thoughts

LED projects, while offering exceptional energy efficiency and longevity, require careful planning, execution, and maintenance to function at their optimum. The troubleshooting process involves a systematic inspection of the power supply, wiring, LED drivers, and individual components. Starting with verifying voltage and current requirements, you can quickly narrow down the areas that may be problematic. Checking connections, ensuring compatibility, and considering environmental conditions such as heat and humidity are equally important.

A methodical approach – identifying issues, isolating components, verifying against standards, and making incremental changes – is the key to solving even the most challenging LED problems. By following these steps and committing to regular maintenance, you can minimize downtime, reduce potential hazards, and extend the lifespan of your LED projects.

The insights provided in this guide are intended for both those new to LED installations and experienced practitioners. With attention to detail, one can not only resolve current issues but also design robust systems that mitigate future problems. Ultimately, successful LED troubleshooting leads to more reliable, efficient, and visually appealing lighting installations.
