Lateral Flow Assays Using Carbon Dots

Exploring innovative biosensing techniques with enhanced sensitivity and versatility

Key Highlights

Enhanced Sensitivity: Carbon dots significantly improve the detection limits of lateral flow assays.
Versatile Applications: From viral diagnostics to food and environmental safety testing, these assays are remarkably adaptable.
Cost-Effectiveness & Sustainability: Ease of manufacturing and promising green synthesis methods contribute to sustainable diagnostics.

Introduction to Lateral Flow Assays and Carbon Dots

Lateral flow assays (LFAs) are widely recognized as rapid and user-friendly diagnostic devices. They have traditionally played an important role in point-of-care testing by offering quick results without the need for complex laboratory equipment. Typically, LFAs operate on the principles of capillary action; when a liquid sample is applied, it moves laterally across a test strip where specific reagents capture target analytes.

Recent advancements in nanotechnology have led to the integration of carbon dots (CDs) into these assays. Carbon dots are fluorescent nanomaterials known for their remarkable optical properties, including high quantum yield, tunable emission wavelengths, and excellent photostability. Their unique characteristics enable researchers to overcome several limitations inherent in traditional detection methods, thereby facilitating ultrasensitive, rapid, and specific assays. This integration is revolutionizing the biomedical diagnostics, environmental monitoring, and food safety fields.

Fundamental Properties of Carbon Dots

Optical and Physical Properties

Carbon dots are a type of carbon-based nanomaterial that have gained broad attention due to their luminous properties. Their fluorescence is highly tunable, meaning that by modifying their surface chemistry or size, one can adjust their emission wavelengths and intensity. The large surface area and ease of functionalization also allow these nanomaterials to be conjugated with various biomolecules, such as antibodies or antigens.

These essential properties make carbon dots superb candidates for serving as fluorescent labels in LFAs. Their light-emitting ability provides a robust signal output even when low levels of target analytes are present. This leads to a higher sensitivity compared to traditional colorimetric or gold nanoparticle-based assays.

Tunable Emission and Photostability

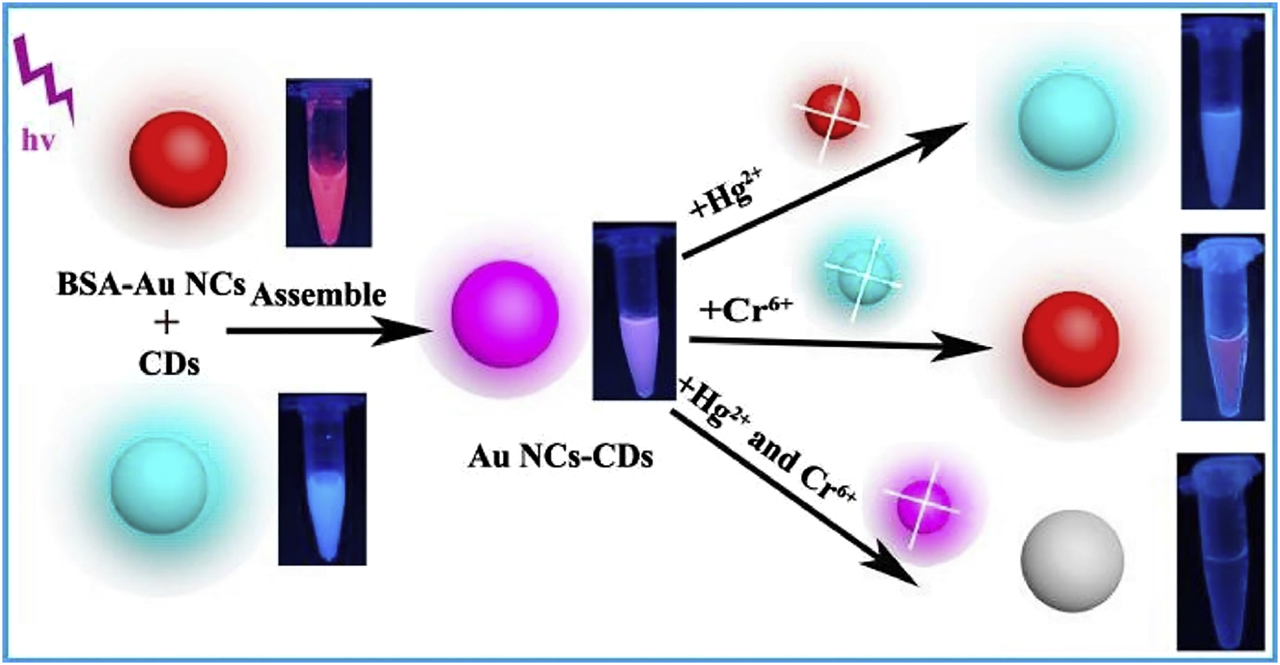

One of the outstanding advantages of carbon dots is the capability to adjust their emission profiles. Researchers can modify the synthesis process to achieve different fluorescence colors. This flexibility allows for the design of multiplexed assays in which several targets can be detected simultaneously by using carbon dots that emit distinct colors. Moreover, their excellent photostability ensures that the signal remains consistent over extended periods and under varying conditions, making them reliable for long-term diagnostic applications.

Mechanisms and Enhancements Provided by Carbon Dots in LFAs

Sensitivity and Signal Amplification

In LFAs, sensitivity is one of the critical parameters that determine the assay's effectiveness in detecting low concentrations of an analyte. Carbon dots improve this sensitivity by generating a strong fluorescent signal that can be detected even at very low concentrations. Their dual-emission properties further enhance this advantage, allowing detection systems to calibrate using ratiometric methods. This provides a form of internal calibration that makes the measurements more robust and less prone to error.

Mechanism of Enhanced Sensitivity

The enhanced sensitivity achieved with carbon dots is a result of several factors:

High Quantum Yield: This property contributes to the intensity of the signal, enabling the detection of minute analyte amounts.
Multiplexing Capabilities: Using carbon dots with different emission spectra allows simultaneous detection of multiple targets, effectively broadening the diagnostic potential.
Low Background Interference: The use of fluorescence detection minimizes background noise, thereby improving the overall signal-to-noise ratio.

The integration of carbon dots provides a clear advantage over traditional lateral flow assays, particularly in scenarios where early detection of diseases is critical.

Integration and Design Considerations

Successfully incorporating carbon dots into LFAs involves strategic design choices. Carbon dots are typically conjugated with antibodies or antigens specific to the target analyte. This conjugation not only enhances the assay’s selectivity but also ensures that the fluorescent signal is directly proportional to the concentration of the target.

Assay Structure and Integration Methods

LFAs consist of several layers, including a sample pad, conjugate pad, nitrocellulose membrane, and absorption pad. The carbon dots are usually embedded on the conjugate pad or incorporated into the detection zone of the nitrocellulose membrane. When the liquid sample is applied, the target analyte binds to the biomolecule–carbon dot conjugate. The resulting complex migrates along the membrane where it meets a capture antibody immobilized in the test line, causing the fluorescent signal to appear.

One essential design consideration is preventing the aggregation-caused quenching (ACQ) effect. Novel approaches using aggregation-induced emission carbon dots (AIE-CDs) have been adopted to counteract this limitation, ensuring optimal performance of the assay.

Applications of Carbon Dot-Enhanced LFAs

Medical Diagnostics

The application of carbon dots in LFAs has been particularly transformative in the field of medical diagnostics. One notable example is the detection of viral infections such as SARS-CoV-2, where carbon dot-based LFAs have been utilized to detect both IgM and IgG antibodies. The high sensitivity provided by carbon dots allows for the early diagnosis of infections, which is crucial for managing contagious diseases and initiating timely treatment.

Case Study: SARS-CoV-2 Detection

In the context of the COVID-19 pandemic, rapid and accurate testing became indispensable. By employing carbon dots with dual fluorescence emissions, researchers have successfully developed LFAs that produce distinct and highly recognizable signals upon binding to viral biomarkers. This method allows for a rapid turnaround time while maintaining the accuracy required for clinical decision-making.

Food Safety and Environmental Monitoring

Beyond clinical diagnostics, LFAs enhanced with carbon dots have a wide range of applications in food safety tests and environmental monitoring. For instance, carbon dot-based LFAs have shown high sensitivity in detecting contaminants such as nitrites in food samples or pollutants in water. These assays provide a quick and reliable method for assessing safety standards in industries and helping regulatory agencies maintain public health.

Multiplex Detection in Food Products

In food safety testing, multiplex detection capabilities are of particular interest. By employing carbon dots that emit different colors, LFAs can be designed to simultaneously detect multiple harmful substances. This capability not only reduces the time and cost associated with extensive chemical analyses but also provides a more comprehensive safety assessment in one step.

Current Advances and Future Directions

Research and Technological Developments

Ongoing research is continuously furthering the development of carbon dot-based LFAs. Recent studies have focused on improving the stability of carbon dots under various environmental conditions, optimizing the conjugation chemistry to prevent signal loss, and developing cost-effective synthesis methods. These efforts point towards a future where such assays become the gold standard for rapid diagnostics across multiple fields.

Emerging Technologies and Their Impact

The integration of carbon dots into LFAs is part of a broader trend of combining nanotechnology with traditional diagnostic tools. With advancements in fabrication techniques, future LFAs are expected to feature enhanced multiplex capabilities, enabling the detection of a broader range of biomarkers in a single test. Additionally, the possibility of digital readout integration, where a smartphone-based device can quantitatively measure the fluorescence signal, paves the way for more accurate and accessible health monitoring solutions.

Moreover, emerging methods in synthesis have also begun to focus on environmental sustainability. For example, carbon dots derived from waste materials not only lower production costs but also contribute to reducing environmental waste. This green approach holds promise for scalable production, particularly useful for mass screening during public health emergencies.

Challenges and Optimization Strategies

Despite the promising outlook, several challenges remain in the practical deployment of carbon dot-enhanced LFAs. One of the prime concerns is the robust integration of carbon dots onto the test strip while preserving their optimal fluorescence characteristics. Stability issues under various pH and temperature conditions can potentially affect performance. Additionally, standardizing the assay design for large-scale production is crucial to ensure consistent results across different batches and applications.

Optimization Techniques

To address these challenges, researchers are exploring various optimization techniques, including:

Surface Modification: Fine-tuning the surface chemistry of carbon dots improves their interaction with biomolecules and prevents aggregation.
Conjugation Protocols: Optimized binding strategies between carbon dots and antibodies/antigens ensure selective target recognition without compromising fluorescence intensity.
Incorporation of Stabilizers: Using biocompatible polymers or other stabilizing agents can help maintain the activity of carbon dots under varying conditions.
Standardization of Fabrication: Developing protocols for the standardized production of carbon dot-enhanced LFAs can facilitate reproducibility and regulatory approvals.

Comparative Analysis: Traditional vs. Carbon Dot-Enhanced LFAs

It is instructive to consider how carbon dot-enhanced LFAs compare with traditional LFAs that rely on gold nanoparticles or colorimetric indicators. The table below provides a comparative overview of key performance metrics and properties:

Parameter	Traditional LFAs	Carbon Dot-Enhanced LFAs
Sensitivity	Moderate; often limited by visual detection	High; robust fluorescent signals even at low analyte levels
Multiplexing	Limited by single color readout	Enhanced through tunable and dual-emission properties
Stability	Susceptible to environmental changes	Improved with proper surface modification and stabilizers
Cost-Effectiveness	Well-established, but may require additional reagents	Potentially lower cost with scalable synthesis methods and waste-derived precursors
Ease of Use	User-friendly and widely adopted	Equally user-friendly with enhanced sensitivity and reliability

As the table demonstrates, the adoption of carbon dots addresses several inherent limitations of traditional LFAs, making them particularly attractive for applications that demand high sensitivity and multiplexing capabilities.
