Example LibreOffice Macros for Changing Chart Settings in Calc

Automate and Customize Your Spreadsheet Charts with Ease

Key Takeaways

Automate Chart Customizations: Utilize macros to dynamically adjust data ranges, styles, and other chart properties without manual intervention.
Enhance Data Visualization: Modify axis scales, chart types, and visual elements to present data effectively and accurately.
Increase Productivity: Streamline repetitive chart modifications with reusable macro scripts, saving time and reducing errors.

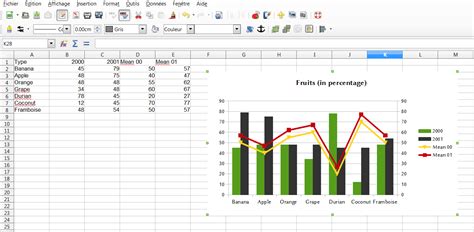

Accessing and Modifying Chart Objects

Accessing Charts in a Sheet

Before modifying any chart settings, it's essential to access the chart object within the Calc spreadsheet. LibreOffice Calc allows you to interact with charts programmatically through macros written in LibreOffice Basic or Python. Below is an example of how to access the first chart in the active sheet using LibreOffice Basic:

Sub AccessFirstChart()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Access the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Now oChart can be manipulated as needed
    MsgBox "Chart Title: " & oChart.getTitle().String
  End Sub

Changing the Data Range of a Chart

Updating the data range of a chart is a common requirement, especially when new data is added to the spreadsheet. The following macro demonstrates how to modify the data range of the first chart in the active sheet:

Sub UpdateChartDataRange()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDataRanges As Object
    Dim oDataRange As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Define the new data range
    oDataRanges = oChart.getDataRanges()
    oDataRange = oDataRanges.getByIndex(0)
    oDataRange.RangeAddress = "$A$1:$D$20" ' Update this range as needed

    ' Apply the new data range to the chart
    oChart.setDataRanges(oDataRanges)
  End Sub

Modifying Chart Axis Scales

Adjusting the minimum and maximum values of the chart axes can enhance data interpretation. The following macro sets custom scale values for the X and Y axes:

Sub SetChartAxisScale()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oAxisX As Object
    Dim oAxisY As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Get the X and Y axes
    oAxisX = oChart.getFirstDiagram().getXAxis()
    oAxisY = oChart.getFirstDiagram().getYAxis()

    ' Set the minimum and maximum values for the X and Y axes
    oAxisX.Min = 0
    oAxisX.Max = 100
    oAxisY.Min = 0
    oAxisY.Max = 1000
  End Sub

Automating Chart Titles

Dynamic chart titles based on cell values can make your spreadsheets more interactive. The following macro sets the chart title based on the content of cell A1:

Sub SetChartTitleFromCell()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oTitle As Object
    Dim oCell As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Get the title object of the chart
    oTitle = oChart.getTitle()

    ' Get the cell containing the title text (e.g., A1)
    oCell = oSheet.getCellRangeByName("A1")

    ' Set the chart title to the cell's content
    oTitle.String = oCell.getString()
  End Sub

Resizing and Modifying Chart Styles

Customizing the size and style of charts can improve readability and aesthetics. The following macro resizes the first chart and changes its line and fill colors:

Sub ResizeAndStyleChart()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Resize the chart (width and height in pixels)
    oChart.Size = com.sun.star.awt.Size(800, 600)

    ' Modify the chart style
    oDiagram = oChart.getFirstDiagram()
    oDiagram.LineColor = RGB(0, 0, 255) ' Set line color to blue
    oDiagram.FillColor = RGB(173, 216, 230) ' Set fill color to light blue
  End Sub

Changing Chart Type

Switching between different chart types can help in better data representation. The following macro changes the first chart's type to a bar chart:

Sub ChangeChartTypeToBar()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Access the diagram of the chart
    oDiagram = oChart.getFirstDiagram()

    ' Change the chart type to bar chart
    oDiagram.ChartType = com.sun.star.chart.ChartType.BAR
  End Sub

Adding Legends and Gridlines

Enhancing chart readability by adding legends and gridlines can be achieved through macros. Below is a macro that enables the legend and adds gridlines to the Y-axis:

Sub AddLegendAndGridlines()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Access the diagram of the chart
    oDiagram = oChart.getFirstDiagram()

    ' Enable the legend
    oChart.HasLegend = True

    ' Enable major gridlines on the Y-axis
    Dim oAxisY As Object
    oAxisY = oDiagram.getYAxis()
    oAxisY.IsAuto = False
    oAxisY.IsVisible = True
    oAxisY.MajorGrid.IsVisible = True
  End Sub

Moving and Resizing Charts

Positioning charts within the spreadsheet can enhance layout and presentation. The following macro moves the first chart to specific coordinates and resizes it:

Sub MoveAndResizeChart()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oRect As New com.sun.star.awt.Rectangle

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)

    ' Set new position and size (in 1/100 mm units)
    oRect.X = 3000  ' X position
    oRect.Y = 1500  ' Y position
    oRect.Width = 20000 ' Width
    oRect.Height = 12000 ' Height

    ' Apply the new position and size
    oChart.setRect(oRect)
  End Sub

Advanced Chart Customizations

Automating Chart Formatting with Python

While LibreOffice Basic is the default language for macros, Python offers a powerful alternative for more complex tasks. Below is an example of a Python macro that updates a chart's title and data range:

def update_chart_properties():
    doc = XSCRIPTCONTEXT.getDocument()
    sheet = doc.getCurrentController().getActiveSheet()
    charts = sheet.getCharts()
    chart = charts.getByIndex(0).getEmbeddedObject()

    # Update chart title
    title = chart.getTitle()
    title.setString("Sales Performance Q1")

    # Update data range
    new_range = sheet.getCellRangeByName("A1:C15")
    chart.setRangeAddress(new_range.getRangeAddress())

Handling Multiple Charts

Spreadsheets often contain multiple charts. The following macro iterates through all charts in the active sheet to apply uniform settings:

Sub UpdateAllCharts()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim i As Integer

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet
    oCharts = oSheet.Charts

    ' Loop through all charts in the sheet
    For i = 0 To oCharts.getCount() - 1
        oChart = oCharts.getByIndex(i)

        ' Example: Set chart title
        oChart.getTitle().String = "Updated Chart Title " & (i + 1)

        ' Example: Set axis scales
        Dim oDiagram As Object
        oDiagram = oChart.getFirstDiagram()
        oDiagram.getXAxis().Min = 0
        oDiagram.getXAxis().Max = 50
        oDiagram.getYAxis().Min = 0
        oDiagram.getYAxis().Max = 500
    Next i
  End Sub

Dynamic Styling Based on Data

Macros can be designed to change chart styles dynamically based on data conditions. For instance, highlighting specific data points when they exceed a threshold:

Sub HighlightThresholdExceedingPoints()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object
    Dim oSeries As Object
    Dim oDataPoint As Object
    Dim i As Integer

    ' Define threshold
    Dim threshold As Double
    threshold = 1000

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet
    oCharts = oSheet.Charts
    oChart = oCharts.getByIndex(0)
    oDiagram = oChart.getFirstDiagram()

    ' Access the first data series
    oSeries = oDiagram.getDataSeries().getByIndex(0)

    ' Loop through data points
    For i = 0 To oSeries.getPoints().getCount() - 1
        oDataPoint = oSeries.getPoints().getByIndex(i)
        If oDataPoint.Value > threshold Then
            ' Change the color of the data point to red
            oDataPoint.setPropertyValue("Color", RGB(255, 0, 0))
        Else
            ' Reset to default color
            oDataPoint.setPropertyValue("Color", RGB(0, 0, 255))
        End If
    Next i
  End Sub

Integrating User Inputs

Enhance macros by allowing user inputs to dictate chart modifications. The following macro prompts the user for new axis maximum values:

Sub PromptUserForAxisMax()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object
    Dim newXMax As String
    Dim newYMax As String

    ' Prompt user for new axis maximums
    newXMax = InputBox("Enter new maximum value for X-axis:", "Set X-axis Max", "100")
    newYMax = InputBox("Enter new maximum value for Y-axis:", "Set Y-axis Max", "1000")

    ' Validate inputs
    If IsNumeric(newXMax) And IsNumeric(newYMax) Then
        ' Get the active document and sheet
        oDoc = ThisComponent
        oSheet = oDoc.CurrentController.ActiveSheet
        oCharts = oSheet.Charts
        oChart = oCharts.getByIndex(0)
        oDiagram = oChart.getFirstDiagram()

        ' Set new axis maximums
        oDiagram.getXAxis().Max = CDbl(newXMax)
        oDiagram.getYAxis().Max = CDbl(newYMax)
    Else
        MsgBox "Invalid input. Please enter numeric values."
    End If
  End Sub

Best Practices for Writing Chart Macros

Maintain Clear and Descriptive Naming Conventions

Use meaningful names for macros and variables to enhance readability and maintainability. For example, use SetChartTitleFromCell instead of Macro1.

Comment Your Code Effectively

Include comments to explain the purpose of code blocks and complex logic. This practice aids future maintenance and collaboration.

Handle Errors Gracefully

Implement error handling to manage unexpected situations, such as missing charts or invalid data ranges. This ensures macros run smoothly without disrupting the user experience.

Optimize Performance

Minimize the performance impact of macros by limiting unnecessary operations and optimizing loops and conditions. Efficient macros contribute to a better user experience.

Test Thoroughly

Before deploying macros, test them across various scenarios to ensure they perform as expected. Comprehensive testing helps identify and fix potential issues.

Recap

Macros in LibreOffice Calc empower users to automate and customize chart settings extensively. By accessing chart objects, modifying data ranges, adjusting axis scales, automating titles, and altering styles, users can enhance their data visualization efficiently. Leveraging both LibreOffice Basic and Python for scripting, these macros not only save time but also ensure consistency and accuracy in chart presentations. Adopting best practices in naming, commenting, error handling, and testing further ensures that your macros are reliable and maintainable.
