Example LibreOffice Macros for Changing Line and Icon Properties of a Chart in a Calc Spreadsheet

Enhance your data visualizations with powerful automation

Key Takeaways

• Automate Chart Customization: Utilize macros to efficiently alter line styles, colors, and icon properties, saving time on repetitive tasks.
• Enhance Data Visualization: Improve the clarity and aesthetic appeal of your charts by programmatically adjusting visual elements.
• Leverage LibreOffice Basic: Take advantage of LibreOffice's built-in scripting language to create versatile and reusable macros tailored to your needs.

---

Introduction to LibreOffice Calc Macros

LibreOffice Calc, a powerful spreadsheet application, offers extensive customization capabilities through the use of macros. Macros are scripts written in LibreOffice Basic, a variant of the BASIC programming language, which enable users to automate tasks, manipulate data, and customize the appearance of spreadsheets and their associated charts. By leveraging macros, users can enhance productivity, ensure consistency across multiple documents, and create dynamic, interactive elements within their spreadsheets.

Understanding the Object Model

To effectively create macros that modify chart properties, it's important to understand LibreOffice's Object Model. This model outlines how different components within a Calc spreadsheet interact and are accessed via macros. Key objects include:

• Document Object: Represents the entire Calc spreadsheet.
• Sheet Object: Represents individual sheets within the spreadsheet.
• Chart Object: Represents charts embedded within a sheet.
• Diagram Object: Represents the chart's graphical representation, such as line charts, bar charts, etc.
• Data Series Object: Represents individual data series within a chart, allowing for specific customizations.

Understanding these objects and their hierarchy is crucial for effectively navigating and manipulating chart properties through macros.

---

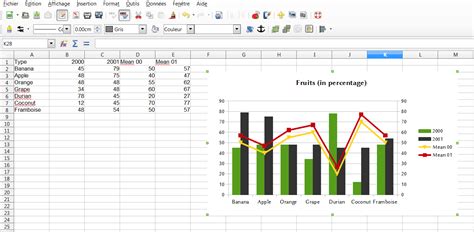

Modifying Line Properties

Changing Line Color, Style, and Width

Customizing the line properties of a chart can significantly enhance its visual appeal and clarity. The following macro demonstrates how to change the line color, style, and width of the first data series in the first chart of the active sheet.

Sub ModifyChartLineProperties()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object
    Dim oDataSeries As Object
    Dim oLineProperties As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    If oCharts.Count = 0 Then
        MsgBox "No chart found in the active sheet!"
        Exit Sub
    End If
    oChart = oCharts.getByIndex(0)

    ' Get the diagram (chart type) and data series
    oDiagram = oChart.Diagram
    oDataSeries = oDiagram.getDataSeries()

    ' Modify line properties of the first data series
    oLineProperties = oDataSeries(0).LineProperties
    oLineProperties.Color = RGB(255, 0, 0) ' Red color
    oLineProperties.Width = 200 ' Line width in 1/100 mm
    oLineProperties.Style = com.sun.star.drawing.LineStyle.SOLID ' Solid line

    MsgBox "Line properties updated successfully!"
End Sub


Explanation of the Code

1. Accessing the Active Sheet and Chart: The macro begins by accessing the active document and the currently active sheet using ThisComponent and CurrentController.ActiveSheet. It then retrieves the first chart within the sheet using getByIndex(0). If no charts are present, a message box notifies the user, and the macro exits.
2. Accessing the Diagram and Data Series: The Diagram object represents the chart's graphical structure. By accessing getDataSeries(), the macro retrieves all data series present in the chart, allowing for individual customization.
3. Modifying Line Properties: The first data series is selected, and its line properties are modified. The Color property is set to red using RGB(255, 0, 0), the Width is set to 200 (which translates to 2 mm since the unit is 1/100 mm), and the Style is set to a solid line using the LineStyle.SOLID enumeration.

---

Modifying Icon (Symbol) Properties

Changing Symbol Type, Size, and Color

Data points in charts often utilize symbols to represent individual data points. Customizing these symbols can make data points more distinguishable and the chart more informative. The following macro changes the symbol type, size, and fill color of the first data series in the first chart.

Sub ModifyChartIconProperties()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object
    Dim oDataSeries As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    If oCharts.Count = 0 Then
        MsgBox "No chart found in the active sheet!"
        Exit Sub
    End If
    oChart = oCharts.getByIndex(0)

    ' Get the diagram (chart type) and data series
    oDiagram = oChart.Diagram
    oDataSeries = oDiagram.getDataSeries()

    ' Modify icon properties of the first data series
    With oDataSeries(0)
        .SymbolType = com.sun.star.chart.ChartSymbolType.SQUARE ' Square symbol
        .SymbolSize = 500 ' Symbol size in 1/100 mm
        .FillColor = RGB(0, 0, 255) ' Blue fill color
    End With

    MsgBox "Icon properties updated successfully!"
End Sub


Explanation of the Code

1. Accessing the Active Sheet and Chart: Similar to the previous macro, this script accesses the active document and sheet, and retrieves the first chart. If no charts are found, it notifies the user and exits.
2. Modifying Icon Properties: The macro accesses the first data series and modifies its symbol properties. The SymbolType is set to a square using the ChartSymbolType.SQUARE enumeration. The SymbolSize is set to 500 (5 mm), and the FillColor is set to blue using RGB(0, 0, 255).

---

Comprehensive Example: Changing Both Line and Icon Properties

Single Macro for Comprehensive Customization

Combining both line and icon modifications into a single macro streamlines the customization process. The following macro updates both the line and icon properties of the first data series in the first chart.

Sub ModifyChartProperties()
    Dim oDoc As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object
    Dim oDataSeries As Object
    Dim oLineProperties As Object

    ' Get the active document and sheet
    oDoc = ThisComponent
    oSheet = oDoc.CurrentController.ActiveSheet

    ' Get the first chart in the sheet
    oCharts = oSheet.Charts
    If oCharts.Count = 0 Then
        MsgBox "No chart found in the active sheet!"
        Exit Sub
    End If
    oChart = oCharts.getByIndex(0)

    ' Get the diagram (chart type) and data series
    oDiagram = oChart.Diagram
    oDataSeries = oDiagram.getDataSeries()

    ' Modify line properties of the first data series
    oLineProperties = oDataSeries(0).LineProperties
    oLineProperties.Color = RGB(255, 0, 0) ' Red color
    oLineProperties.Width = 200 ' Line width in 1/100 mm
    oLineProperties.Style = com.sun.star.drawing.LineStyle.SOLID ' Solid line

    ' Modify icon properties of the first data series
    With oDataSeries(0)
        .SymbolType = com.sun.star.chart.ChartSymbolType.SQUARE ' Square symbol
        .SymbolSize = 500 ' Symbol size in 1/100 mm
        .FillColor = RGB(0, 0, 255) ' Blue fill color
    End With

    MsgBox "Chart properties updated successfully!"
End Sub


Explanation of the Combined Macro

This macro integrates the functionalities of both modifying line and icon properties within a single procedure. By accessing the first data series, it updates the line's color, width, and style, as well as the symbol's type, size, and fill color. This approach ensures that multiple aspects of the chart are customized simultaneously, improving efficiency and consistency.

---

Step-by-Step Guide to Using Macros in LibreOffice Calc

Step 1: Preparing Your Spreadsheet

Before running any macros, ensure your spreadsheet contains a chart. Here's how to create a basic chart:

• Enter Your Data: Populate your spreadsheet with the data you wish to visualize. For example:

X Values	Y Values
1	2
2	4
3	6

• Create the Chart:

  1. Select the data range you entered.
• Navigate to Insert > Chart.
• Choose your desired chart type (e.g., Line Chart) and configure the chart settings.
• Insert the chart into the spreadsheet.

Step 2: Accessing the Macro Editor

To create or edit macros, follow these steps:

1. Open LibreOffice Calc.
2. Press Alt + F11 or navigate to Tools > Macros > Organize Macros > LibreOffice Basic.
3. Select My Macros for global macros or choose a specific spreadsheet to associate the macro with.
4. Click on New to create a new module or select an existing one.

Step 3: Creating and Running the Macro

Follow these steps to create and execute a macro:

1. In the macro editor, paste the provided macro code into the module.
2. Save the macro by clicking Save.
3. Close the macro editor.
4. To run the macro:
   1. Go to Tools > Macros > Run Macro.
   2. Navigate to your macro within the appropriate library and module.
   3. Select the macro and click Run.

Step 4: Assigning Macros to Buttons (Optional)

For ease of use, especially if you frequently run the same macros, you can assign them to buttons within your spreadsheet:

1. Go to View > Toolbars > Form Controls.
2. Select the Button control and draw it onto your spreadsheet.
3. Right-click the button and select Control to open the properties dialog.
4. In the Events tab, assign your macro to the Execute action event by clicking the ellipsis (...) button and selecting your macro.
5. Click OK to save the assignment.

Now, clicking the button will execute the assigned macro, providing quick access to your customized chart modifications.

---

Advanced Customizations

Looping Through Multiple Charts and Data Series

To apply modifications to multiple charts or data series within a spreadsheet, you can implement loops within your macros. This approach ensures consistency across all relevant elements and saves time when dealing with large datasets or multiple charts.

Sub ModifyAllChartsProperties()
    Dim oDoc As Object
    Dim oSheets As Object
    Dim oSheet As Object
    Dim oCharts As Object
    Dim oChart As Object
    Dim oDiagram As Object
    Dim oDataSeries As Object
    Dim oLineProperties As Object
    Dim i As Integer, j As Integer, k As Integer

    ' Get the active document
    oDoc = ThisComponent
    oSheets = oDoc.Sheets

    ' Iterate through each sheet in the document
    For i = 0 To oSheets.Count - 1
        oSheet = oSheets.getByIndex(i)
        oCharts = oSheet.Charts

        ' Iterate through each chart in the sheet
        For j = 0 To oCharts.Count - 1
            oChart = oCharts.getByIndex(j)
            oDiagram = oChart.Diagram
            oDataSeries = oDiagram.getDataSeries()

            ' Iterate through each data series in the chart
            For k = 0 To oDataSeries.Count - 1
                ' Modify line properties
                oLineProperties = oDataSeries(k).LineProperties
                oLineProperties.Color = RGB(0, 128, 0) ' Green color
                oLineProperties.Width = 150 ' 1.5 mm
                oLineProperties.Style = com.sun.star.drawing.LineStyle.DASH

                ' Modify icon properties
                With oDataSeries(k)
                    .SymbolType = com.sun.star.chart.ChartSymbolType.TRIANGLE ' Triangle symbol
                    .SymbolSize = 400 ' 4 mm
                    .FillColor = RGB(255, 165, 0) ' Orange fill color
                End With
            Next k
        Next j
    Next i

    MsgBox "All charts have been updated successfully!"
End Sub


Explanation of Advanced Macro

1. Iterating Through Sheets and Charts: The macro begins by accessing all sheets within the active document. It then loops through each sheet and, within each sheet, loops through all embedded charts.
2. Modifying All Data Series: For each chart, the macro accesses all data series and applies the desired line and icon property changes. This includes setting the line color to green, width to 1.5 mm, and style to dashed, as well as changing the symbol type to a triangle, size to 4 mm, and fill color to orange.
3. Flexibility and Scalability: This approach ensures that regardless of the number of charts or data series present, the macro will uniformly apply the specified customizations across all elements, maintaining consistency and saving considerable time.

---

Best Practices and Tips

Save Your Work Frequently

Macros can sometimes cause unintended changes or errors. It is crucial to save your spreadsheet before running new or modified macros. This precaution helps prevent data loss and allows you to revert to a previous version if necessary.

Comment Your Code

Including comments within your macro code enhances readability and maintainability. Comments explain the purpose of different sections of the code, making it easier for you or others to understand and modify the macro in the future.

Use Meaningful Variable Names

Choosing descriptive and meaningful names for variables makes your code more understandable. For example, using oLineProperties instead of lineProp clearly indicates the variable's purpose.

Test Macros on Sample Data

Before applying macros to important or large datasets, test them on sample data. This practice ensures that the macro functions as intended and helps identify and rectify any issues without affecting critical data.

Backup Your Spreadsheets

Regularly backup your spreadsheets, especially before running new macros. This ensures that you have a recovery point in case something goes wrong during the macro execution.

Use Error Handling

Incorporate error handling in your macros to manage unexpected situations gracefully. For example, checking if charts exist before attempting to modify them prevents runtime errors.

---

Recap and Conclusion

LibreOffice Calc macros provide a powerful mechanism to automate and enhance the customization of charts within your spreadsheets. By utilizing LibreOffice Basic, users can programmatically adjust line styles, colors, and icon properties, thereby improving the visual appeal and effectiveness of data presentations. Whether you're looking to make minor adjustments or implement comprehensive changes across multiple charts, macros offer a versatile and efficient solution. By following best practices such as commenting code, using meaningful variable names, and testing macros on sample data, you can create reliable and maintainable scripts that significantly enhance your data visualization workflows.

---
