Determining the Lower Flammable Limit at Various Pressures

A detailed guide to understanding and computing LFL changes with pressure

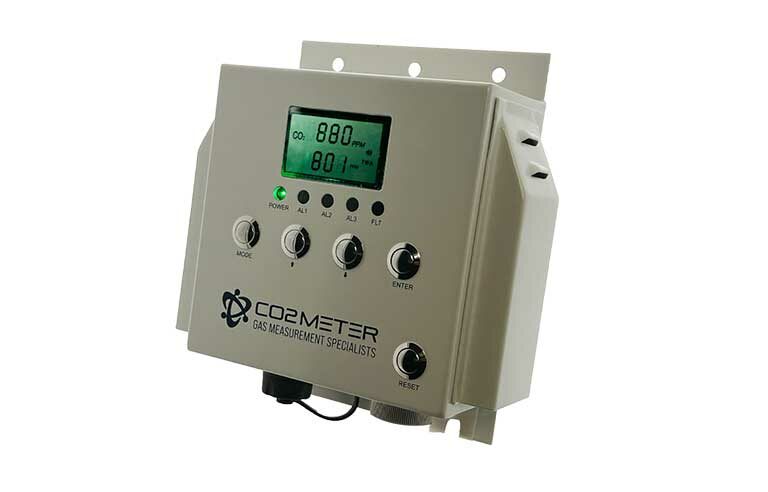

industrial safety gas measurement equipment

Key Highlights

Understanding LFL: The lower flammable limit is the minimum concentration of a gas or vapor in air needed to ignite, and it alters with pressure, temperature, and mixture composition.
Methodologies: Both experimental methods and theoretical models (such as Le Chatelier's mixing rule, Gibbs free energy minimization, and adiabatic flame temperature calculations) are used to determine the LFL under different pressures.
Practical Considerations: Accurate LFL determination is crucial for industrial safety and risk assessments, ensuring proper handling and prevention measures in various operational environments.

Understanding the Lower Flammable Limit (LFL)

The lower flammable limit (LFL) is defined as the minimum concentration (usually expressed as a volume percentage) of a combustible gas or vapor mixed with air that is capable of igniting and sustaining flame propagation under specified conditions of temperature and pressure. It represents a critical parameter in assessing the explosion and fire hazards in industries that deal with flammable substances. A gas mixture below this concentration will not ignite reliably even in the presence of an ignition source.

LFL values are determined under controlled laboratory conditions, incorporating parameters such as the initial temperature, pressure conditions, and the energy of the ignition source. In industrial contexts, this measurement is pivotal for establishing safe limits and guidelines for handling combustible materials.

Impact of Pressure on Flammability Limits

Pressure significantly influences the flammability characteristics of gas mixtures. When pressure increases, there is generally a corresponding decrease in the lower flammable limit. This means that a lower concentration of a flammable substance is needed for ignition at higher pressures. However, it is not a linear phenomenon but can be mathematically related, often displaying a logarithmic dependency.

Under lower pressures—especially below a critical threshold such as 50 mmHg—the system may experience a reduction in flammability hazards because the necessary energy for initiating flame propagation becomes more difficult to achieve. Conversely, at high pressures, the distribution of gas molecules becomes denser, increasing molecular interactions and facilitating combustion even with a lower concentration.

It is important to note that while the LFL is primarily dependent on the concentration of the combustible component, temperature and pressure both play secondary roles in influencing the ignition processes through altering reaction kinetics and the effective collision frequency of molecules.

Experimental Methods for Determining LFL at Different Pressures

One of the most direct approaches to determine the lower flammable limit at various pressures is the execution of controlled laboratory experiments:

Laboratory Testing Setup

In a laboratory setting, scientists use specialized combustion chambers that allow them to adjust pressure, temperature, and gas composition. Key components include:

Combustion Chamber: A sealed environment where gas mixtures can be tested safely at different pressures.
Adjustable Pressure Sources: Equipment that allows the setting and variation of pressure conditions to simulate various environmental or operational scenarios.
Ignition Systems: Reliable and controlled ignition sources that provide consistent energy input for testing.
Measurement Devices: Sensors and detectors to precisely measure combustion events and gas concentrations.

Experimental Procedure

The experimentation process typically involves preparing a known mixture of gas and air, incrementally adjusting the gas concentration, and conducting repeated ignition tests under different pressure settings. The steps include:

Prepare the Mixture: Start with a mixture where the concentration of the flammable substance is below the expected LFL. Gradually increase the concentration until sustained combustion is observed.
Set Pressure Conditions: Adjust the pressure inside the combustion chamber to the desired test value (this can vary from sub-atmospheric to high-pressure conditions).
Ignite the Mixture: Use the igniter to introduce a small spark or flame into the chamber. Carefully monitor for ignition and observe if the gas mixture sustains combustion.
Record Data: Document the minimum concentration at which combustion was sustained. This value is identified as the LFL for that specific pressure condition.
Repeat Tests: For accuracy and repeatability, conduct several trials at each pressure level and average the results.

Such experiments, while intensive, provide precise insights into how the flammability limits shift under various pressure scenarios, thus helping to refine safety standards and protocols.

Theoretical and Empirical Models for LFL Determination

Beyond experimental measurements, several theoretical and empirical models are available to estimate the LFL at different pressures. These models are particularly useful when direct measurements are impractical due to safety, scale, or logistical constraints.

Le Chatelier's Mixing Rule

Le Chatelier's mixing rule is a widely accepted method for estimating the LFL of a gas mixture. This rule provides a way to calculate the flammability limits of a mixture based on the individual limits of its constituent gases. The formula is given by:

\( LFL_{mix} = \frac{1}{\sum \frac{x_i}{LFL_i}} \)

where \( x_i \) represents the mole fraction of component \( i \) and \( LFL_i \) is the lower flammable limit for that component. This equation is particularly relevant for mixtures where each component's concentration and flammability characteristics contribute to the overall behavior of the system. Under varying pressures, this rule can be adjusted to account for the slight shifts in the LFLs of individual gases due to temperature and pressure effects.

Gibbs Free Energy Minimization

Gibbs free energy minimization techniques are used for systems where chemical equilibrium considerations significantly influence combustion behavior. This theoretical method involves calculating the system's Gibbs free energy and determining the conditions under which the mixture has the highest propensity for combustion. It is especially useful for complex gas mixtures and high-pressure scenarios where multiple reaction pathways may be involved.

Adiabatic Flame Temperature Calculations

Adiabatic flame temperature (AFT) calculations provide another insight into estimating the LFL at elevated pressures. The AFT is the temperature achieved by a combustible mixture under adiabatic (no heat exchange with the environment) conditions. By predicting the AFT, one can ascertain whether a given gas mixture at a specific pressure will reach temperatures conducive to sustaining combustion. Higher pressures typically lead to higher AFT values, which in turn lower the LFL.

Empirical Correlations

Numerous empirical formulas and correlations have been developed based on extensive experimental data. These empirical methods relate the LFL directly with pressure (and other variables such as temperature) through statistical analysis. Although these correlations are often substance-specific, they provide a pragmatic approach to estimating LFL without engaging in comprehensive experimental or computational methods.

Calculation Example Using Le Chatelier's Mixing Rule

Consider a scenario where you have a gas mixture consisting of methane (CH₄) and ethane (C₂H₆) with known LFL values. Assume the following values:

Gas Component	Volume Fraction (x_i)	Lower Flammable Limit (LFL_i)%
Methane (CH₄)	0.60	5
Ethane (C₂H₆)	0.40	3

Applying Le Chatelier's mixing rule, the formula for the mixture becomes:

\( LFL_{mix} = \frac{1}{\frac{0.60}{5} + \frac{0.40}{3}} \)

Calculating the denominators:

\( \frac{0.60}{5} = 0.12 \) and \( \frac{0.40}{3} \approx 0.1333 \)

Summing these values gives:

\( 0.12 + 0.1333 \approx 0.2533 \)

Therefore, the mixture LFL is:

\( LFL_{mix} = \frac{1}{0.2533} \approx 3.95\% \)

This example illustrates how even minor adjustments in component concentrations or individual LFL values can lead to significant changes in the mixture’s flammability threshold. Note that while this calculation assumes minimal direct pressure influence on individual component LFLs, in practical scenarios, adjustments may be necessary if experimental data indicate pressure-induced variations.

Adjusting for Pressure Variations

Though the primary effect of pressure on the LFL is relatively modest over a wide range of pressures, certain conditions, particularly extreme pressures, require additional adjustments:

High-Pressure Scenarios

At elevated pressures (e.g., several MPa), increased molecular density facilitates easier collisions and reaction pathways, thereby reducing the concentration of fuel required for ignition. When applying theoretical models or experimental data, it is vital to consider that small deviations in pressure can lead to a noticeable expansion of the flammable range. Calibration data obtained from high-pressure experiments should be used to refine predictions and safety parameters.

Low-Pressure Environments

For applications under low-pressure conditions, such as high-altitude operations or vacuum environments, the combustion characteristics can change dramatically. The decreased collision frequency between molecules often results in ignition failure at concentrations that would normally support flame propagation at atmospheric pressure. It is important in such cases to rely on either well-established low-pressure empirical data or meticulously designed experiments to determine the revised LFL.

Practical Implications and Industrial Applications

Understanding the lower flammable limit under varying pressure conditions is critical for industries that handle flammable gases and vapors. These include petrochemical plants, natural gas processing facilities, mining operations, and any environment where combustible gases may accumulate. Knowledge of the LFL helps engineers and safety professionals:

Evaluate Explosion Risks: By knowing how flammability limits shift with pressure, professionals can better assess explosion hazards and design safer process vessels.
Design Safety Systems: This includes the correct selection of sensors, alarms, ventilation, and suppression systems to mitigate the risk of accidental ignition.
Optimize Process Conditions: Proper management of pressure and temperature in processing environments helps in maintaining the gas mixture concentrations within safe bounds while maximizing efficiency.

In addition, detailed research into LFL determination supports regulatory compliance and guidance standardization, ensuring consistent safety practices across different sectors.

Integration of Theory and Practice

In many real-world situations, the accurate determination of LFL under varying pressures requires a hybrid approach that integrates both experimental insights and theoretical models. This integrated approach ensures:

Reliability: Combining empirical data with theoretical calculations enhances the robustness of predictions.
Flexibility: Multiple methods allow industry experts to determine LFLs under different scenarios, whether in standard atmospheric conditions or in specialized operational environments.
Customization: Specific adjustments can be made to account for unique gas mixtures, equipment geometries, and environmental variables, thereby tailoring safety measures precisely to the needs of a facility.

To bridge the gap between theory and practice, many industries use computational simulation tools that incorporate parameters like pressure, temperature, and gas composition. These tools can simulate combustion scenarios and predict changes in LFL with high accuracy, further reducing the need for extensive and potentially hazardous experimental measurements.

Tabulated Comparison of Key Methods

The table below summarizes the major methodologies used in determining the LFL under various pressure conditions:

Method	Description	Applicability
Experimental Measurements	Direct measurement using controlled combustion chambers and sensors	Widely used for generating empirical data at specific pressures
Le Chatelier's Mixing Rule	Calculative method to estimate LFL of a gas mixture based on individual components	Effective for simple mixtures with known individual LFL values
Gibbs Free Energy Minimization	Theoretical method considering thermodynamic properties to predict combustion behavior	Useful in complex and multi-component systems
Adiabatic Flame Temperature Calculations	Estimation of flame temperature under adiabatic conditions to assess ignition capabilities	Relevant for high-pressure scenarios where temperature rise is significant
Empirical Correlations	Using statistical data from experiments to derive LFL values under altered pressures	Provides pragmatic estimates in varying operational conditions
