Key Highlights

Current and Magnetic Field Relationship: Electric currents generate magnetic fields, and the direction of the current determines the pole formation.
Right-Hand Rule Usage: The right-hand rule is fundamental in linking conventional current direction with the resulting magnetic field orientation.
Electromagnet Dynamics: In devices like solenoids or electromagnets, the current flow direction controls which end is the North or South pole.

Understanding Current Flow in Magnetic Systems

The interaction of electric currents and magnetic fields forms the cornerstone of electromagnetism. In magnets, especially in the case of electromagnets and current-carrying conductors, the direction in which the current flows is intrinsically connected to the generation of magnetic fields and the formation of what we refer to as the North and South poles.

In electromagnets, a coil made from a conductive wire carries an electric current. The conventional definition of current flow is taken from positive to negative. When current flows through the coil, it produces a magnetic field that is aligned according to the current's path. The direction of the magnetic field, often visualized by magnetic field lines, emerges from one end of the coil (designated as the North pole) and enters at the other end (designated as the South pole).

Origin and Orientation of Magnetic Fields

Right-Hand Rule in Detail

One of the most commonly used principles to determine the orientation of the magnetic field created by a current is the right-hand rule. To utilize this rule:

Imagine grasping the conductor with your right hand. Point your thumb in the direction of the conventional current (from positive to negative). Your fingers, naturally curling around the conductor, indicate the direction of the magnetic field lines.

This process makes it evident that if you reverse the direction of the current, the orientation of the generated magnetic field will also reverse. For instance, in a solenoid, if the current flows in a clockwise direction when viewed from one end, that end will emerge as the South pole, while reversing the current leads to the opposite polarity.

Electromagnets and Pole Formation

In electromagnets, the correlation between current and magnetic field is utilized to create adjustable magnetic fields. The current flowing through the coil dictates the polarity:

Directional Flow: When current flows in one direction along the coil, it generates a configuration where one face has a magnetic field pointing outwards (North) and the reverse face where field lines re-enter (South).
Reversibility: Reversing the current will invert the positions of the poles. This reversible process is fundamental in devices such as electric motors where rapid switching of magnetic fields is necessary.

It is important to note that in a permanent magnet, the situation is notably different. Here, the Magnetism arises mainly from the atomic structure and electron spin rather than a macroscopic current flow as seen in electromagnets. Thus, when discussing current flow relative to the magnet's North and South poles, the focus is usually on the induced current in electromagnets or the inherent behavior of current in conductors that mimic permanent magnets.

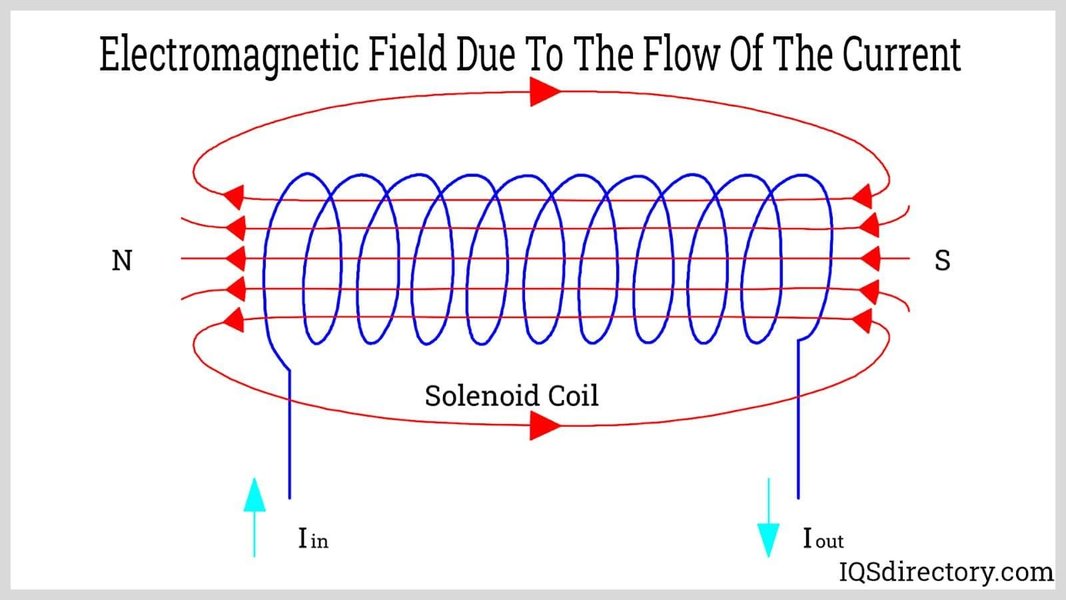

Visual Representation of Current Flow and Magnetic Fields

Radar Chart Visualization

The radar chart below consolidates various influential factors in understanding the link between current flow and magnetic field orientation. The chart’s axes represent:

Current Directionality – How the conventionally defined current contributes to the magnetic interaction.
Field Intensity – The strength of the magnetism produced by the flowing current.
Electromagnetic Induction – How the moving magnet and loop mutual interaction induce current changes based on Lenz's Law.
Right-Hand Rule Effectiveness – Its utility in practically determining the magnetic field’s direction.
Polarity Reversibility – The ability to flip poles by inverting the current.

Mindmap on the Electromagnetic Fundamentals

The mindmap below offers a conceptual overview of how different principles intertwine to explain the current flow in magnets and their relation to magnetic poles. The branches cover the key topics such as electromagnetism, the right-hand rule, and the role of current flow in determining magnetic polarity.

mindmap root["Electromagnetic Fundamentals"] Current["Current Flow"] Direction["Conventional Direction (Positive to Negative)"] Electromagnets["Electromagnets"] Coil["Wire Coil Structure"] Polarity["Pole Formation"] MagneticField["Magnetic Field"] FieldLines["Field Lines (North to South)"] RightHandRule["Right-Hand Rule"] Induction["Electromagnetic Induction"] Lenz["Lenz's Law"] Reversal["Polarity Reversal"]

Comparative Overview With a Data Table

To clarify the various factors and their interplay, the table below summarizes the most important aspects relating to current flow and magnetic pole directions:

Aspect	Description	Key Principle
Current Flow Direction	The conventional current flows from the positive terminal to the negative terminal, which determines the orientation in a magnetic setup.	Conventional Current
Magnetic Field Lines	Visualizes the path of the magnetic field, emerging from the magnet’s North pole and converging at the South pole.	Field Visualization
Right-Hand Rule	Using the right-hand rule, one can predict the field direction by pointing the thumb in the current’s direction and observing the curl of the fingers that signify the field.	Methodology
Electromagnets	In a coil, the current flow creates poles; reversing the current will switch the North and South poles.	Polarity Reversal
Induced Currents	Movement of a magnet near a coil induces a current as described by Lenz’s Law, where the current opposes the change in flux.	Electromagnetic Induction
