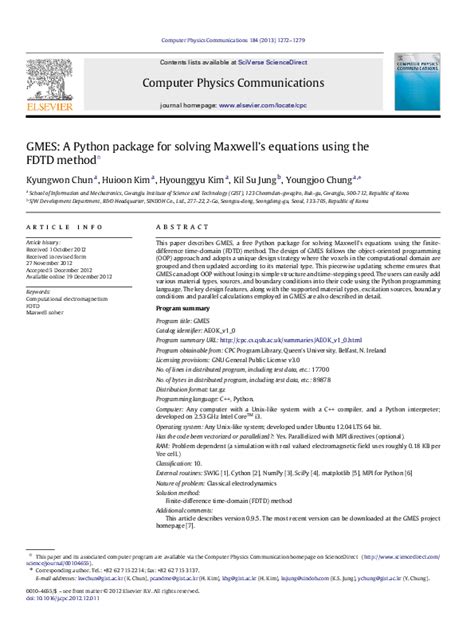

(PDF) GMES: A Python package for solving Maxwell’s equations using the ...

Maxwell's equations are the foundation of classical electromagnetism, describing how electric and magnetic fields interact and propagate. Solving these equations numerically allows for the simulation of complex electromagnetic phenomena, which is essential in various fields such as telecommunications, optics, and electrical engineering. One of the most popular numerical methods for solving Maxwell's equations is the Finite Difference Time Domain (FDTD) method. This comprehensive guide provides an in-depth explanation of Maxwell's equations, the FDTD method, and a detailed Python implementation to solve these equations.

Maxwell's Equations Overview

Maxwell's equations consist of four fundamental laws that govern the behavior of electric and magnetic fields:

Gauss's Law for Electricity
$$\nabla \cdot \mathbf{E} = \frac{\rho}{\epsilon_0}$$
This equation states that the electric flux through a closed surface is proportional to the charge enclosed within that surface. Here, $\mathbf{E}$ is the electric field, $\rho$ is the charge density, and $\epsilon_0$ is the permittivity of free space.
Gauss's Law for Magnetism
$$\nabla \cdot \mathbf{B} = 0$$
This implies that there are no magnetic monopoles; magnetic field lines are continuous and do not begin or end.
Faraday's Law of Induction
$$\nabla \times \mathbf{E} = -\frac{\partial \mathbf{B}}{\partial t}$$
This law describes how a time-varying magnetic field induces an electric field.
Ampère's Law with Maxwell's Addition
$$\nabla \times \mathbf{B} = \mu_0 \mathbf{J} + \mu_0 \epsilon_0 \frac{\partial \mathbf{E}}{\partial t}$$
This equation relates the curl of the magnetic field to the current density $\mathbf{J}$ and the time derivative of the electric field.

Finite Difference Time Domain (FDTD) Method

The Finite Difference Time Domain (FDTD) method is a versatile and widely-used numerical technique for solving Maxwell's equations in both time and space domains. It discretizes both space and time, allowing for the simulation of electromagnetic wave propagation and interaction with materials.

1D and 2D FDTD Implementations

While Maxwell's equations are inherently three-dimensional, simplifying assumptions can reduce the complexity of simulations:

1D FDTD: Assumes that the fields vary only along one spatial dimension. Suitable for simulating wave propagation in waveguides or along transmission lines.
2D FDTD: Considers variations in two spatial dimensions, allowing for the simulation of more complex geometries and field interactions.
3D FDTD: Captures full spatial variations but requires significantly more computational resources.

Python Implementation of Maxwell's Equations Using FDTD

The following Python implementation demonstrates a 1D FDTD simulation of Maxwell's equations. This example models the propagation of an electromagnetic wave in free space, incorporating source terms and visualization of the electric and magnetic fields.

Prerequisites

Ensure that the required Python libraries are installed:

pip install numpy matplotlib

Constants and Parameters

Define the physical constants and simulation parameters:

import numpy as np
import matplotlib.pyplot as plt

# Physical Constants
c = 3e8  # Speed of light in vacuum (m/s)
mu_0 = 4 * np.pi * 1e-7  # Permeability of free space (H/m)
epsilon_0 = 1 / (mu_0 * c**2)  # Permittivity of free space (F/m)

# Simulation Parameters
dx = 1e-3  # Spatial step size (m)
dt = dx / (2 * c)  # Time step size (s), satisfying the Courant condition
nx = 200  # Number of spatial points
nt = 500  # Number of time steps

# Source Parameters
source_position = nx // 2  # Position of the source
frequency = 1e9  # Source frequency (Hz)
omega = 2 * np.pi * frequency  # Angular frequency (rad/s)

Field Initialization

Initialize the electric and magnetic field arrays:

# Initialize Fields
Ez = np.zeros(nx)  # Electric field (z-direction)
Hy = np.zeros(nx - 1)  # Magnetic field (y-direction)

FDTD Update Equations

The core of the FDTD method involves updating the electric and magnetic fields using discretized versions of Maxwell's equations:

Faraday's Law

$$H_y^{n+\frac{1}{2}}(i) = H_y^n(i) + \frac{\Delta t}{\mu_0 \Delta x} \left(E_z^n(i+1) - E_z^n(i)\right)$$
This equation updates the magnetic field based on the spatial derivative of the electric field.

Ampère's Law

$$E_z^{n+1}(i) = E_z^n(i) + \frac{\Delta t}{\epsilon_0 \Delta x} \left(H_y^{n+\frac{1}{2}}(i) - H_y^{n+\frac{1}{2}}(i-1)\right)$$
This equation updates the electric field based on the spatial derivative of the magnetic field.

Simulation Loop

Implement the time-stepping loop to update the fields:

for n in range(nt):
    # Update Magnetic Field H_y
    for i in range(nx - 1):
        Hy[i] += (Ez[i + 1] - Ez[i]) * dt / (mu_0 * dx)

    # Update Electric Field E_z
    for i in range(1, nx):
        Ez[i] += (Hy[i] - Hy[i - 1]) * dt / (epsilon_0 * dx)

    # Add a sinusoidal source at the center
    Ez[source_position] += np.sin(omega * n * dt)

    # Visualization every 10 time steps
    if n % 10 == 0:
        plt.clf()
        plt.plot(Ez, label="Ez (Electric Field)")
        plt.plot(Hy, label="Hy (Magnetic Field)")
        plt.ylim(-1.5, 1.5)
        plt.legend()
        plt.pause(0.01)

plt.show()

Visualization

The simulation includes dynamic visualization of the electric and magnetic fields using matplotlib. The fields are plotted every 10 time steps to observe the propagation of the electromagnetic wave:

# Visualization is integrated within the simulation loop
if n % 10 == 0:
    plt.clf()
    plt.plot(Ez, label="Ez (Electric Field)")
    plt.plot(Hy, label="Hy (Magnetic Field)")
    plt.ylim(-1.5, 1.5)
    plt.legend()
    plt.pause(0.01)

# Final plot
plt.show()

Explanation of the Code

Constants and Parameters: Defines the physical constants ($c$, $\mu_0$, $\epsilon_0$) and simulation parameters such as spatial step size ($dx$), time step size ($dt$), number of spatial points ($nx$), and number of time steps ($nt$). The time step is chosen to satisfy the Courant-Friedrichs-Lewy (CFL) condition for numerical stability.
Field Initialization: Initializes the electric field ($Ez$) and magnetic field ($Hy$) arrays to zero.
FDTD Update Loop: Iterates over each time step to update the magnetic and electric fields using the discretized Faraday's and Ampère's laws. A sinusoidal source is added at the center of the grid to simulate an oscillating electromagnetic wave.
Visualization: Utilizes matplotlib to plot the electric and magnetic fields dynamically, allowing for real-time observation of wave propagation.

Mathematical Formulas Used in the Code

Discretized Faraday's Law:
$$H_y^{n+\frac{1}{2}}(i) = H_y^n(i) + \frac{\Delta t}{\mu_0 \Delta x} \left(E_z^n(i+1) - E_z^n(i)\right)$$
Discretized Ampère's Law:
$$E_z^{n+1}(i) = E_z^n(i) + \frac{\Delta t}{\epsilon_0 \Delta x} \left(H_y^{n+\frac{1}{2}}(i) - H_y^{n+\frac{1}{2}}(i-1)\right)$$
Source Term:
$$E_z^{n}(i_{\text{source}}) += \sin(\omega n \Delta t)$$

Additional Considerations

Boundary Conditions: The above implementation uses simple boundary conditions by not updating fields outside the defined grid. For more accurate simulations, especially in open domains, absorbing boundary conditions (ABCs) or Perfectly Matched Layers (PMLs) should be implemented to prevent reflections.
Stability: The CFL condition is critical for the stability of the FDTD method. Ensuring that $\Delta t \leq \frac{\Delta x}{c}$ helps prevent numerical instabilities.
Source Terms: The example uses a sinusoidal source for simplicity. Depending on the application, different source profiles (e.g., Gaussian pulses) can be used to simulate various electromagnetic phenomena.
Higher Dimensions: Extending the FDTD method to 2D or 3D requires additional field components and update equations, increasing computational complexity but allowing for the simulation of more realistic scenarios.
Material Properties: Introducing spatially varying permittivity ($\epsilon$) and permeability ($\mu$) can model different materials and their interactions with electromagnetic fields.

Advanced Example: 2D FDTD Implementation

For a more comprehensive simulation, a 2D FDTD implementation can capture complex field interactions and geometries. Below is an example of a 2D FDTD simulation using the Transverse Electric (TE) mode, where the electric field components ($E_x$, $E_y$) lie in the simulation plane, and the magnetic field component ($H_z$) is perpendicular to it.

Discretization

Maxwell's equations are discretized in both space and time using finite differences. The spatial derivatives are approximated using central differences, and the time derivatives are handled using a leapfrog scheme, where electric and magnetic fields are updated at alternating half-time steps.

Python Code for 2D FDTD

import numpy as np
import matplotlib.pyplot as plt

# Physical Constants
mu_0 = 4 * np.pi * 1e-7  # Permeability of free space (H/m)
epsilon_0 = 8.854187817e-12  # Permittivity of free space (F/m)
c = 1 / np.sqrt(mu_0 * epsilon_0)  # Speed of light (m/s)

# Simulation Parameters
nx, ny = 101, 101  # Number of grid points in x and y
dx = 1e-3  # Spatial step size (m)
dy = dx  # Assuming square grid cells
dt = dx / (2 * c)  # Time step size (s), satisfying CFL condition
nt = 1000  # Number of time steps

# Initialize Fields
Ex = np.zeros((nx, ny-1))  # Electric field x-component
Ey = np.zeros((nx-1, ny))  # Electric field y-component
Hz = np.zeros((nx-1, ny-1))  # Magnetic field z-component

# Simulation Loop
for n in range(nt):
    # Update Hz (Magnetic Field)
    Hz += (dt / (mu_0 * dx)) * (
        (Ex[:, 1:] - Ex[:, :-1]) - (Ey[1:, :] - Ey[:-1, :])
    )

    # Update Ex (Electric Field X-component)
    Ex[:, 1:-1] += (dt / (epsilon_0 * dy)) * (Hz[:, 1:] - Hz[:, :-1])

    # Update Ey (Electric Field Y-component)
    Ey[1:-1, :] -= (dt / (epsilon_0 * dx)) * (Hz[1:, :] - Hz[:-1, :])

    # Add a Gaussian source at the center
    source_x, source_y = nx // 2, ny // 2
    Ez_source = np.exp(-0.5 * ((n - 30)/10)**2)
    Ex[source_x, source_y] += Ez_source
    Ey[source_x, source_y] += Ez_source

    # Visualization every 100 time steps
    if n % 100 == 0:
        plt.clf()
        plt.imshow(Hz.T, cmap='RdBu', origin='lower')
        plt.title(f'H_z at time step {n}')
        plt.colorbar(label='H_z (A/m)')
        plt.pause(0.01)

plt.show()

Explanation of the 2D FDTD Code

Initialization: Defines a 2D grid with electric field components ($E_x$, $E_y$) and a magnetic field component ($H_z$). All fields are initialized to zero.
Field Updates:
- Update $H_z$: Based on the curl of the electric fields, updating the magnetic field.
- Update $E_x$ and $E_y$: Based on the curl of the magnetic field, updating the electric fields.
Source Term: Introduces a Gaussian-modulated sinusoidal source at the center of the grid to simulate an oscillating electromagnetic wave.
Visualization: Uses matplotlib to visualize the $H_z$ field at periodic intervals, providing a dynamic view of the wave propagation.

Mathematical Formulas for 2D FDTD

Update Equation for $H_z$:
$$H_z^{n+\frac{1}{2}}(i,j) = H_z^n(i,j) + \frac{\Delta t}{\mu_0 \Delta x} \left(E_x^{n}(i,j+1) - E_x^{n}(i,j)\right) - \frac{\Delta t}{\mu_0 \Delta y} \left(E_y^{n}(i+1,j) - E_y^{n}(i,j)\right)$$
Update Equation for $E_x$:
$$E_x^{n+1}(i,j) = E_x^n(i,j) + \frac{\Delta t}{\epsilon_0 \Delta y} \left(H_z^{n+\frac{1}{2}}(i,j) - H_z^{n+\frac{1}{2}}(i,j-1)\right)$$
Update Equation for $E_y$:
$$E_y^{n+1}(i,j) = E_y^n(i,j) - \frac{\Delta t}{\epsilon_0 \Delta x} \left(H_z^{n+\frac{1}{2}}(i,j) - H_z^{n+\frac{1}{2}}(i-1,j)\right)$$

Additional Features and Optimizations

Absorbing Boundary Conditions (ABC): Implementing ABCs or Perfectly Matched Layers (PML) can prevent artificial reflections from the boundaries of the simulation grid, allowing for more accurate open-space simulations.
Material Properties: Incorporating spatially varying $\epsilon$ and $\mu$ allows for the simulation of different materials and their interactions with electromagnetic fields.
Higher Dimensions: Extending the FDTD method to 3D involves additional field components and update equations, significantly increasing computational demands but enabling simulations of more complex structures.
Performance Optimization: Utilizing libraries such as Numba for Just-In-Time (JIT) compilation or leveraging GPU acceleration can drastically improve simulation performance.
Visualization: Advanced visualization techniques, including animations and 3D plotting, can provide deeper insights into the electromagnetic wave dynamics.

Conclusion

The Finite Difference Time Domain (FDTD) method offers a powerful and flexible framework for numerically solving Maxwell's equations, enabling the simulation of a wide range of electromagnetic phenomena. Through discretizing both space and time, FDTD allows for the detailed analysis of wave propagation, interactions with materials, and the design of complex electromagnetic systems. The provided Python implementations serve as foundational examples that can be extended and optimized for specific applications in research and industry.
