Comprehensive Outline of Maxwell's Equations with Python Implementation

Understanding the Foundations of Electromagnetism through Code and Mathematics

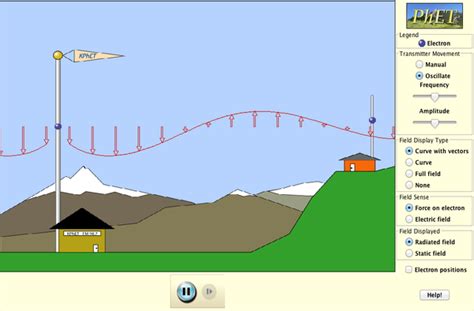

electromagnetic wave simulation

Key Takeaways

  • Maxwell's equations are fundamental to electromagnetism, describing how electric and magnetic fields interact.
  • Implementing these equations in Python using numerical methods like FDTD allows for simulation of complex electromagnetic phenomena.
  • A comparative analysis of the mathematical formulations and their Python representations enhances comprehension and application.

Introduction to Maxwell's Equations

Maxwell's equations are the cornerstone of classical electromagnetism, encapsulating the behavior of electric and magnetic fields and their interactions with matter. These four fundamental laws unify electricity, magnetism, and optics into a single theoretical framework, enabling the understanding and prediction of a wide range of electromagnetic phenomena.

The Four Maxwell's Equations

  1. Gauss's Law for Electricity

    Mathematical Formulation:

    $$\nabla \cdot \mathbf{E} = \frac{\rho}{\varepsilon_0}$$

    • (\(\mathbf{E}\)): Electric field
    • (\(\rho\)): Electric charge density
    • (\(\varepsilon_0\)): Vacuum permittivity

    Python Implementation:

    def gauss_law_electric(E, rho, epsilon_0):
        divergence_E = calculate_divergence(E)  # Function to compute divergence
        return divergence_E - rho / epsilon_0

  2. Gauss's Law for Magnetism

    Mathematical Formulation:

    $$\nabla \cdot \mathbf{B} = 0$$

    • (\(\mathbf{B}\)): Magnetic field

    Python Implementation:

    def gauss_law_magnetic(B):
        divergence_B = calculate_divergence(B)  # Function to compute divergence
        return divergence_B

  3. Faraday's Law of Induction

    Mathematical Formulation:

    $$\nabla \times \mathbf{E} = -\frac{\partial \mathbf{B}}{\partial t}$$

    Python Implementation:

    def faradays_law(E, B, dt):
        curl_E = calculate_curl(E)  # Function to compute curl
        dB_dt = (B_new - B_old) / dt  # Time derivative of B
        return curl_E + dB_dt

  4. Ampère-Maxwell Law

    Mathematical Formulation:

    $$\nabla \times \mathbf{B} = \mu_0 \mathbf{J} + \mu_0 \varepsilon_0 \frac{\partial \mathbf{E}}{\partial t}$$

    • (\(\mu_0\)): Vacuum permeability
    • (\(\mathbf{J}\)): Current density

    Python Implementation:

    def amperes_law(B, J, E, mu_0, epsilon_0, dt):
        curl_B = calculate_curl(B)  # Function to compute curl
        dE_dt = (E_new - E_old) / dt  # Time derivative of E
        return curl_B - mu_0 * J - mu_0 * epsilon_0 * dE_dt


Finite Difference Time Domain (FDTD) Method

The Finite Difference Time Domain (FDTD) method is a powerful numerical analysis technique used to solve Maxwell's equations. By discretizing both time and space, FDTD allows for the simulation of electromagnetic wave propagation and interaction with materials.

Python Implementation of FDTD for Maxwell's Equations

Below is a simplified Python implementation of Maxwell's equations in 2D using the FDTD method:

import numpy as np
import matplotlib.pyplot as plt

# Define constants
c = 3e8  # Speed of light (m/s)
mu_0 = 4 * np.pi * 1e-7  # Vacuum permeability (H/m)
epsilon_0 = 8.854187817e-12  # Vacuum permittivity (F/m)

# Define grid parameters
nx, ny = 200, 200
dx, dy = 1e-3, 1e-3  # Spatial step (meters)
dt = 1 / (c * np.sqrt((1/dx**2) + (1/dy**2)))  # Time step (seconds)

# Initialize electric and magnetic fields
Ex = np.zeros((nx, ny))
Ey = np.zeros((nx, ny))
Hz = np.zeros((nx, ny))

# Time steps
n_steps = 1000

# Main FDTD loop
for n in range(n_steps):
    # Update magnetic field Hz
    Hz[:-1, :-1] += (dt / mu_0) * (
        (Ex[:-1, 1:] - Ex[:-1, :-1]) / dy -
        (Ey[1:, :-1] - Ey[:-1, :-1]) / dx
    )

    # Update electric fields Ex and Ey
    Ex[:-1, :-1] += (dt / epsilon_0) * (
        (Hz[:-1, :-1] - Hz[:-1, 1:]) / dy
    )
    Ey[:-1, :-1] += (dt / epsilon_0) * (
        (Hz[:-1, :-1] - Hz[1:, :-1]) / dx
    )

    # Insert a source (Gaussian pulse)
    Ex[nx//2, ny//2] += np.exp(-((n - 30)**2) / (2 * 5**2))

    # Visualization at intervals
    if n % 100 == 0:
        plt.clf()
        plt.imshow(Ex, cmap='viridis', origin='lower')
        plt.title(f'Electric Field Ex at step {n}')
        plt.pause(0.01)

plt.show()

Explanation of the Code

  • Constants: Define physical constants such as the speed of light, vacuum permeability, and permittivity.
  • Grid Parameters: Set up the spatial discretization with grid size and spacing. The time step is determined based on the Courant condition for stability.
  • Field Initialization: Initialize the electric (Ex, Ey) and magnetic (Hz) fields to zero.
  • Main Loop: Iterate over each time step to update the magnetic and electric fields using the FDTD update equations derived from Maxwell's equations.
  • Source Insertion: Introduce a Gaussian pulse at the center of the grid to simulate an electromagnetic wave source.
  • Visualization: Periodically visualize the electric field to observe wave propagation.

Comparative Analysis of Maxwell's Equations

Understanding the relationship between the mathematical formulations of Maxwell's equations and their implementation in Python provides deeper insights into electromagnetic theory and computational electromagnetics.

Comparison Table

Maxwell's Equation Mathematical Formulation Python Implementation
Gauss's Law (Electric) $$\nabla \cdot \mathbf{E} = \frac{\rho}{\varepsilon_0}$$
def gauss_law_electric(E, rho, epsilon_0):
    divergence_E = calculate_divergence(E)
    return divergence_E - rho / epsilon_0
Gauss's Law (Magnetic) $$\nabla \cdot \mathbf{B} = 0$$
def gauss_law_magnetic(B):
    divergence_B = calculate_divergence(B)
    return divergence_B
Faraday's Law of Induction $$\nabla \times \mathbf{E} = -\frac{\partial \mathbf{B}}{\partial t}$$
def faradays_law(E, B, dt):
    curl_E = calculate_curl(E)
    dB_dt = (B_new - B_old) / dt
    return curl_E + dB_dt
Ampère-Maxwell Law $$\nabla \times \mathbf{B} = \mu_0 \mathbf{J} + \mu_0 \varepsilon_0 \frac{\partial \mathbf{E}}{\partial t}$$
def amperes_law(B, J, E, mu_0, epsilon_0, dt):
    curl_B = calculate_curl(B)
    dE_dt = (E_new - E_old) / dt
    return curl_B - mu_0 * J - mu_0 * epsilon_0 * dE_dt

Integral vs. Differential Forms

Maxwell's equations can be expressed in both integral and differential forms, each providing unique perspectives:

  • Integral Form: Describes the global behavior of fields over a closed surface or loop.
  • Differential Form: Focuses on the local behavior of fields at a specific point in space.

The differential forms are particularly useful for numerical simulations like the FDTD method, where local interactions are computed iteratively.


Mathematical Foundations

Delving deeper into the mathematical underpinnings of Maxwell's equations enhances the understanding necessary for effective implementation and analysis.

Vector Calculus in Maxwell's Equations

Maxwell's equations heavily utilize vector calculus operations such as divergence and curl, which describe how vector fields behave in space.

  • Divergence (\(\nabla \cdot\)): Measures the magnitude of a source or sink at a given point.
  • Curl (\(\nabla \times\)): Measures the rotation or the swirl of a vector field around a point.

Boundary Conditions

Implementing boundary conditions is crucial in numerical simulations to ensure the physical accuracy of the model:

  • Perfect Electric Conductor (PEC): Fields tangential to the conductor's surface vanish.
  • Perfectly Matched Layer (PML): Absorbs outgoing waves to simulate an infinite domain.

Stability and Accuracy

Numerical methods must balance stability and accuracy. The Courant–Friedrichs–Lewy (CFL) condition ensures that the time step is sufficiently small relative to the spatial discretization to maintain stability.


Conclusion

Maxwell's equations elegantly unify electricity and magnetism, laying the foundation for modern electromagnetic theory. Implementing these equations in Python through numerical methods like FDTD empowers researchers and engineers to simulate and analyze complex electromagnetic phenomena effectively. The comparative analysis between the mathematical formulations and their Python representations underscores the versatility and applicability of Maxwell's framework in both theoretical and practical domains.
