Converting Triangulated Meshes to BRep Objects in Python

Comprehensive Methods and Tools for Mesh to BRep Transformation

Key Takeaways

Python libraries like pythonOCC and rhino3dm are essential for mesh to BRep conversion.
Surface fitting and feature recognition are critical steps in achieving accurate BRep representations.
Conversion processes often involve approximations, especially for complex or organic shapes.

Introduction

Converting a triangulated mesh into a Boundary Representation (BRep) object described by equations is a fundamental task in computer-aided design (CAD) and computational geometry. BRep models are crucial for precise engineering applications, simulations, and manufacturing processes. This comprehensive guide explores various methods and tools available, particularly focusing on Python-based solutions, to achieve this conversion effectively.

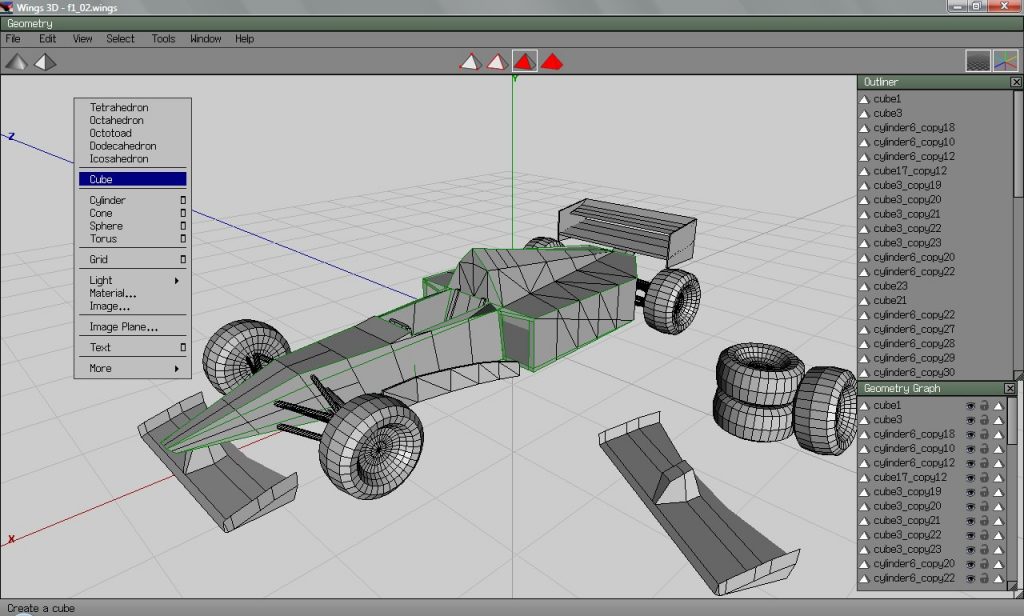

Understanding BRep and Triangulated Meshes

A Boundary Representation (BRep) model describes a solid object using its boundaries—faces, edges, and vertices—using mathematical equations and parameters. In contrast, a triangulated mesh represents the surface of an object using a collection of triangular facets. While meshes are straightforward and efficient for rendering and basic modeling, BRep models offer greater precision and are better suited for detailed engineering tasks.

Methods for Converting Triangulated Meshes to BRep

1. Using pythonOCC (Python Bindings for Open CASCADE)

pythonOCC is a powerful Python library that provides bindings for Open CASCADE Technology (OCCT), a robust CAD kernel supporting BRep modeling. It is widely regarded as the most comprehensive tool for converting triangulated meshes into BRep objects in Python.

Steps to Convert Using pythonOCC

Install pythonOCC:
```
pip install pythonocc-core
```

Load the Triangulated Mesh: Import the mesh data, typically from an STL file.

from OCC.Core.STEPControl import STEPControl_Reader
mesh_reader = STEPControl_Reader()
status = mesh_reader.ReadFile('path_to_mesh.stl')

Create BRep Faces from Triangles: Utilize OCCT's BRepBuilderAPI to construct faces from the mesh's triangular facets.

from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeFace
from OCC.Core.gp import gp_Pnt

# Example for a single triangle
p1 = gp_Pnt(0, 0, 0)
p2 = gp_Pnt(1, 0, 0)
p3 = gp_Pnt(0, 1, 0)
face = BRepBuilderAPI_MakeFace(p1, p2, p3).Face()

Assemble the BRep Object: Combine the individual faces into a complete BRep model.

from OCC.Core.BRep import BRep_Builder
builder = BRep_Builder()
brep = TopoDS_Shape()
builder.MakeCompound(brep)

# Add each face to the compound
builder.Add(brep, face)

Export the BRep Model: Save the resulting BRep object in a desired format, such as STEP or IGES.

from OCC.Core.STEPControl import STEPControl_Writer, STEPControl_AsIs
writer = STEPControl_Writer()
writer.Transfer(brep, STEPControl_AsIs)
writer.Write('output_brep.step')

Advantages

Highly accurate and industrial-grade conversions.
Extensive support for complex geometries and surface fittings.
Active community and comprehensive documentation.

Limitations

Steep learning curve for beginners.
Requires understanding of OCCT’s complex APIs.
Conversion may involve approximations for highly detailed meshes.

2. Utilizing rhino3dm (Rhino3D’s Python Library)

Rhino3dm is a Python library that allows interaction with Rhino’s geometry, including converting meshes to BRep objects. It is suitable for users who are familiar with Rhino3D’s ecosystem and seek a more streamlined conversion process.

Steps to Convert Using rhino3dm

Install rhino3dm:
```
pip install rhino3dm
```

Load the Mesh: Import the mesh using rhino3dm’s Mesh class.

import rhino3dm
mesh = rhino3dm.Mesh()
# Load or construct your mesh here

Convert Mesh to BRep: Use the ToBrep() method to perform the conversion.
```
brep = mesh.ToBrep()
```

Export the BRep Object: Save the BRep model in a suitable format.

with open('output_brep.3dm', 'wb') as file:
    file.write(brep.ToByteArray())

Advantages

Simpler API compared to pythonOCC, making it more accessible for beginners.
Seamless integration with Rhino3D workflows.
Efficient for converting planar or simpler meshes.

Limitations

Less suitable for highly complex or non-planar meshes.
May require additional processing for accurate BRep representations.

3. Leveraging trimesh and pyvista Libraries

The combination of trimesh and pyvista libraries provides a versatile approach to handle and convert triangular meshes into BRep-like structures. While not offering direct BRep conversions, they facilitate preprocessing and manipulation required for accurate transformations.

Steps to Convert Using trimesh and pyvista

Install the Libraries:
```
pip install trimesh pyvista
```
Load and Process the Mesh: Use trimesh to load and preprocess the mesh.
```
import trimesh
mesh = trimesh.load('path_to_mesh.stl')
```
Convert to PyVista Mesh: Utilize pyvista for further processing.
```
import pyvista as pv
pv_mesh = pv.wrap(mesh)
```

Surface Reconstruction: Apply surface fitting or other reconstruction techniques to approximate BRep structures.

# Example: Surface reconstruction (details depend on the specific method)
reconstructed_surface = pv_mesh.reconstruct_surface()

Export the BRep-like Structure: Save the processed mesh in a desired format.
```
reconstructed_surface.save('output_brep.obj')
```

Advantages

Flexible and powerful for mesh manipulation and preprocessing.
Supports various surface reconstruction techniques.
Good for integrating with visualization and analysis workflows.

Limitations

Does not provide direct BRep conversion capabilities.
Requires additional steps or tools to achieve accurate BRep representations.

4. Employing MeshLab with Python Scripting

MeshLab is a powerful tool for processing and editing 3D triangular meshes. While primarily a standalone application, it offers Python scripting capabilities that can be integrated into workflows for converting meshes to BRep objects.

Steps to Convert Using MeshLab

Install MeshLab: Download and install MeshLab from the official website.

Write Python Scripts: Utilize MeshLab’s scripting interface to automate mesh processing tasks.

# Example MeshLab script to reconstruct surfaces
import subprocess

subprocess.run(['meshlabserver', '-i', 'input_mesh.stl', '-o', 'output_brep.obj', '-s', 'script.mlx'])

Execute the Script: Run the Python script to perform mesh simplification and surface reconstruction.
```
python convert_mesh.py
```
Import the Reconstructed Surface: Use the output file as a basis for creating BRep models with other tools.

Advantages

Advanced mesh processing and surface reconstruction capabilities.
Supports automation through scripting.
Effective for simplifying complex meshes before conversion.

Limitations

Requires familiarity with MeshLab’s scripting language.
Integration with Python workflows may be less straightforward.

5. Utilizing VTK with Python

The Visualization Toolkit (VTK) is a versatile library for 3D computer graphics, image processing, and visualization. It can be used for surface reconstruction from triangular meshes, which is a crucial step toward creating BRep-like structures.

Steps to Convert Using VTK

Install VTK:
```
pip install vtk
```

Load the Mesh: Import the triangulated mesh into VTK.

import vtk
reader = vtk.vtkSTLReader()
reader.SetFileName('path_to_mesh.stl')
reader.Update()
mesh = reader.GetOutput()

Perform Surface Reconstruction: Use VTK’s surface fitting algorithms to approximate BRep structures.

from vtkmodules.vtkFiltersSurfaceReconstruction import vtkMarchingCubes
march = vtkMarchingCubes()
march.SetInputData(mesh)
march.ComputeNormalsOn()
march.SetValue(0, 0.0)
march.Update()
reconstructed_surface = march.GetOutput()

Export the Reconstructed Surface: Save the output in a format suitable for BRep applications.

writer = vtk.vtkOBJWriter()
writer.SetFileName('output_brep.obj')
writer.SetInputData(reconstructed_surface)
writer.Write()

Advantages

Robust surface reconstruction and visualization capabilities.
Supports various output formats compatible with BRep tools.
Highly customizable through extensive VTK filters and modules.

Limitations

Indirect method requiring additional steps for accurate BRep conversion.
Can be computationally intensive for large or complex meshes.

6. Feature Recognition and Surface Fitting

For precise BRep representations, especially of mechanical parts, feature recognition and surface fitting are essential. This involves identifying geometric primitives within the mesh and mathematically defining them using equations.

Steps to Convert Using Feature Recognition

Identify Geometric Primitives: Use algorithms to detect planes, cylinders, spheres, etc., within the mesh.

Fit Mathematical Surfaces: Apply surface fitting techniques to define each detected primitive with precise equations.

# Example using pythonOCC for surface fitting
from OCC.Core.Geom import Geom_Plane
plane = Geom_Plane(gp_Ax3(gp_Pnt(0,0,0), gp_Dir(0,0,1)))

Assemble the BRep Object: Combine the fitted surfaces into a cohesive BRep model.

# Example: Creating a face from the fitted plane
from OCC.Core.BRepBuilderAPI import BRepBuilderAPI_MakeFace
face = BRepBuilderAPI_MakeFace(plane, 1e-6).Face()

Advantages

Produces highly accurate and parametric BRep models.
Ideal for mechanical and engineering applications requiring precision.
Facilitates easy editing and manipulation of individual geometric features.

Limitations

Complex and time-consuming, especially for intricate meshes.
Requires advanced knowledge of geometry and feature recognition algorithms.

Comparison of Tools and Libraries

Tool/Library	Pros	Cons	Best For
pythonOCC	Highly accurate, industrial-grade, extensive features	Steep learning curve, complex API	Complex and detailed BRep conversions
rhino3dm	Beginner-friendly, seamless Rhino integration	Less suitable for complex meshes	Planar or simpler mesh conversions
trimesh + pyvista	Flexible, powerful mesh manipulation	No direct BRep conversion	Preprocessing and surface reconstruction
MeshLab	Advanced mesh processing, surface reconstruction	Requires scripting knowledge	Mesh simplification and preparation
VTK	Robust visualization and reconstruction	Indirect conversion steps	Surface fitting and complex reconstructions
Feature Recognition	Highly accurate parametric models	Time-consuming, requires expertise	Mechanical and engineering precision models

Best Practices and Considerations

1. Mesh Quality and Preparation

The quality of the input mesh significantly affects the accuracy of the BRep conversion. Ensure that the mesh is clean, free of errors, and appropriately simplified without losing critical geometric features. Tools like MeshLab can assist in preprocessing tasks such as mesh repair, decimation, and smoothing.

2. Selection of Appropriate Tools

Choose the tool or library that best aligns with your project’s complexity and your familiarity with the technology. For example, pythonOCC is ideal for highly detailed and precise conversions, whereas rhino3dm is better suited for simpler, planar meshes.

3. Combining Multiple Tools

Often, achieving the desired BRep conversion requires leveraging multiple tools in tandem. For instance, use trimesh for mesh manipulation, MeshLab for preprocessing, and pythonOCC for the final BRep construction. This hybrid approach can maximize accuracy and efficiency.

4. Understanding Limitations

Recognize that converting complex or organic meshes to BRep representations may involve approximations. Perfect conversions are challenging and often impractical for highly detailed or naturally occurring shapes. Focus on maintaining essential geometric fidelity.

5. Continuous Learning and Community Engagement

Stay updated with the latest advancements in computational geometry and CAD libraries. Engage with communities and forums related to tools like pythonOCC and rhino3dm to seek guidance, share experiences, and troubleshoot challenges.

Conclusion

Converting a triangulated mesh into a BRep object described by equations is a multifaceted process that demands the right combination of tools and methodologies. Python offers several robust libraries, such as pythonOCC and rhino3dm, which provide comprehensive features for this transformation. While direct, one-step conversions are limited, adopting a strategic approach involving mesh preprocessing, surface fitting, and feature recognition can yield accurate and functional BRep models. Understanding the strengths and limitations of each tool ensures that you can select the most appropriate methods for your specific project requirements, ultimately enabling precise and efficient CAD workflows.
