Understanding Microcontrollers

An in-depth exploration of Arduino, Raspberry Pi, and more

electronic circuitry microcontroller hardware

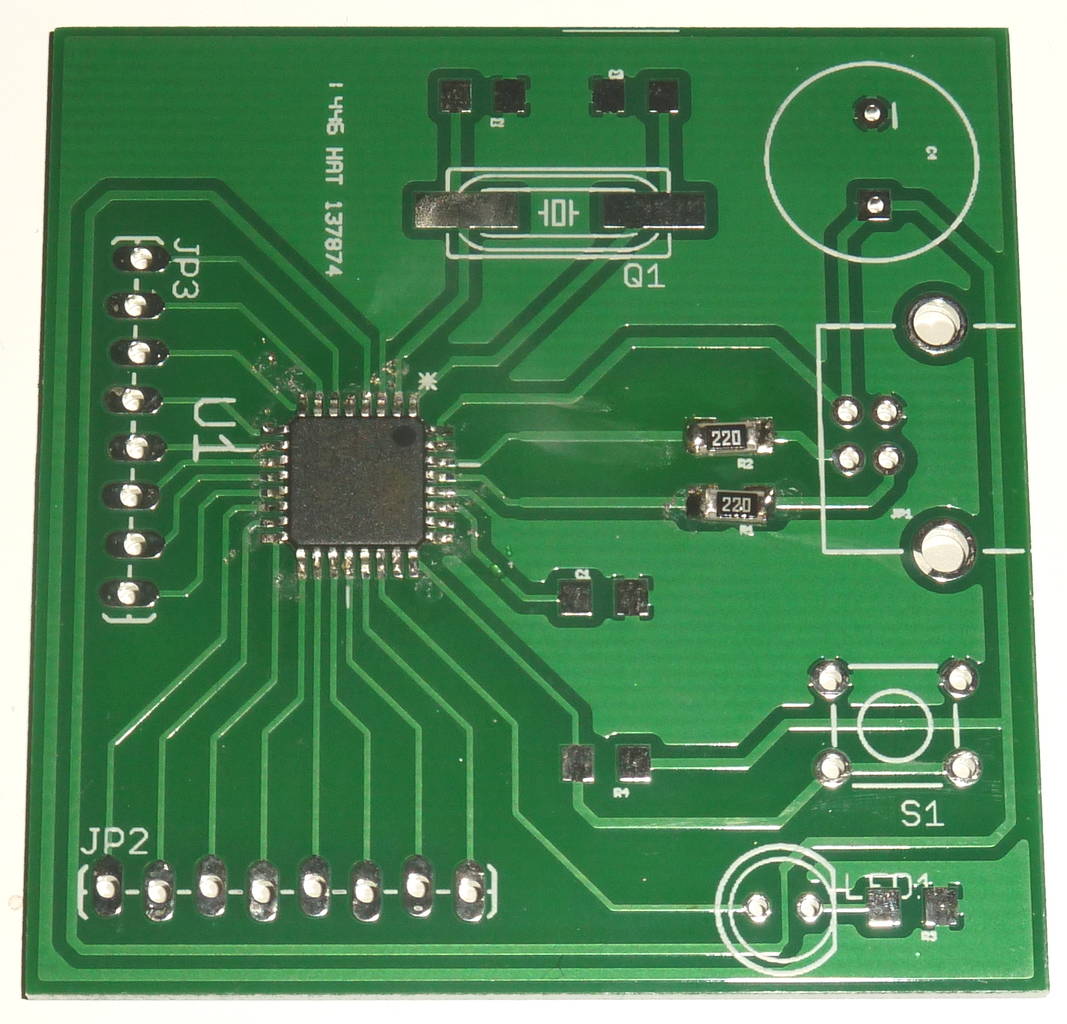

Key Highlights

Definition and Components: Microcontrollers integrate a processor, memory, and I/O peripherals on a single chip.
Arduino vs. Raspberry Pi: Distinct architectures serving real-time control versus full operating system needs.
Application and Usage: Different platforms cater to various applications, from simple sensor tasks to complex computing.

What Are Microcontrollers?

Microcontrollers are essentially small, self-contained computers engineered for specific tasks in embedded systems. Unlike general-purpose computers, these devices are designed to execute a particular set of functions continuously. At the heart of nearly every modern electronic device—from washing machines and cars to remote controls—lies a microcontroller that manages its essential operations.

Structurally, a microcontroller combines a Central Processing Unit (CPU), various forms of memory including both volatile (RAM) and non-volatile (ROM or Flash memory), and Input/Output (I/O) peripherals such as timers, analog-to-digital converters (ADC), and communication interfaces. This integration makes them power efficient and cost-effective for controlling processes in real time.

Essential Components of a Microcontroller

Central Processing Unit (CPU)

The CPU of a microcontroller is its "brain" responsible for executing instructions and performing logical operations. Operating often at relatively low clock speeds compared to general-purpose computers, these CPUs are optimized for energy efficiency and reliability rather than brute computational power.

Memory

Memory in a microcontroller is divided into two main types:

Volatile Memory (RAM): Temporary storage used while a program is running.
Non-Volatile Memory (ROM/Flash): Permanent storage employed to hold firmware, the set of pre-programmed instructions that control device behavior.

Input/Output Peripherals

Microcontrollers are equipped with various built-in peripherals that interact with the external world. These include digital and analog I/O pins, timers, counters, and communication protocols such as UART, SPI, and I2C. These interfaces enable the microcontroller to read from sensors, control actuators, and communicate with other electronic components.

Arduino: A Gateway to Embedded Projects

Overview of Arduino

Arduino is one of the most popular and accessible platforms based upon microcontrollers. Characterized by its open-source hardware and software, Arduino has become a favorite for beginners, hobbyists, and educational institutions. It is particularly useful for real-time control tasks, handling interactions with sensors, motors, and simple displays.

Typically built around an 8-bit microcontroller, Arduino boards are programmed with languages derived from C/C++ using the Arduino Integrated Development Environment (IDE). This environment simplifies the process of writing, compiling, and uploading programs to the board, thereby easing the learning curve for newcomers.

Key Features and Advantages of Arduino

Ease of Use

Arduino's simplicity is one of its strongest assets. With extensive documentation, a vast online community, and abundant learning resources, it is well-suited to individuals just beginning their journey in electronics and programming.

Low Power Consumption

Designed for efficiency, Arduino boards consume very little power, which makes them ideal for battery-powered applications or where energy constraints are significant.

Open-Source Nature

The open-source hardware and software model encourages innovation and customization, allowing users to modify designs, create their own boards, or add custom peripherals.

Common Applications of Arduino

Arduino is extensively used in a myriad of projects, such as:

Sensor data collection and environmental monitoring
Basic robotics and automation systems
Interactive art installations and DIY gadgets
Home automation systems

Its ability to quickly interface with a variety of external components, along with a low learning curve, makes Arduino an accessible platform to prototype and create electronic projects.

Raspberry Pi: A Single-Board Computer Approach

Overview of Raspberry Pi

In contrast to traditional microcontrollers, Raspberry Pi is a single-board computer (SBC) that combines the functionality of a microprocessor with the versatility of a full operating system. Typically powered by a more advanced 32-bit or 64-bit processor, Raspberry Pi is capable of running full Linux-based distributions or other operating systems, which makes it a powerful tool for multi-tasking and more complex computational tasks.

The platform is popular not just among hobbyists but also in educational settings, where it serves to facilitate learning in computer science and software development for various applications.

Key Features and Advantages of Raspberry Pi

Full-Fledged Operating System

One of the distinguishing features of Raspberry Pi is its ability to run a complete operating system, such as a version of Linux. This supports multitasking and allows users to run multiple applications concurrently, from web browsers and media players to database servers and development environments.

Enhanced Computational Power

With a more powerful processor and significant memory capacities (ranging from hundreds of megabytes up to several gigabytes of RAM), Raspberry Pi is well-suited for projects that require more advanced computation, such as image processing, machine learning, and large-scale data processing.

Connectivity and Multimedia

Raspberry Pi comes with robust connectivity options, including HDMI, multiple USB ports, Ethernet, built-in Wi-Fi, and Bluetooth. This makes it a favored platform for applications requiring media interfacing, internet connectivity, and peripheral interaction.

Common Applications of Raspberry Pi

Due to its versatility, Raspberry Pi finds use in a variety of scenarios, including:

Media centers and home theater systems
Internet of Things (IoT) applications
Educational platforms and coding lessons
Advanced robotics and automation
Web servers and network monitoring systems

Comparative Analysis: Arduino VS Raspberry Pi

Feature Comparison Table

Feature	Arduino	Raspberry Pi
Type	Microcontroller Board	Single-Board Computer
Operating System	No OS (runs simple programs)	Linux-based OS (can support multitasking)
Programming Languages	C/C++ (via Arduino IDE)	Python, Java, C/C++, and many more
Real-Time Capability	Excellent for real-time control	Limited real-time performance
Connectivity	Basic I/O; additional shields required for network connectivity	Built-in Wi-Fi, Bluetooth, Ethernet, HDMI, etc.
Power Consumption	Optimized for low-power consumption	Consumes more power due to a full OS and higher processing demands
Community Support	Vast and beginner-friendly resources	Strong support with a focus on advanced projects

Choosing the Right Platform

The decision to use either Arduino or Raspberry Pi largely depends on the nature of the project at hand:

Arduino: Ideal for simple, repetitive tasks that require direct hardware control, such as reading sensor data, controlling motors, or managing LED displays. Its low power consumption and ease of programming make it particularly suitable for real-time applications and battery-operated devices.
Raspberry Pi: More suited for projects that benefit from the versatility of an operating system, such as multimedia processing, complex data operations, and network-based applications. Its integrated connectivity options and higher processing power allow it to handle multiple tasks simultaneously.

Real-World Applications and Future Trends

Embedded Systems and the Internet of Things (IoT)

Microcontrollers have a critical role in the development of embedded systems and the rapid expansion of the Internet of Things (IoT). As more devices connect to networks, the deployment of microcontrollers increases in both complexity and scale. Arduino remains a top choice for prototypes and small-scale automation due to its ease of use and low power needs. Meanwhile, Raspberry Pi is increasingly employed in IoT gateways, edge computing, and smart city applications where more robust computing capabilities are required.

Industrial and Commercial Automation

In industrial settings, microcontrollers drive machinery, monitor system operations, and assist in real-time control of production lines. Their reliability, cost efficiency, and compact design allow for seamless integration into manufacturing processes. As automation advances, combining microcontroller platforms with network connectivity and machine learning is leading to smarter, self-regulating systems.

Educational Impact

Both Arduino and Raspberry Pi have revolutionized education in electronics and programming. Their open-source and community-driven resources empower students and enthusiasts alike to experiment, innovate, and develop a practical understanding of computing and electronics. Workshops, online tutorials, and project-based learning all contribute to a vibrant ecosystem that continuously fuels technological education and maker culture.

Programming and Integration Techniques

Arduino Programming Overview

Arduino is programmed using a simplified version of C/C++, which is easy to grasp for beginners. The Arduino IDE provides a straightforward interface for writing code and directly uploading it to the board. A typical Arduino sketch consists of two functions:

setup(): Runs once, initializing settings such as pin modes.
loop(): Runs continuously, managing tasks like sensor readings and data processing.

This simple programming model enables users to build interactive projects without the need for complex operating systems or extensive resource management.

Raspberry Pi Software Integration

Raspberry Pi’s role as a single-board computer introduces a more advanced software ecosystem. With full operating systems such as Raspberry Pi OS, users can develop applications in multiple programming languages such as Python, Java, or C/C++. This versatility allows Raspberry Pi to operate as a complete server, multimedia center, or custom computing platform.

Hands-On Examples and Project Ideas

Simple Arduino Project Example

A common beginner project is blinking an LED. The code involves setting a pin as an output and toggling its state on and off with a delay. This not only demonstrates the basics of I/O control but also provides immediate feedback on hardware integration.

Raspberry Pi Project Example

For Raspberry Pi, a popular project includes setting up a home media server. By installing a media center software, connecting various multimedia interfaces, and utilizing the board’s networking capabilities, users can create an immersive entertainment setup. The flexibility in programming and connectivity options truly shines in such comprehensive applications.
