Misconceptions in Kirchhoff's Current Law
Debunking Common Myths for Accurate Circuit Analysis
Key Takeaways
- KCL applies to both DC and AC circuits, not just direct current.
- Sign conventions are critical in applying KCL correctly.
- KCL's applicability may be limited at high frequencies or in complex circuits involving parasitic elements.

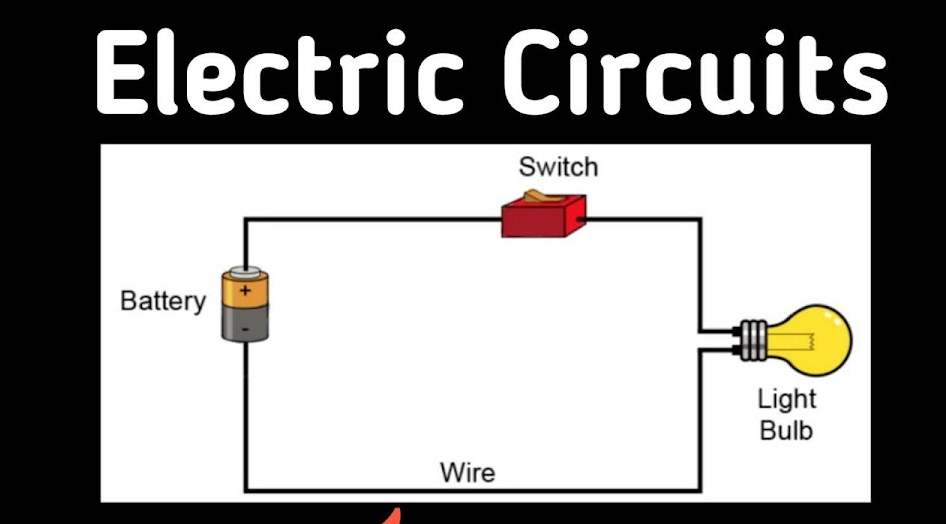

Understanding Kirchhoff's Current Law (KCL)
Kirchhoff's Current Law (KCL) is a fundamental principle in electrical engineering that stipulates the conservation of electric charge at a junction or node within an electrical circuit. According to KCL, the total current entering a node must equal the total current leaving that node. This law is instrumental in circuit analysis, enabling engineers to solve complex circuits by establishing current relationships at various points. Despite its simplicity and widespread application, several misconceptions about KCL persist, potentially leading to analytical errors and misunderstandings in both educational and professional settings.
Common Misconceptions About KCL
1. KCL Applies Only to DC Circuits
A prevalent misconception is that Kirchhoff's Current Law is solely applicable to Direct Current (DC) circuits. In reality, KCL is equally valid for Alternating Current (AC) circuits. The law is grounded in the principle of charge conservation, which holds true irrespective of the type of current. While DC circuits deal with constant currents and voltages, AC circuits involve time-varying currents and voltages. KCL accommodates both scenarios by considering the instantaneous values of currents, ensuring that the algebraic sum of currents at any node remains zero in both DC and AC contexts.
2. KCL is Only Applicable to Simple or Linear Circuits
Another common misunderstanding is that KCL is restricted to simple or linear circuits. This is incorrect, as KCL is applicable to circuits of any complexity, including nonlinear circuits. Whether a circuit contains multiple branches, various components like inductors and capacitors, or nonlinear elements such as diodes and transistors, KCL can be employed to analyze current distributions effectively. The law provides a systematic approach to dissecting complex networks by focusing on current conservation at each node, thereby facilitating comprehensive analysis regardless of circuit intricacies.
3. KCL Always Holds Without Restrictions
Some practitioners believe that KCL always applies without any limitations. However, KCL is fundamentally accurate under the quasi-static approximation, where time variations of circuit fields are slow, and displacement currents are negligible. In high-frequency or rapidly changing circuits, especially those where electromagnetic wave effects or significant parasitic capacitances are present, the standard formulation of KCL may need to be adjusted to include displacement currents as described in Maxwell's equations. Ignoring these factors in such scenarios can lead to inaccuracies in circuit analysis.
4. The Direction of Currents is Irrelevant and Sign Conventions Can Be Ignored
It is sometimes mistakenly thought that the physical direction of currents flowing into or out of a node is inconsequential, leading to the belief that sign conventions can be arbitrary or neglected. In truth, while the initial assignment of current directions can be arbitrary, maintaining consistent sign conventions is crucial for accurate application of KCL. Currents entering a node are typically considered positive, while those leaving are negative (or vice versa), and any inconsistencies in this convention can result in incorrect current calculations. Proper sign convention ensures the algebraic sum of currents remains zero, upholding the charge conservation principle.
5. KCL Automatically Accounts for Transient Effects and Charge Accumulation
There is a misconception that applying KCL inherently accounts for transient phenomena such as charge accumulation or depletion at a node. However, KCL in its standard form assumes steady-state conditions where there is no net accumulation of charge. In circuits with capacitive or inductive elements, transient behaviors involve changes in charge or flux, which require additional considerations. For instance, in nodal analysis involving capacitors, the displacement current or the time derivative of voltage must be incorporated to accurately represent transient conditions alongside KCL.
6. KCL Negates Physical Effects Like Electromagnetic Radiation
Another misunderstanding is that KCL fully captures all current-related phenomena, thereby neglecting effects like electromagnetic radiation in high-speed circuits. In reality, while KCL ensures current continuity at nodes, it does not inherently account for electromagnetic radiation or transmission line effects that become significant at high frequencies or in extended geometries. To accurately model such scenarios, KCL must be used in conjunction with other principles, such as Maxwell's equations, to incorporate displacement currents and electromagnetic wave propagation effects.
7. KCL is Too Theoretical and Not Useful in Practical Applications
Some may perceive KCL as an overly theoretical construct with limited practical utility. Contrary to this belief, KCL is extensively used in practical applications, including circuit design, troubleshooting, and analysis across various fields like electronics, telecommunications, and power systems. It serves as a foundational tool that aids engineers in understanding and predicting current distributions, thereby facilitating the efficient design and operation of electrical systems. The practical significance of KCL is evident in its widespread adoption in both academic and industrial contexts.
8. KCL is Only Relevant for Experienced Engineers
There is a notion that Kirchhoff's Current Law is exclusively relevant to advanced or experienced engineers, making it inaccessible to beginners. This is not the case, as KCL is a fundamental concept taught early in electrical engineering education. Its principles are straightforward and based on the intuitive idea of charge conservation, making it accessible to students and practitioners alike. With proper instruction and practical examples, both novices and experts can effectively apply KCL to analyze and design electrical circuits.
9. KCL Does Not Account for Parasitic Elements
Another misconception is that KCL inherently accounts for parasitic elements such as unintended resistance, capacitance, or inductance within a circuit. In reality, KCL assumes ideal circuit elements and does not automatically consider parasitics. However, these parasitic effects can be modeled and integrated into circuit analysis using KCL by incorporating additional components or modifying existing ones to represent the undesired parasitic properties. This approach allows for a more accurate and realistic analysis of practical circuits where parasitic elements are unavoidable.
Challenges in Applying KCL and Their Solutions
Applying KCL in Complex Circuits
One of the challenges in applying KCL arises in complex circuits with multiple nodes and branches. To address this, engineers can break down the circuit into simpler components, applying KCL at each node systematically. This modular approach simplifies the analysis and ensures that current conservation is maintained throughout the entire circuit.
Dealing with Non-Conservative Fields
In scenarios involving non-conservative fields, such as those influenced by Faraday's Law, KCL alone may not suffice. In such cases, KCL must be used in conjunction with other principles like Kirchhoff's Voltage Law (KVL) and Maxwell's equations to comprehensively analyze the circuit behavior. Recognizing the limitations of KCL in these contexts and supplementing it with additional laws ensures accurate circuit analysis.
Handling High-Frequency Effects
At high frequencies, traditional KCL formulations may fail to account for displacement currents and electromagnetic wave propagation. To overcome this, KCL must be modified to include displacement currents, thereby aligning it with Maxwell's equations. This modification enables the accurate analysis of high-frequency circuits where standard KCL would otherwise be inadequate.
Comparative Analysis of Misconceptions and Realities
| Misconception | Reality |
|---|---|
| KCL is only applicable to DC circuits. | KCL applies to both DC and AC circuits, adhering to charge conservation in both scenarios. |
| KCL is only for simple or linear circuits. | KCL is versatile and can be applied to circuits of any complexity, including nonlinear configurations. |
| KCL always holds without restrictions. | KCL is accurate under the quasi-static approximation but requires modifications in high-frequency or dynamic conditions. |
| The direction of currents is irrelevant and sign conventions can be ignored. | Consistent sign conventions are essential for accurate current calculations using KCL. |
| KCL automatically accounts for transient effects and charge accumulation. | KCL assumes steady-state conditions and requires additional considerations for transient phenomena. |
| KCL negates physical effects like electromagnetic radiation. | KCL does not inherently account for electromagnetic radiation; additional principles are needed for such effects. |
| KCL is too theoretical and not useful in practical applications. | KCL is extensively used in practical circuit design, troubleshooting, and analysis across various engineering fields. |
| KCL is only relevant for experienced engineers. | KCL is a foundational concept accessible to both beginners and experts with proper instruction. |
| KCL does not account for parasitic elements. | Parasitic effects can be modeled and incorporated into KCL-based analyses by adding corresponding circuit components. |
Practical Applications of KCL
Kirchhoff's Current Law is indispensable in various practical applications within electrical engineering. It is fundamental in designing and analyzing electrical networks, ensuring that current distributions are accurately determined for both power and signal circuits. In telecommunications, KCL aids in understanding signal propagation and interference. In power systems, it is essential for load distribution and stability analysis. Additionally, KCL is vital in integrated circuit design, where precise current management is crucial for functionality and efficiency.
Advanced Considerations in KCL Application
Incorporating Parasitic Elements
In real-world circuits, parasitic elements such as unintended resistances, capacitances, and inductances can influence circuit behavior. When applying KCL, these parasitics must be explicitly modeled to ensure accurate analysis. For example, parasitic capacitance can be represented by adding capacitive components to the nodes, allowing KCL to account for the resulting displacement currents. This meticulous modeling ensures that the analysis remains robust and reflective of actual circuit conditions.
High-Frequency Circuit Analysis
At high frequencies, the assumptions underpinning KCL may no longer hold due to significant electromagnetic effects. To address this, it is necessary to extend KCL by including displacement currents, effectively integrating it with Maxwell's equations. This extension allows for the accurate analysis of high-frequency circuits, where traditional KCL might fail to capture critical phenomena such as wave propagation and radiation losses.
Transient Analysis Using KCL
In transient analysis involving capacitors and inductors, KCL must be applied alongside differential equations that describe the time-dependent behavior of these components. For instance, in circuits with capacitors, the current through a capacitor is time-dependent and relates to the rate of voltage change across it. Incorporating these relationships into KCL formulations enables the accurate modeling of transient responses in electrical circuits.
Conclusion
Kirchhoff's Current Law is a cornerstone of electrical circuit analysis, providing a reliable framework for understanding and predicting current distributions in a wide array of circuits. However, numerous misconceptions persist, ranging from its applicability to DC-only circuits to the erroneous belief that it automatically accounts for all transient and high-frequency effects. By debunking these myths and recognizing the conditions under which KCL is accurately applicable, engineers and students alike can leverage this law more effectively in both theoretical and practical contexts. Furthermore, acknowledging the limitations of KCL in specific scenarios, such as high-frequency analysis or circuits laden with parasitic elements, ensures that circuit analyses remain precise and reflective of real-world behaviors.
