Common Misconceptions in Series and Parallel Resistor Circuits

Understanding the Truth Behind Electrical Circuit Designs

Key Takeaways

Current Consistency in Series: In series circuits, the current remains uniform across all components.
Voltage Uniformity in Parallel: Parallel circuits maintain a constant voltage across all branches.
Correct Resistance Calculation: Total resistance varies distinctly between series and parallel configurations.

Introduction to Series and Parallel Resistors

Resistors are fundamental components in electrical circuits, regulating the flow of electric current. Understanding how resistors behave in series and parallel configurations is crucial for designing and analyzing circuits effectively. However, several misconceptions often confuse students and professionals alike. This comprehensive guide aims to clarify these misunderstandings and provide accurate insights into the behavior of resistors in different circuit configurations.

Misconceptions in Series Circuits

1. Current Decreases as It Passes Through Each Resistor

A prevalent misconception is that the electric current diminishes as it flows through each resistor in a series circuit. In reality, the current remains constant throughout a series circuit. This is because there is only one path for the current to follow, ensuring that the same amount of charge flows through each resistor sequentially.

Understanding Current Flow in Series

Consider a simple series circuit with three resistors connected consecutively. The electrons flowing through the circuit encounter each resistor but do not lose their quantity. Instead, each resistor offers resistance against the flow, resulting in voltage drops proportional to their resistance values. The total voltage supplied by the source is divided among the resistors, but the current remains unchanged.

2. Voltage Drops Are Uneven Across Series Resistors

While the misconception that current changes in a series circuit is common, there's also confusion about voltage distribution. Some believe that voltage drops are uneven or variable without understanding the underlying principles. The truth is that voltage drops across each resistor are directly proportional to their resistance, ensuring that the sum of all individual voltage drops equals the total voltage supplied.

Calculating Voltage Drops

Using Ohm's Law (V = IR), if you have resistors of different values in series, each resistor will have a different voltage drop based on its resistance. For example, in a series circuit with a 6V source and two resistors of 2Ω and 4Ω, the current is 1.5A. The voltage drop across the 2Ω resistor is 3V, and across the 4Ω resistor is 6V, summing up to the total 9V, which indicates the necessity of matching source voltage for balance.

3. Total Resistance Calculation is Variable

Another common mistake is incorrectly calculating the total resistance in series circuits. The correct method is to sum up all individual resistances. However, some erroneously apply formulas meant for parallel circuits or misapply the series formula.

Correct Formula for Series Resistance

The total resistance (R_total) in a series circuit is simply the sum of all resistors:

R_total = R1 + R2 + R3 + ... + Rn

4. Assuming Series Resistors Improve Accuracy

There is a belief that arranging multiple resistors in series inherently increases the accuracy of the overall resistance. While averaging can reduce the impact of individual resistor tolerances, it's not a guaranteed method for improving precision, especially if the resistors have non-random errors or are not identical.

Practical Implications

In practical applications, using resistors in series can achieve a desired resistance value, but it does not necessarily enhance accuracy. For critical applications, selecting resistors with tighter tolerance specifications or using precision resistors is more effective.

Misconceptions in Parallel Circuits

1. Voltage Across Parallel Resistors Varies

Contrary to popular belief, the voltage across each resistor in a parallel circuit is constant and equal to the source voltage. Each resistor forms its own branch directly connected to the power source, ensuring that they all experience the same potential difference.

Voltage Consistency Explained

Imagine a parallel circuit with a 12V source and multiple branches. Each resistor in its respective branch receives the full 12V, regardless of its resistance value. This uniform voltage across all branches is a defining characteristic of parallel circuits.

2. Adding More Resistors in Parallel Increases Total Resistance

A frequent misconception is that adding more resistors in parallel increases the total resistance. In reality, adding resistors in parallel decreases the overall resistance because it provides more paths for the current to flow.

Understanding Parallel Resistance Reduction

Using the parallel resistance formula:

1/R_total = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn

As more resistors are added in parallel, the denominator increases, resulting in a smaller R_total. This reduction continues asymptotically as more parallel paths are introduced.

3. Current Divides Equally Among Parallel Resistors

Many assume that current splits equally across each parallel resistor regardless of their resistance values. However, the actual current distribution depends on each resistor's resistance.

Ohm's Law in Parallel Circuits

Applying Ohm's Law (I = V/R), resistors with lower resistance will draw more current, while those with higher resistance will draw less. For instance, in a parallel circuit with a 10V source and two resistors, 2Ω and 5Ω, the currents will be 5A and 2A respectively, not equal currents.

4. Misapplication of Ohm's Law

Ohm's Law is fundamental in circuit analysis, but its misapplication leads to errors. A common mistake is using the total voltage across a parallel circuit when calculating the voltage drop across individual resistors.

Proper Use of Ohm's Law

Each resistor in a parallel circuit experiences the full source voltage. Therefore, when applying Ohm's Law, ensure that the voltage used corresponds to the true potential difference across the resistor being analyzed.

General Misconceptions in Resistor Measurements and Applications

1. Physical Layout Directly Influences Resistance

While the arrangement of resistors might intuitively seem to affect the total resistance, in most low-frequency applications, the physical layout doesn't significantly impact resistance. Exceptions exist in high-frequency or complex circuits where parasitic inductance and capacitance can play roles, but these are advanced scenarios.

When Layout Matters

In typical DC circuits, the spatial arrangement of resistors doesn't alter electrical resistance. However, in RF circuits or high-speed digital circuits, unintended inductive and capacitive effects can influence circuit behavior.

2. Equal Power Distribution in Parallel Resistors

It's a misconception to think that power is equally distributed among parallel resistors. In reality, power dissipation depends on each resistor's resistance and the current flowing through it.

Power Calculations in Parallel

Power dissipated by a resistor is given by P = V²/R. Since all resistors in parallel share the same voltage, a lower resistance resistor will dissipate more power. For example, between a 2Ω and a 4Ω resistor in parallel with a 12V source, the 2Ω resistor dissipates 72W while the 4Ω resistor dissipates 36W.

3. Measurement Errors Due to Circuit Complexity

Measuring resistance in complex circuits without proper analysis can lead to inaccurate readings. Treating resistors as purely series or parallel without recognizing the actual wiring can cause misunderstandings.

Accurate Resistance Measurement Techniques

To accurately measure resistance in complex circuits, it's essential to isolate the resistors or utilize circuit analysis techniques such as Kirchhoff’s laws, mesh, and node analysis. Additionally, ensure that the circuit is de-energized before taking measurements to avoid damaging the multimeter or obtaining false readings.

Common Pitfalls in Calculating Total Resistance

1. Incorrect Application of Formulas

Using the wrong formula based on the circuit configuration leads to incorrect calculations. For series circuits, resistances add up linearly, while for parallel circuits, the reciprocal formula must be applied.

Series vs. Parallel Resistance Formulas

Configuration	Total Resistance Formula	Characteristic
Series	R_total = R₁ + R₂ + R₃ + ... + Rₙ	Current is constant; voltage divides
Parallel	1/R_total = 1/R₁ + 1/R₂ + 1/R₃ + ... + 1/Rₙ	Voltage is constant; current divides

2. Neglecting Unit Consistency

Calculations become erroneous when resistances are not converted to the same units before summing. Ensuring all resistors are measured in ohms (Ω) is fundamental for accurate total resistance computation.

Ensuring Unit Consistency

Before summing resistances, convert kilo-ohms (kΩ) or mega-ohms (MΩ) to ohms to maintain consistency. For example, 1kΩ should be converted to 1000Ω when combined with other resistors.

Advanced Considerations and Real-World Implications

1. Parasitic Effects in High-Frequency Circuits

At high frequencies, real-world resistors exhibit parasitic inductance and capacitance, affecting the circuit's behavior. These factors can influence impedance and signal integrity, deviating from ideal resistor models.

Impact on Circuit Design

In RF and high-speed digital circuits, designers must account for these parasitic elements to ensure accurate performance. Techniques such as impedance matching and the use of specific resistor types can mitigate adverse effects.

2. Temperature Variations Affecting Resistor Behavior

Resistors are sensitive to temperature changes, which can alter their resistance values. This thermal dependence can lead to inaccuracies in circuit performance if not properly managed.

Mitigating Temperature Effects

Using resistors with low temperature coefficients or incorporating temperature compensation techniques can help maintain stable resistance values across varying temperatures.

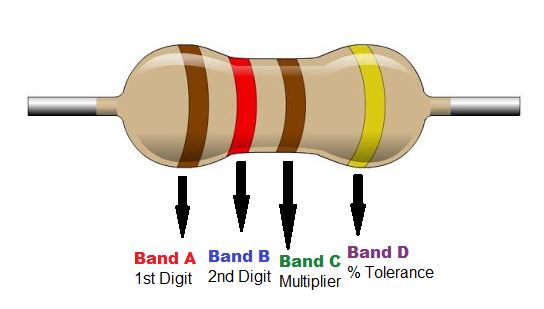

3. Real-World Resistance Tolerances

Manufactured resistors come with tolerance ratings (e.g., ±1%, ±5%), indicating possible variations from the nominal value. These tolerances can impact circuit behavior, especially in precision applications.

Selecting Appropriate Resistors

For applications requiring high precision, selecting resistors with tighter tolerance grades minimizes deviation from desired resistance values, ensuring consistent circuit performance.

Best Practices to Avoid Misconceptions and Errors

1. Thorough Circuit Analysis

Before performing calculations, analyze the circuit thoroughly to identify series and parallel groupings accurately. Use circuit reduction techniques and visualization to ensure correct resistor relationships.

Step-by-Step Reduction

Begin by simplifying complex networks by reducing simple series or parallel resistor groups into equivalent resistances. Proceed iteratively until the entire circuit is simplified to a single equivalent resistance.

2. Proper Measurement Techniques

Ensure that resistors are measured with the power off and disconnected from the circuit to obtain accurate readings. Avoid touching resistor leads during measurements to prevent body resistance interference.

Using Multimeters Correctly

Set the multimeter to the appropriate resistance range, and ensure probes are making good contact with resistor leads. Zero the meter if necessary to eliminate baseline errors before taking measurements.

3. Educational Emphasis on Fundamental Principles

Strengthen understanding by emphasizing fundamental electrical principles such as Ohm's Law, Kirchhoff’s Voltage and Current Laws, and the nature of series and parallel connections.

Incorporating Practical Examples

Use practical circuit examples and hands-on experiments to demonstrate correct behaviors and dispel common misconceptions. Visual aids like circuit diagrams can enhance comprehension.

Conclusion

Misconceptions in series and parallel resistor circuits can lead to significant errors in circuit design and analysis. By understanding that current remains constant in series circuits and voltage remains constant in parallel circuits, and by applying the correct formulas for total resistance, one can avoid common pitfalls. Additionally, being aware of advanced factors such as parasitic effects and temperature variations further strengthens one's ability to design accurate and reliable electrical circuits. Employing best practices in circuit analysis and measurement ensures precision and fosters a deeper comprehension of electrical principles.
