Unlocking Smart Energy: How MQTT Bridges Your Meters and Inverters

The integration of smart meters and solar inverters using MQTT (Message Queuing Telemetry Transport) is revolutionizing how we manage and consume energy. This lightweight, efficient, and scalable communication protocol is ideal for Internet of Things (IoT) devices, enabling them to share data seamlessly. Let's delve into how MQTT is making our energy systems smarter, more responsive, and more efficient.

Key Insights at a Glance

Real-Time Data Exchange: MQTT facilitates the immediate transmission of energy consumption and production data from smart meters and inverters, enabling dynamic monitoring and control.
Enhanced System Interoperability: It allows diverse devices, from various manufacturers, to communicate effectively with energy management platforms like Home Assistant, Node-RED, and cloud IoT services.
Scalable and Secure Communication: MQTT supports secure connections (TLS/SSL, authentication) and can scale from small home setups to large utility deployments, ensuring data integrity and reliability.

Understanding MQTT: The Backbone of Smart Energy Communication

MQTT is a publish-subscribe network protocol designed for constrained devices and low-bandwidth, high-latency, or unreliable networks. Its core principles make it exceptionally well-suited for IoT applications, particularly in the energy sector.

Core Concepts of MQTT

Publish-Subscribe Model

Instead of devices directly communicating with each other, MQTT uses a central message broker. Devices (clients) can publish messages to specific "topics" on this broker. Other clients can "subscribe" to these topics to receive messages. This decouples the message sender (publisher) from the message receiver (subscriber).

Lightweight and Efficient

MQTT messages have a small code footprint and minimal network bandwidth requirements. This is crucial for battery-powered sensors or devices on congested networks.

Persistent Connections and Quality of Service (QoS)

MQTT supports persistent TCP connections, reducing latency for frequent messages. It also offers three Quality of Service levels, ensuring message delivery reliability based on application needs:

QoS 0 (At most once): Messages are delivered according to the best efforts of the underlying TCP/IP network. Delivery is not guaranteed.
QoS 1 (At least once): Guarantees that the message is delivered at least once to the receiver. Duplicates may occur.
QoS 2 (Exactly once): Guarantees that the message is received only once by the receiver. This is the most reliable but also the slowest level.

Security

MQTT supports security mechanisms such as username/password authentication, client certificate authentication, and TLS/SSL encryption to protect data in transit.

Firewall Friendly

Clients initiate outbound connections to the broker, which simplifies network configuration, especially in environments with strict firewalls.

MQTT Integration with Smart Meters

Smart meters collect real-time data on electricity, gas, or water consumption. Integrating them with MQTT allows for efficient data transmission to energy monitoring systems, home automation platforms, and analytics dashboards.

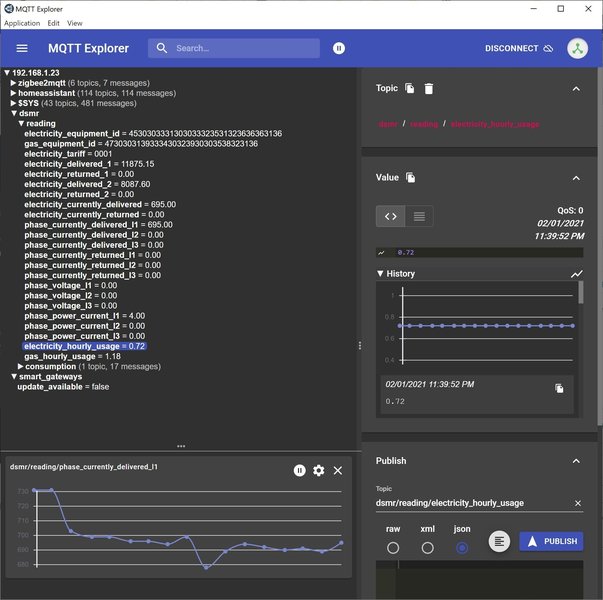

Illustration of MQTT topics used for smart meter data

An example of MQTT topic structures for smart meter data.

How Smart Meters Communicate via MQTT

Data Acquisition and Publication

Smart meters, or gateways connected to them, read energy data (e.g., kWh, voltage, current, power factor). This data is then formatted (often as JSON) and published to specific MQTT topics. For example, a topic might be home/energy/smartmeter/consumption/active_power.

Hardware and Firmware Solutions

Wi-Fi Energy Meters: Devices like IAMMETER's single-phase and 3-phase energy meters often come with built-in MQTT support, allowing direct publication to an MQTT broker with username and password authentication.
P1 Port Integration: Many European smart meters have a P1 port that outputs data telegrams (e.g., using DSMR standard). A small gateway device (like an ESP8266/ESP32 or Raspberry Pi) can read this data and forward it to an MQTT broker.
Optical/IR Interfaces: Some meters provide data via an optical or infrared interface. An IR reader connected to a microcontroller can capture this data (often in SML - Smart Message Language), parse it, and publish it via MQTT.
Firmware like Tasmota/ESPHome: Custom firmware flashed onto compatible microcontrollers can enable MQTT communication for various sensors, including those interfacing with energy meters.
Modbus to MQTT: Industrial meters often use Modbus. Gateways can convert Modbus data to MQTT for integration into IoT systems.

Use Cases and Benefits

Real-Time Monitoring: Homeowners and businesses can track energy usage in real-time using dashboards (e.g., Grafana, Home Assistant Energy Dashboard).
Home Automation: Integrate smart meter data into platforms like Home Assistant for automated decision-making (e.g., turning off high-consumption devices during peak hours).
Data Logging and Analysis: Store historical data in time-series databases (e.g., InfluxDB, VictoriaMetrics) for long-term trend analysis and identifying energy-saving opportunities.

MQTT Integration with Solar Inverters

Solar inverters convert DC power from solar panels into AC power for use in homes or export to the grid. MQTT integration enables real-time monitoring of solar energy production, inverter status, and even remote control in some cases.

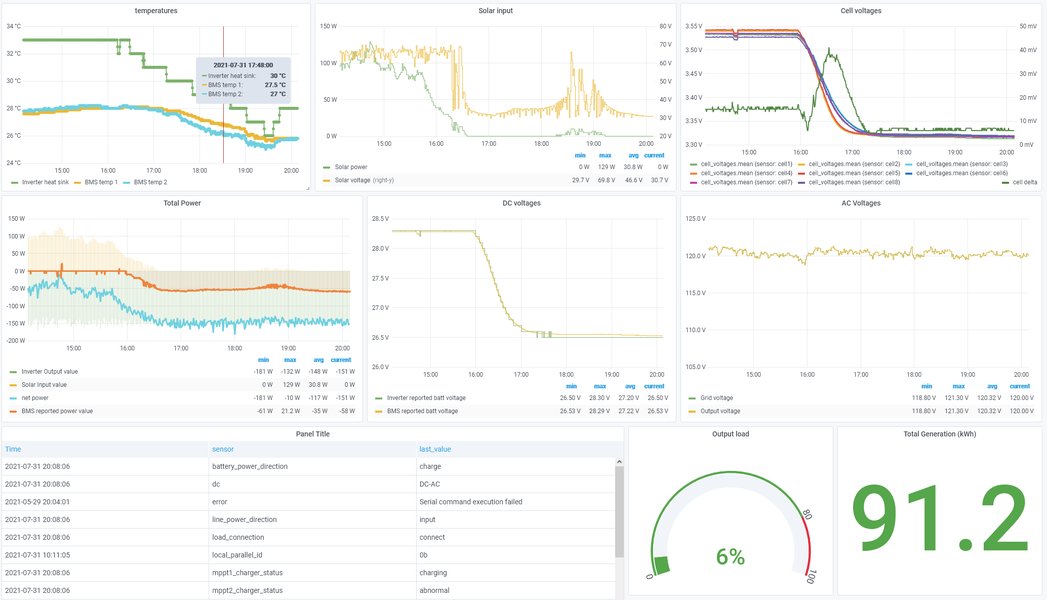

Solar energy dashboard showing inverter data

A dashboard visualizing solar inverter data, often fed by MQTT.

How Solar Inverters Communicate via MQTT

Data Acquisition and Publication

Inverters provide data such as AC/DC voltage and current, power output, energy generated (daily, total), battery status (if a hybrid inverter), and operational fault codes. This data is published to MQTT topics like solar/inverter/status/current_power or solar/battery/soc.

Hardware and Software Solutions

Native MQTT Support: Some modern inverters may offer direct MQTT publishing capabilities.
Gateway Devices: More commonly, a gateway device (e.g., Raspberry Pi, ESP8266/ESP32) interfaces with the inverter via serial (RS232, RS485, USB), Ethernet, or Wi-Fi. Software on the gateway polls the inverter (using proprietary protocols, Modbus, or CANbus), processes the data, and publishes it to MQTT.
Community Projects: Numerous open-source projects exist for specific inverter brands, such as:
- deye-inverter-mqtt for Deye inverters.
- Scripts using libraries like mpp-solar for Voltronic/Axpert/MPP Solar type inverters.
- Sofar2mqtt for Sofar Solar inverters.
- Integrations for Growatt, Fronius, Solis, and Victron systems.

Use Cases and Benefits

Performance Monitoring: Track solar energy production in real-time to ensure the system is performing optimally.
Remote Diagnostics: Monitor inverter status and fault codes for early detection of issues.
Integration with Energy Management Systems: Combine solar production data with consumption data (from smart meters) for a holistic view of energy flows. This enables optimization strategies like self-consumption maximization.
Remote Control: Some integrations allow sending commands to inverters via MQTT, such as changing operational modes or battery charging parameters (use with caution).

Visualizing the MQTT Ecosystem for Energy Devices

The following mindmap illustrates the typical architecture of an MQTT-based energy monitoring and management system, showing how smart meters and inverters connect to an MQTT broker, and how various applications subscribe to this data.

mindmap root["MQTT in Smart Energy Systems"] id1["Smart Devices (Publishers)"] id1_1["Smart Meters"] id1_1_1["Energy Consumption Data
(kWh, Volts, Amps)"] id1_1_2["Grid Import/Export"] id1_2["Solar Inverters"] id1_2_1["Energy Production Data
(kWh, Power, Efficiency)"] id1_2_2["Battery Status (SoC, Charge/Discharge)"] id1_2_3["System Faults/Alerts"] id2["MQTT Broker (Central Hub)"] id2_1["Manages Topics & Subscriptions"] id2_2["Handles Authentication & Security"] id2_3["Examples: Mosquitto, EMQX, HiveMQ"] id3["Subscribing Applications/Systems"] id3_1["Home Automation Platforms"] id3_1_1["Home Assistant"] id3_1_2["OpenHAB"] id3_1_3["Node-RED"] id3_2["Data Visualization & Dashboards"] id3_2_1["Grafana"] id3_2_2["Custom Web UIs"] id3_3["Data Storage & Analytics"] id3_3_1["Time-Series Databases (InfluxDB, Prometheus)"] id3_3_2["Cloud IoT Platforms (AWS IoT, Azure IoT Hub)"] id3_4["Energy Management Systems (EMS)"] id3_4_1["Optimization Algorithms"] id3_4_2["Automated Control Actions"]

This mindmap highlights the central role of the MQTT broker in decoupling data producers (meters, inverters) from data consumers (monitoring platforms, automation systems), enabling a flexible and scalable architecture.

Comparative Analysis: MQTT for Smart Meters vs. Inverters

While MQTT serves as a common communication backbone, the specifics of its application can differ between smart meters and solar inverters. The radar chart below provides an opinionated comparison of key characteristics for typical MQTT integrations with these two types of devices.

This chart suggests that while both demand real-time data, solar inverters might involve slightly higher complexity in terms of control, integration effort for DIY solutions, and data volume due to the variety of operational parameters they can report. Security is critical for both.

Tools and Platforms for MQTT Integration

A robust MQTT ecosystem relies on various tools and platforms:

MQTT Brokers

Mosquitto: A popular open-source MQTT broker, lightweight and suitable for many applications.
EMQX: A highly scalable, distributed MQTT broker designed for enterprise and IoT applications, offering features like rule engines and data persistence.
HiveMQ: An enterprise MQTT platform known for reliability, scalability, and extensive feature set, including support for Sparkplug (an MQTT-based specification for IIoT).

Integration and Automation Platforms

Home Assistant: An open-source home automation platform with excellent MQTT support, including auto-discovery of devices and a dedicated Energy dashboard.
Node-RED: A flow-based programming tool that makes it easy to wire together hardware devices, APIs, and online services, including robust MQTT nodes for subscribing to and publishing messages.
Open Energy Monitor: An open-source energy monitoring platform that can utilize MQTT for data input.

Cloud IoT Platforms

Major cloud providers offer IoT services with MQTT support, enabling scalable data ingestion, storage, and analytics:

AWS IoT Core
Microsoft Azure IoT Hub
Google Cloud IoT Core

Hardware and DIY Solutions

ESP8266/ESP32: Low-cost microcontrollers widely used in DIY projects to bridge sensors and devices (like meters and inverters) to MQTT.
Raspberry Pi: A versatile single-board computer often used as a gateway or to run MQTT brokers and automation software.

The table below summarizes some common tools and their roles in MQTT integration for energy devices:

Tool/Platform/Device Category	Examples	Primary Role in MQTT Integration	Common Use Case with Meters/Inverters
MQTT Brokers	Mosquitto, EMQX, HiveMQ	Central message relay, topic management, client authentication	Receiving data from meters/inverters and distributing to subscribers
Home Automation Platforms	Home Assistant, OpenHAB	Data consumption, visualization, automation logic, device control	Displaying energy dashboards, automating loads based on solar production
Microcontrollers (MCUs)	ESP8266, ESP32	Gateway functionality, reading sensor/device data, publishing to MQTT	Connecting to meter P1 ports or inverter serial interfaces
Single-Board Computers (SBCs)	Raspberry Pi	Running MQTT brokers, automation software, custom scripts for data polling	Hosting a local Home Assistant instance and Mosquitto broker
Wi-Fi Energy Meters	IAMMETER	Directly publishing energy data to an MQTT broker	Real-time monitoring of household or specific appliance consumption
Inverter Interface Projects	deye-inverter-mqtt, mpp-solar scripts	Polling inverter data and publishing it to MQTT	Monitoring solar production, inverter status, and battery health
Data Visualization Tools	Grafana	Creating custom dashboards from data stored in time-series databases	Detailed historical analysis of energy production and consumption patterns

Practical Implementation: Connecting an Energy Meter via MQTT

Many users integrate Wi-Fi enabled energy meters or build custom solutions to get their energy data into systems like Home Assistant via MQTT. The following video demonstrates how an IAMMETER Wi-Fi energy meter can be integrated into Home Assistant using MQTT, showcasing a common real-world application:

This video typically covers the setup of the energy meter to connect to your Wi-Fi network, configuring its MQTT settings (broker address, port, username/password, topics), and then setting up sensors in Home Assistant to subscribe to these MQTT topics. This allows Home Assistant to display real-time energy data and use it in automations or the energy dashboard.

Security Considerations for MQTT in Energy Systems

Securing MQTT communications is paramount, especially when dealing with sensitive energy data and potentially controllable devices.

Encryption: Always use TLS/SSL (often referred to as MQTTS) to encrypt data in transit between clients and the broker. This prevents eavesdropping.
Authentication:
- Username/Password: Configure your MQTT broker to require clients to authenticate with a username and password.
- Client Certificates: For higher security, use client-side X.509 certificates for authentication.
Authorization (Access Control Lists - ACLs): Configure your MQTT broker with ACLs to define which clients can publish or subscribe to specific topics. This prevents unauthorized devices from accessing or sending data on topics they shouldn't.
Network Security: Isolate your IoT devices on a separate network segment or VLAN if possible. Regularly update firmware on devices and the broker software to patch vulnerabilities.
Principle of Least Privilege: Ensure each client only has access to the topics and permissions absolutely necessary for its function.
