Mastering the GROUP BY Clause in SQL Server

Fundamental Grouping: The GROUP BY clause is essential for summarizing data, allowing you to categorize rows based on shared values in one or more columns, often used with aggregate functions like COUNT, SUM, AVG, MAX, and MIN.
Combining Power with Aggregates: It transforms detailed result sets into insightful aggregated reports, enabling calculations across groups (e.g., total sales per product category, average salary per department), which is a key tool for data analysis.
Advanced Grouping Operators: SQL Server extends the GROUP BY functionality with powerful operators like ROLLUP, CUBE, and GROUPING SETS, providing sophisticated ways to generate subtotals and grand totals across various combinations of grouping columns.

The GROUP BY clause in SQL Server is a cornerstone of data analysis and reporting. It allows you to organize and summarize large datasets by grouping rows that share common values in specified columns. Instead of viewing individual records, you can gain higher-level insights by performing aggregate calculations on these groups. This functionality is crucial for tasks ranging from counting items in a category to calculating total sales by region or average salaries by department.

The strength of GROUP BY lies in its ability to condense extensive data into meaningful summaries, much like a pivot table in Excel. It empowers users to answer complex business questions by transforming raw data into actionable intelligence. While its basic application involves grouping by single or multiple columns, SQL Server also offers advanced extensions like ROLLUP, CUBE, and GROUPING SETS for even more sophisticated aggregation scenarios, providing various levels of subtotals and grand totals within a single result set.

Understanding the Core: What is GROUP BY?

The GROUP BY statement is a SQL clause used to group rows that have the same values into summary rows. This means that if you have a table with multiple entries for the same category (e.g., multiple employees in the "Sales" department), GROUP BY allows you to treat all these entries as a single unit for analysis. It is almost always used in conjunction with aggregate functions.

Syntax and Basic Usage

The fundamental syntax for the GROUP BY clause is straightforward:

SELECT column1, aggregate_function(column2)
FROM table_name
WHERE condition
GROUP BY column1, column3, ...
ORDER BY column_name(s);

In this structure:

SELECT specifies the columns you want to retrieve. Any columns not part of an aggregate function must be included in the GROUP BY clause.
aggregate_function(column2) refers to functions like COUNT(), SUM(), AVG(), MAX(), or MIN() that perform calculations on groups of rows.
FROM table_name indicates the table from which you are retrieving data.
WHERE condition (optional) filters individual rows before they are grouped.
GROUP BY column1, column3, ... specifies the columns by which the rows will be grouped. All selected columns that are not aggregate functions must appear in the GROUP BY clause.
ORDER BY column_name(s) (optional) sorts the final grouped result set. It's important to note that GROUP BY itself does not guarantee an ordered result.

Grouping by a Single Column

A common use case is to group data by a single category, such as counting customers in each country or summing sales by product type.

SELECT Country, COUNT(CustomerID) AS NumberOfCustomers
FROM Customers
GROUP BY Country;

This query would return a list of countries and the total number of customers residing in each.

An example of counting customers grouped by country.

Grouping by Multiple Columns

You can also group by multiple columns to create more granular summaries. For instance, to find the total sales for each product within each region:

SELECT Region, Product, SUM(SalesAmount) AS TotalSales
FROM SalesData
GROUP BY Region, Product;

This would create groups for every unique combination of Region and Product, then sum the sales for each of these combinations.

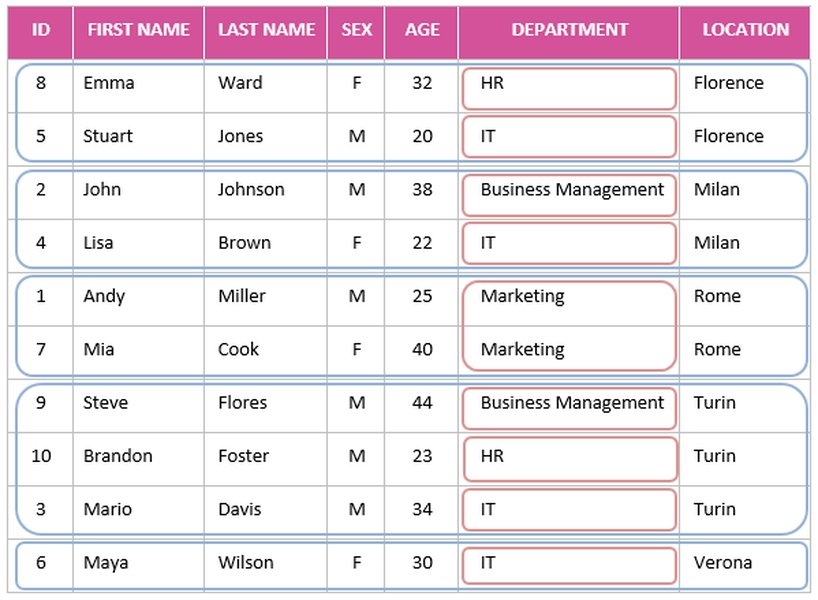

Illustrating grouping by both location and department.

Aggregate Functions and GROUP BY

Aggregate functions are intrinsically linked with the GROUP BY clause. They perform calculations on a set of values and return a single value for each group. Without GROUP BY, an aggregate function would operate on the entire table, returning a single result for the whole dataset. When combined with GROUP BY, they provide summary statistics for each distinct group.

Common Aggregate Functions

Function	Description	Example Use with GROUP BY
`COUNT()`	Returns the number of rows in a group. `COUNT(*)` counts all rows, while `COUNT(column_name)` counts non-NULL values in a column.	`SELECT Department, COUNT(EmployeeID) FROM Employees GROUP BY Department;`
`SUM()`	Calculates the total sum of a numeric column for each group.	`SELECT Category, SUM(Revenue) FROM Products GROUP BY Category;`
`AVG()`	Calculates the average value of a numeric column for each group.	`SELECT City, AVG(Temperature) FROM WeatherData GROUP BY City;`
`MAX()`	Returns the maximum value in a column for each group.	`SELECT ProductType, MAX(Price) FROM Inventory GROUP BY ProductType;`
`MIN()`	Returns the minimum value in a column for each group.	`SELECT CustomerSegment, MIN(OrderDate) FROM Orders GROUP BY CustomerSegment;`

Filtering Grouped Data with HAVING

While the WHERE clause filters individual rows before grouping, the HAVING clause is used to filter groups based on conditions applied to aggregate functions. This distinction is critical for precise data analysis.

Distinguishing WHERE and HAVING

The execution order in SQL is important to understand when using WHERE and HAVING:

FROM clause determines the tables involved.
WHERE clause filters individual rows.
GROUP BY clause groups the filtered rows.
Aggregate functions are applied to these groups.
HAVING clause filters the groups based on the aggregate results.
SELECT clause retrieves the final columns.
ORDER BY clause sorts the final result set.

This means you cannot use an aggregate function in a WHERE clause because the aggregation has not yet occurred at that stage. Conversely, you cannot refer to individual row columns in a HAVING clause unless they are also part of the GROUP BY clause.

Practical Example of HAVING

To find departments where the total salary exceeds a certain amount:

SELECT Department, SUM(Salary) AS TotalSalary
FROM Employees
GROUP BY Department
HAVING SUM(Salary) > 50000;

This query first groups employees by department, calculates the total salary for each department, and then filters to show only those departments where the sum of salaries is greater than 50,000.

Advanced GROUP BY Operators in SQL Server

SQL Server provides advanced extensions to the GROUP BY clause that allow for more complex aggregations, generating subtotals and grand totals within a single query result. These are especially useful for reporting and analytical purposes.

ROLLUP, CUBE, and GROUPING SETS

ROLLUP: Generates subtotals for hierarchies specified in the GROUP BY clause, and a grand total. For GROUP BY ROLLUP(A, B), it produces groups for (A, B), (A, NULL), and (NULL, NULL). This provides a hierarchical summary.
CUBE: Creates groups for all possible combinations of the specified columns. For GROUP BY CUBE(A, B), it produces groups for (A, B), (A, NULL), (NULL, B), and (NULL, NULL). This provides a comprehensive cross-tabulation.
GROUPING SETS: Allows you to define multiple grouping criteria within a single query, effectively combining the results of multiple GROUP BY clauses using UNION ALL semantics. This is the most flexible option. For example, GROUP BY GROUPING SETS ((A), (B), ()) would produce groups for A, B, and a grand total.

These operators can significantly reduce the complexity of queries that would otherwise require multiple UNION ALL statements to achieve similar results, making your SQL code cleaner and more efficient.

When to Use Each Advanced Operator

Consider the different scenarios where ROLLUP, CUBE, and GROUPING SETS excel:

This radar chart illustrates the strengths of advanced GROUP BY operators across various analytical dimensions.

This chart demonstrates that while ROLLUP excels in hierarchical summarization, and CUBE offers comprehensive cross-tabulation, GROUPING SETS provides the highest flexibility and can be optimized for specific aggregation needs by explicitly defining the desired groups. Each operator has its distinct advantage depending on the reporting requirements.

GROUP BY and JOINS

The GROUP BY clause can be effectively combined with SQL JOIN operations to perform aggregations across multiple tables. This is common when you need to summarize data that is distributed across related entities in your database, such as calculating the total revenue generated by customers from different regions, where customer information and order details reside in separate tables.

Example: Joining and Grouping

Consider a scenario where you have a Customers table and an Orders table. To find the total amount spent by each customer, you would typically join these tables and then group by customer information.

SELECT
    c.CustomerID,
    c.CustomerName,
    SUM(o.OrderAmount) AS TotalSpent
FROM
    Customers c
JOIN
    Orders o ON c.CustomerID = o.CustomerID
GROUP BY
    c.CustomerID, c.CustomerName
ORDER BY
    TotalSpent DESC;

In this example, the JOIN links customers to their respective orders, and then GROUP BY aggregates the OrderAmount for each unique customer. Both CustomerID and CustomerName are included in the GROUP BY clause because they are in the SELECT list and not part of an aggregate function.

This video explains how to use the GROUP BY clause effectively with SQL JOINs, demonstrating practical scenarios for combining data from multiple tables before aggregation.

Common Pitfalls and Best Practices

While powerful, the GROUP BY clause can lead to errors if not used correctly. Understanding common pitfalls and adhering to best practices ensures efficient and accurate queries.

"Column is invalid" Error (Msg 8120)

One of the most frequent errors encountered with GROUP BY is "Column 'X' is invalid in the select list because it is not contained in either an aggregate function or the GROUP BY clause." This error occurs when you select a column that is neither part of an aggregate function nor listed in the GROUP BY clause. SQL Server needs to know how to handle each selected column for each group—either by aggregating it or by using it as a grouping key.

-- This query will cause an error if EmployeeName is not aggregated or grouped
SELECT Department, EmployeeName, SUM(Salary)
FROM Employees
GROUP BY Department;

To fix this, you must either include EmployeeName in the GROUP BY clause or apply an aggregate function to it (e.g., MIN(EmployeeName) or MAX(EmployeeName), though these might not be meaningful depending on your goal).

Best Practices for Effective Grouping

Include All Non-Aggregated Columns: Ensure that every column in your SELECT list that is not part of an aggregate function is also present in your GROUP BY clause.
Order Matters for Readability: While GROUP BY doesn't guarantee order, adding an ORDER BY clause to your final result set makes the output more readable and useful.
Use HAVING for Group Filtering: Remember to use HAVING for conditions that apply to the aggregated results, and WHERE for filtering individual rows before grouping.
Understand NULL Values: In GROUP BY, all NULL values in a grouping column are treated as equal and are collected into a single group. Be mindful of this when interpreting results.
Consider Performance: For very large datasets, extensive GROUP BY operations, especially with multiple columns or advanced operators like CUBE, can be resource-intensive. Optimize your queries and consider indexing relevant columns.

Frequently Asked Questions (FAQ)

What is the primary purpose of the GROUP BY clause in SQL?

The primary purpose of the GROUP BY clause is to organize rows with identical values in one or more specified columns into summary groups. This enables the application of aggregate functions (like COUNT, SUM, AVG, MAX, MIN) to each group, returning a single, summarized result for every distinct group rather than for individual rows.

Can I use GROUP BY without an aggregate function?

While technically possible to use GROUP BY without an aggregate function (e.g., SELECT column1 FROM table GROUP BY column1;), it would simply return the distinct values of column1, which is equivalent to using SELECT DISTINCT column1 FROM table;. The true power and common use of GROUP BY come from combining it with aggregate functions to summarize data within groups.

What is the difference between WHERE and HAVING clauses?

The WHERE clause filters individual rows before they are grouped. It cannot contain aggregate functions. The HAVING clause, on the other hand, filters groups after they have been formed by the GROUP BY clause and after aggregate functions have been applied. HAVING is specifically designed to filter based on the results of aggregate calculations.

When should I use CUBE, ROLLUP, or GROUPING SETS?

You should use ROLLUP when you need subtotals for a hierarchical set of columns and a grand total. Use CUBE when you need subtotals for all possible combinations of the specified columns, providing a multi-dimensional analysis. Use GROUPING SETS when you need to define specific, non-hierarchical combinations of groups or combine the results of multiple GROUP BY clauses into a single query, offering the most flexibility in defining custom aggregations.

Why do I get an "invalid in the select list" error with GROUP BY?

This error occurs because every column in your SELECT list must either be included in the GROUP BY clause or be an argument to an aggregate function. SQL Server needs a clear instruction on how to display each column for each group—either by using its grouped value or by calculating a single aggregated value for the group.

Conclusion

The GROUP BY clause is an indispensable tool in SQL Server for anyone working with data analysis and reporting. It allows for the aggregation of data into meaningful summaries, providing insights that are not readily apparent from raw, unsummarized data. By understanding its syntax, its interplay with aggregate functions, and the nuanced differences between WHERE and HAVING, you can construct powerful and efficient queries. Furthermore, leveraging advanced operators like ROLLUP, CUBE, and GROUPING SETS empowers you to generate sophisticated reports with varying levels of aggregation, making your data more accessible and actionable. Mastering GROUP BY is a critical step in becoming proficient in SQL and extracting maximum value from your databases.
