How Do Neural Networks Work? ELI5

A Beginner's Guide to Understanding Neural Networks

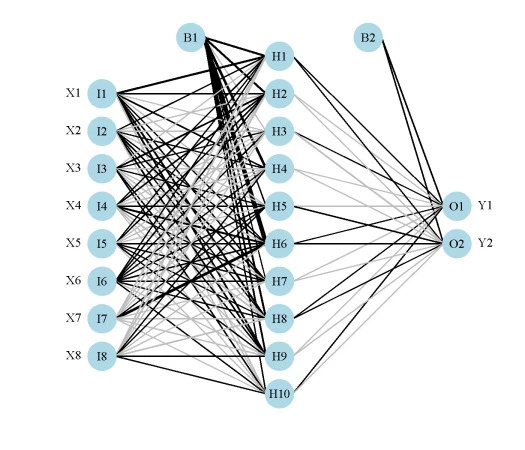

neural network diagram

Key Takeaways

  • Structure: Neural networks consist of layers of interconnected nodes, mimicking the human brain's structure.
  • Learning: They learn by adjusting connection weights through training on numerous examples, improving their predictions over time.
  • Applications: Used in AI for tasks like image recognition, speech processing, and more, neural networks can adapt to new situations after training.

Understanding Neural Networks

Neural networks are a type of artificial intelligence that mimics the way the human brain processes information. They are widely used in various fields including image and speech recognition, recommendation systems, and predictive modeling. To understand how neural networks work, let's break them down into their basic components and processes.

Structure of Neural Networks

Neural networks are composed of layers of interconnected nodes or neurons, which are organized in a way that resembles the structure of the human brain. These layers include:

  • Input Layer: The first layer of the neural network, which receives the initial data. For instance, if you're teaching a neural network to identify cats in pictures, this layer would take in the pixel data from the images.
  • Hidden Layers: These are the middle layers where the bulk of the processing occurs. Each neuron in a hidden layer performs calculations based on the input it receives from the previous layer. These calculations involve multiplying inputs by weights, summing them up, and then applying an activation function to decide whether to pass the information on to the next layer.
  • Output Layer: The final layer that produces the network's prediction or decision. For our cat identification example, the output could be a binary decision of "cat" or "not cat."

The Learning Process

Neural networks learn through a process called training, where they are exposed to a large number of examples. Here's how it works:

  • Initial State: At the start, a neural network is essentially a blank slate with randomly assigned weights for its connections.
  • Example Exposure: The network is shown many examples of input-output pairs. For instance, it might be shown thousands of cat and non-cat images labeled accordingly.
  • Prediction and Error Calculation: The network makes a prediction based on the current weights. If the prediction is incorrect, the network calculates the error using a method called loss calculation.
  • Weight Adjustment: Through a process known as backpropagation, the network adjusts the weights of its connections to minimize errors. This is typically done using an algorithm called gradient descent, which gradually fine-tunes the weights over many iterations.
  • Learning Over Time: As the network sees more examples and adjusts its weights, it becomes better at making accurate predictions. Eventually, it can recognize patterns in new, unseen data.

Analogy: The Animal Guessing Game

Imagine a game where you're trying to guess an animal based on clues given to a group of friends. Each friend whispers their guess to the next, who then combines the clue with the previous guess to refine their own guess. The last friend announces the final guess. In a similar way, a neural network processes information through its layers, refining its understanding of the input data until it makes a final prediction.

Types of Neural Networks

There are several types of neural networks, each designed for specific tasks:

  • Feed-Forward Networks: These are the simplest type where data flows only forward from input to output without any loops.
  • Convolutional Neural Networks (CNNs): Specialized for image processing, CNNs can efficiently recognize patterns in visual data by applying convolutional filters.
  • Self-Organizing Maps (SOMs): These networks are used for clustering and organizing data based on similarities, often visualized as a 2D map.

Real-World Applications

Neural networks are incredibly versatile and find applications in various domains:

Image Recognition

One of the most well-known applications of neural networks is in image recognition. For example, Convolutional Neural Networks (CNNs) are used to identify objects in images, detect faces, and even diagnose diseases from medical images. They achieve this by learning to recognize patterns in pixel data through training on large datasets of labeled images.

Speech Processing

Neural networks are also used in speech processing, where they can be trained to recognize spoken words and convert them into text (speech-to-text) or understand and respond to voice commands (voice assistants). Recurrent Neural Networks (RNNs), particularly Long Short-Term Memory (LSTM) networks, are commonly used for these tasks because they can maintain context over time.

Recommendation Systems

In the realm of e-commerce and content streaming, neural networks power recommendation systems that suggest products or content based on a user's past behavior. These systems analyze vast amounts of user data to identify patterns and preferences, then use these insights to make personalized recommendations.

Predictive Modeling

Neural networks are employed in predictive modeling to forecast future trends based on historical data. This can be seen in applications ranging from stock market predictions to weather forecasting. The networks learn from past data to identify patterns that can help predict future outcomes.

Enhancing Neural Networks

While the basic structure and learning process of neural networks are crucial, there are several techniques used to enhance their performance:

Regularization

Regularization techniques like L1 and L2 regularization help prevent overfitting by adding a penalty to the loss function. Overfitting occurs when a model learns the training data too well, including its noise and outliers, and performs poorly on new data.

Dropout

Dropout is another technique used to prevent overfitting. During training, randomly selected neurons are "dropped out," meaning they are temporarily ignored. This forces the network to learn more robust features that are not dependent on any single neuron.

Batch Normalization

Batch normalization helps stabilize the learning process by normalizing the inputs to each layer. This can lead to faster training and better generalization of the model.

Transfer Learning

Transfer learning allows a neural network trained on one task to be reused for another related task. This can save time and resources, as the network has already learned some general features that can be fine-tuned for the new task.

Mathematical Foundations

Understanding the mathematical underpinnings of neural networks can provide deeper insights into how they function. Here are some key mathematical concepts:

Activation Functions

Activation functions determine whether a neuron should fire based on its input. Common activation functions include:

  • Sigmoid: \(\sigma(x) = \frac{1}{1 + e^{-x}}\)
  • ReLU (Rectified Linear Unit): \(f(x) = \max(0, x)\)
  • Tanh (Hyperbolic Tangent): \(\tanh(x) = \frac{e^x - e^{-x}}{e^x + e^{-x}}\)

Loss Functions

Loss functions quantify how far off a prediction is from the true value. Common loss functions include:

  • Mean Squared Error (MSE): \(\text{MSE} = \frac{1}{n} \sum_{i=1}^n (y_i - \hat{y}_i)^2\)
  • Cross-Entropy Loss: \(\text{CE} = - \sum_{i=1}^n y_i \log(\hat{y}_i) + (1 - y_i) \log(1 - \hat{y}_i)\)

Gradient Descent

Gradient descent is an optimization algorithm used to minimize the loss function by adjusting the weights of the network. The update rule for gradient descent is:

\[ w_{new} = w_{old} - \alpha \frac{\partial L}{\partial w} \]

Where \(w\) represents the weights, \(\alpha\) is the learning rate, and \(\frac{\partial L}{\partial w}\) is the gradient of the loss function with respect to the weights.

Challenges and Limitations

Despite their power, neural networks face several challenges and limitations:

Data Requirements

Neural networks require large amounts of labeled data for training. This can be a challenge in domains where such data is scarce or expensive to obtain.

Computational Resources

Training neural networks, especially deep networks with many layers, can be computationally intensive and require specialized hardware like GPUs or TPUs.

Interpretability

Neural networks, particularly deep neural networks, are often considered "black boxes" because it can be difficult to understand how they arrive at their predictions. This lack of interpretability can be a concern in applications where transparency is important.

Overfitting

Overfitting is a common problem where a neural network learns the training data too well, including its noise and outliers, leading to poor performance on new data. Techniques like regularization and dropout are used to combat this issue.

Future Directions

The field of neural networks is rapidly evolving, with ongoing research and development aimed at addressing current limitations and exploring new possibilities:

Explainable AI

Research in explainable AI seeks to make neural networks more transparent and interpretable, allowing users to understand how decisions are made.

Neuromorphic Computing

Neuromorphic computing aims to design hardware that mimics the structure and function of biological neural systems, potentially leading to more efficient and powerful neural networks.

Quantum Neural Networks

The emerging field of quantum neural networks explores how quantum computing can be used to enhance the capabilities of neural networks, potentially solving complex problems more efficiently.

Conclusion

Neural networks are a fundamental component of modern artificial intelligence, capable of learning complex patterns from data. By understanding their structure, learning process, and applications, we can appreciate their power and potential. While they face challenges such as data requirements and interpretability, ongoing research continues to push the boundaries of what neural networks can achieve.
