Noise Exceedance Remediation and Complaint Response Documentation

Comprehensive Reports and Action Plans to Close Noise Exceedance

Key Takeaways

Immediate and Systematic Response: Implement halt measures, conduct immediate sound measurements, and initiate root cause analysis.
Comprehensive Documentation: Prepare detailed investigation reports, remedial action plans, progress reports, and formal communications to authorities.
Enhanced Mitigation Measures: Utilize equipment modifications, noise barriers, rescheduling, and increased monitoring to ensure compliance.

Introduction

In scenarios where a site infringes the prescribed noise limit under the Environmental Monitoring and Audit (EM&A) manual, strict adherence to the Event/Action Plan is essential to address the noise exceedance, implement corrective actions, and respond appropriately to any complaints lodged with the Environmental Protection Department (EPD). The following documentation provides comprehensive guidance for closing the exceedance and replying to the complaint based on a scenario where the on-site Powered Mechanical Equipment (PME) includes three concrete breakers, two excavators, and two rock drills operating at a distance of 100 meters from a Noise Sensitive Receptor (NSR).

Documentation Overview

The documentation set is divided into three major parts:

Exceedance Closure Report: A detailed report outlining the incident, investigation, remedial measures, and subsequent verification of the noise level compliance.
Response to EPD Complaint: A formal letter addressing the complaint filed through the Environmental Protection Department, including immediate actions taken and future measures.
Internal Communication Memorandum: A cover memorandum intended for internal stakeholders summarizing the event, remedial actions, and follow-up monitoring results.

Exceedance Closure Report

A. Report Overview

This report provides the detailed account of the noise exceedance incident, including the timeline, the equipment involved, the immediate steps taken as per the Event/Action Plan, and the efficacy of the corrective measures implemented.

1. Incident Overview

Date/Time of Exceedance: [Insert Date & Time].
Equipment in Operation: Three concrete breakers, two excavators, and two rock drills operating concurrently.
Distance from PME to NSR: 100 meters.

The exceedance occurred as the cumulative operation of high-noise equipment resulted in sound levels surpassing the permitted noise limits under the EM&A guidelines. Immediate identification of the exceedance was crucial to protect the interests of both the environment and the local community.

2. Root Cause Analysis

An investigation was conducted promptly upon notification of the noise exceedance. Preliminary findings indicate:

The simultaneous operation of multiple high-noise equipment without adequate noise mitigation measures significantly contributed to the exceedance.
The proximity of the PME to the NSR at only 100 m amplified the intensity of the noise received at the sensitive receptor.
Lack of immediate noise barriers or schedule adjustments intensified the noise levels during peak operational hours.

3. Remedial Measures Implemented

In accordance with the approved Event/Action Plan, the following remedial actions were executed immediately:

Operation Adjustment: Ceased simultaneous operation of high-noise equipment and implemented staggering of noisy operations.
Equipment Optimization: Conducted inspection, maintenance, and adjustment of equipment settings. Additional noise suppression attachments were temporarily fitted where possible.

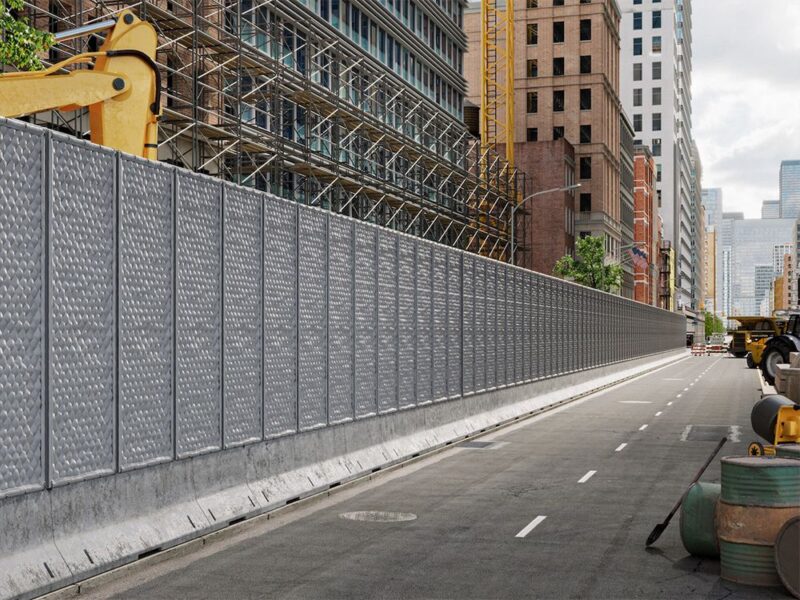

Site Management & Noise Mitigation: Installed temporary noise barriers and acoustic screens in directions facing the NSR. Also, a review of site practices and operator training measures was immediately conducted.
Enhanced Monitoring: Increased the frequency of noise monitoring to ensure that noise levels fell below the permitted threshold post-implementation of the corrective measures.

4. Verification of Remediation Effectiveness

Post-remediation, follow-up noise monitoring sessions were conducted with the results indicating:

Noise levels have consistently returned to within acceptable limits as defined by the EM&A manual.
Detailed noise monitoring logs and equipment operation records have been archived for future reference and regulatory audits.

B. Detailed Noise Monitoring Data

The following table summarizes the key monitoring data before and after the implementation of remedial actions:

Date & Time	Equipment in Operation	Distance to NSR	Recorded Noise Level (dB(A))	Status
[Insert Date & Time Pre-Remediation]	3 Concrete Breakers, 2 Excavators, 2 Rock Drills	100 m	[Exceeding Level]	Exceeded
[Insert Date & Time Post-Remediation]	Adjusted Operation (Staggered)	100 m	[Compliant Level]	Within Limit

C. Summary of Findings

The noise exceedance incident was thoroughly investigated, and all required remedial measures were promptly implemented, resulting in the restoration of noise levels to within acceptable thresholds. The detailed investigation report, along with noise monitoring logs and photographic evidence of noise mitigation installations, have been compiled as part of the documentation.

Response to EPD Complaint

A. Letter of Response

The following letter is a formal response to the complaint lodged through the Environmental Protection Department (EPD) regarding the noise exceedance incident:

[Your Company Letterhead]
Date: [Insert Date]

Reference: Response to Noise Exceedance Complaint – [Project Name]

To: Environmental Protection Department (EPD)
[Insert EPD Office Address]

Dear Sir/Madam,

Subject: Detailed Response and Remediation Report Concerning Noise Exceedance on [Insert Date]

We acknowledge receipt of your communication regarding the noise exceedance incident recorded on [Insert Date]. Our investigation confirmed that the concurrent operation of three concrete breakers, two excavators, and two rock drills at a distance of 100 m from the Noise Sensitive Receptor (NSR) resulted in noise levels exceeding prescribed limits.

Upon notification of the incident, we immediately executed our pre-approved Event/Action Plan. The actions taken include:

Immediate Suspension: We suspended the simultaneous operation of high-noise generating equipment.
Technical Investigation: A rapid investigation was carried out to determine the root causes, emphasizing the cumulative effects of simultaneous equipment usage and proximity to the NSR.
Mitigation Measures: We installed temporary noise barriers and adjusted the work schedule to stagger the noisy operations. Equipment maintenance checks were carried out to optimize noise emissions.
Enhanced Monitoring: Noise levels were re-assessed at higher frequencies to ensure remediation effectiveness. All monitoring data confirm that current levels meet the regulatory standards as set by the EM&A manual.

We have attached supporting documentation including the Exceedance Closure Report, detailed monitoring logs, photographs of installed noise barriers, and updated operation schedules detailing the adjustments made.

Our organization remains committed to environmental stewardship and regulatory compliance. We value your feedback, and we will continue to monitor and adjust our operations to ensure this situation does not recur.

Should you require further information or additional documents, please do not hesitate to contact us.

Thank you for your attention, and we appreciate your cooperation.

Yours faithfully,
[Signature]
[Name]
[Title]
[Company Name]
[Contact Information]

Internal Communication Memorandum

A. Memorandum for Internal Stakeholders

To: Project Management Team, Environmental Management Team
From: [Your Name], [Your Title]
Date: [Insert Date]
Subject: Closure of Noise Exceedance Incident and EPD Complaint Response

1. Incident Recap

On [Insert Date], our site experienced a noise exceedance incident due to the concurrent operation of three concrete breakers, two excavators, and two rock drills, located 100 m from the NSR. Immediate investigation revealed that cumulative noise emissions surpassed the permissible limits as stipulated by the EM&A manual.

2. Actions Taken

Immediate Notification and Halt: We notified the Independent Environmental Checker (IEC) and suspended simultaneous usage of high-noise equipment.
Remedial Steps: Temporary installation of noise barriers, equipment maintenance, and rescheduling of noisy operations.
Enhanced Monitoring: Increased frequency of noise monitoring verified that noise levels decreased and remain within the acceptable threshold.
Official Response: Prepared and dispatched a formal response to the EPD complaint, including all supporting documentation.

3. Next Steps and Follow-Up

The project team is required to maintain stringent monitoring protocols and ensure equipment optimization. Follow-up reviews will be scheduled, and any further corrective measures will be implemented promptly if deviations occur. All documentation has been compiled for internal audits and future reference.

Conclusion

In summary, the approach outlined in this documentation ensures that the noise exceedance incident is comprehensively addressed. Immediate operational adjustments, thorough documentation of remedial actions, and clear, transparent communications with regulatory bodies have been executed to restore compliance and mitigate future risks. We remain committed to continuous improvement and adherence to environmental standards.
