Understanding Systemd Integration in OpenBMC

A Comprehensive Overview of Systemd's Role in OpenBMC Management

Key Takeaways

Systemd is the backbone for process and service management in OpenBMC, ensuring efficient system operations.
Custom targets and services enable tailored state management and error handling specific to BMC requirements.
Robust monitoring and logging mechanisms are implemented through systemd components like Journald and phosphor-logging.

Introduction to OpenBMC and Systemd

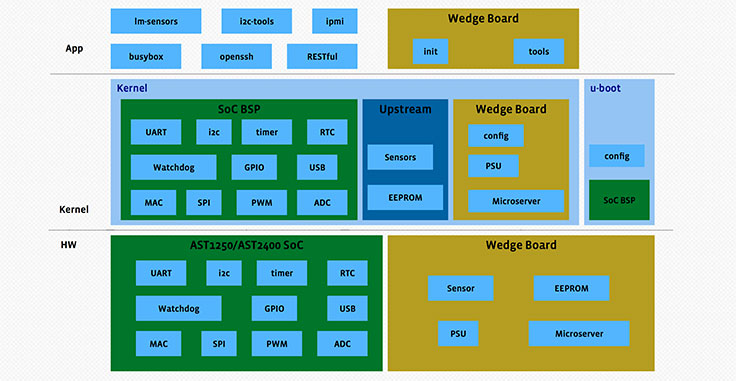

OpenBMC is an open-source project that provides a Linux distribution tailored for Baseboard Management Controllers (BMCs). At the core of its system management is systemd, a versatile init system and service manager widely used in many Linux distributions. Systemd in OpenBMC orchestrates the starting, stopping, and supervising of various services critical to BMC functionality, ensuring reliable and efficient operation.

Systemd Architecture in OpenBMC

Systemd Units: The Building Blocks

Systemd operates using units, which are configuration files that define how services and processes should behave. In OpenBMC, systemd primarily uses two types of units:

Service Units

Service units define specific processes to be run and managed by systemd. These units are typically located in directories such as /lib/systemd/system/, /etc/systemd/system/, and /run/systemd/system/. Each service unit specifies how and when a service should start, stop, and interact with other services.

Target Units

Target units serve as synchronization points, grouping together multiple services to achieve a specific state of the system. In OpenBMC, targets like default.target and obmc-host-start@.target orchestrate the boot and shutdown sequences by defining dependencies and execution order among services.

Key Components Managed by Systemd

Boot Process Management

During the boot process, systemd handles the initialization of hardware resources and starts essential services based on predefined dependencies. Customization of the boot sequence can be achieved by modifying unit files, allowing administrators to adjust startup parameters and service order to meet specific requirements.

Service Management and Customization

OpenBMC integrates custom services alongside standard system services. Administrators can manage these services using the systemctl command to start, stop, enable, or disable services as needed. Configuration files for these services are typically found in the aforementioned directories, allowing for easy customization and maintenance.

Error Handling and Recovery

Reliability is paramount in BMC operations. Systemd in OpenBMC employs robust error handling mechanisms:

Critical services are configured with OnFailure=obmc-quiesce-host@.target to transition the system into a quiesced state upon failure.
Non-critical services may be set to retry upon failure, reducing downtime by allowing transient issues to be resolved automatically.
A dedicated monitoring system tracks service and target failures, logging critical errors for post-mortem analysis.

State Management with Phosphor-State-Manager

The phosphor-state-manager is an integral component that leverages systemd to track and manage the states of the BMC, chassis, and host systems. It ensures that state transitions are handled smoothly and that the system can recover gracefully from errors. Key states include:

BMC States: Ready, Running, Quiesced (error)
Chassis/Host States: On, Off, Running
Restore Policy: Automatically reboots systems based on stored preferences after BMC resets.

Monitoring and Logging

Journald and Phosphor-Logging

Systemd's Journald component is utilized for collecting and managing logs from various services within OpenBMC. Additionally, OpenBMC employs phosphor-logging to enhance logging capabilities, particularly for critical service failures and error tracking.

Logging Configuration

Logs are configured to capture detailed information about service states, failures, and recovery actions. Administrators can review these logs using the journalctl command, which provides a powerful interface for querying and analyzing log data.

Error Monitoring

A JSON-based monitoring system continuously watches for service and target errors such as timeouts, failures, and dependency issues. Upon detecting critical failures, the system logs events like CriticalServiceFailure and initiates dumps for in-depth post-mortem analysis.

Boot Performance Analysis

Utilizing systemd-bootchart

To assess and optimize boot performance, OpenBMC can employ systemd-bootchart, a tool that measures and visualizes the boot-time behavior of the system. This tool provides valuable insights into the initialization process, helping administrators identify bottlenecks and improve overall boot efficiency.

Service Management Commands

Essential systemd Commands

Managing services in OpenBMC involves a set of standard systemd commands that provide comprehensive control over service states. Below is a table outlining commonly used commands and their descriptions:

Command	Description
`systemctl status <service-name>`	Displays the current status of the specified service.
`systemctl start <service-name>`	Starts the specified service.
`systemctl stop <service-name>`	Stops the specified service.
`systemctl restart <service-name>`	Restarts the specified service.
`systemctl enable <service-name>`	Enables the service to start automatically at boot.
`systemctl disable <service-name>`	Disables the service from starting automatically at boot.
`journalctl`	Accesses and queries logs collected by Journald.
`systemctl list-units --failed`	Lists all units that have failed.
`systemctl daemon-reload`	Reloads systemd manager configuration.

Customization and Configuration

Adjusting Unit Files

Administrators can tailor the behavior of OpenBMC by modifying systemd unit files. These configurations allow for fine-grained control over service dependencies, startup order, and execution parameters. For example, the obmc-host-start@.target unit manages the initiation of key services required for powering on the host system.

Creating Custom Services

Beyond default services, OpenBMC supports the creation of custom services to meet specific operational needs. This involves defining new service units with the necessary configurations and dependencies, ensuring they integrate seamlessly with the existing systemd-managed environment.

State Transitions and Recovery

Handling Power States

Systemd manages various power states of the system, orchestrating transitions between states such as powering on, shutting down, and handling errors. Targets like obmc-host-shutdown@.target and obmc-quiesce-host@.target ensure that services are appropriately managed during these transitions, maintaining system stability and integrity.

Automatic Recovery Mechanisms

To enhance reliability, OpenBMC employs automatic recovery mechanisms. For instance, if a critical service fails, systemd can trigger a recovery target that attempts to restart services or enter a safe state, minimizing downtime and preventing cascading failures.

Advanced Features

Parallelization and Activation

Systemd's ability to handle parallelization, socket activation, and D-Bus activation contributes to the efficiency of OpenBMC. By starting services concurrently where possible and activating them on-demand, systemd optimizes resource usage and reduces boot times.

Integration with External Interfaces

OpenBMC's systemd setup maintains compatibility with external interfaces like Redfish and IPMI, allowing for seamless integration with broader management frameworks and ensuring interoperability with existing infrastructure.

Conclusion

Systemd plays a pivotal role in the functionality and reliability of OpenBMC, managing everything from the boot process to service supervision and error handling. Its integration allows for a highly customizable and robust management framework tailored to the specific needs of Baseboard Management Controllers. Understanding systemd's architecture and capabilities is essential for effectively managing and optimizing OpenBMC deployments.
