Understanding the Seven Layers of the OSI Model

A Comprehensive Guide to Network Communication Framework

Key Takeaways

Modular Structure: The OSI model divides network communication into seven distinct layers, each with specific functions.
Layer Interaction: Each layer interacts with the layers directly above and below it, facilitating seamless data transmission.
Standardization: The OSI model provides a standardized framework that aids in troubleshooting and designing network systems.

Introduction to the OSI Model

The Open Systems Interconnection (OSI) model is a conceptual framework used to understand and standardize the functions of a telecommunication or computing system. By dividing the network communication process into seven distinct layers, the OSI model facilitates interoperability between different systems and technologies. Each layer serves a specific role, from the physical transmission of data to the application interfaces used by end-users.

Detailed Explanation of the Seven OSI Layers

1. Physical Layer (Layer 1)

Function

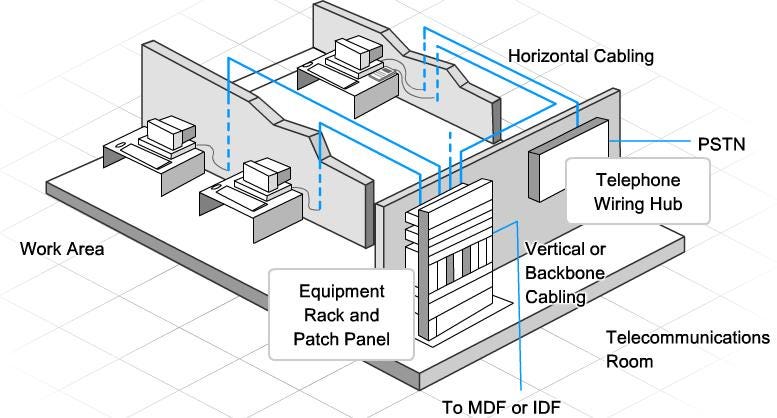

The Physical Layer is the lowest layer of the OSI model. It is responsible for the actual transmission of raw data bits over a physical medium. This includes the conversion of data into electrical, optical, or radio signals suitable for the transmission medium.

Key Components

Network cables (Ethernet, fiber optics)
Hubs and repeaters
Hardware signaling specifications

Examples

Ethernet cables, fiber-optic cables, and wireless transmission standards like Wi-Fi operate at this layer.

2. Data Link Layer (Layer 2)

Function

The Data Link Layer ensures reliable data transfer across the Physical Layer. It handles error detection and correction, frame synchronization, and flow control. This layer is also responsible for addressing devices on the same local network through MAC (Media Access Control) addresses.

Key Components

Switches and bridges
MAC addresses
Frame protocols

Examples

Ethernet switching technology, Wi-Fi protocols, and protocols like PPP (Point-to-Point Protocol) operate at this layer.

3. Network Layer (Layer 3)

Function

The Network Layer manages the logical addressing and routing of data packets between devices across different networks. It determines the optimal path for data to travel from the source to the destination, handling issues like packet forwarding, routing, and addressing.

Key Components

Routers
IP addressing
Routing protocols (OSPF, BGP)

Examples

Internet Protocol (IP), ICMP (Internet Control Message Protocol), and routing protocols like OSPF (Open Shortest Path First) operate at this layer.

4. Transport Layer (Layer 4)

Function

The Transport Layer ensures reliable data transfer between devices by managing segmentation, flow control, and error correction. It establishes, maintains, and terminates logical connections, providing end-to-end communication services for applications.

Key Components

TCP (Transmission Control Protocol)
UDP (User Datagram Protocol)
Port numbers

Examples

TCP provides reliable, connection-oriented communication, while UDP offers faster, connectionless communication for applications that can tolerate some data loss.

5. Session Layer (Layer 5)

Function

The Session Layer manages and controls the connections (sessions) between different applications. It establishes, maintains, and terminates sessions, handling tasks like authentication and reconnection after interruptions.

Key Components

Session establishment and termination
Session synchronization
Authentication and authorization

Examples

Protocols like NetBIOS (Network Basic Input/Output System) and APIs used in Remote Procedure Call (RPC) systems operate at this layer.

6. Presentation Layer (Layer 6)

Function

The Presentation Layer is responsible for translating data between the application layer and the network format. It handles data encryption, compression, and formatting to ensure that data is in a usable format for the receiving application.

Key Components

Data encryption and decryption
Data compression and decompression
Data format translation (e.g., ASCII, JPEG)

Examples

Protocols and standards like SSL/TLS for encryption, JPEG for image formatting, and MIME for email content formatting operate at this layer.

7. Application Layer (Layer 7)

Function

The Application Layer is the topmost layer of the OSI model, closest to the end-user. It provides network services directly to applications, enabling user interaction with network resources. This layer facilitates functions such as file transfers, email, and web browsing.

Key Components

Application protocols
User interface components
Network services

Examples

Protocols like HTTP/HTTPS for web browsing, FTP for file transfers, SMTP/POP/IMAP for email services, and DNS for domain name resolution operate at this layer.

Visual Representation of the OSI Model

Conceptual Diagram

    +--------------------------+
    |    Application Layer     |
    |    - HTTP, FTP, SMTP     |
    +--------------------------+
    |   Presentation Layer     |
    |   - Encryption, Encoding |
    +--------------------------+
    |      Session Layer       |
    |   - Session management   |
    +--------------------------+
    |     Transport Layer      |
    |   - TCP, UDP             |
    +--------------------------+
    |      Network Layer       |
    |   - IP, Routing          |
    +--------------------------+
    |     Data Link Layer      |
    |   - MAC, Ethernet        |
    +--------------------------+
    |     Physical Layer       |
    |   - Cables, Signals      |
    +--------------------------+

Data Flow Through OSI Layers

Data transmission in the OSI model follows a systematic process where each layer adds its own header information to the data before passing it down to the next layer. On the receiving end, the data ascends through the layers, with each layer removing its corresponding header.

Sender Side (Encapsulation Process):

Application Layer: Generates the data to be transmitted (e.g., an email message).
Presentation Layer: Encrypts and formats the data.
Session Layer: Establishes a session between sender and receiver.
Transport Layer: Segments the data and adds TCP/UDP headers.
Network Layer: Encapsulates segments into packets with IP headers.
Data Link Layer: Frames the packets with MAC addresses and error-checking data.
Physical Layer: Converts frames into electrical/optical signals for transmission.

Receiver Side (Decapsulation Process):

Physical Layer: Receives signals and converts them back into frames.
Data Link Layer: Checks for errors and removes MAC headers.
Network Layer: Routes packets to the appropriate device using IP addresses.
Transport Layer: Reassembles segments into the complete data stream.
Session Layer: Maintains the session as needed.
Presentation Layer: Decrypts and formats the data for the application.
Application Layer: Delivers the data to the user application (e.g., displays the email).

Comparison Table of OSI Layers

Layer	Function	Key Components	Examples
1. Physical	Transmission of raw data bits over a physical medium.	Network cables, hubs, repeaters	Ethernet cables, fiber optics, Wi-Fi
2. Data Link	Reliable node-to-node data transfer and error handling.	Switches, MAC addresses, Ethernet frames	Ethernet, Wi-Fi protocols, PPP
3. Network	Routing and logical addressing of data packets.	Routers, IP addresses, routing protocols	IP, ICMP, OSPF, BGP
4. Transport	End-to-end communication and data integrity.	TCP, UDP, port numbers	TCP, UDP protocols
5. Session	Management of sessions and connections between applications.	Session establishment, synchronization	NetBIOS, RPC APIs
6. Presentation	Data translation, encryption, and formatting.	Data encryption, compression	SSL/TLS, JPEG, MIME
7. Application	Network services directly to user applications.	HTTP, FTP, SMTP, DNS	Web browsers, email clients

Conclusion

The OSI model serves as a foundational framework for understanding and designing network architectures. By compartmentalizing the complex process of data communication into seven manageable layers, it facilitates interoperability, troubleshooting, and the development of standardized protocols. Each layer plays a crucial role in ensuring that data is transmitted accurately and efficiently from one device to another, ultimately supporting reliable and secure network communications.
