Deep Dive into PHD Filter Variants and Their Applications

Comprehensive Analysis of various PHD filter methodologies and their practical usage

Key Highlights

Versatile Algorithm Designs: From Gaussian mixtures to particle-based implementations, each variant is tailored to suit specific tracking challenges.
Application Diversity: The PHD filter is implemented in fields such as radar/sonar tracking, automotive detection, surveillance, robotics, and environmental monitoring.
Adaptability to Dynamics: Filters range from those handling linear Gaussian systems to those adept at managing nonlinear behaviors in cluttered environments.

Introduction to the PHD Filter

The Probability Hypothesis Density (PHD) filter is a robust multi-target tracking algorithm that has become indispensable in the realm of modern tracking systems. Designed to track multiple objects simultaneously by estimating the number and states of targets, it is based on a random finite set (RFS) framework. This approach enables the filter to manage the inherent uncertainty in target tracking due to clutter, missed detections, and false alarms.

Unlike traditional methods that might require explicit data association steps with combinatorial complexity, the PHD filter computes the first moment (or intensity function) of the multi-target posterior distribution. This significantly reduces computational burden while still providing reliable performance in scenarios where the number of targets may vary over time. This makes the PHD filter particularly advantageous in real-time multi-target tracking applications where computational efficiency and robustness are paramount.

Variants of the PHD Filter

Over the years, several variants of the PHD filter have been developed. Each variant addresses particular challenges presented by different tracking environments and scenarios. The common theme is that each variant adapts the core PHD filtering concept to better manage non-linearities, non-Gaussian noise, and varying levels of clutter.

1. Gaussian Mixture PHD (GM-PHD) Filter

Overview

The GM-PHD filter represents the multi-target posterior intensity as a weighted sum of Gaussian components. This variant assumes that target states and measurement noise are well-modeled by Gaussian distributions. Its closed-form expressions for prediction and update steps make it computationally efficient for linear dynamics.

Usage Scenarios

The GM-PHD filter is especially useful in environments where the target dynamics can be approximated as linear and the noise is Gaussian. It has been successfully applied in radar and sensor network applications, where it efficiently manages clutter and false alarms. Additionally, the filter is popular in automotive radar systems for detecting and tracking vehicles and pedestrians in varied traffic conditions.

2. Sequential Monte Carlo (SMC) PHD Filter (Particle PHD Filter)

Overview

The SMC-PHD filter, also known as the Particle PHD filter, leverages particle filtering techniques to estimate the PHD. This method is more appropriate in scenarios where the system dynamics are nonlinear or the target distribution deviates from Gaussianity. Instead of relying on analytical solutions, the filter evolves a set of particles over time.

Usage Scenarios

Due to its flexibility in modeling complex dynamics and non-Gaussian distributions, the particle implementation of the PHD filter is preferred in situations with unpredictable target behaviors. Examples include tracking in highly cluttered environments, where targets may exhibit abrupt maneuvers or when the measurement noise is heavy-tailed. Though computationally more demanding, this variant is powerful in non-linear and uncertain tracking scenarios.

3. Cardinalized PHD (CPHD) Filter

Overview

The CPHD filter extends the capabilities of the traditional PHD filter by not only estimating the target states but also propagating the full probability distribution of the number of targets (cardinality distribution). This enhancement results in improved accuracy, especially in environments where target counts are highly variable.

Usage Scenarios

The CPHD filter finds applications in dense target environments, such as naval and aerial surveillance systems. It offers superior performance in accurately predicting the number of targets even in high clutter conditions. This variant is ideal for situations where precision in target count estimation is as critical as the states themselves.

4. Gaussian Particle Flow PHD (GPF-PHD) Filter

Overview

Combining the ideas from Gaussian mixture models with particle flow techniques, the GPF-PHD filter efficiently directs particles into regions with higher posterior probability. This hybrid approach balances the computational efficiency of Gaussian mixtures with the adaptability of particle-based methods.

Usage Scenarios

The GPF-PHD filter performs exceptionally well in non-linear tracking problems where both accuracy and computational efficiency are desired. It is particularly useful in automotive applications and complex surveillance scenarios, where rapid and adaptive tracking is necessary.

5. Extended Target PHD (ET-PHD) Filter

Overview

Unlike standard point-target tracking, the ET-PHD filter models targets as extended objects. This involves using shape and size information, often modeled by random matrices such as Gaussian inverse Wishart distributions. As a consequence, it can capture not only the location but also the physical extent of targets.

Usage Scenarios

This variant is particularly important in scenarios where it is essential to know the spatial extent of a target, such as tracking vehicles or groups of targets in surveillance applications, including maritime and autonomous driving systems. With ET-PHD, enhanced detection and tracking of non-point targets are achievable, offering a more thorough and informative picture of the scene.

Comprehensive Usage Scenarios

The application of PHD filters is widespread and multifaceted. Depending on the specific problem characteristics and environmental factors, different variants of the PHD filter are chosen to optimize multi-target tracking performance. Below is an examination of the key domains and usage scenarios where these filters excel.

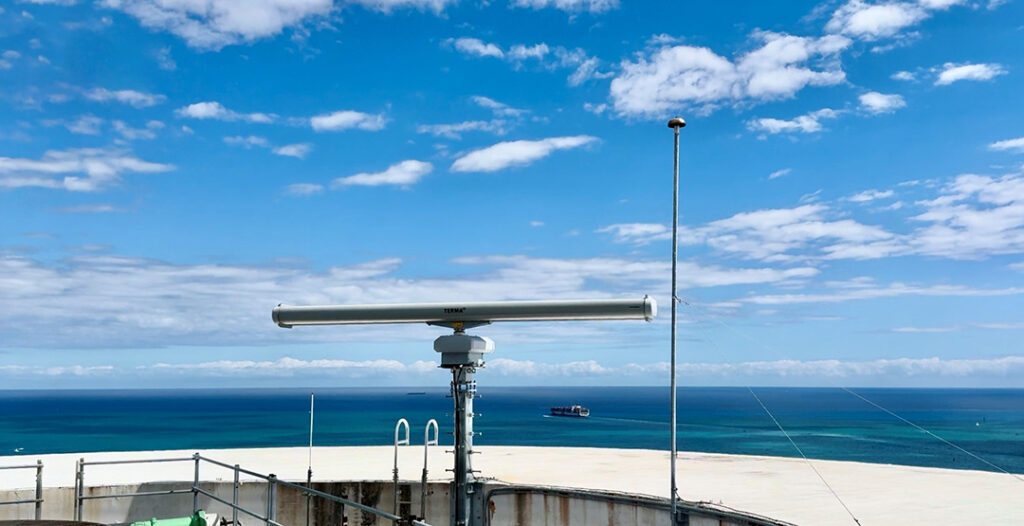

1. Radar and Sonar Tracking

Operational Needs

In radar and sonar applications, maintaining a reliable track on multiple targets against the backdrop of clutter is critical. The inherent uncertainty in radar returns due to noise, interference, and false alarms necessitates robust tracking algorithms that can handle dynamic environments. PHD filters, with their ability to process random finite sets and dissipate clutter impacts effectively, have become a cornerstone in this realm.

Implementation

The GM-PHD filter is typically utilized in controlled, linear environments with moderate noise levels, making it ideal for standard radar systems. Conversely, for environments that introduce non-linear dynamics or where heavy clutter is present, the SMC-PHD or CPHD filters are employed to attain improved performance. These filters have been integrated into automated naval and aerial systems for robust target tracking.

2. Automotive and Traffic Tracking

Safety and Efficiency Objectives

Modern automotive systems, such as advanced driver-assistance systems (ADAS) and autonomous vehicles, rely heavily on accurate real-time tracking of multiple objects in a dynamic traffic environment. The PHD filter supports vehicular systems in detecting, tracking, and predicting the trajectories of surrounding vehicles, pedestrians, and obstacles, thereby enhancing operational safety.

Filter Selection

In these applications, the GM-PHD filter is frequently chosen when vehicle motion can be approximated through linear models. However, in more complex urban settings with unpredictable pedestrian movements or vehicle maneuvers, more sophisticated implementations like the particle or adaptive PHD filters may be preferred. These filters can better accommodate the rapid changes and nonlinear dynamics commonly found in dense traffic conditions.

3. Surveillance and Military Applications

Strategic Importance

In high-stakes environments such as military applications and large-scale surveillance, accurately tracking multiple targets is of utmost importance. PHD filters are broadly applied in aerial and naval surveillance systems to detect, track, and identify potential threats amidst significant clutter.

Operational Benefits

The CPHD filter stands out in these environments because of its enhanced ability to manage variable target counts accurately. Moreover, the particle-based implementations, such as the PF-PHD filter, offer the flexibility required in complex and non-linear battlefields. The extended PHD filter also plays a vital role when the size and shape of targets (such as groups of individuals or vehicles) are critical for decision making.

4. Robotics and Distributed Sensor Networks

Distributed Systems

Robotic systems and distributed sensor networks often require decentralized tracking capabilities where multiple nodes collaborate to monitor dynamic environments. The PHD filter finds extensive application in robotic navigation, where it simplifies the challenge of multi-target tracking in a distributed architecture.

Filter Advantages

The flexible formulation of the PHD filter allows for real-time adjustment to varying detection probabilities and clutter densities. Furthermore, in multi-robot systems, the ability to integrate information from several sensors minimizes uncertainty and improves overall situational awareness. This application is particularly relevant in search and rescue operations as well as in managing autonomous fleets.

5. Environmental Monitoring and Wildlife Tracking

Conservation and Research

In ecological and environmental research, monitoring the migration patterns and behaviors of wildlife is essential for conservation efforts. The PHD filter enables researchers to estimate animal populations and track their movements reliably even in the presence of sensor noise and environmental clutter.

Practical Implementation

The adaptability of the PHD filter to various environmental conditions makes it particularly useful in the field. Researchers may opt for a simplified Gaussian mixture model when dealing with a lower level of noise, or a more robust particle-based approach in heterogeneous landscapes with irregular sensor performance.

Comparative Overview Table

The following table summarizes the characteristics, advantages, and primary usage scenarios associated with different PHD filter variants:

Variant	Key Characteristics	Advantages	Typical Applications
GM-PHD	Gaussian representation; closed-form update	Computational efficiency; simplicity	Radar tracking, automotive systems
SMC-PHD / PF-PHD	Particle-based estimation; flexible	Handles nonlinearity; adapts to non-Gaussian noise	Complex dynamic environments, surveillance
CPHD	Tracks full cardinality distribution	Improved target count accuracy	Military surveillance, dense clutter
GPF-PHD	Hybrid Gaussian and particle flow	Efficient non-linear tracking	Automotive and urban tracking
ET-PHD	Extended target modeling; uses shape and size	Captures target extent information	Maritime surveillance, autonomous driving

Implementation Considerations and Challenges

Assumptions and Models

Statistical Foundations

Implementing any variant of the PHD filter effectively requires a robust understanding of its underlying statistical models. The filter assumes independent target evolution and measurement generation, which in practice means that the environment should ideally conform to Poisson clutter statistics and independent target behavior. Mismatches between assumed models and real-world dynamics can impede performance.

Challenges in Complex Environments

The primary challenges encountered in practical applications include handling low detection probabilities, managing clutter, and processing real-time data with limited computational resources. While the basic PHD filter offers a simplified approach, its variants introduce additional computational cost in exchange for accuracy. For example, particle-based approaches require careful handling of particle weights and resampling to avoid degeneracy.

Advanced Research Directions

Hybrid and Distributed Filtering

Current research explores hybrid configurations that combine the strengths of different variants, such as merging Gaussian mixture models with particle filters to achieve balance between speed and accuracy. Moreover, distributed PHD filters are being developed to allow multi-sensor fusion, enhancing track continuity in large-scale complex environments.

Integration with Machine Learning

There is growing interest in combining the PHD filtering framework with machine learning techniques. By leveraging historical data patterns and predictive analytics, future implementations may dynamically adjust filter parameters in response to environmental changes, further improving tracking performance in non-stationary clutter conditions.

Conclusion and Final Thoughts

In summary, the PHD filter and its many variants provide a powerful toolkit for tackling multi-target tracking challenges. Each variant—from the computationally efficient GM-PHD filter to the robust and adaptive CPHD and particle-based filters—caters to different application requirements and environmental conditions. Whether used for modern automotive safety systems, military surveillance, or ecological monitoring, these filters excel in managing the inherent uncertainties associated with multiple moving targets and cluttered environments.

The versatility of the PHD filter framework is evident in its widespread usage across diverse fields. Its continuous evolution, informed by ongoing research into higher-order corrections and hybrid implementations, promises further enhancements in tracking precision and computational efficiency. This makes the PHD filter a cornerstone in the toolkit of engineers and researchers working on complex, data-intensive applications. The integration of dynamic, machine learning-driven adaptations further points towards a future where these filters will be even more adept at handling the unpredictability of real-world scenarios.
