Comprehensive PhD-Level Explanation of MIMO Technology

Unlocking the Spatial Dimensions of Wireless Communications

Key Takeaways

Enhanced Capacity and Efficiency: MIMO leverages multiple antennas to significantly increase data throughput and spectral efficiency.
Spatial Multiplexing and Diversity: It enables parallel data streams and improved reliability through spatial diversity.
Advanced Signal Processing: Effective MIMO implementation relies on sophisticated techniques like precoding, beamforming, and interference management.

1. Theoretical Foundations of MIMO

1.1 Information Theory and Channel Capacity

Multiple-Input Multiple-Output (MIMO) technology is fundamentally grounded in information theory and advanced signal processing. The seminal work by Telatar and Foschini in the late 1990s highlighted that the capacity of wireless channels could scale linearly with the minimum number of transmit and receive antennas in environments characterized by rich scattering. This marked a significant departure from Single-Input Single-Output (SISO) systems, where capacity increases logarithmically with the Signal-to-Noise Ratio (SNR).

The capacity of a MIMO system is mathematically expressed as:

$$ C = \log_2 \det \left( I + \frac{\rho}{N_t} H H^H \right) $$

Where:

C: Channel capacity.
I: Identity matrix.
ρ: SNR.
N_t: Number of transmit antennas.
H: Channel matrix representing complex gains between each transmit-receive antenna pair.

1.2 Spatial Multiplexing and Diversity Gain

MIMO systems exploit spatial multiplexing and diversity gain to enhance communication performance:

Spatial Multiplexing: This allows the transmission of independent data streams across multiple antennas, effectively increasing data rates without additional spectrum. By decomposing the channel matrix using techniques like Singular Value Decomposition (SVD), MIMO creates parallel subchannels that can carry separate information streams.
Diversity Gain: MIMO provides diversity gain by transmitting multiple copies of the same signal through different antennas. This approach mitigates the effects of fading and improves the reliability of the communication link by leveraging multiple independent fading paths.

1.3 Array Gain

Array gain refers to the coherent combination of signals from multiple antenna elements to enhance the Signal-to-Noise Ratio (SNR) at the receiver. This is achieved through beamforming techniques, which direct the energy of the transmitted signals towards specific directions, thereby improving signal strength and reducing interference.

2. Mathematical Modeling of MIMO Systems

2.1 System Representation

A MIMO system with N_t transmit antennas and N_r receive antennas is mathematically modeled as:

$$ \mathbf{y} = \mathbf{H}\mathbf{x} + \mathbf{n} $$

Where:

y: Received signal vector (N_r × 1).
H: Channel matrix (N_r × N_t), representing the complex gains between transmit and receive antennas.
x: Transmitted signal vector (N_t × 1).
n: Noise vector, typically modeled as Gaussian noise (N_r × 1).

2.2 Channel Characteristics

The channel matrix H encapsulates the propagation environment, including multipath effects and antenna correlations. Key properties influencing MIMO performance include:

Rank: Determines the number of independent spatial channels. If H is full rank, up to min(N_t, N_r) independent data streams can be transmitted.
Condition Number: A measure of how well-conditioned the channel matrix is. A high condition number can degrade MIMO capacity due to increased noise amplification.
Correlation: Low correlation between antenna elements is desirable to maximize spatial diversity and multiplexing gains.

3. Capacity of MIMO Channels

3.1 Shannon Capacity in MIMO Systems

The capacity formula for MIMO systems extends Shannon's capacity theorem to account for multiple antennas:

$$ C = \log_2 \det \left( \mathbf{I} + \frac{P}{N_t} \mathbf{H}\mathbf{H}^H \right) $$

Where:

P: Total transmit power.
H^H: Hermitian transpose of the channel matrix.
I: Identity matrix.

3.2 Factors Influencing MIMO Capacity

Spatial Multiplexing Gain: Capacity scales linearly with the minimum number of transmit and receive antennas, i.e., min(N_t, N_r).
Channel State Information (CSI):
- Perfect CSI: Both transmitter and receiver have full knowledge of the channel, enabling optimal precoding and water-filling power allocation.
- Imperfect/No CSI: Results in suboptimal performance and reduced capacity.
Channel Conditions: Rich scattering environments with high multipath diversity facilitate higher MIMO capacity.

4. Signal Detection and Decoding in MIMO Systems

4.1 Linear Detectors

Zero-Forcing (ZF):
Eliminates inter-stream interference by inverting the channel matrix:

$$ \mathbf{W}_{ZF} = (\mathbf{H}^H\mathbf{H})^{-1}\mathbf{H}^H $$

However, ZF can amplify noise, especially in ill-conditioned channels.
Minimum Mean Square Error (MMSE):
Balances interference suppression and noise amplification using regularization:

$$ \mathbf{W}_{MMSE} = (\mathbf{H}^H\mathbf{H} + \sigma^2 \mathbf{I})^{-1}\mathbf{H}^H $$

4.2 Non-Linear Detectors

Successive Interference Cancellation (SIC):
Decodes streams sequentially, subtracting the contribution of already decoded streams to mitigate interference.
Maximum Likelihood (ML):
Achieves optimal detection performance by exhaustively searching for the most likely transmitted signal, but is computationally intensive.

5. Advanced Signal Processing Techniques

5.1 Precoding and Beamforming

Precoding involves processing the transmitted signals to optimize performance based on CSI. Common precoding techniques include:

Zero-Forcing Precoding: Similar to ZF detection, it cancels inter-stream interference by inverting the channel matrix.
MMSE Precoding: Incorporates noise considerations to balance interference suppression with noise enhancement.

Beamforming focuses the transmitted energy in specific spatial directions to enhance signal strength at the intended receiver:

<!-- Example of beamforming vector -->
  w = \frac{H^H}{||H^H||}

5.2 Interference Management

MIMO systems must effectively manage inter-stream interference, which arises when multiple data streams are transmitted simultaneously. Techniques include:

Successive Interference Cancellation (SIC): As discussed in detection, it sequentially decodes and cancels interference from previously decoded streams.
Orthogonal Frequency-Division Multiplexing (OFDM): Divides the frequency spectrum into orthogonal subcarriers, reducing inter-stream interference.

6. Practical Implications and Applications

6.1 Cellular Networks: 4G, 5G, and Beyond

MIMO technology is a cornerstone of modern cellular networks:

4G LTE: Utilizes 2x2 and 4x4 MIMO configurations to enhance data rates and reliability.
5G: Employs Massive MIMO, scaling up to hundreds of antennas at base stations to serve multiple users simultaneously, achieving ultra-high data rates and low latency.
6G and Future Networks: Anticipate further scaling and integration with technologies like Reconfigurable Intelligent Surfaces (RIS) and terahertz communications.

6.2 Spectral and Energy Efficiency

MIMO significantly improves spectral efficiency by utilizing spatial dimensions to transmit multiple data streams within the same frequency band. Additionally, through beamforming and energy-focused transmission, MIMO enhances energy efficiency by directing power where it is needed most, reducing overall power consumption.

6.3 Challenges in Practical Implementation

Channel Estimation: Accurate CSI is crucial for optimal MIMO performance. Estimating the channel in dynamic environments introduces overhead and complexity.
Hardware Complexity: Scaling up the number of antennas increases the complexity of hardware components like amplifiers, mixers, and Analog-to-Digital Converters (ADCs).
Power Consumption: More antennas and advanced signal processing algorithms lead to higher power consumption, necessitating efficient hardware design.
Physical Space and Antenna Placement: Ensuring low correlation between antenna elements requires adequate spacing, which can be challenging in compact devices.

7. Research Frontiers in MIMO Technology

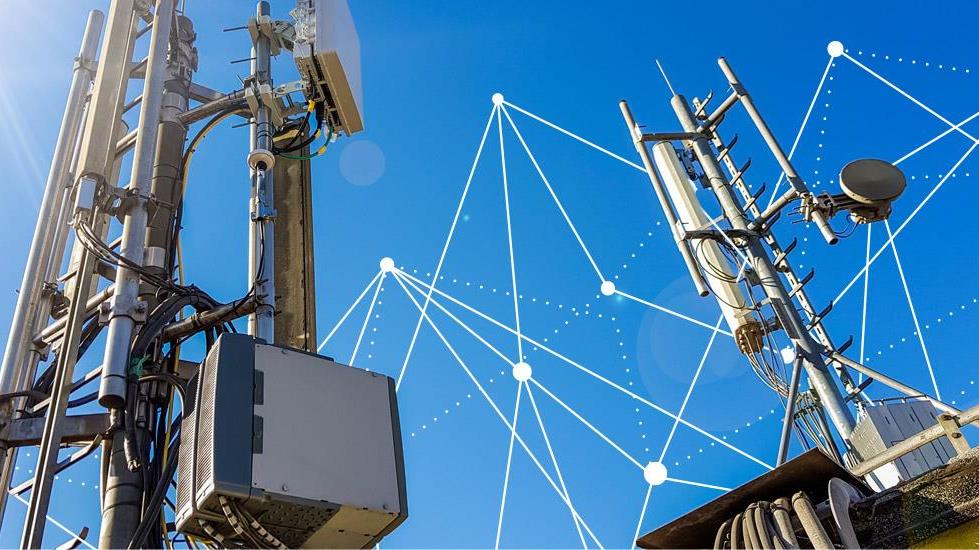

7.1 Massive MIMO

Massive MIMO scales traditional MIMO systems by employing a large number of antennas, often in the hundreds, at the base station. This approach leverages favorable propagation characteristics and channel hardening to simplify signal processing and enhance system capacity.

7.2 Reconfigurable Intelligent Surfaces (RIS)

RIS technology involves intelligent surfaces that can dynamically control the propagation environment, enhancing MIMO performance by reflecting signals in desired directions, mitigating interference, and improving coverage.

7.3 Terahertz Communications

MIMO is being adapted for terahertz frequency bands, which offer vast bandwidths for ultra-high data rates. However, terahertz propagation characteristics, such as high path loss and limited range, pose unique challenges that require novel MIMO techniques.

7.4 Machine Learning for MIMO

Artificial Intelligence (AI) and Machine Learning (ML) are being integrated into MIMO systems to optimize various aspects in real-time, including channel estimation, beamforming, and interference management, particularly in complex and dynamic environments.

8. Extensions and Variants of MIMO

8.1 Multi-User MIMO (MU-MIMO)

MU-MIMO extends the benefits of MIMO to multiple users simultaneously by leveraging spatial separation and multiuser diversity. This enhances overall network capacity and user experience.

8.2 Distributed MIMO (D-MIMO)

In D-MIMO architectures, antennas are distributed across different locations rather than co-located at a central base station. This distribution improves coverage, reduces interference, and enhances capacity in various network scenarios.

8.3 Full-Duplex MIMO

Full-Duplex MIMO enables simultaneous transmission and reception on the same frequency band, effectively doubling spectral efficiency. However, it introduces challenges related to self-interference, which requires advanced cancellation techniques.

9. Computational Complexity in MIMO Systems

The computational complexity of MIMO systems varies based on the implementation and signal processing techniques employed:

Technique	Computational Complexity
Quadrature Amplitude Modulation (QAM) with Equalizer	O(n²)
Direct Sequence Spread Spectrum (DSSS) with Rake Receiver	O(n²)
MIMO Orthogonal Frequency-Division Multiplexing (MIMO-OFDM)	O(n log n)

Efficient algorithms and hardware optimizations are essential to manage and reduce computational demands, especially in Massive MIMO and real-time processing scenarios.

10. Future Directions and Innovations

10.1 Intelligent Reflecting Surfaces (IRS)

IRS technology enhances MIMO by enabling dynamic control over the wireless propagation environment. By adjusting the phase and amplitude of reflected signals, IRS can improve signal quality, extend coverage, and reduce interference.

10.2 Integration with 6G Technologies

As we transition towards 6G, MIMO will integrate with other emerging technologies such as quantum communications, terahertz frequencies, and advanced AI-driven protocols to achieve unprecedented levels of performance and efficiency.

10.3 Energy-Efficient MIMO Design

Developing energy-efficient MIMO systems is critical for sustainable wireless communications. Innovations focus on reducing power consumption through hardware optimizations, efficient signal processing algorithms, and energy-aware network protocols.

Conclusion

MIMO technology stands as a pivotal advancement in wireless communications, transforming how spatial dimensions are exploited to enhance capacity, reliability, and efficiency. From its theoretical underpinnings in information theory to practical implementations in modern cellular networks, MIMO continues to evolve, addressing challenges and pioneering innovations. As wireless demands intensify with the advent of 5G and beyond, ongoing research and development in areas like Massive MIMO, RIS, and AI-driven signal processing will further solidify MIMO's role in shaping the future of wireless connectivity.
