Pressure Effects on the Lower Flammability Limit

An in-depth analysis of how pressure influences the flammability range of gas mixtures

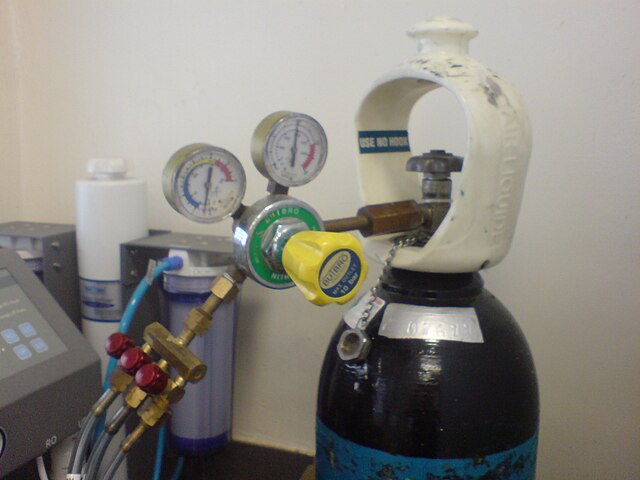

industrial gas mixtures high pressure apparatus

Highlights

Substance-Specific Response: The effect of pressure on the lower flammability limit (LFL) is highly dependent on the type of gas or vapor, with different compounds showing varying behavior under increased or decreased pressures.
Moderate Pressure Changes: In many cases, moderate changes in pressure have only modest effects on the LFL, although extreme conditions may exhibit noteworthy deviations.
Interplay with Temperature and Kinetics: Pressure impacts the LFL through mechanisms such as gas-phase reaction kinetics and heat transfer, often interacting with temperature changes to further influence ignitability.

Introduction

The lower flammability limit (LFL) is defined as the minimum concentration of a flammable gas or vapor in air that, when mixed with an appropriate amount of oxygen, can sustain a combustion process under a specific set of conditions. The LFL is a critical parameter in the design and safety analysis of industrial processes, storage facilities, and transportation systems where flammable materials are present. One key factor that has a significant influence on the LFL is the surrounding pressure. Understanding how pressure affects the LFL is essential for preventing accidental ignitions or explosions, and for designing systems that minimize flammability risks. This comprehensive analysis examines the various aspects of pressure effects on the LFL, utilizing experimental findings, theoretical insights, and practical considerations.

Fundamental Concepts

Definition of Lower Flammability Limit

The lower flammability limit (LFL) refers to the minimum concentration of a combustible gas or vapor in air needed for a flame to propagate. When the concentration of the flammable substance falls below this threshold, the mixture does not possess sufficient fuel to maintain combustion. Conversely, as the concentration increases above the LFL, ignition becomes increasingly feasible. It is important to note that the LFL is not a fixed value but can vary depending on environmental conditions such as pressure, temperature, and the presence of diluents or other reactive species.

Role of Pressure in Flammable Mixtures

Pressure plays a critical role in determining the flammability characteristics of gas mixtures. In general, increasing the total pressure can influence the reaction environment by altering the diffusion rates, collision frequencies of reactant molecules, and the overall kinetics of the combustion reactions. Under different pressure regimes, the energetic threshold required for ignition and the corresponding concentration limits can shift. Pressure changes affect not only the LFL but also the upper flammability limit (UFL), thereby modifying the entire flammability range.

Pressure Influence on LFL: Detailed Mechanisms

Variation with Pressure Increase

When the pressure in a system increases, several reactions and physical phenomena come into play that can affect the LFL:

Collision Frequency and Reaction Kinetics

One of the main consequences of an increase in pressure is the enhancement of the collision frequency among gas molecules. This leads to an increase in the rate of chemical reactions, particularly those involved in the chain branching processes that are essential for sustaining a flame. For some fuels, such as methane, experiments have shown that the LFL decreases slightly at higher pressures. The increased collision rate facilitates chain propagation even at lower fuel concentrations because the number of effective collisions that may exceed the threshold for ignition becomes more frequent.

Convective Heat Transfer

Pressure variations also modify the convective heat transfer properties within the flame zone. Higher pressures typically reduce the mean free path of molecules, which in turn enhances heat transfer. This improvement in the thermal feedback can lower the minimum energy requirement for sustaining combustion; however, its magnitude strongly depends on the flame geometry and the specific fuel-air mixture.

Threshold Shifts at Lower Pressures

Conversely, when pressure decreases, the collision frequency among gas molecules is reduced and the convective heat transfer becomes less efficient. This generally results in a higher LFL, as more fuel is required to achieve the critical conditions for ignition. A higher ignition energy is often necessary to overcome the decreased collision rate and lower heat transfer, thereby rendering ignition less probable at low pressures.

Thermal Dilution Effect

At reduced pressures, the gas mixtures tend to be more diluted, with increased spaces between reacting molecules. This spatial separation can hinder heat buildup and diminish the likelihood of sustaining an ignition event, hence increasing the LFL. This phenomenon is particularly evident in systems such as high-altitude environments or controlled low-pressure industrial processes.

Substance-Specific Interactions

The influence of pressure on the LFL is not uniform across all substances. Experimental studies have demonstrated that for varying types of fuels, the LFL exhibits different sensitivities to pressure changes:

Hydrocarbons

For most hydrocarbons, a general trend is observed where an increase in pressure leads to a slight decrease in the LFL, making the mixtures more susceptible to ignition. This observation has been quantitatively supported by studies on methane, ethane, and propane. In the case of ethane, for instance, at an elevated pressure of approximately 15.11 MPa, the LFL was recorded to drop significantly—by nearly 57% compared to its standard value. These findings indicate that with elevated pressure, lower concentrations of hydrocarbons can maintain flammability.

Hydrogen/Air Mixtures

Hydrogen, due to its small molecular size and high diffusivity, exhibits a more complex pressure dependence. At very low pressures, the LFL of hydrogen in air tends to decrease with increasing pressure up to a critical threshold (around 20 atm), beyond which further pressure increases might result in a rise in the LFL. This behavior can be linked to the interplay between chain branching and chain termination reactions, where the balance between these reactions shifts as the number of molecular collisions changes with pressure.

Complex Mixtures and Vapor-Liquid Systems

Other gas mixtures, such as acetone/water solutions or multi-component hydrocarbon vapors, have also been studied. In many instances, the LFL for solutions remains relatively stable with moderate pressure changes while the UFL sees a notable increase. These effects underscore that in vapor-liquid systems, the physical interactions and phase behavior—along with pressure effects—play a significant role in determining the flammability limits.

Interdependencies: Pressure, Temperature, and Kinetic Effects

Temperature Interactions

One of the critical factors in flammability behavior is temperature. Temperature changes not only directly affect the LFL but also interact with pressure effects in complex ways. In many scenarios, the LFL is observed to decrease with increasing temperature regardless of pressure changes. However, the combined effect of a higher temperature and elevated pressure enhances the reaction kinetics more dramatically than either factor alone. This synergy can lead to an even lower LFL, making mixtures more vulnerable to ignition in high-pressure, high-temperature environments.

Kinetic Modeling and Experimental Data

Kinetic modeling plays an essential role in predicting how the LFL might vary with changes in pressure and temperature. The underlying gas-phase reactions, including chain initiation, propagation, and termination, are significantly influenced by both parameters. Models often show a degree of linear or logarithmic dependency on pressure. Although experimental data can differ slightly based on the fuel tested and the experimental setup, a consensus exists that both temperature and pressure combine to alter the critical ignition thresholds.

Impact on Ignition Energy

Another important aspect is the minimum ignition energy (MIE) required for a flame to propagate. At higher pressures, the MIE tends to be lower because the effective collision rate and enhanced heat transfer enable ignition at lower input energies. Conversely, at lower pressures, the MIE increases because the diminished collision frequency and less effective thermal propagation require a greater energy input to initiate combustion. This relation is critical in risk assessments for environments operating under non-ambient pressures, such as in aerospace or deep-sea applications.

Quantitative Analysis and Experimental Observations

Experimental Data Overview

Various experiments have been conducted to establish the quantitative relationship between pressure and the LFL across different substances. A summary of key findings includes:

Substance	Standard Pressure LFL	Elevated Pressure LFL	Observed Trend
Methane	Approximately 5%	Slightly lower (around 4.6 ± 0.5% at 2–32 MPa)	Decrease with pressure
Ethane	Standard value not precisely defined	1.32% at 15.11 MPa	Significant drop (57% reduction from baseline)
Propane	Standard value	Lower at 15 MPa	Decrease with pressure
Hydrogen/Air	Varies widely	Complex: initial decrease then increase beyond 20 atm	Non-linear response
Acetone/Water	Stable LFL at 1 atm	Little variation between 1 and 2 atm	Minimal change in LFL; UFL increases

These findings indicate that while LFL trends can be generalized for a few classes of compounds, each substance displays a unique interaction between pressure and flammability. Experimental data helps validate theoretical kinetic models while offering precise numerical values for safety assessments.

Impact of Experimental Conditions

It is essential to consider that the observed effects of pressure on the LFL are also influenced by experimental conditions. Factors such as the rate of pressure change, the initial temperature of the mixture, the geometric configuration of the test apparatus, and the method used to initiate ignition all play significant roles. In some studies, deviations from expected trends in LFL are attributed to these experimental variables, emphasizing the need for standardized test protocols when comparing results across different research groups.

Practical Implications and Safety Considerations

Industrial Applications

Understanding the pressure effect on the LFL is paramount in many industrial applications. In chemical processing plants, storage tanks, and pipeline systems, operational pressures can vary considerably. Knowledge of how the LFL shifts under these conditions enables designers and safety engineers to:

Design Safe Operating Margins

By taking into account the effects of pressure, safe operating margins can be established that prevent the gas mixtures from falling unexpectedly into combustible ranges. This is vital in scenarios where gas leaks might occur under variable atmospheric pressures or in pressurized environments.

Plan Emergency Response Strategies

Accurate predictions of flammability limits allow emergency response teams to better prepare for potential ignition events. For instance, in high-pressure settings such as refineries or during rocket launches, emergency protocols need to incorporate the knowledge that lower concentrations of combustible vapors might be hazardous.

Environmental and Operational Factors

Besides industrial settings, several environmental conditions necessitate a deeper understanding of LFL variations:

High Altitude and Aerospace Conditions

In aerospace applications, such as in aircraft cabins or spacecraft, pressures can deviate significantly from ground-level atmospheric pressure. A higher altitude or a pressurized compartment may exhibit altered flammability characteristics, requiring specialized safety measures. The design of fuel systems and life support systems must consider the possibility that traditional LFL values at sea level might not apply under these conditions.

Laboratory Research and Experimental Design

In academic and industrial research labs, where controlled experiments are conducted to study combustion properties, understanding the pressure dependence of the LFL aids in devising experiments that accurately replicate real-world conditions. Researchers often adjust pressure in controlled experiments to simulate both high-pressure industrial conditions and low-pressure environments such as those encountered in environmental studies.

Theoretical Modeling and Future Directions

Kinetic Models

Theoretical models that describe flammability limits involve complex chemical kinetics and transport phenomena. Kinetic models incorporate parameters such as:

Reaction Rate Constants: Quantifying the speed of chain initiation, propagation, and termination reactions.
Diffusivity: Representing how rapidly species mix and transfer energy in the reaction zone.
Thermal Properties: Including conductivity and specific heat, which influence how heat is retained or dissipated.

These models often yield predictions that are in good agreement with experimental data, particularly when interactions between pressure and temperature are taken into account. Although the precision of LFL predictions remains challenging due to the interplay of multiple factors, ongoing advances in computational methods and high-fidelity experiments continue to refine these models.

Challenges and Research Directions

Despite significant advances, several challenges remain in completely understanding the effects of pressure on the lower flammability limit:

Complex Mixtures and Non-Ideal Behavior

Most experimental and theoretical work has traditionally focused on pure substances or simple mixtures. However, real-world applications often involve complex mixtures where multiple fuel components interact. In such cases, non-ideal gas behavior and chemical interactions can lead to deviations from the expected trends in LFL, necessitating further research.

Advanced Diagnostic Techniques

The development of advanced diagnostic techniques, such as laser-based imaging and high-speed spectroscopy, is enabling more detailed examinations of flame structures and kinetic processes. These techniques can provide deeper insights into how pressure specifically affects the rapid sequence of events during ignition, ultimately leading to more robust models and safety standards.

Interpolation for Extreme Conditions

Research efforts are also focused on interpolating existing data to extremities, such as very high pressures found in industrial burners or extremely low pressures present in high-altitude scenarios. The goal is to produce universally applicable models that can predict LFL behavior across a wide range of pressures and temperatures.

Safety Guidelines and Best Practices

Implementing Pressure Considerations in Safety Protocols

Safety guidelines in industries dealing with flammable gases must incorporate an understanding of how pressure influences the LFL. The following best practices have been identified:

Continuous Monitoring

Real-time monitoring of pressure and gas concentrations is critical. Using advanced sensors and control systems, operators can maintain conditions outside the unsafe flammability window. By adjusting pressure or gas concentration dynamically, the risk of accidental combustion can be significantly reduced.

Standardized Testing and Calibration

It is essential that industries adopt standardized testing methods to accurately determine the LFL under varying pressure conditions. Regular calibration of sensors and periodic testing of the flammability limits ensure that theoretical predictions remain reliable in the field.

Design of Ventilation and Containment Systems

Engineering designs that account for the changes in flammability limits due to pressure variations help in creating safe containment and ventilation systems. These systems are designed to quickly disperse any accidental gas release, maintaining concentrations below the LFL.

Comparative Analysis of Pressure Effects

Summary of Observations Across Different Fuels

A comparative analysis of experimental observations reveals general trends applicable to several classes of flammable substances:

In hydrocarbons, particularly methane, ethane, and propane, an increase in pressure typically produces a proportional decrease in the LFL, indicating increased risks at higher operating pressures.
For hydrogen-air mixtures, the response may be non-linear, with an initial decrease in the LFL at moderate pressures, followed by an increase beyond a specific pressure threshold due to alterations in reaction kinetics.
Mixtures like acetone/water demonstrate relatively consistent LFL values over moderate pressure changes, although the upper flammability limits can widen.

The synthesis of these observations clearly shows that while a general trend of decreasing LFL with increasing pressure exists for many substances, the magnitude and precise behavior vary based on the fuel's chemical nature and the ambient conditions. This complexity underscores the necessity for substance-specific studies when applying these principles to practical situations.

Conclusion

In conclusion, the pressure effect on the lower flammability limit is a multifaceted phenomenon that plays a pivotal role in determining the safety and operational reliability of systems using flammable gases. Increased pressure generally enhances molecular collision rates and heat transfer, often resulting in a decline in the LFL, though the magnitude of this effect depends on the specific chemical properties of the fuel. Factors such as temperature, gas composition, and experimental conditions further modulate the LFL, resulting in substance-specific behaviors — as evidenced by the varied responses observed in hydrocarbons versus hydrogen-air mixtures.

Practical applications in industrial process design, aerospace engineering, and safety protocol development must account for these pressure-induced shifts to mitigate risks effectively. Advances in diagnostic technology, kinetic modeling, and standardized measurement protocols will continue to improve our predictions of flammability limits under varying pressure conditions. Ultimately, through detailed experimental studies and robust theoretical models, engineers and safety professionals can ensure safer operations in environments where flammable gases present potential hazards.
