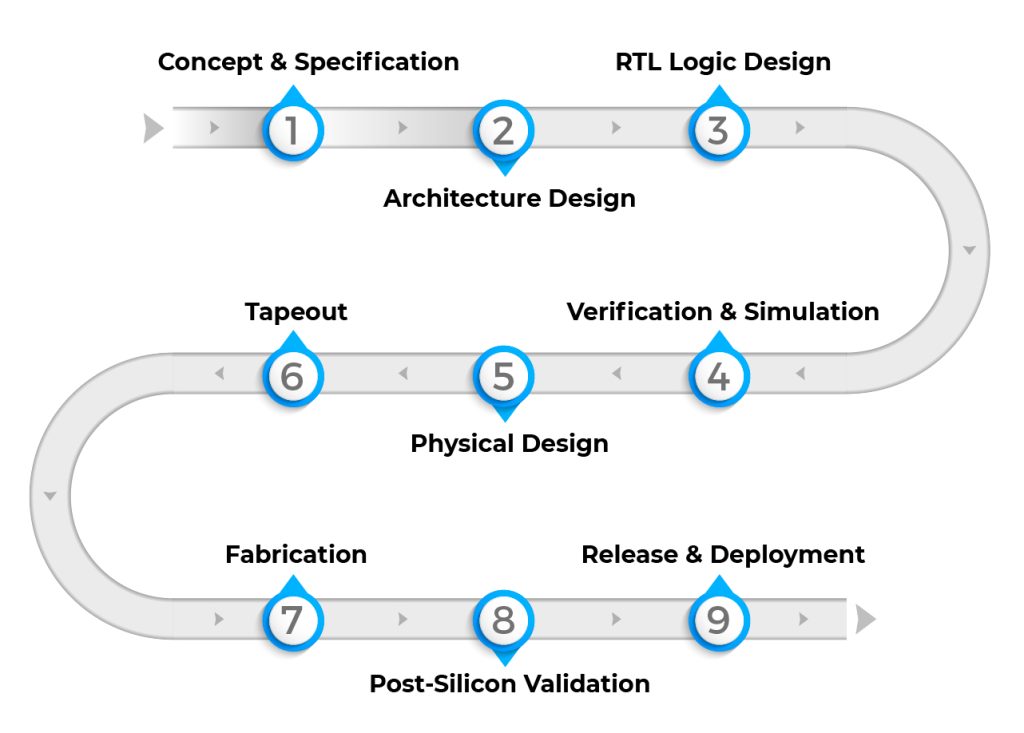

In today's highly competitive and rapidly evolving semiconductor landscape, design teams rely on sophisticated tools to achieve precise static timing analysis (STA) and efficient signoff processes. The upgraded version of PrimeTime SI, known as PrimeTime ADV, exemplifies this technological advancement by incorporating several new features that extend and enhance its capabilities. This article examines the major features of PrimeTime ADV, with a particular focus on its Advanced Engineering Change Order (ECO) technology and Parametric On-Chip Variation (POCV), and discusses how these improvements are especially beneficial for advanced designs employing FinFET technologies and sub-10nm nodes.
One of the standout features in PrimeTime ADV is the Advanced Engineering Change Order, which is designed to streamline the process of making timing corrections and design changes after initial design closure. Traditionally, designers face the challenge of balancing numerous iterations to address timing violations and design rule checks (DRC). PrimeTime ADV addresses these issues by providing a more integrated and physically-aware ECO guidance solution.
The Advanced ECO feature integrates with physical implementation tools, such as IC Compiler, to ensure that timing adjustments are made in a context-aware manner. This physically-aware approach leads to optimal placement and routing decisions, thereby minimizing the iterations needed for successful timing closure. One of the pivotal benefits is the capability to collapse endpoints into a global graph, identifying the most effective locations for applying fixes without enlarging the die or compromising signoff quality.
Moreover, the approach not only focuses on correcting immediate timing violations but also leverages positive timing slack available in the design. This reused slack can result in leakage power reduction, as adjustments are made without significantly altering the established timing paths. With reduced false violations and enhanced feedback from actual physical layouts, the Advanced ECO system essentially aids engineers in converging on an efficient signoff solution, even in highly complex design environments.
As semiconductor devices continue to scale down, variations in manufacturing processes have a pronounced impact on circuit performance. PrimeTime ADV addresses this challenge through its integration of Parametric On-Chip Variation (POCV). POCV introduces a statistical dimension to timing analysis by assigning a sigma value to each cell in the library, thereby statistically modeling the impact of process variations on signal delay.
POCV represents a departure from traditional worst-case analysis methods by using mean values and sigma-based variation. This approach not only reduces pessimism but also transforms the way timing margins are calculated. Instead of assuming worst-case variations across the board, POCV allows for a more nuanced treatment of variations, leading to fewer false violations. The statistical model employed is less computationally intensive compared to full Statistical Static Timing Analysis (SSTA), thus balancing precision and performance.
Furthermore, POCV supports various forms of timing information inputs, such as early/late and moments-based formats, enabling it to handle designs at extremely advanced nodes with high fidelity. This flexibility is critical when addressing designs that require a detailed understanding of on-chip variations, particularly as devices venture into sub-10nm process technologies.
A significant aspect of PrimeTime ADV is its suitability for advanced process nodes like FinFET. As devices scale down, the traditional timing analysis approaches often fall short due to increased variability and tighter tolerances. PrimeTime ADV is specifically designed with advanced process nodes in mind, ensuring that timing analysis remains accurate and robust even when dealing with the low operating voltages and unique physical characteristics of FinFET devices.
The tool’s ability to integrate advanced leakage recovery algorithms and support multi-voltage as well as hierarchical analysis provides designers with the confidence that their timing closure and signoff procedures are both efficient and reliable. By incorporating extensive features such as Advanced ECO and POCV, engineers can navigate the complexity of modern semiconductor designs with improved computational efficiency and greater analytical accuracy.
In the realm of static timing analysis, fast turnaround times combined with memory efficiency are essential to handle large designs with millions of instances. PrimeTime ADV addresses these challenges with significant performance improvements. Thanks to innovations in both scalar and multicore computing, the upgraded tool can process larger circuits more rapidly than its predecessor.
Indeed, advanced algorithms that combine graph-based analysis (GBA) with enhanced path-based analysis (PBA) facilitate better scaling when transitioning from conventional single-threaded to multicore environments. This means that not only do designers get more accurate timing analysis, but they also benefit from a faster, more efficient design closure process. The distributed multi-scenario analysis is another breakthrough that allows various design constraints to be managed simultaneously, ensuring a balanced and thorough evaluation of the entire chip design.
Another notable improvement in PrimeTime ADV is its seamless integration with other electronic design automation (EDA) tools. Through tight coupling with IC Compiler for physical layout and StarRC for parasitic extraction, the system ensures that information flows smoothly between various stages of the design process. This integration is critical for minimizing design iterations and ensuring that timing analysis accurately reflects real-world conditions.
When design data is shared across these tools, engineers are provided with more reliable timing estimates that consider both the logical and physical aspects of the chip design. Early detection of potential issues allows for proactive adjustments, ultimately leading to a more efficient signoff process and reduced time to market.
| Feature | PrimeTime SI | PrimeTime ADV |
|---|---|---|
| Engineering Change Order (ECO) | Standard ECO implementations with limited physical integration | Advanced, physically-aware ECO guidance with global graph consolidation and positive slack utilization |
| On-Chip Variation Analysis | Traditional On-Chip Variation methods with conservative assumptions | Parametric OCV employing statistical models and sigma propagation to reduce pessimism |
| Node Support | Optimized for older and larger process nodes | Enhanced support for FinFET and sub-10nm advanced process nodes |
| Performance | Limited multicore scaling and memory efficiency | Improved multicore performance, memory efficiency, and distributed multi-scenario analysis |
| Tool Integration | Basic integration with design and extraction tools | Deep integration with IC Compiler and extraction tools, ensuring smoother design iterations |
The adoption of PrimeTime ADV in the semiconductor industry has been significant, particularly among companies working on cutting-edge designs such as high-performance processors, low-power consumer electronics, and next-generation communication systems. The improved timing accuracy and lower pessimism contribute directly to robust designs that can operate reliably at lower power and higher speeds.
Companies have reported that the advanced ECO capabilities facilitate the closing of signoff iterations along with reducing overall design complexities. Furthermore, the statistically informed POCV method provides a clear window into the impact of manufacturing variations on timing, which is crucial for ensuring product quality in mass production. This holistic approach to timing analysis ultimately accelerates the design cycle, a critical factor in maintaining competitiveness in the fast-paced semiconductor market.
As design complexities continue to grow, tools like PrimeTime ADV are paving the way for more efficient and effective design workflows. The balance achieved between computational efficiency and increased analytical depth ensures that even as designs become more intricate, the static timing analysis does not become a bottleneck. With enhancements in both memory usage and processing speed, PrimeTime ADV is well-positioned to handle the ever-growing demand for precise design validation in advanced semiconductor processes.
Looking forward, the evolution of design verification tools is likely to continue focusing on further reducing pessimism in timing analysis while enhancing integration with physically-aware design platforms. This will enable electronic design automation to further streamline workflows, support even smaller geometries, and seamlessly manage variability — ensuring that next-generation chips not only meet but exceed performance and efficiency expectations.
