PrimeTime ADV: Advanced ECO and POCV Features

Discover how PrimeTime ADV empowers design closure with innovative ECO and POCV capabilities

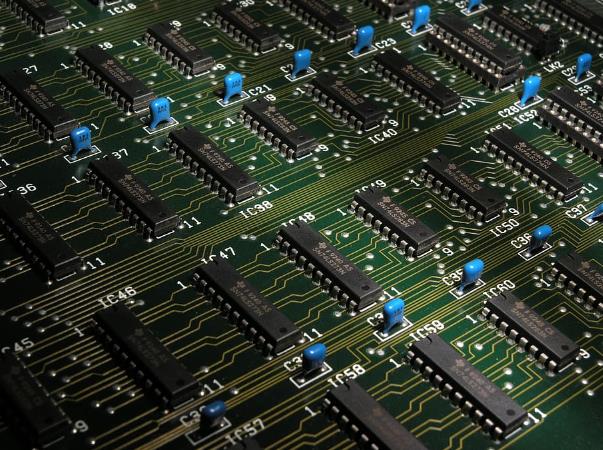

integrated circuit design layout, advanced semiconductor manufacturing

Highlights

Enhanced ECO Guidance – Physically-aware, signoff-driven ECO helps reduce iteration cycles.
Parametric On-Chip Variation (POCV) – Statistical modeling at the cell level minimizes pessimism and improves timing accuracy.
TCL-Driven Automation – Step-by-step scripting in TCL streamlines ECO implementation and integration with design flows.

Understanding PrimeTime ADV

PrimeTime ADV is the evolution of the traditional PrimeTime SI environment and is specifically designed to address the complexities of modern, high-performance digital designs. It significantly enhances static timing analysis (STA) by incorporating advanced Engineering Change Order (ECO) capabilities and a robust approach to managing on-chip variations.

As process nodes advance into the 20nm realm and below, the inherent variability in manufacturing processes becomes a critical concern. Designers must contend with unpredictable variations across the chip that can affect performance and power consumption. PrimeTime ADV tackles these challenges through two key enhancements: advanced ECO guidance and Parametric On-Chip Variation (POCV) analysis.

Advanced ECO Guidance

ECO, or Engineering Change Order, is a fundamental part of the digital design process, enabling necessary changes late in the design cycle to resolve timing violations, adjust performance parameters, and optimize circuit behavior. In earlier iterations of design flows, ECOs were often heuristic and less physically informed; however, PrimeTime ADV introduces a paradigm shift by integrating physical awareness into the ECO process.

Key Components of Advanced ECO

The advanced ECO functionality in PrimeTime ADV brings several notable improvements:

Physically-Aware Signoff-Driven Guidance

Traditional ECO flows might choose fixes based solely on logical timing graphs, potentially overlooking critical physical layout constraints. In contrast, PrimeTime ADV uses signoff-driven guidance that factors in accurate parasitics and physical dimensions of the chip. This approach means that the ECO guidance is not only about resolving timing issues but also ensuring that modifications do not adversely affect the design’s layout or physical constraints.

Reduced Iteration Cycles

One of the persistent challenges in advanced design flows is the time-consuming iterative process required for timing closure. By collapsing endpoints into a comprehensive global graph, PrimeTime ADV achieves a more efficient analysis, enabling multiple issues to be addressed simultaneously. This optimized approach minimizes the need for repeated iterations and accelerates the overall design closure process.

Integration with Other Design Tools

The ECO features come integrated with broader design flows, working in tandem with tools like IC Compiler. This integration supports seamless implementation of ECO changes into the physical design, ensuring that corrections and optimizations translate directly from the analysis platform to the actual design implementation.

Parametric On-Chip Variation (POCV)

As semiconductor devices continue shrinking in size, on-chip variations become increasingly pronounced. Variability in manufacturing – whether due to intrinsic process variations, differences in line resistance, or disparities in capacitance – can lead to significant deviations in performance across the chip. PrimeTime ADV addresses this with a sophisticated statistical approach known as Parametric On-Chip Variation (POCV).

Key Aspects of POCV

POCV provides designers with a more realistic estimate of circuit performance by focusing on instance-specific parameters. This means that rather than applying a broad margin to all cells, POCV models each cell using two primary parameters:

Mean Delay

The average delay for a cell is measured as the central tendency in its performance. This provides a baseline around which variations can be evaluated.

Sensitivity (Standard Deviation or Sigma)

Sensitivity reflects the degree of variability of the delay. By associating a specific sigma value with each cell, PrimeTime ADV encapsulates the extent of process variation. This propagation of sigma values throughout the design graph results in a more accurate cumulative delay estimation without the undue pessimism often associated with broader margin methodologies.

POCV requires inputs such as Liberty Variation Format (LVF) data or side files, integrating these into the delay models utilized during static timing analysis. This leads to fewer reported violations and a streamlined path to achieving timing closure.

Step-by-Step ECO Implementation with TCL

One of the standout features of PrimeTime ADV is its support for automation through the Tool Command Language (TCL). TCL scripting increases efficiency and repeatability by automating many aspects of ECO flows. The following sections provide an in-depth look at the sequential steps and benefits of using TCL for ECO implementation.

Preparation and Initialization

1. Environment Setup

Before any ECO fixes are applied, designers need to load the design files, timing libraries, and configuration specifications into the PrimeTime ADV environment. This initialization is critical for ensuring accurate analysis during subsequent steps.

2. Loading the Design and Constraints

TCL scripts begin by reading the design netlist and associated timing constraints. Commands such as read_design (or read_verilog if using Verilog files) are typically used. This phase establishes the baseline design state upon which further analysis is built.

Timing Analysis and ECO Identification

3. Initial Timing Analysis

With the design loaded, an initial static timing analysis is performed to identify critical paths and timing violations. Using commands like report_timing, designers obtain a comprehensive view of which paths do not meet the desired timing constraints.

4. Identifying Important ECO Opportunities

Once timing violations are pinpointed, PrimeTime ADV’s advanced ECO guidance generates potential fixes based on the signoff-driven analysis. This guidance leverages physical-aware data to suggest buffers insertion, gate resizing, or even re-routing of signals. The goal is to apply corrections that simultaneously resolve multiple issues while minimizing physical impact.

Implementation Using TCL Scripts

5. Scripted ECO Execution

The recommended approach is to encapsulate the ECO changes in a TCL script. Below is an example snippet illustrating a simplified ECO process:


# Load the design
read_design -format verilog my_design.v
current_design top_module

# Perform initial timing analysis
report_timing -path_type full

# Identify timing violations and store them in a variable
set violations [get_timing_violations]

# Loop through each violation and apply an ECO fix (e.g., buffer insertion)
foreach violation $violations {
    insert_buffer -cell my_buffer_cell -location [get_location $violation]
    # Re-run timing analysis after each fix to validate improvements
    report_timing -path_type full
}

# Write out the updated design for further synthesis in IC Compiler
write_design -format verilog my_updated_design.v

This script demonstrates the automation process: loading the design, performing timing analysis, identifying violations, applying targeted fixes, and verifying the changes. In a production environment, such scripts can be adapted to include more comprehensive error-checking and cater to more specific ECO scenarios.

6. Post-Implementation Verification

Verification is the final step after all ECO changes have been applied. A follow-up timing analysis ensures that the modifications have resolved the original issues without introducing new violations. Documenting these changes is also vital for maintaining design integrity and auditability.

Technical Summary and Benefits

PrimeTime ADV’s advanced capabilities in engineering change orders and on-chip variation modeling represent significant steps forward in managing the complexities of modern semiconductor design. The integration of:

Feature	Description
Advanced ECO Guidance	Utilizes physically aware, signoff-driven strategies to reduce iteration cycles and minimize layout impact.
Parametric On-Chip Variation (POCV)	Applies statistical delay modeling with instance-specific sigma and mean delay values, leading to more realistic timing estimations.
TCL Automation	Employs flexible and powerful TCL scripting to automate and streamline the ECO process, ensuring efficient resolution of timing violations.

The benefits of these innovations extend to increased design productivity, fewer design iterations, and a more predictable path to achieving signoff timing. Designers can now leverage these enhanced features to tackle the challenges posed by aggressive process scaling and tight power-performance constraints.

Integration in Modern Design Flows

In today's highly competitive semiconductor landscape, achieving timing closure and power optimization with minimal iterations is critical. PrimeTime ADV is designed to integrate smoothly within a broader ecosystem of design tools, such as IC Compiler, ensuring that ECO fixes can be implemented with optimal physical impact. The tight coupling with physical synthesis workflows enables synchronous correction of timing and design rule violations.

Furthermore, the automation provided by TCL scripting means that workflows can be standardized across teams and projects. This uniformity is imperative for large-scale designs where consistency, traceability, and efficiency determine project success. The modular and scriptable nature of ECO implementation in PrimeTime ADV ensures that any change can be tracked and replicated, further reducing risk and improving turnaround times.

Practical Challenges and Mitigations

Design Complexity

As designs become more intricate, the challenge lies in managing an increasing number of parameters and design variables. PrimeTime ADV’s statistical approach via POCV allows designers to focus on actual performance metrics rather than broad worst-case margins. This level of granularity is essential to mitigate the complexity without oversimplifying the nuanced behavior of advanced nodes.

Resource Efficiency

Earlier methods for addressing timing violations often resulted in suboptimal fixes that could require further iterations, consuming more memory and compute resources. Advanced ECO guidance in PrimeTime ADV improves resource utilization, ensuring that memory and computing resources are used more efficiently to deliver optimal results.

Power Optimization

In addition to timely ECO fixes, the platform’s capabilities include techniques for leakage power reduction and overall power management. This is crucial for maintaining performance while managing the thermal and power budgets that increasingly challenge modern designs.

Industry Impact and Future Directions

The introduction of PrimeTime ADV comes at a time when semiconductor design is pushed to its limits by the scaling laws and increasing performance demands. With advanced ECO capabilities and the nuanced handling of on-chip variations through POCV, the tool paves the way for future innovations. As design teams adopt PrimeTime ADV, there is a strong foundation for further exploration in areas like machine learning-driven ECO optimization, enhanced power modeling, and further integration with emerging design paradigms.

In the context of the semiconductor industry, the ability to rapidly adjust designs with minimal disruption is a valuable asset. PrimeTime ADV not only reduces the number of required iterations for signoff but also ensures that each ECO fix is both reliable and physically compliant. These benefits are expected to have a considerable impact on time-to-market and overall product performance.
