Decoding and Resolving PySerial's 'ClearCommError Failed' with 'The Handle Is Invalid'

Encountering serial.serialutil.SerialException: ClearCommError failed (OSError(9, 'The handle is invalid.', None, 6)) is a frustrating, yet common, issue when working with PySerial in Windows environments. This error typically signifies a fundamental problem with how your Python script interacts with the underlying serial port, often pointing to resource conflicts, improper port handling, or driver-related complications. As Ithy, I've aggregated insights from various sources to provide a holistic approach to understanding, diagnosing, and ultimately resolving this persistent serial communication error.

Key Insights and Highlights

Root Causes: The error usually stems from issues like the serial port being in use by another application, incorrect port configuration, faulty USB connections, or outdated/corrupt drivers.
Debugging Strategies: Implementing robust error handling with try-except blocks, verifying port availability, and systematically checking hardware connections are crucial steps in isolating the problem.
Resolution Paths: Solutions often involve proper timeout settings, ensuring exclusive port access, updating drivers, and considering the physical integrity of the serial connection.

Understanding the 'ClearCommError Failed' Exception

The traceback you provided points directly to serial.serialutil.SerialException: ClearCommError failed (OSError(9, 'The handle is invalid.', None, 6)), which originates deep within PySerial's Windows-specific implementation (serialwin32.py). Specifically, the in_waiting property, which queries the number of bytes in the input buffer, triggers this exception when it cannot successfully call the Windows API function ClearCommError. This function is vital for retrieving information about communication errors and the current status of the serial port, including the number of bytes in its buffers.

The subsequent OSError(9, 'The handle is invalid.', None, 6) provides further detail. An "invalid handle" error means that the operating system tried to access a resource (in this case, the serial port) using a reference that is no longer valid or was never valid to begin with. This could happen if the port was closed unexpectedly, if the device was disconnected, or if there's a fundamental issue with how the port handle was acquired or is being managed by the Python script or the underlying system drivers.

Common Scenarios Leading to 'Invalid Handle'

Several scenarios can lead to this specific error:

Port Already in Use: Another application, process, or even a previous instance of your script (that didn't close the port properly) might still have a lock on the serial port. This prevents PySerial from obtaining a valid handle.
Device Disconnection: If the physical serial device (e.g., Arduino, Raspberry Pi, or other microcontroller) is disconnected from the USB port while your script is running or trying to establish communication, the handle becomes invalid.
Driver Issues: Outdated, corrupt, or incompatible serial port drivers can lead to the operating system failing to provide a valid handle, or losing track of it. This is a common cause on Windows systems.
Incorrect Port Configuration/Initialization: While less common for "invalid handle" specifically, improper initialization of the Serial object (e.g., wrong port name, baud rate, or missing timeout settings) can sometimes contribute to instability that manifests in handle issues.
Multithreading Conflicts: As your traceback indicates, the error occurs within a threading.py context. If multiple threads are attempting to access or manage the same serial port object without proper synchronization, it can lead to race conditions where one thread invalidates the handle before another can use it.

Diagnosing the Problem: A Systematic Approach

Effective diagnosis requires a methodical approach, examining both software and hardware aspects of your setup.

Software Debugging Strategies

1. Verify Port Availability and Proper Closing

Before attempting to open the serial port, ensure it's not already in use. After use, always make sure the port is properly closed. Unclosed ports are a frequent cause of "Access denied" or "invalid handle" errors on subsequent runs.


import serial
import time
import serial.tools.list_ports

def list_available_ports():
    ports = serial.tools.list_ports.comports()
    if not ports:
        print("No serial ports found.")
        return []
    print("Available serial ports:")
    for port, desc, hwid in sorted(ports):
        print(f"  {port}: {desc} [{hwid}]")
    return [p.device for p in ports]

# Example of opening and closing cleanly
ser = None
try:
    available_ports = list_available_ports()
    if not available_ports:
        print("Exiting: No ports to open.")
    else:
        # Try to open the first available port, or a specific one like 'COM3'
        port_to_use = 'COM3' # Replace with your actual port
        if port_to_use not in available_ports:
            print(f"Port {port_to_use} not found or in use. Trying first available.")
            port_to_use = available_ports[0]

        print(f"Attempting to open {port_to_use}...")
        ser = serial.Serial(
            port=port_to_use,
            baudrate=9600,
            timeout=1 # Crucial for in_waiting reliability
        )
        if ser.is_open:
            print(f"Port {ser.port} opened successfully!")
            # Perform some operations
            ser.write(b'Hello Device\n')
            time.sleep(0.1)
            if ser.in_waiting > 0: # This is where your error occurred
                data = ser.read(ser.in_waiting)
                print(f"Received: {data.decode('utf-8').strip()}")
        else:
            print("Failed to open serial port.")

except serial.SerialException as e:
    print(f"Serial Port Error: {e}")
    print("This often means the port is already in use, or the device is disconnected.")
except OSError as e:
    print(f"Operating System Error: {e}")
    print("This could indicate a driver issue or physical disconnection.")
except Exception as e:
    print(f"An unexpected error occurred: {e}")
finally:
    if ser and ser.is_open:
        print("Closing serial port.")
        ser.close()

Using serial.tools.list_ports can help confirm if your system recognizes the port and if it's potentially in use.

2. Implement Robust Error Handling

Wrap your serial communication code, especially operations like open(), read(), write(), and accessing in_waiting, within try-except blocks. Specifically, catch serial.SerialException and OSError to gracefully handle disconnections or port issues.


import serial
import time

def serialToTerminal(ser_object):
    try:
        while True: # Or some other condition
            if ser_object.is_open:
                if ser_object.in_waiting > 0:
                    data = ser_object.read(ser_object.in_waiting)
                    print(f"Data received: {data.decode()}")
                time.sleep(0.1) # Small delay to prevent busy-waiting
            else:
                print("Serial port is not open. Attempting to reopen...")
                ser_object.open() # This might re-raise an error if permanent
                time.sleep(1) # Wait before retrying
    except serial.SerialException as e:
        print(f"Serial communication error in thread: {e}")
        # Add logic to attempt reconnection or clean up
    except OSError as e:
        print(f"OS error in thread: {e}")
        # Handle cases like device disconnection
    except Exception as e:
        print(f"An unexpected error occurred in thread: {e}")

# In your main script:
# Initialize and open serial port
# ser = serial.Serial(...)
# thread = threading.Thread(target=serialToTerminal, args=(ser,))
# thread.start()

3. Manage Timeouts

Setting an appropriate timeout value when initializing the serial.Serial object is crucial. A timeout=None means indefinite blocking, which can lead to issues if the device doesn't respond or if in_waiting behaves unexpectedly with large data transfers. A small, non-zero timeout (e.g., timeout=1 second) is often recommended, as it allows read operations to return even if no data is available, preventing indefinite waits and potentially mitigating certain handle-related errors.

Hardware and System Checks

1. Physical Connection and Device Status

Check USB Cable and Port: A faulty USB cable, a loose connection, or a problematic USB port on your computer can cause intermittent disconnections, leading to invalid handle errors. Try a different cable or USB port.
Device Power: Ensure the serial device (e.g., Arduino, Raspberry Pi) is properly powered and functioning correctly.
Device Reboot: Sometimes, simply rebooting the connected serial device can clear its internal state and resolve communication glitches.

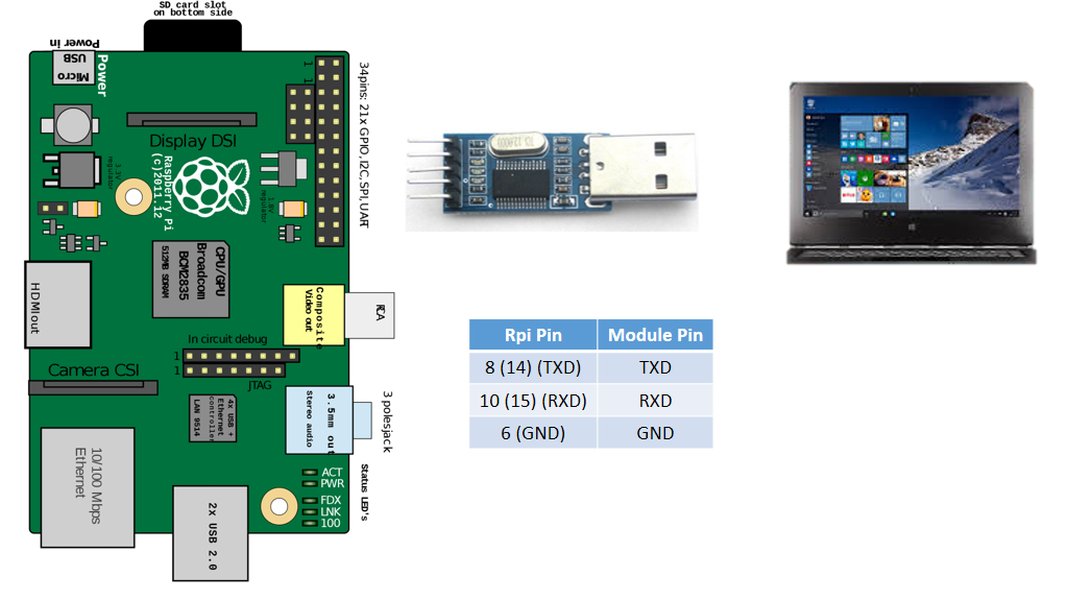

Connection Diagram for Raspberry Pi to PC via UART

A typical connection diagram illustrating serial communication between a Raspberry Pi and a PC. Ensuring robust physical connections is key to preventing "invalid handle" errors.

2. Driver Updates and Management

Outdated or corrupted drivers are a very common cause of serial port issues on Windows. The "The handle is invalid" error often points to a problem at this level. You should:

Update Drivers: Check the manufacturer's website for the latest drivers for your USB-to-serial adapter or the specific device (e.g., Arduino, FTDI, CH340).
Device Manager Check: Open Windows Device Manager (devmgmt.msc) and look under "Ports (COM & LPT)". Check for any yellow exclamation marks or errors related to your serial port. Reinstalling the driver from here can sometimes help.
Remove and Reinstall PySerial: In some rare cases, a fresh installation of PySerial can resolve underlying library issues.

Addressing Multithreading Concerns

Your traceback indicates the error occurs within a threading context (threading.py). If multiple threads are interacting with the same serial.Serial object, you must implement proper synchronization mechanisms to prevent race conditions and ensure thread-safe access. This typically involves using locks (threading.Lock) around all serial port operations (opening, closing, reading, writing, and checking in_waiting).


import serial
import threading
import time

# Global serial port object and lock
ser_lock = threading.Lock()
ser = None

def init_serial_port(port_name, baud_rate):
    global ser
    with ser_lock:
        if ser is None or not ser.is_open:
            try:
                ser = serial.Serial(
                    port=port_name,
                    baudrate=baud_rate,
                    timeout=1 # Important!
                )
                print(f"Serial port {port_name} opened successfully.")
            except serial.SerialException as e:
                print(f"Error opening serial port {port_name}: {e}")
                ser = None # Ensure ser is None if opening fails

def serial_reader_thread():
    global ser
    while True:
        if ser is not None and ser.is_open:
            try:
                with ser_lock: # Acquire lock before accessing ser
                    if ser.in_waiting > 0:
                        data = ser.read(ser.in_waiting)
                        print(f"Reader thread received: {data.decode('utf-8').strip()}")
                time.sleep(0.05) # Small delay to prevent busy-waiting
            except serial.SerialException as e:
                print(f"Serial error in reader thread: {e}. Attempting to reconnect...")
                # Consider logic to close and reopen, or signal main thread
                with ser_lock:
                    if ser and ser.is_open:
                        ser.close()
                time.sleep(2) # Wait before retry
            except OSError as e:
                print(f"OS error in reader thread: {e}. Device might be disconnected.")
                # Specific handling for 'The handle is invalid'
                with ser_lock:
                    if ser and ser.is_open:
                        ser.close()
                ser = None # Invalidate the object
                time.sleep(2)
            except Exception as e:
                print(f"Unexpected error in reader thread: {e}")
        else:
            print("Serial port not initialized or closed. Waiting...")
            time.sleep(1)

def serial_writer_thread():
    global ser
    counter = 0
    while True:
        if ser is not None and ser.is_open:
            try:
                message = f"Data {counter}\n"
                with ser_lock: # Acquire lock before accessing ser
                    ser.write(message.encode('utf-8'))
                print(f"Writer thread sent: {message.strip()}")
                counter += 1
                time.sleep(2)
            except serial.SerialException as e:
                print(f"Serial error in writer thread: {e}")
                time.sleep(2)
            except OSError as e:
                print(f"OS error in writer thread: {e}")
                time.sleep(2)
            except Exception as e:
                print(f"Unexpected error in writer thread: {e}")
        else:
            print("Serial port not initialized or closed. Waiting to write...")
            time.sleep(1)

if __name__ == "__main__":
    # Initialize port in the main thread
    init_serial_port('COM3', 9600) # IMPORTANT: Change 'COM3' to your actual port

    # Start reader and writer threads
    reader_t = threading.Thread(target=serial_reader_thread, daemon=True)
    writer_t = threading.Thread(target=serial_writer_thread, daemon=True)

    reader_t.start()
    writer_t.start()

    try:
        while True:
            time.sleep(5)
            # You can add main thread logic here, or just keep it alive
    except KeyboardInterrupt:
        print("Main program exiting.")
        # Threads will exit because they are daemon threads, or you can manage their shutdown
    finally:
        with ser_lock:
            if ser and ser.is_open:
                ser.close()
                print("Serial port closed by main thread.")

The use of ser_lock ensures that only one thread accesses the ser object at a time, preventing conflicts that could lead to the "invalid handle" error.

Visualizing Error Influencers

To better understand the multifaceted nature of this error, let's visualize the common factors influencing its occurrence and the effectiveness of various solutions using a radar chart. This chart will illustrate perceived severity and solution effectiveness for different aspects of the 'ClearCommError failed' issue.

This radar chart illustrates that "Port In Use/Not Closed" and "Device Disconnection" have the highest severity, indicating they are frequent and critical causes of the 'ClearCommError failed' issue. Updating drivers and properly managing port access show the highest effectiveness in resolving these problems. Multithreading issues and incorrect timeout settings, while impactful, are generally more manageable with careful code design.

Common Error Codes and Their Meanings

Understanding the specific OSError code accompanying "The handle is invalid" can provide further clues. Here's a table summarizing common related errors:

Error Code / Message	Typical Cause	Resolution Strategy
`OSError(9, 'The handle is invalid.', None, 6)`	Port handle became invalid; often due to device disconnection, improper closing, or driver issues.	Verify physical connection, implement robust `try-except` with re-initialization logic, check/update drivers, ensure proper port closing.
`PermissionError(13, 'Access is denied.')`	Another process (IDE, terminal, previous script instance) holds the port lock.	Ensure all other applications are closed, kill stray Python processes from Task Manager, reboot system.
`OSError(5, 'Input/output error')`	General I/O error, often seen on Linux/macOS equivalents. Can indicate device issue or physical disconnection.	Check physical connection, device power, reboot device, try a different USB port/cable.
`OSError(22, 'The parameter is incorrect.')`	Less common for this specific context, but seen in some virtual serial port setups or specific driver interactions.	Update virtual serial port software/drivers, consider PySerial version compatibility.
`SerialException: could not open port 'COMx'`	Port not found, incorrect port name, or port already in use.	Verify COM port name, check Device Manager, ensure no other software is using it.

Preventative Measures and Best Practices

Always Close the Port: Use ser.close() in a finally block or within a context manager (with serial.Serial(...) as ser:) to guarantee the port is released.
Set a Timeout: Avoid timeout=None for reading. A small non-zero timeout allows your program to proceed even if no data is available immediately.
Thread Safety: If using threads, employ threading.Lock or similar synchronization primitives around all serial port interactions.
Driver Hygiene: Regularly update your serial port drivers, especially if you frequently encounter "invalid handle" or "access denied" errors.
Physical Integrity: Use high-quality USB cables and ensure stable connections. Avoid constantly plugging/unplugging devices while the script is running.
Minimal Example Testing: When debugging, isolate the serial communication code into a minimal script to rule out complexities from larger applications.

Addressing the Specific 'in_waiting' Context

Your traceback shows the error occurring when accessing ser.in_waiting. While in_waiting (or its older counterpart inWaiting()) is convenient, its reliability can sometimes be affected by system-level issues or how fast data is arriving. In PySerial 3.x, .in_waiting is a property, not a method, which is correctly used in your code. The issue isn't with how you're calling it, but rather with the underlying serial port handle being invalid at that moment.

The root cause is likely not in_waiting itself, but the invalid state of the serial port connection it attempts to query. The solutions discussed above—especially proper error handling, robust connection management (including reconnection logic), and driver stability—are paramount.

This video explains how to install a driver for your terminal application, which can be a crucial step in resolving 'invalid handle' errors by ensuring the system correctly recognizes and interacts with your serial hardware.

Frequently Asked Questions (FAQ)

What does 'The handle is invalid' mean in the context of PySerial?

This error means that the operating system's reference (handle) to the serial port is no longer valid or was never correctly obtained. It often indicates that the port was unexpectedly disconnected, is being used by another program, or there's an issue with the serial port drivers.

Why does ClearCommError failed appear with this message?

ClearCommError is a Windows API function used by PySerial to get status information about the serial port. If the handle to the port is invalid, this function call fails, leading to the SerialException you see.

How can I prevent my script from crashing when the device disconnects?

Implement robust try-except blocks around all serial operations (open, read, write, in_waiting) to catch serial.SerialException and OSError. Within the except block, you can add logic to log the error, attempt to close and re-open the port, or inform the user.

Is in_waiting the cause of the problem?

No, in_waiting itself is generally not the cause. It's merely the point where the underlying invalid handle issue manifests because it tries to query the port's status. The root problem lies in the state of the serial port connection or its drivers.

Does PySerial version matter for this error?

While the fundamental error often points to system/hardware, ensuring you are using a relatively recent and stable version of PySerial is always good practice. Older versions might have bugs related to handle management or specific OS interactions that have since been fixed.

Conclusion

The serial.serialutil.SerialException: ClearCommError failed (OSError(9, 'The handle is invalid.', None, 6)) error is a clear indicator of a deeper issue with the serial port's handle management by the operating system, often exacerbated by a lack of proper error handling in the Python application or unstable hardware connections. By systematically diagnosing potential conflicts (port in use), ensuring physical connection integrity, maintaining up-to-date drivers, and implementing robust, thread-safe code with appropriate timeouts, you can significantly mitigate and resolve this challenging error. Remember, the solution often involves a combination of software best practices and careful attention to your hardware environment.
