Unlock the Secrets to Building a Sleek React 19 Admin Dashboard Today!

Building a feature-rich admin dashboard requires integrating several powerful libraries. This guide provides a comprehensive approach to creating a modern, responsive admin frontend using React 19, Tailwind CSS 3.4.17, Material Tailwind 2.1, Lucide-React icons, Framer Motion animations, Axios with SWR for data fetching, and React Router 6 for navigation. We'll focus on practical implementation, including CRUD (Create, Read, Update, Delete) functionality for entities like users and user roles, all powered by dummy APIs.

Essential Highlights

• Modern Tech Stack Integration: Learn how to seamlessly combine React 19, Tailwind CSS 3.4.17, and Material Tailwind 2.1 to build a visually appealing and responsive user interface without relying on server-side frameworks like Next.js.
• Dynamic Data Handling: Implement efficient data fetching and state management using Axios and SWR, enabling full CRUD operations (Add, Delete, Modify) for entities like users and roles, complete with UI updates via dummy APIs.
• Engaging User Experience: Enhance the dashboard with smooth animations using Framer Motion for elements like the toggleable sidebar and interactive components, complemented by crisp icons from Lucide-React.

Setting Up Your Development Environment

Prerequisites and Installation

Before diving into the code, ensure you have Node.js and npm (or yarn) installed. You can start a new React 19 project using a tool like Create React App (with the classic template) or Vite.

# Using Create React App (Classic)
npx create-react-app my-admin-dashboard --template classic
cd my-admin-dashboard

# Or using Vite
# npm create vite@latest my-admin-dashboard -- --template react
# cd my-admin-dashboard
# npm install

# Install Dependencies
npm install react@19.0.0 react-dom@19.0.0 tailwindcss@3.4.17 @material-tailwind/react@2.1.0 lucide-react framer-motion axios swr react-router-dom@6.0.0

# Initialize Tailwind CSS
npx tailwindcss init -p

Next, configure Tailwind CSS by updating your tailwind.config.js and your main CSS file (src/index.css or similar) according to the Tailwind CSS installation guides. Ensure you include Material Tailwind's plugin or required setup steps as per their documentation for version 2.1.

Core Libraries and Their Roles

This project leverages a specific set of libraries, each playing a crucial role in building the admin dashboard. The table below summarizes their functions:

Architecting the Admin Dashboard

Component Structure

A well-organized component structure is key to maintainability. Consider the following structure:

• App.jsx: Main application component, sets up routing and global layout.
• components/Layout.jsx: Wraps pages, includes Sidebar and Topbar/Header.
• components/Sidebar.jsx: The toggleable side navigation menu.
• components/Topbar.jsx: The header bar, potentially with user info or quick actions.
• pages/Users.jsx: Component for managing users (listing, adding, editing, deleting).
• pages/Roles.jsx: Component for managing user roles.
• pages/Dashboard.jsx: The main dashboard landing page.
• components/UserForm.jsx / components/RoleForm.jsx: Reusable forms for adding/editing entities.
• api.js: Utility functions for interacting with APIs (using Axios).
• contexts/ToastContext.jsx (Optional): For displaying global notifications.

Visualizing the Architecture

The following mindmap illustrates the relationship between the core components and technologies used in this admin dashboard project:

This structure promotes separation of concerns and makes the application easier to scale and manage.

Implementing the Layout and Navigation

Building the Responsive Layout

The main layout typically consists of a fixed or toggleable sidebar and a main content area. Tailwind CSS utility classes make building responsive layouts straightforward. Material Tailwind provides components like Card that fit well within this structure.

Animated Toggleable Sidebar

The sidebar provides navigation. Using Framer Motion, we can add a smooth sliding animation when it's toggled, enhancing the user experience. Material Tailwind's List and ListItem components structure the navigation links, while Lucide-React provides the icons.

Here’s a conceptual example of the Sidebar component:

// src/components/Sidebar.jsx
import React from 'react';
import { Link, useLocation } from 'react-router-dom';
import { motion, AnimatePresence } from 'framer-motion';
import { Card, Typography, List, ListItem, ListItemPrefix } from "@material-tailwind/react";
import { Home, Users, Shield, X } from 'lucide-react'; // Example icons

const Sidebar = ({ isOpen, toggle }) => {
  const location = useLocation();
  const links = [
    { to: '/', label: 'Dashboard', icon: <Home size={18} /> },
    { to: '/users', label: 'Users', icon: <Users size={18} /> },
    { to: '/roles', label: 'User Roles', icon: <Shield size={18} /> },
  ];

  return (
    <AnimatePresence>
      {isOpen && (
        <motion.aside
          key="sidebar"
          initial={{ x: '-100%' }}
          animate={{ x: 0 }}
          exit={{ x: '-100%' }}
          transition={{ type: 'spring', stiffness: 300, damping: 30 }}
          className="fixed inset-y-0 left-0 z-40 w-64 bg-white shadow-lg md:relative md:translate-x-0" // Responsive handling
        >
          <Card className="h-full w-full rounded-none shadow-none p-4">
            <div className="mb-2 flex items-center justify-between">
              <Typography variant="h5" color="blue-gray">
                Admin Panel
              </Typography>
              <button onClick={toggle} className="md:hidden p-1" title="Close menu">
                 <X size={20} />
              </button>
            </div>
            <List>
              {links.map(({ to, label, icon }) => (
                <Link to={to} key={to} onClick={toggle /* Close on mobile nav click */}>
                  <ListItem selected={location.pathname === to}>
                    <ListItemPrefix>{icon}</ListItemPrefix>
                    {label}
                  </ListItem>
                </Link>
              ))}
            </List>
          </Card>
        </motion.aside>
      )}
    </AnimatePresence>
    // Add an overlay div for mobile view, also animated with AnimatePresence
  );
};

export default Sidebar;

A Layout component would wrap the Sidebar and the main content area (Outlet from React Router), managing the sidebar's open/closed state and adjusting the main content's margin or position accordingly.

Setting Up Routing

React Router 6 is used for client-side navigation. Routes are defined in App.jsx, typically nested within the Layout component to maintain the sidebar and header across pages.

// src/App.jsx
import React, { useState } from 'react';
import { BrowserRouter as Router, Routes, Route } from 'react-router-dom';
import Layout from './components/Layout'; // Assume Layout manages Sidebar state
import Dashboard from './pages/Dashboard';
import Users from './pages/Users';
import Roles from './pages/Roles';
// Import other page components

function App() {
  return (
    <Router>
      <Routes>
        <Route element={<Layout />}> {/* Layout wraps all pages */}
          <Route index element={<Dashboard />} />
          <Route path="users" element={<Users />} />
          <Route path="roles" element={<Roles />} />
          {/* Add more routes as needed */}
          <Route path="*" element={<div>404 Not Found</div>} />
        </Route>
      </Routes>
    </Router>
  );
}

export default App;

Implementing CRUD Functionality

Data Fetching with SWR and Axios

SWR (Stale-While-Revalidate) is a powerful hook for data fetching. It simplifies caching, revalidation, and UI updates. We use Axios to make the actual HTTP requests to our dummy API endpoints.

First, define a fetcher function using Axios:

// src/api.js (or directly in component)
import axios from 'axios';

// Configure Axios instance if needed (e.g., base URL)
const axiosInstance = axios.create({
  baseURL: 'https://jsonplaceholder.typicode.com', // Dummy API base
});

export const fetcher = url => axiosInstance.get(url).then(res => res.data);

// Example CRUD functions for users
export const getUsers = () => fetcher('/users');
export const addUser = (userData) => axiosInstance.post('/users', userData);
export const updateUser = (id, userData) => axiosInstance.put(<code>/users/${id}, userData);
export const deleteUser = (id) => axiosInstance.delete(/users/${id});

// Mock functions for Roles (as JSONPlaceholder doesn't have roles)
let mockRoles = [
  { id: 1, name: 'Admin' },
  { id: 2, name: 'Editor' },
  { id: 3, name: 'Viewer' },
];
let nextRoleId = 4;

export const getRoles = async () => {
  // Simulate API delay
  await new Promise(resolve => setTimeout(resolve, 300));
  return [...mockRoles]; // Return a copy
};
export const addRole = async (roleData) => {
  await new Promise(resolve => setTimeout(resolve, 300));
  const newRole = { ...roleData, id: nextRoleId++ };
  mockRoles.push(newRole);
  return newRole;
};
export const updateRole = async (id, roleData) => {
   await new Promise(resolve => setTimeout(resolve, 300));
   mockRoles = mockRoles.map(role => role.id === id ? { ...role, ...roleData } : role);
   return mockRoles.find(role => role.id === id);
};
export const deleteRole = async (id) => {
   await new Promise(resolve => setTimeout(resolve, 300));
   mockRoles = mockRoles.filter(role => role.id !== id);
   return { success: true };
};

User Management Page Example

The Users.jsx page demonstrates fetching users with SWR and implementing CRUD operations. Material Tailwind components like Card, Button, Input, and Modal are used to build the UI.

// src/pages/Users.jsx
import React, { useState } from 'react';
import useSWR, { mutate } from 'swr';
import { fetcher, addUser, updateUser, deleteUser } from '../api'; // Assuming API functions are exported
import { Button, Card, Typography, Spinner, IconButton, Tooltip } from '@material-tailwind/react';
import { Edit, Trash2, Plus } from 'lucide-react';
import UserFormModal from '../components/UserFormModal'; // Assume this component exists

const Users = () => {
  const { data: users, error, isLoading } = useSWR('/users', fetcher); // Fetch users
  const [isModalOpen, setIsModalOpen] = useState(false);
  const [editingUser, setEditingUser] = useState(null);

  const handleOpenModal = (user = null) => {
    setEditingUser(user);
    setIsModalOpen(true);
  };

  const handleCloseModal = () => {
    setIsModalOpen(false);
    setEditingUser(null);
  };

  const handleSaveUser = async (userData) => {
    try {
      if (editingUser) {
        // Update existing user
        await updateUser(editingUser.id, userData);
        // Optionally add success notification (e.g., using a Toast context)
      } else {
        // Add new user
        await addUser(userData);
        // Optionally add success notification
      }
      mutate('/users'); // Revalidate the user list
      handleCloseModal();
    } catch (err) {
      console.error("Failed to save user:", err);
      // Optionally add error notification
    }
  };

  const handleDeleteUser = async (id) => {
    if (window.confirm('Are you sure you want to delete this user?')) {
      try {
        await deleteUser(id);
        mutate('/users'); // Revalidate
        // Optionally add success notification
      } catch (err) {
        console.error("Failed to delete user:", err);
        // Optionally add error notification
      }
    }
  };

  if (isLoading) return <div className="flex justify-center items-center h-full"><Spinner className="h-12 w-12" /></div>;
  if (error) return <div className="text-red-500">Failed to load users.</div>;

  return (
    <Card className="p-6">
      <div className="flex justify-between items-center mb-4">
        <Typography variant="h4" color="blue-gray">User Management</Typography>
        <Button color="blue" onClick={() => handleOpenModal()} className="flex items-center gap-2">
          <Plus size={18} /> Add User
        </Button>
      </div>

      {/* User Table - Use Material Tailwind Table or custom table */}
      <div className="overflow-x-auto">
        <table className="w-full min-w-max table-auto text-left">
          <thead>
            <tr>
              <th className="border-b border-blue-gray-100 bg-blue-gray-50 p-4">Name</th>
              <th className="border-b border-blue-gray-100 bg-blue-gray-50 p-4">Email</th>
              <th className="border-b border-blue-gray-100 bg-blue-gray-50 p-4">Actions</th>
            </tr>
          </thead>
          <tbody>
            {users && users.map((user) => (
              <tr key={user.id} className="even:bg-blue-gray-50/50">
                <td className="p-4"><Typography variant="small" color="blue-gray" className="font-normal">{user.name}</Typography></td>
                <td className="p-4"><Typography variant="small" color="blue-gray" className="font-normal">{user.email}</Typography></td>
                <td className="p-4">
                  <Tooltip content="Edit User">
                    <IconButton variant="text" onClick={() => handleOpenModal(user)}>
                      <Edit className="h-4 w-4" />
                    </IconButton>
                  </Tooltip>
                  <Tooltip content="Delete User">
                    <IconButton variant="text" color="red" onClick={() => handleDeleteUser(user.id)}>
                      <Trash2 className="h-4 w-4" />
                    </IconButton>
                  </Tooltip>
                </td>
              </tr>
            ))}
          </tbody>
        </table>
      </div>

      {/* Modal for Add/Edit User */}
      <UserFormModal
        open={isModalOpen}
        handleClose={handleCloseModal}
        handleSave={handleSaveUser}
        userData={editingUser}
      />
    </Card>
  );
};

export default Users;

The UserFormModal would contain a form built with Material Tailwind's Input components and buttons to handle submission and cancellation.

The Roles.jsx page would follow a similar pattern, using the mock getRoles, addRole, updateRole, and deleteRole functions from api.js and triggering mutate('/roles') (using a unique key for SWR) after successful operations.

Enhancing the Dashboard: The "Magic" Touch

Animations and Interactivity

Framer Motion is used to add subtle animations ("magic") that make the UI feel more alive:

• Sidebar Toggle: The smooth slide-in/slide-out animation shown earlier.
• Page Transitions (Optional): Wrap the <Routes> content with AnimatePresence for fade or slide transitions between pages.
• Modal Animations: Material Tailwind modals often have built-in transitions, but you can customize them further with Framer Motion wrappers.
• Button Feedback: Use Framer Motion's whileHover and whileTap props on buttons for scaling or background color effects.

  <motion.div whileHover={{ scale: 1.05 }} whileTap={{ scale: 0.95 }}>
    <Button ... />
  </motion.div>

• Toast Notifications: Implement animated toast notifications (like those shown in Answer B) using a context provider and Framer Motion's AnimatePresence for smooth entry and exit animations when providing feedback on CRUD operations.

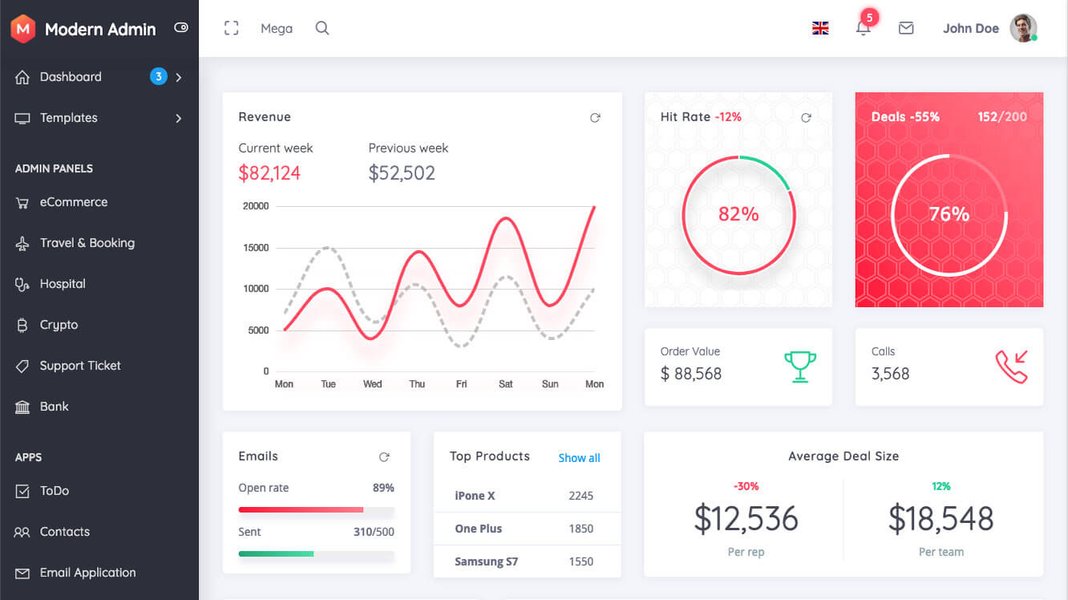

Example of a modern admin dashboard interface showcasing clean design elements.

Dashboard Capabilities Overview

Assessing Key Dashboard Aspects

The radar chart below provides a visual assessment of the key characteristics of the admin dashboard built following this guide. It evaluates aspects like responsiveness, user experience (UI/UX), the completeness of the core CRUD features, the quality of animations, and the effectiveness of the data handling strategy.

This assessment highlights the strengths achieved by combining these specific libraries, aiming for a high-quality, modern admin interface with dynamic features and a pleasant user experience, balanced with maintainable code.

Learn More: Building React Admin Dashboards

The video below provides a tutorial on building a complete React admin dashboard, covering many concepts similar to those discussed here, such as layout, components, and data display. While it might use slightly different libraries (like Material UI), the core principles of structuring the application and handling data are highly relevant.

Tutorial: Build a COMPLETE React Admin Dashboard App.

Watching tutorials like this can provide additional insights into component design patterns, state management strategies, and integrating third-party libraries for features like charts or calendars, further enhancing your admin dashboard project.

Frequently Asked Questions (FAQ)

Recommended Reading

Explore these related topics for deeper insights:

• How can I implement optimistic UI updates with SWR for a faster user experience?
• What are the best practices for securing a React admin dashboard using JWT authentication?
• How can I integrate data visualization libraries like Nivo or Chart.js into this React admin dashboard?
• What are effective ways to manage complex forms with validation in React without using Next.js?

References

reactrouter.com

React Router - reactrouter.com

swr.vercel.app

SWR: React Hooks for Data Fetching - swr.vercel.app

axios-http.com

Axios Documentation - axios-http.com

framer.com

Framer Motion: Animation library for React - framer.com

material-tailwind.com

Material Tailwind v2 Documentation - material-tailwind.com

jsonplaceholder.typicode.com

JSONPlaceholder - Free Fake REST API - jsonplaceholder.typicode.com

github.com

Material Tailwind Dashboard React - GitHub
