Reactor Head Types and Design Specifications

Comprehensive insights into reactor head variations and their engineering features

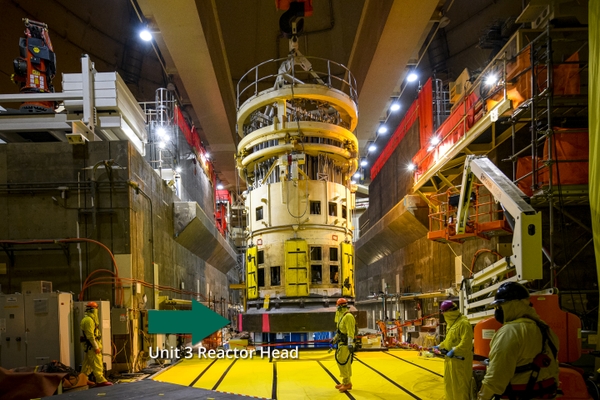

nuclear reactor head industrial facility

Highlights

Variety of Head Geometries: Hemispherical, ellipsoidal, flat, and torispherical (dished) heads each offer unique structural and manufacturing advantages.
Material and Structural Integrity: Material selection, including manganese-molybdenum alloy steel and stainless steel cladding, is critical to withstand high pressures, temperatures, and neutron exposure.
Design Considerations and Safety: Key parameters such as pressure, temperature, nozzle configuration, seismic considerations, and maintenance access dictate the overall reactor performance and safety.

Overview of Reactor Head Types

Reactor heads are integral components of the reactor vessel, functioning as closures that completely or partially enclose the reactor core. These heads not only support the operational safety of the nuclear system but also facilitate efficient refueling, monitoring, and maintenance procedures. Selection of reactor head type is driven by reactor design requirements, operating conditions, and safety mandates.

Key Head Types

Hemispherical Heads

Hemispherical heads are characterized by a rounded structural design where the depth is half of the vessel's diameter. This geometry provides excellent stress distribution and mechanical strength, making it ideal for large-capacity reactors. Their uniform shape minimizes stress concentrations and is often the preferred choice in high-pressure applications, such as in large-scale Boiling Water Reactors (BWR) and Pressurized Water Reactors (PWR).

Ellipsoidal (Semi-Elliptical) Heads

These heads offer an elongated shape compared to hemispherical designs, balancing ease of fabrication with efficient structural performance. Typically used in smaller reactors, the semi-elliptical design is optimized to distribute pressure while providing larger access openings for instrumentation and control rod mechanisms.

Flat Heads

A simpler design solution, flat reactor heads represent a practical choice for small-capacity reactors or applications where internal pressure is comparatively moderate. While easier to manufacture and install, flat heads require additional structural reinforcement to compensate for lower inherent strength when subjected to high pressures.

Torispherical (Dished) Heads

Torispherical or dished heads combine a flat central region with a rounded periphery. This hybrid design strikes a balance between the manufacturing complexities of hemispherical heads and the simplicity of flat covers, providing a robust structural solution that is widely utilized in pressure vessel applications. Their unique design ensures both ease of fabrication and excellent pressure distribution.

Design Specifications and Considerations

The design of reactor heads incorporates a range of specifications to address operational demands and safety requirements. Engineers must account for a multitude of factors, ranging from material selection to structural analysis, to ensure that the reactor head performs reliably under extreme conditions.

Material Selection and Manufacturing

Materials used in reactor head construction are determined by their ability to withstand harsh environments including high temperatures, pressures, and radiation exposure. Common choices include:

Manganese-molybdenum alloy steel for its strength and toughness properties.
Stainless steel cladding or weld overlays applied to surfaces in contact with coolant to provide corrosion resistance.

Advanced manufacturing methods favor large forged pieces to minimize the number of joints, reducing potential failure points. This method is crucial for ensuring that the reactor head can maintain structural integrity while accommodating thermal expansion and neutron irradiation over time.

Pressure, Temperature, and Operational Conditions

Reactor heads are designed to endure the specific pressure and temperature ranges expected during operation. Typical specifications include:

Pressure ranges that are tailored to the reactor's operational profile, with some designs optimized for above-standard allowances.
Temperature ranges that demand materials with excellent thermal stability and fatigue resistance.
Operational considerations such as thermal expansion, which may require flexible design allowances for varying gradients.

In addition, designs often incorporate multiple safety factors and adhere to rigorous quality assurance tests to ensure they can withstand not only routine operation but also transient events such as thermal shocks and pressure surges.

Nozzles, Penetrations, and Instrumentation

A critical aspect of reactor head design is the integration of nozzles and penetrations. These openings are essential for:

Control Rod Operation: Passage openings that allow for the insertion and withdrawal of control rods, which are indispensable for maintaining nuclear fission processes within safe limits.
Instrumentation Access: Ports for in-core monitoring and coolant level measurements, contributing to operational safety by providing real-time data.
Coolant Flow Management: Specific nozzle arrangements can direct coolant flow efficiently, ensuring proper heat removal and system stability.

The design of these penetrations must avoid creating stress concentration points in the head’s structure and are therefore often reinforced or designed with precise elliptical contours.

Seismic and Structural Considerations

In regions subject to seismic activity, reactor head designs must incorporate additional safety measures. Engineers consider:

Seismic Loads: The expected impacts of ground movement, including dynamic stresses that can influence the integrity of the vessel.
Support Structures: Integration of support skirts and bolted connections that join the reactor head to the vessel, ensuring overall stability.
Quality Control: Rigorous nondestructive testing methods (e.g., ultrasonic testing and leak detection) to certify the reliability of welds and joints.

Regulatory Standards and Codes

Compliance with internationally recognized design codes is non-negotiable in reactor head construction. Standard organizations outline specifications and quality control measures to:

Ensure safety during normal and abnormal operational conditions.
Provide guidelines for material testing, structural analysis, and maintenance protocols.
Establish approved fabrication and inspection procedures to ensure that the reactor head meets stringent safety requirements.

Comparative Analysis of Reactor Head Types

To further understand the advantages and limitations of each reactor head type, consider the summary in the table below:

Head Type	Key Advantages	Typical Applications
Hemispherical	Optimal stress distribution, high pressure resistance, uniform load handling	Large-capacity reactors, high-pressure environments
Ellipsoidal	Efficient balance between strength and access, improved handling of moderate stresses	Smaller reactors, systems requiring easier access for maintenance
Flat	Simpler manufacturing, cost-effective, lightweight design	Small-capacity reactors, low-pressure or secondary applications
Torispherical (Dished)	Combination of structural strength and manufacturability, balanced pressure resistance	Standard pressure vessels, reactors requiring integrated nozzle designs

Engineering Challenges and Optimization

Designing a reactor head that meets the stringent requirements of a nuclear reactor involves balancing many engineering challenges. Critical issues include:

Optimizing Structural Design

Engineers employ advanced computational methods and finite element analysis (FEA) to simulate stress distributions and identify potential points of failure. These simulations ensure that:

The stress is uniformly distributed across the reactor head.
Potential stress concentration areas are minimized.
Design modifications can accommodate thermal expansion and seismic loads.

Enhancing Maintenance and Accessibility

An effective reactor head design also facilitates maintenance operations. Removable or accessible head designs are crucial for:

Streamlining refueling procedures.
Allowing regular inspection of internal components.
Reducing downtime during maintenance outages.

Safety Margins and Testing

Every design must incorporate sufficient safety margins to address unforeseen conditions. Extensive testing, including vibration analysis, pressure testing, and non-destructive evaluation techniques, ensures that the reactor head can operate safely over its intended lifespan.

Additional Features in Reactor Head Design

Integration with Reactor Systems

The reactor head is not an isolated component but part of an integrated system. Its design must match the connectivity and compatibility requirements of the reactor vessel:

The head must align correctly with the nozzle configurations of the reactor vessel for proper coolant circulation.
Penetrations are strategically placed to ensure seamless integration with instrumentation systems and control rod mechanisms.
Joint and flange design is optimized for leak prevention and ease of assembly.

Cost-Effective Manufacturing

While performance and safety are paramount, economic considerations also influence head design:

Simpler geometries like flat heads may reduce fabrication costs and production time.
Advanced manufacturing techniques, including forging and precision machining, are employed to balance cost with quality.
Standardized designs help facilitate mass production and streamline quality control protocols.
