Calculating Reactor Jacket Area

A comprehensive guide for accurate and efficient heat transfer calculations

Essential Highlights

Key Formulas and Parameters: Understand the overall heat transfer equation and the importance of the Log Mean Temperature Difference (LMTD).
Reactor Geometry: Precise measurement and inclusion of different reactor sections — cylinder, bottom dish, and any additional features — is pivotal.
Practical Considerations: Adjust for fouling and design choices such as jacket types to achieve efficient heat management.

Overview

The reactor jacket plays a critical role in maintaining the temperature of chemical reactions by facilitating efficient heat transfer. This guide explains how to calculate the jacket area required for a reactor, considering both theoretical and practical aspects. Understanding and accurately determining the jacket area ensures that an appropriate heating or cooling medium is circulated, thereby optimizing thermal control within the reactor. Precision in these calculations prevents issues such as thermal runaway in exothermic reactions or inadequate heating in endothermic processes.

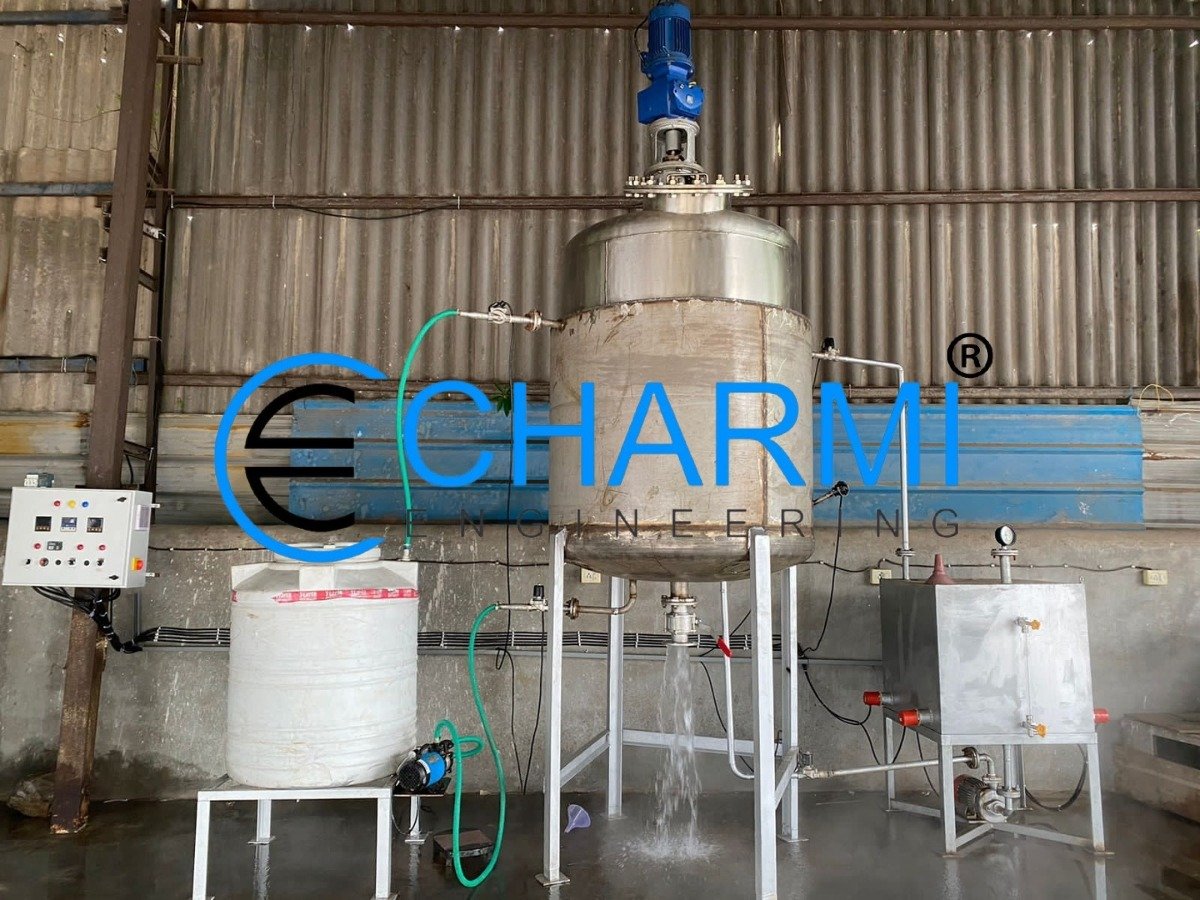

Key Components Involved

A reactor jacket is typically an external layer enveloping the reactor vessel. Depending on the design, it may encompass:

The Cylindrical Body: For reactors with a cylindrical shape, this area is computed based on the diameter and height or length of the cylinder.
The Bottom Dish: Often torispherical, hemispherical, or semi-elliptical in design. The effectiveness of this section can influence the overall heat transfer area significantly.
Additional Features: Components such as baffles, coils, or dimpled surfaces may be added to enhance heat efficiency. These elements sometimes require adjustments in the basic calculation formula.

Fundamental Concepts and Parameters

Overall Heat Transfer Coefficient (U)

The overall heat transfer coefficient, denoted as U, is a crucial parameter that characterizes how efficiently heat is transferred between the reactor contents and the jacket fluid. The value of U depends on the properties of the fluids involved, flow rates, and physical and thermal characteristics of the surfaces. It is typically provided from experimental data or estimated based on similar systems.

Heat Duty (Q)

Heat duty (Q) is the amount of heat that must be transferred to achieve a desired temperature change within the reactor. It takes into account factors such as the reaction enthalpy, mass of the substances, and specific heat capacity. Q is usually calculated in joules per second (Watts) and must match the design specifications.

Log Mean Temperature Difference (ΔT_lm)

The Log Mean Temperature Difference, abbreviated as LMTD and denoted by ΔT_lm, is fundamental in determining the effective temperature driving force across the heat exchanger. It is calculated using the inlet and outlet temperatures of the heating or cooling medium with the formula:

\( \Delta T_{lm} = \frac{\Delta T_1 - \Delta T_2}{\ln \left(\frac{\Delta T_1}{\Delta T_2}\right)} \)

where:
ΔT₁ is the temperature difference between the inlet of the hot (or cold) fluid and the outlet of the cold (or hot) fluid, and
ΔT₂ is the temperature difference on the other end of the exchanger.

Basic Heat Transfer Area Formula

Once the parameters Q, U, and ΔT_lm have been determined, the heat transfer area (A) for the jacket can be calculated using:

\( A = \frac{Q}{U \times \Delta T_{lm}} \)

This formula is the foundational step in the determination of the required jacket area. However, one must consider that this calculation reflects the ideal scenario, and additional margins like fouling factors must be taken into account.

Calculation Steps

Step 1: Identify Reactor Geometry

Cylindrical Body

For a reactor with a cylindrical shape, determine the internal diameter D and the height (or length) H of the vessel. The surface area of the cylindrical section is calculated using the formula:

\( A_{cylinder} = \pi \times D \times H \)

Ensure that all dimensions are in consistent units, preferably meters (m), to obtain an area in square meters (m²).

Bottom Dish

In most reactors, the bottom dish is usually torispherical. The surface area can be computed via a regression-based or geometrically-derived formula. One common way to approximate the torispherical area is:

\( A_{torispherical} = \frac{\pi}{4} \times C \times D^2 \)

where C is a correction factor typically around 1.147 for torispherical dishes. In cases where the dish is hemispherical or semi-elliptical, alternate formulas may be applied:

Hemispherical Dish: \( A_{hemispherical} = 3 \pi r^2 \) where r is the radius.
Semi-Elliptical Dish: \( A_{semi-elliptical} = \frac{\pi}{2} \times a \times b \), where a and b are the semi-major and semi-minor axes, respectively.

Step 2: Calculate Total Surface Area

Once each component's surface area is individually determined, the total heat transfer area A_total for the reactor jacket is the sum of the areas that are actively jacketed. For reactors where only the cylindrical section and bottom dish are jacketed, the overall area is:

\( A_{total} = A_{cylinder} + A_{dish} \)

If additional components such as coils or partial top jackets are involved, these should be added accordingly, provided they contribute to the overall heat exchange process.

Step 3: Determine Process Parameters

In addition to geometric calculations, it is essential to determine the process parameters. These include the heat duty Q, the overall heat transfer coefficient U, and the LMTD ΔT_lm. These values are usually deduced from process requirements, thermodynamic properties, and empirical data.

Step 4: Compute the Required Heat Transfer Area

Incorporate the process parameters into the fundamental heat transfer equation:

\( A = \frac{Q}{U \times \Delta T_{lm}} \)

This calculation yields the ideal jacket area required to achieve the necessary heating or cooling effect.

Step 5: Adjust for Practical Considerations

Real-world conditions rarely match theoretical assumptions exactly. It is common practice to adjust the calculated area to account for factors such as:

Fouling: Over time, fouling can reduce the effective heat transfer area. Adding approximately 10% extra area helps compensate for this reduction.
Agitation and Fluid Dynamics: The presence of agitation or circulation within the reactor improves heat transfer efficiency and can influence the effective U value.
Jacket Design Type: Specific designs such as annular jackets, half-pipe jackets, or dimpled surfaces can change the effective area and heat transfer coefficients. Factor in these design features accordingly.

Illustrative Example

Consider a reactor with the following specifications:

Internal Diameter (D): 1.85 m
Cylinder Height (H): 2.2 m
Bottom Dish: A torispherical design with a correction factor of 1.147

Calculation of Surface Areas

Cylindrical Surface Area

Using the formula:

\( A_{cylinder} = \pi \times D \times H = \pi \times 1.85 \times 2.2 \)

This results in approximately 12.78 m².

Bottom Dish (Torispherical) Area

The area is calculated as:

\( A_{torispherical} = \frac{\pi}{4} \times 1.147 \times D^2 = \frac{\pi}{4} \times 1.147 \times (1.85)^2 \)

This yields approximately 3.53 m².

Total Jacket Area

Sum the individual areas:

\( A_{total} = A_{cylinder} + A_{torispherical} \approx 12.78 \, \text{m}^2 + 3.53 \, \text{m}^2 = 16.31 \, \text{m}^2 \)

This total area represents the ideal heat transfer surface for the reactor jacket. With practical adjustments – for example, an additional 10% for fouling – the required area would slightly increase.

Tabular Summary of Key Formulas and Components

Component	Formula	Description
Cylindrical Area	\( \pi \times D \times H \)	Surface area of the vessel’s cylindrical section
Torispherical Dish Area	\( \frac{\pi}{4} \times C \times D^2 \)	Area of the bottom dish using a correction factor C (≈1.147)
Hemispherical Dish Area	\( 3 \pi r^2 \)	Alternate dish design calculation
Heat Transfer Area	\( \frac{Q}{U \times \Delta T_{lm}} \)	Overall jacket area based on heat duty, U, and LMTD

Practical Adjustments and Considerations

While theoretical calculations provide a good baseline for determining reactor jacket area, several practical aspects must be factored in:

Fouling Factors

Over prolonged use, fouling can accumulate on the heat exchange surfaces, reducing the efficient transfer of heat. It is standard to add a safety margin, typically around 10%, to the calculated area. This adjustment ensures the design remains robust against performance degradation over time.

Jacket Design Variations

The specific design of the reactor jacket—whether it is a simple continuous jacket, includes baffles, or features dimpled surfaces—can alter the effective heat transfer coefficient and overall area required. For example, designs incorporating limpet coils or annular jackets may have a higher effective heat transfer rate than a simple jacket. The design adjustments should be factored into the final calculations, ensuring compatibility between theoretical and practical performance.

Temperature Profiles and Dynamics

When planning the heat transfer design, it is critical to accurately measure and use the inlet and outlet temperatures of the jacket fluid to calculate a precise LMTD. Accurate temperature measurements ensure the correct driving temperature difference is used and that the reactor jacket is neither over-designed nor under-designed.

Material and Construction Considerations

The materials used for the reactor and its jacket can influence the heat transfer coefficient due to varying thermal conductivities. Additionally, construction tolerances and the quality of insulation around the jacket might necessitate some further adjustments to the calculated areas.

Advanced Topics and Further Analysis

Beyond the basic calculations, advanced modeling might employ simulation software for dynamic heat transfer analysis. Such tools consider transient heat loads, variable flow conditions, and localized temperature gradients to design more complex, efficient systems.

Impact of Agitation and Fluid Flow

In many reactors, internal agitation improves heat dispersion throughout the reactor contents. Enhanced mixing can lead to more uniform temperatures but may also alter the effective U value. It is essential to understand the interplay between the fluid dynamics inside the reactor and the jacket’s design to optimize energy usage further.

Using Empirical Data

Empirical data from similar reactor systems can significantly enhance the accuracy of jacket area calculations. Benchmark data regarding heat transfer coefficients and fouling rates, acquired through previous installations or pilot-scale studies, are often incorporated into the design process. This helps in refining and validating the theoretical models.

Design Optimization

The reactor jacket design often requires iterative optimization. Engineers might adjust parameters—such as jacket thickness or the configuration of baffles—to achieve the optimal balance between energy efficiency and physical constraints. Optimization not only ensures adherence to thermal requirements but also helps in minimizing operational costs while maintaining safety margins.

Conclusion and Final Thoughts

Calculating the reactor jacket area is a multi-step process that requires an integration of both theoretical fundamentals and practical design considerations. Starting with a clear understanding of reactor geometry—encompassing the cylindrical body and the bottom dish—engineers use key heat transfer equations to determine the baseline area required. Incorporating critical parameters such as the overall heat transfer coefficient, heat duty, and the logarithmic mean temperature difference ensures that the theoretical calculation accurately meets process requirements.

Practical considerations such as fouling allowances, the impact of agitation, and material properties necessitate making informed adjustments to the calculated area. By adding margins and possibly using computational fluid dynamics or empirical data from similar systems, one can ensure that the reactor jacket performs efficiently under operating conditions. The use of additional design elements like baffles or coils may further optimize heat transfer, albeit with necessary recalibrations in area calculations.

In summary, the calculation involves meticulous measurement of the reactor geometry, careful determination of heat transfer parameters, and the integration of safety buffers to account for real-world operational challenges. This comprehensive approach guarantees that the reactor operates under optimal thermal conditions, thereby enhancing process safety, efficiency, and product quality.
