Unraveling Power by Volume Calculation in Reactors

A comprehensive guide to understanding and calculating reactor power density

Key Highlights

Fundamental Principle: Power by volume is determined by dividing the reactor’s thermal power output by its active volume.
Critical Parameters: Reaction rate, energy per reaction, and reactor geometry directly influence power density.
Application Across Reactor Types: The calculation methodology applies to both nuclear and chemical reactors, with nuances in unit conversion and reactor dynamics.

Understanding the Concept of Power Density

Power by volume, often referred to as power density, is a crucial parameter in reactor engineering. It measures the amount of power produced per unit volume of the reactor's active region. This metric is vital for ensuring effective reactor design, fuel efficiency, and safety performance. The general principle behind this calculation is the relationship between the total power output and the reactor’s active volume where the nuclear or chemical reactions occur.

1. Fundamental Formula

The basic formula used to calculate power density in reactors is:

Power Density = Power Output / Volume

Where:

Power Output (P): The total energy produced by the reactor, typically measured in Megawatts (MW) or Watts (W).
Volume (V): The active volume where reactions take place, measured in cubic meters (m³) or liters (L).

For nuclear reactors, the calculation often involves additional parameters such as the reaction rate and the energy released per nuclear event.

2. Detailed Approach for Nuclear Reactors

a. Reaction Rate and Energy Release

In nuclear reactors, the power production is primarily derived from nuclear fission reactions. The general approach involves:

Reaction Rate (R): This parameter, typically defined in terms of reactions per cubic meter per second, represents the rate at which fission reactions occur within the reactor core.
Energy Released per Reaction (E): Each fission event releases a specific amount of energy, often measured in mega electron-volts (MeV) and converted to joules (J). For example, the fission of uranium-235 releases approximately 200 MeV per event.

Combining these, the total power output (P) of the reactor can be expressed as:

\( \displaystyle P = R \times E \times V \)

Consequently, the power per unit volume is:

\( \displaystyle \frac{P}{V} = R \times E \)

This equation emphasizes that the power density is a direct product of the number of reactions occurring per unit volume and the energy released by each reaction. Adjustments might be necessary to account for heat transfer efficiencies, moderation effects, and localized power distributions within the reactor core.

b. Case Study: Example Calculation

Consider a reactor with a thermal power output of 1000 MW and an active volume of 100,000 liters. Using the formula, the calculation would be:

\( \displaystyle P/V = \frac{1000 \, \text{MW} \times 1000 \, \text{kW/MW}}{100,000 \, \text{L}} = 10 \, \text{kW/L} \)

This result indicates a power density of 10 kilowatts per liter, underscoring the energy generated within a given volume of the reactor.

3. Detailed Approach for Chemical Reactors

Although the concept of power density is most critically examined in nuclear contexts, it is equally relevant in chemical reactor design, particularly in stirred tank and continuous reactors.

a. Reactor Geometry and Flow Parameters

In chemical reactors like Continuous Stirred Tank Reactors (CSTRs), the effective reactor volume plays an important role in calculating reactor performance. Here, factors such as volumetric flow rate (Q) and the concentration of reactants (C) are significant. For instance, the volume may be derived from the relationship:

\( \displaystyle V = \frac{Q}{C} \)

Once the reactor volume is determined, similar principles apply to estimate the power distribution by considering the rate of reaction and the heat generated.

b. Scale-Up Considerations

When transitioning from laboratory-scale catalytic reactions to full-scale production, one must evaluate the power per unit volume carefully. This involves ensuring that reaction rates, heat release, and mixing efficiencies are well maintained despite scaling changes. Detailed power density calculations are critical to avert issues like localized hot spots or inadequate mixing, which could compromise product quality and safety.

Reactor Types and Their Typical Power Densities

The power density values can vary significantly depending on reactor design and operating conditions. Below is a comprehensive table that summarizes typical reactor types along with their power density ranges:

Reactor Type	Typical Power Density Range	Units
Pressurized Water Reactors (PWRs)	50-100	kW/L
Boiling Water Reactors (BWRs)	30-70	kW/L
Gas-Cooled Reactors	10-30	kW/L
Liquid Metal Fast Breeder Reactors (LMFBRs)	100-200	kW/L
Chemical Stirred Tank Reactors	Variable based on design	W/m³ or kW/L

Understanding these ranges is crucial not only for core design but also for thermal management and safety analysis. A higher power density implies more intense heat generation per unit volume, which necessitates robust cooling systems and precise control mechanisms.

Key Parameters and Considerations in Power Density Evaluations

Several intrinsic factors need to be analyzed when evaluating power by volume in reactors. The following sub-sections detail these crucial parameters:

Reaction Rate (R)

The reaction rate refers to the number of nuclear or chemical reactions occurring per unit volume per unit time. In nuclear reactors, it is affected by factors such as fuel composition, neutron flux, and moderator characteristics. For chemical reactors, reaction kinetics, and catalyst efficiency primarily govern the reaction rate.

Energy per Reaction (E)

Energy per reaction is the amount of energy liberated during each reaction event. In nuclear reactions, this is quantifiable (e.g., 200 MeV per fission event). In chemical processes, the exothermic or endothermic nature of the reaction and its enthalpy change are considered. Multiplying the energy per reaction with the reaction rate gives a measure of power generation per unit volume.

Active Volume (V)

The active volume is the effective region within the reactor where reactions occur. Precise determination of the active volume is critical for accurate power density calculations. The design details, such as core geometry in nuclear reactors or the mixing pattern in chemical reactors, affect this value significantly.

Heat Transfer Efficiency

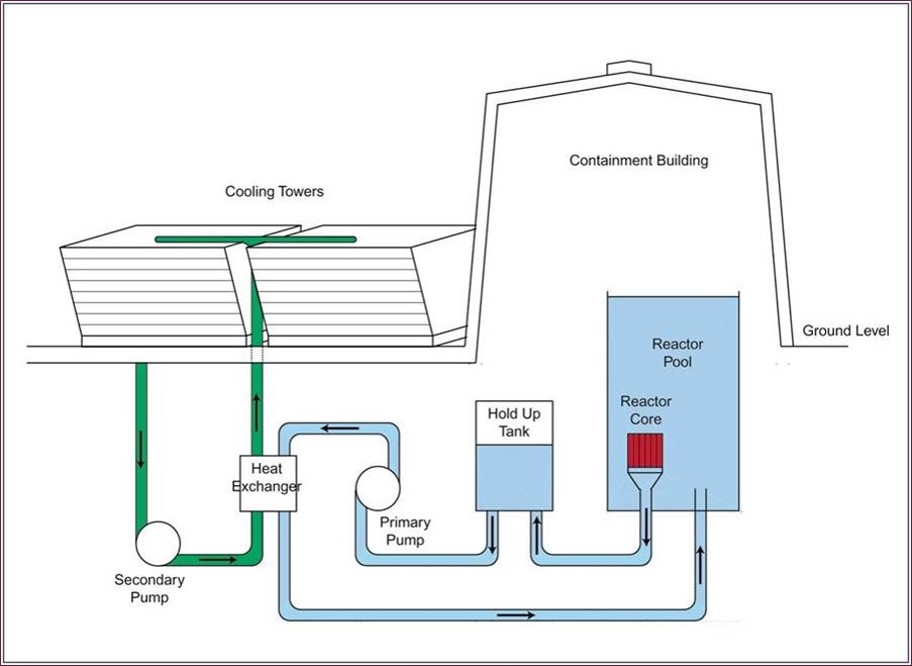

Not all the energy released during reactions is converted into usable thermal power; a significant portion might be lost due to inefficiencies in heat transfer mechanisms. Factors like coolant properties, thermal conductivity of reactor materials, and system design must be taken into account while assessing overall power output.

Operational Considerations

For any practical application, the theoretical power density must be balanced with operational aspects such as reactor safety margins, fuel consumption, and cooling system capacities. Detailed monitoring and simulation studies are usually performed to ensure that the reactor design supports the required power distribution without detrimental hotspots or inefficiencies.

Practical Examples and Applications

To contextualize the concept, consider the following practical examples:

Example 1: Nuclear Reactor Core Design

In designing a nuclear reactor core, engineers calculate the total power output by first determining the reaction rate in the core and then relating this to the energy released per nuclear fission event. For instance, if the reactor operates with a known reaction rate and the average energy per reaction is well characterized, these values can determine the overall thermal power. Dividing this total by the core's active volume provides a critical measure of power density, informing both safety protocols and cooling system designs.

Example 2: Scale-Up in Chemical Reactors

In chemical engineering, scaling a reaction from the laboratory to full production scale involves ensuring that the power (heat generation) per unit volume is consistent. Engineers use power density calculations to design agitators, cooling jackets, and flow rates to preserve reaction conditions that produce the desired output while avoiding thermal runaways.

In both cases, accurate power density calculations are indispensable to development processes, ensuring that the reactor operates within optimal thermal and safety parameters.

Comprehensive Calculation Methods and Considerations

Advanced computational tools and simulations are often employed to achieve high-fidelity power density profiles. These profiles are generated through detailed three-dimensional thermal and neutronic analyses. The simulation models take into account the spatial distribution of fuel, variations in reaction conditions, and localized thermal gradients, which ultimately help in optimizing reactor performance.

Additionally, many engineering studies include corrections for practical inefficiencies such as heat losses, non-uniform fuel loading, and varying coolant flow rates. The integration of these factors into the power density analysis is essential for improving reactor design, optimizing fuel usage, and enhancing overall operational safety.
