Redis Unveiled: Supercharging Your Applications with In-Memory Speed

Redis, short for Remote Dictionary Server, has emerged as a pivotal technology in modern application development. It's an open-source, in-memory data structure store, renowned for its exceptional speed and versatility. This document will guide you through the intricacies of Redis, detailing its fundamental characteristics, common use cases, and practical implementation strategies, enabling you to understand how Redis can significantly enhance your projects.

Key Highlights of Redis

Blazing Fast Performance: Primarily operating in-memory, Redis delivers microsecond latency for read and write operations, making it ideal for high-throughput applications.
Versatile Data Structures: Beyond simple key-value pairs, Redis supports a rich set of data types including strings, hashes, lists, sets, sorted sets, streams, geospatial indexes, bitmaps, and HyperLogLogs.
Multi-Functional Tool: Redis serves various roles, including a high-performance database, an efficient caching layer, a reliable message broker, and a powerful streaming engine.

Understanding Redis: The Core Concepts

Redis is fundamentally a NoSQL key-value store. However, its "values" are not limited to simple strings; they can be complex data structures. This allows developers to model data more naturally and perform operations directly on these structures on the server side, reducing data transfer and client-side computation.

A conceptual diagram illustrating the general architecture of Redis, highlighting its client-server model and in-memory nature.

Fundamental Features

Several core features contribute to Redis's popularity and effectiveness:

In-Memory Storage: Data is primarily stored in RAM, which is the key to its low-latency performance. While in-memory, Redis offers persistence options to save data to disk.
Data Persistence: Redis provides two main persistence mechanisms:
- RDB (Redis Database Backup): Performs point-in-time snapshots of your dataset at specified intervals.
- AOF (Append Only File): Logs every write operation received by the server. These operations can be replayed on startup to reconstruct the original dataset.
Rich Data Structures: This is a defining feature of Redis, allowing it to be much more than a simple key-value cache. Each data structure supports specialized atomic commands.
Atomic Operations: All Redis operations are atomic, meaning they either complete fully or not at all. This ensures data integrity, especially in concurrent environments.
Replication and High Availability: Redis supports a primary-replica (master-slave) architecture. Data from a primary Redis server can be replicated to one or more replica servers. Redis Sentinel provides high availability, monitoring instances, and performing automatic failover if a primary becomes unavailable.
Scalability with Redis Cluster: Redis Cluster allows for sharding data across multiple Redis nodes, enabling horizontal scaling for both data storage and throughput.
Publish/Subscribe (Pub/Sub): Redis offers a robust Pub/Sub messaging paradigm, allowing clients to subscribe to channels and receive messages published to those channels in real-time.
Lua Scripting: Users can execute complex operations atomically on the server-side using Lua scripts.
Extensibility with Modules: The Redis Modules API allows developers to extend Redis functionality with new data types and commands, such as full-text search (RediSearch) or graph databases (RedisGraph).
Licensing: It's important to note that while Redis has historically been BSD licensed, newer versions are released under the Redis Source Available License 2.0 (RSALv2) or the Server Side Public License v1 (SSPLv1). Open-source alternatives like Valkey, a fork of Redis, aim to continue development under open-source terms.

Deep Dive into Redis Data Structures

Redis's support for advanced data structures is a cornerstone of its flexibility. Here's a summary of the key types and their common applications:

Data Structure	Description	Common Use Cases
Strings	The most basic Redis type. Can store text, serialized objects, or binary data up to 512MB.	Caching HTML fragments, page views, counters (using `INCR`/`DECR`), binary object caching.
Lists	Ordered collections of strings, implemented as linked lists. Elements can be added to the head or tail.	Message queues (e.g., for background task processing), activity feeds, storing the latest N items in a timeline.
Hashes	Store collections of field-value pairs, ideal for representing objects.	Storing user profiles, product attributes, or any structured object.
Sets	Unordered collections of unique strings. Support operations like union, intersection, and difference.	Tracking unique items (e.g., unique website visitors), tags, managing relationships like followers.
Sorted Sets (ZSETs)	Similar to Sets, but each member is associated with a floating-point score. Members are ordered by their score.	Leaderboards, priority queues, secondary indexing, rate limiting mechanisms.
Streams	An append-only log data structure, allowing for complex consumption patterns with consumer groups.	Real-time data ingestion, event sourcing, inter-service communication, message broker functionality.
Bitmaps	Operate on strings as if they were arrays of bits. Useful for space-efficient tracking of boolean information.	Real-time analytics (e.g., daily active users), feature flags, tracking user habits.
HyperLogLogs	A probabilistic data structure used to estimate the cardinality (number of unique elements) of a set with very small memory footprint.	Counting unique search queries, unique visitors to a webpage, or other large-scale unique item counting.
Geospatial Indexes	Store longitude/latitude coordinates and query for items within a given radius or bounding box.	Location-based services like "find nearby places," ride-sharing apps, proximity alerts.

Powering Applications: Common Redis Use Cases

Redis's combination of speed and versatile data structures makes it suitable for a wide array of applications. Here are some of the most impactful ways Redis is used in production systems:

1. Caching Layer

This is arguably the most common use case. By storing frequently accessed data in Redis, applications can significantly reduce latency and lessen the load on primary databases (e.g., PostgreSQL, MySQL). Redis can cache database query results, API responses, rendered HTML pages, or user session data. It supports various eviction policies (like LRU - Least Recently Used, LFU - Least Frequently Used, Random, TTL-based) to manage memory efficiently when the cache reaches its limit.

2. Session Management

For distributed web applications running on multiple servers behind a load balancer, Redis provides an excellent solution for storing user session data. Centralizing session state in Redis ensures consistency and allows users to be seamlessly routed to any application server without losing their session. Sessions are typically stored with a Time-To-Live (TTL) for automatic expiration.

3. Real-Time Analytics and Counters

Redis's atomic increment/decrement operations (INCR, DECR) make it perfect for real-time counters, such as tracking page views, likes, or active users on a dashboard. HyperLogLogs can be used for approximate counting of unique items with minimal memory. Its speed allows for ingestion and processing of large volumes of real-time data for analytics.

4. Leaderboards and Ranking Systems

Sorted Sets are tailor-made for implementing real-time leaderboards in gaming applications or any system requiring ranked lists. Adding new scores or retrieving top N users is extremely fast, typically O(log N) complexity.

5. Message Brokering and Queues

Redis can function as a lightweight yet powerful message broker.

Lists: Can be used to implement simple FIFO (First-In, First-Out) message queues for background job processing.
Pub/Sub: Enables real-time messaging between different parts of an application or between microservices. Publishers send messages to channels, and subscribers receive them.
Streams: A more robust and persistent messaging system, offering features like consumer groups for scalable and fault-tolerant message processing.

This helps decouple services and manage workloads by queuing tasks, throttling messages, and preventing database overload.

6. Rate Limiting

To protect services from abuse (e.g., too many API requests from a single client), Redis can implement effective rate limiters. By using commands like INCR along with EXPIRE, applications can track request counts per client IP or user ID within a specific time window and block further requests if the limit is exceeded.

7. Full-Text Search and Querying

With modules like RediSearch, Redis can provide powerful full-text search capabilities, including stemming, complex boolean queries, and numeric filtering. The Redis Query Engine can automatically update indexes when documents (stored as Hashes or JSON) are added or modified, supporting faceted search, geospatial queries, and aggregations. This is valuable for e-commerce product catalogs or content repositories.

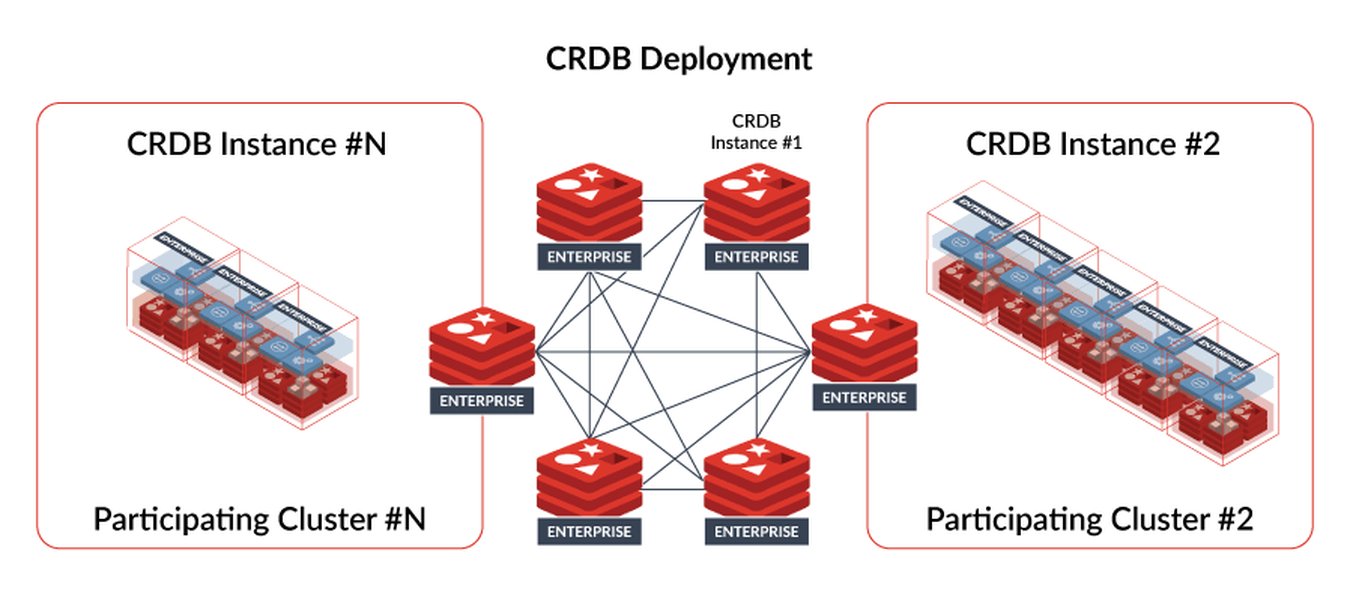

Redis Active-Active Geo-Distribution Diagram

Diagram illustrating an Active-Active Geo-Distribution setup with Redis, often leveraging CRDTs for conflict resolution, showcasing its scalability for global applications.

8. Distributed Locks

In distributed systems, coordinating access to shared resources is crucial to prevent race conditions. Redis can be used to implement distributed locks (e.g., using the SETNX command or algorithms like Redlock) to ensure that only one process can access a critical section at a time.

Visualizing Redis Capabilities

To better understand the multifaceted nature of Redis, the following mindmap outlines its core aspects, data structures, and common applications. This visual representation helps in grasping the interconnectedness of its features and use cases.

mindmap root["Redis: The Multi-Utility In-Memory Powerhouse"] id1["Core Characteristics"] id1_1["In-Memory Speed (Microsecond Latency)"] id1_2["Versatile Data Structures"] id1_3["Persistence Options (RDB & AOF)"] id1_4["NoSQL Flexibility (Dynamic Schema)"] id1_5["Primarily Single-Threaded (Asynchronous I/O)"] id1_6["Scalability (Replication & Cluster)"] id1_7["Atomic Operations"] id2["Rich Data Structures"] id2_1["Strings (Key-Value, Counters)"] id2_2["Lists (Queues, Timelines, Stacks)"] id2_3["Hashes (Objects, User Profiles)"] id2_4["Sets (Unique Items, Tags, Intersections)"] id2_5["Sorted Sets (Leaderboards, Rankings, Priority Queues)"] id2_6["Streams (Event Logs, Persistent Messaging)"] id2_7["Geospatial Indexes (Location-based Data)"] id2_8["Bitmaps & HyperLogLogs (Real-time Analytics)"] id3["Prominent Use Cases"] id3_1["Caching Layer (DB Offload, API Response Cache)"] id3_2["Session Management (Distributed Web Sessions)"] id3_3["Real-Time Analytics & Counters (Metrics, Stats)"] id3_4["Message Brokering & Pub/Sub (Async Tasks, Notifications)"] id3_5["Leaderboards & Scoring Systems"] id3_6["Rate Limiting (API Protection)"] id3_7["Full-Text Search (with RediSearch module)"] id3_8["Distributed Locks (Resource Coordination)"] id4["Implementation & Operations"] id4_1["Client Libraries (Language Specific: Jedis, redis-py, etc.)"] id4_2["Framework Integration (e.g., Spring Data Redis)"] id4_3["Microservice Architectures (Inter-service Comms)"] id4_4["Configuration (Memory, Persistence, Eviction)"] id4_5["Monitoring (Sentinel, Prometheus)"] id4_6["Security (Authentication, Encryption)"]

This mindmap encapsulates Redis's architecture, from its foundational characteristics to its diverse applications, offering a holistic view of its capabilities.

Comparative Analysis of Redis Use Cases

Different Redis use cases leverage its capabilities in varying degrees. The radar chart below provides an opinionated comparison of several key use cases across dimensions like performance impact, implementation complexity, scalability benefits, data model flexibility required, and real-time responsiveness. This helps in understanding the trade-offs and strengths of Redis in specific scenarios.

This chart illustrates how Redis excels in providing high performance impact and real-time capabilities, especially for use cases like leaderboards and caching, while implementation complexity can vary. All listed use cases significantly benefit from Redis's scalability features.

Implementing Redis: Practical Considerations

Integrating Redis into your application stack typically involves choosing a client library for your programming language, configuring the Redis instance, and then utilizing its commands to store and retrieve data.

General Implementation Steps:

Setup Redis Instance: Install Redis locally, use a Docker container, or opt for a managed Redis service from cloud providers (e.g., AWS ElastiCache, Google Cloud Memorystore, Azure Cache for Redis).
Choose a Client Library: Select a Redis client library compatible with your application's programming language (e.g., Jedis or Lettuce for Java, redis-py for Python, node-redis for Node.js).
Connect to Redis: Configure your application to connect to the Redis server instance.
Utilize Redis Commands: Employ Redis commands tailored to the chosen data structures to perform operations like setting/getting values, pushing/popping from lists, adding to sets, etc.
Configure Persistence (if needed): Set up RDB snapshotting or AOF logging in the redis.conf file if data durability is a requirement.
Set Eviction Policies: Configure how Redis should manage memory when it's full (e.g., maxmemory-policy allkeys-lru).

Example: Redis Implementation with Spring Boot (Java)

Spring Boot offers excellent support for Redis integration through Spring Data Redis. Here's a conceptual example of configuring Redis and using it for caching user data:

1. Add Dependencies

In your pom.xml (for Maven) or build.gradle (for Gradle), add the Spring Boot starter for Redis (which typically includes a client like Lettuce):

<!-- For Maven pom.xml -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

2. Configure Redis Connection

Create a configuration class to define the connection factory and RedisTemplate bean:

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisStandaloneConfiguration;
import org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;

@Configuration
public class RedisConfig {

    @Bean
    public LettuceConnectionFactory redisConnectionFactory() {
        // Assumes Redis is running on localhost and default port 6379
        return new LettuceConnectionFactory(new RedisStandaloneConfiguration("localhost", 6379));
    }

    @Bean
    public RedisTemplate<String, Object> redisTemplate() {
        RedisTemplate<String, Object> template = new RedisTemplate<>();
        template.setConnectionFactory(redisConnectionFactory());
        // Optional: Configure serializers for keys and values
        // For example, use StringRedisSerializer for keys and GenericJackson2JsonRedisSerializer for values
        template.setKeySerializer(new StringRedisSerializer());
        template.setValueSerializer(new GenericJackson2JsonRedisSerializer());
        template.setHashKeySerializer(new StringRedisSerializer());
        template.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());
        return template;
    }
}

3. Caching Service Example

A service class demonstrating how to use RedisTemplate to cache and retrieve user objects (assuming a User class exists and is serializable):

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.concurrent.TimeUnit;

// Assuming a User class like:
// public class User implements java.io.Serializable {
//     private String id;
//     private String name;
//     // constructors, getters, setters
// }

@Service
public class UserService {

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    private static final String USER_CACHE_KEY_PREFIX = "USER_CACHE"; // Using a Hash key

    public void cacheUser(String userId, User user) {
        // Store user object in a Redis Hash
        // The Hash key is USER_CACHE_KEY_PREFIX
        // The field within the Hash is the userId
        redisTemplate.opsForHash().put(USER_CACHE_KEY_PREFIX, userId, user);
        // Optionally, set an expiration for the entire Hash if needed, or manage individual entry TTLs
        // For example, to expire the hash key after 1 hour:
        // redisTemplate.expire(USER_CACHE_KEY_PREFIX, 1, TimeUnit.HOURS);
    }

    public User getUserFromCache(String userId) {
        // Retrieve user object from the Redis Hash
        return (User) redisTemplate.opsForHash().get(USER_CACHE_KEY_PREFIX, userId);
    }

    public void deleteUserFromCache(String userId) {
        redisTemplate.opsForHash().delete(USER_CACHE_KEY_PREFIX, userId);
    }
}

This example illustrates basic CRUD operations (Create/Update via cacheUser, Read via getUserFromCache) on a Redis hash. Spring's @Cacheable, @CachePut, and @CacheEvict annotations offer a more declarative way to manage caching for method results.

Best Practices for Redis Implementation

Memory Management: Monitor Redis memory usage. Set appropriate maxmemory limits and choose a suitable eviction policy.
Use SCAN for Iteration: When iterating over large key sets, prefer the SCAN command over KEYS to avoid blocking the server.
Connection Pooling: Use connection pooling in your client libraries to manage connections efficiently and reduce latency.
Security: Secure your Redis instance by setting a password (requirepass), binding to specific network interfaces, and using firewalls. Consider SSL/TLS for encrypted connections if Redis is exposed to untrusted networks.
Monitoring: Regularly monitor Redis performance metrics (latency, memory usage, connected clients, cache hit ratio) using tools like Redis CLI's INFO command, Redis Sentinel, or external monitoring systems like Prometheus with a Redis exporter.

Watch: Redis in 100 Seconds

For a quick and engaging visual overview of Redis, its capabilities, and why it's so popular, check out the following video. It concisely explains the essence of Redis and its primary use cases.

This video provides a high-level introduction, perfect for understanding the core value proposition of Redis in a short amount of time.

Frequently Asked Questions (FAQ)

What makes Redis so fast?

Redis's speed primarily comes from its in-memory data storage, meaning data is read from and written to RAM, which is significantly faster than disk-based storage. Additionally, it uses an efficient event-driven, non-blocking I/O model, and its core is largely single-threaded for command execution, which simplifies concurrency management and avoids lock overhead for most operations. Its data structures are also highly optimized for performance.

Is Redis only a cache?

No, while caching is one of its most popular use cases, Redis is a versatile multi-model database. It can serve as a primary database (especially for applications where its data structures are a good fit and persistence needs are met by RDB/AOF), a message broker, a queue, a session store, and more, thanks to its rich set of data structures and features like Pub/Sub and Streams.

How does Redis handle data durability if it's in-memory?

Redis offers two main persistence options: RDB (Redis Database Backup) snapshots, which save the dataset to disk at specified intervals, and AOF (Append Only File), which logs every write operation. These can be used individually or together to balance performance and durability. However, it's crucial to understand the trade-offs; for instance, RDB might lose some recent data between snapshots in case of a crash, while AOF can be more disk I/O intensive.

Can Redis replace my traditional relational database (e.g., MySQL, PostgreSQL)?

It depends on the application's requirements. Redis excels at tasks requiring high speed and specific data structures (like leaderboards or real-time feeds). It is not designed to replace relational databases for all use cases, especially those needing complex relational queries, strong consistency across many tables (ACID transactions in the traditional sense), or when the dataset is too large to fit economically in RAM. Often, Redis is used alongside a traditional RDBMS, with Redis handling the "hot" data or specific tasks while the RDBMS manages the primary, persistent dataset.

What are Redis logical databases?

A single Redis instance can be configured to support multiple logical databases (numbered 0 to 15 by default). These act as namespaces for keys, allowing you to separate data for different applications or purposes within the same instance. However, all databases within an instance share the same configuration (e.g., memory limits, persistence settings) and Redis is single-threaded, so operations in one database can impact others. In Redis Cluster mode, only database 0 is supported. It's often recommended to use separate Redis instances for true isolation between unrelated applications.

Conclusion

Redis is a remarkably powerful and versatile in-memory data store that offers exceptional performance for a wide range of applications. Its rich set of data structures, atomic operations, and features like persistence, replication, and clustering make it an invaluable tool for developers looking to build high-performance, scalable, and real-time systems. Whether used as a cache, a session store, a message broker, or even a primary database for specific workloads, Redis can significantly enhance application responsiveness and efficiency. Understanding its core principles and common implementation patterns is key to leveraging its full potential.
