Optimizing RGB Displays for CMYK Printing

Master best practices to bridge digital vibrancy with print accuracy

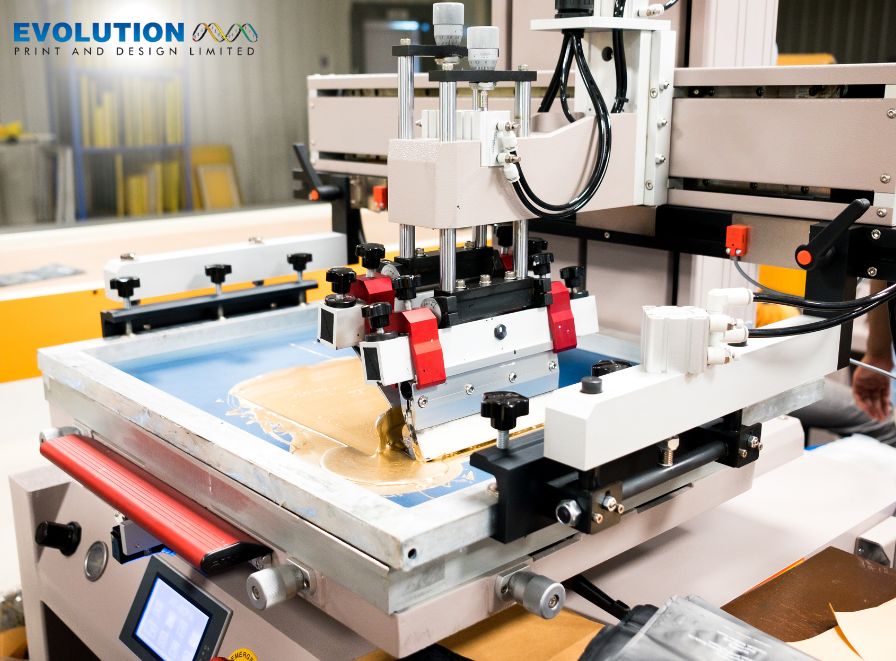

printed materials and colorful design tools

Key Insights

Understand Color Space Differences: Recognize the unique properties of RGB’s wide gamut and CMYK’s limited ink-based reproduction.
Use Professional Tools: Employ reliable software for conversion, calibration, and soft proofing to achieve accurate color matches.
Test and Calibrate: Regular calibration of screens and printers, combined with test prints, is essential for ensuring consistency.

Understanding RGB and CMYK Color Models

RGB: The Digital Standard

Digital displays use the RGB (Red, Green, Blue) color model which operates on the principle of additive color mixing. This means that colors are created by combining different intensities of red, green, and blue light. As a result, RGB boasts a vibrant, wide color gamut capable of producing many shades and hues, ideal for screens, televisions, and any electronic display. However, this very vibrancy and expansiveness often means that colors seen on an RGB display might not replicate exactly the same when printed.

CMYK: The Printing Standard

In contrast, the CMYK (Cyan, Magenta, Yellow, Key/Black) color model is used primarily in the printing industry. CMYK colors are produced via a subtractive process, where inks absorb certain wavelengths of light and reflect others. Due to its mechanism, CMYK is inherently limited when it comes to reproducing the full vibrancy of RGB colors. This limited gamut sometimes results in designs that appear duller or slightly altered once printed compared to their digital versions.

Steps to Optimize RGB for CMYK Printing

1. Start with the Right Design Environment

Design in RGB With a CMYK Mindset

When crafting digital designs, take advantage of the broader RGB spectrum to explore vibrant colors and detailed aesthetics. However, it is important to remain aware that not all colors available in RGB will be reproducible in CMYK. For specific projects intended for print, consider designing with CMYK guidelines in mind even if you start in RGB. Some designers choose to work in both color modes simultaneously or refer often to CMYK swatches to ensure compatibility.

2. Calibration: Monitor and Printer Consistency

Monitor Calibration

The accuracy of your digital work begins with a properly calibrated monitor. Utilizing hardware calibration tools ensures that the colors on your screen align as closely as possible with industry-standard settings. A well-calibrated monitor will display colors that are closer in appearance to those produced by a printer using CMYK ink, reducing discrepancies right from the start.

Printer Calibration

In addition to screen calibration, regular printer calibration is vital. Calibration sheets and specialized tools can adjust your printer’s output to accurately reflect your intended colors. By harmonizing both digital and physical devices through calibration, designers can achieve better consistency in the final print, ensuring that each output mirrors the envisioned design.

3. Employing Soft Proofing Techniques

Simulating CMYK on an RGB Screen

One of the critical steps in bridging digital designs to print is soft proofing. This technique allows you to simulate how colors will appear in the CMYK format directly on your RGB screen. Programs like Adobe Photoshop and Illustrator offer soft proofing tools, which enable designers to preview and adjust the color output. This approach minimizes surprises during the final print phase by highlighting colors outside the achievable CMYK gamut.

4. Converting Files and Adjusting Colors

File Conversion Process

The actual conversion from RGB to CMYK should be handled with care. Professional design software offers advanced conversion tools that include options for selecting specific ICC (International Color Consortium) profiles tailored to your printer and paper type. During this process, ensure to use an appropriate CMYK profile to avoid color shifts and loss of vibrancy. After converting the file, manual adjustments might be necessary to tweak gradients and saturated tones that were affected by the conversion.

Color Adjustment Techniques

Post-conversion, the use of adjustment tools like Selective Color, Levels, or Curves in software like Photoshop allows for fine-tuning of the image. This step helps to restore as much vibrancy as possible within the limits of the CMYK range. Remember that although certain color intensities of RGB cannot be perfectly replicated due to the subtractive nature of CMYK, thoughtful adjustments can enhance the final output significantly.

5. Utilizing ICC Profiles and Proofing Tools

ICC Profiles

ICC profiles play a crucial role in ensuring color accuracy during the conversion process. These profiles contain data that links how colors should appear on your monitor versus how they appear in print. For optimal results, always use ICC profiles that are specific to your printer model and the type of paper being used. This helps in minimizing unexpected shifts in color during the printing process.

Proofing Options

In addition to soft proofing on screen, hard proofing (printing samples) is highly recommended. Running a sample print allows you to compare the physical output with the simulated proofs, and provides an opportunity to further tweak the design if needed. Testing the design on different printers or papers can also provide insights into how to best manage color variability.

Advanced Techniques and Software Tools

Utilizing Leading Software Platforms

Top-tier software like Adobe Photoshop, Illustrator, and InDesign include robust tools for handling both RGB and CMYK color spaces. These platforms offer seamless integration of soft proofing, color adjustments, and ICC profile management. Additionally, some graphic design platforms have a direct "PDF Print" option that converts files into print-ready CMYK formats automatically.

Practical Tips for Designers

Workflows and Best Practices

One of the core recommendations is to design with the end-print in mind. Even if your work starts in RGB to capitalize on its wide gamut, continually referencing CMYK swatches can help anticipate and mitigate potential vibrancy losses. Moreover, incorporating Pantone colors when feasible can also play a role in ensuring consistency. By using these standardized colors, you create a common language between digital designs and the printing process.

Managing Color Intensity

Understanding that some RGB colors will inherently shift when converted is key. Therefore, it is advisable to avoid extreme color saturations that are unachievable in CMYK. Instead, design gradients and highlights that are adjustable once in the CMYK space. This strategy ensures smoother transitions and a more natural appearance in printed media.

Comparing Tools and Their Practical Use

RGB to CMYK Conversion Tools and Techniques

Different software solutions offer various strengths when dealing with conversion:

Software	Key Features	Purpose
Adobe Photoshop	• Soft proofing • ICC profile management • Manual color adjustments with tools like Selective Color and Levels	Accurate file conversion and color correction
Adobe Illustrator	• Vector design compatibility • Color mode switching • CMYK swatch libraries	Ensuring print-ready graphics while maintaining scalability
Adobe InDesign	• Document layout management • Automatic color mode setting based on print or web requirements	Creating comprehensive print layouts
Canva	• PDF Print option for CMYK conversion • User-friendly interface • Automated adjustments for color output	Casual design projects with built-in conversion tools

This comparative table illustrates that no matter which software platform you use, the key focus must be on maintaining color fidelity and anticipating the conversion challenges from RGB to CMYK.

Implementing a Robust Workflow

Workflow Steps in Detail

Step 1: Monitor Setup and Calibration

Begin your workflow by calibrating your monitor with a hardware tool. This ensures that your on-screen colors are as accurate as possible to what the printing process will eventually create.

Step 2: Begin in RGB

Design in RGB to take advantage of the vibrant color gamut, but remain mindful of which colors might be difficult to reproduce in CMYK. Constantly compare your design with CMYK swatches to stay within reproducible ranges.

Step 3: Soft Proof the Design

Use your software’s soft proofing features to preview the design’s appearance in CMYK. Identify any critical color mismatches early, and make adjustments as necessary.

Step 4: Convert and Adjust Colors

Convert your file using an appropriate ICC profile, then manually adjust colors where needed, taking into account that many RGB hues may need to be toned down. Consider using adjustment layers in Photoshop to handle this conversion delicately.

Step 5: Test Print and Final Calibration

Always run a test print on the intended printer and paper stock. Evaluate for any discrepancies, then recalibrate if necessary. This iterative process is crucial for ensuring the final printed product aligns with your original design intent.
