Applications of RLC Circuits in Control Engineering

Exploring how R, L, and C components shape modern control systems

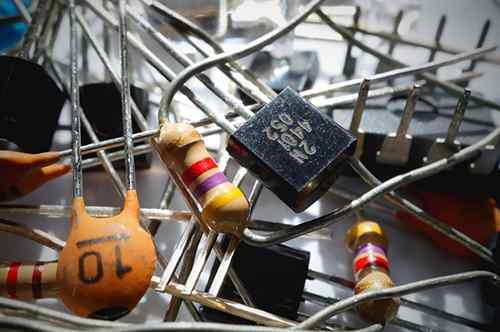

industrial electrical circuit components

Key Highlights

Effective Signal Filtering: From low-pass to band-stop, RLC circuits filter unwanted noise in control systems.
Precise Tuning and Oscillation: Their resonance properties allow for oscillator design and frequency tuning critical in radio and communication applications.
Transient and Impedance Analysis: They play a vital role in analyzing transient responses and matching impedances to ensure stability and efficient power transfer.

Introduction

In the realm of control engineering, RLC circuits — constructed from resistors (R), inductors (L), and capacitors (C) — are indispensable components that address a range of functions from signal filtering to transient response management. These circuits serve as the backbone for various systems by manipulating the electrical behaviors of circuits, allowing engineers to design efficient, stable, and functional control mechanisms. This comprehensive overview highlights the diverse applications of RLC circuits, delving into how these elements contribute to signal processing, motor control, impedance matching, transient analysis, and overall system tuning.

Signal Filtering and Processing

Fundamentals of Filtering with RLC Circuits

One of the primary applications of RLC circuits in control engineering is signal filtering. Electrical signals often contain unwanted noise or frequencies that may hamper the proper functioning of control systems. By employing RLC circuits configured in various arrangements, engineers can isolate desired frequency bands while filtering out noise. Depending on the circuit design, they can function as:

Low-pass filters: Permitting signals with frequencies below a designated cutoff to pass while attenuating higher frequencies.
High-pass filters: Allowing frequencies above a threshold while reducing lower frequency components.
Band-pass filters: Enabling a specific band of frequencies to pass, crucial for applications requiring precise signal isolation.
Band-stop filters: Rejecting a band of frequencies while allowing those on either side to pass, beneficial for eliminating specific noise frequencies.

The design and parameter tuning of resistors, inductors, and capacitors determine the filter characteristics such as cutoff frequency and bandwidth. For instance, adjusting capacitor values or inductance directly shifts the resonant frequency of the circuit, thus altering the filtering band.

Signals in Control Systems – A Closer Look

Within control systems, precise signal manipulation is vital. In contexts such as sensor data acquisition or communications within automated control networks, signal integrity is paramount. RLC-based filters cleanse the input signals by mitigating high-frequency noise and interference. Consequently, the cleaned and conditioned signals allow for more reliable feedback control and decision-making processes in the overall system design.

Oscillator Circuits and Tuning

Oscillators and Frequency Generation

RLC circuits also serve as key elements in oscillator design. Oscillators produce continuous, periodic waveforms that are essential for synchronous operations in control systems including clocks, timers, and radio frequency (RF) generation. The characteristic oscillatory behavior of an RLC circuit arises when the energy interchange between the inductor and capacitor dominates the resistive losses.

Mechanics of Oscillation and Resonance

At the resonant frequency, defined by \( \omega_0 = \frac{1}{\sqrt{LC}} \), the voltage and current oscillations achieve maximum amplitude due to minimal reactive opposition. This property is harnessed in tuning circuits used in radio receivers and transmitters, where precise tuning is necessary to select a specific communication channel. In control engineering, oscillator circuits can provide stable reference signals, facilitating regulated operation of automated systems.

Another application is in the development of sustained oscillators, where a tuned RLC circuit can keep oscillations constant over time. This makes them useful in control loops where synchronization between subsystems is required.

Transient Response Analysis and Circuit Stability

Understanding Transient Behavior

The transient response of a circuit refers to how it reacts to sudden perturbations or changes in input signals. RLC circuits are vital for studying these responses, especially when designing systems that encounter abrupt state changes, such as in motor startup or shutdown sequences.

Damping, Overdamping, and Critical Damping

The transient behavior of an RLC circuit can be categorized based on the level of damping:

Underdamped: The circuit exhibits oscillatory behavior before settling to a steady state, which can be beneficial for systems requiring rapid energy exchange but must be carefully managed to prevent instability.
Critically damped: Achieves the fastest response without oscillation, a critical condition in control engineering to avoid overshoot in systems like motor controllers.
Overdamped: Slower response with no oscillation, which may be preferred in systems where gradual settling is more favorable than abrupt changes.

By understanding and controlling the transient response, engineers can ensure that the system behaves predictably under transient conditions. This prevents potential damage to components, maintains optimal performance, and increases the reliability of automated control systems.

Impedance Matching and Power Transfer

Maximizing Energy Transfer Efficiency

In control engineering, maximizing the efficiency of power transfer between components is fundamental. RLC circuits are instrumental in achieving impedance matching, which minimizes reflections and losses in transmission lines and interconnections. Impedance matching ensures that the maximum possible power is delivered from a source to its load.

Techniques and Applications

Through careful selection of resistor, inductor, and capacitor values, RLC circuits can be tailored to match the impedance of various components within a system. For example, in RF systems, matching an antenna’s impedance with that of the transmission line is crucial for efficient broadcast and reception of signals. Similarly, in power electronics, effective impedance matching contributes to circuit stability and energy efficiency.

This aspect is particularly critical in applications such as:

Motor Controllers: Where mismatch could lead to significant energy losses and overheating.
Communication Systems: To ensure minimal signal loss during transmission.
Sensor Interfaces: Where precision in the response is critical for maintaining sensitivity and accuracy.

RLC Circuits in Motor Control and Power Electronics

Dynamic Behavior in Practical Applications

In control engineering, especially within the fields of motor control and power electronics, RLC circuits play an integral role in ensuring smooth operation and protective functioning. These circuits help predict and manage the behavior of electric motors when subject to varying load conditions, voltage fluctuations, and rapid switching events.

Managing Inrush Currents and Transient Overloads

During motor startup or sudden load changes, transient currents can become significant. An appropriately designed RLC circuit aids in mitigating these transients, reducing the risk of damage to the motor and associated electronic components. In addition, the circuit’s damping properties allow for controlled energy dissipation, ensuring that the system settles quickly to its designated operating point.

These circuits can also be employed for power factor correction in electrical power systems. By adjusting the reactive components, RLC circuits help in balancing the phase differences between voltage and current, thereby optimizing the performance of the power system.

Comparative Overview Through a Table

The table below summarizes key applications of RLC circuits in control engineering along with their primary benefits:

Application	Function	Benefits
Signal Filtering	Low-pass, high-pass, band-pass, band-stop filters	Eliminates noise and unwanted frequencies, ensuring signal integrity
Oscillator Circuits	Generation of continuous periodic signals	Provides stable timing signals and enables frequency tuning
Transient Response Analysis	Managing underdamped, critically damped, and overdamped responses	Prevents oscillations and overshoot, ensuring system stability
Impedance Matching	Optimizes power transfer between components	Enhances overall system efficiency and minimizes signal reflection
Motor Control & Power Electronics	Regulates inrush currents and dynamic load changes	Protects components and manages transient overloads

Advanced Considerations in RLC Applications

Integration into Modern Control Systems

Modern control engineering often integrates RLC circuits into complex systems employing adaptive control algorithms. These algorithms can adjust the parameters of RLC circuits in real-time based on feedback and external environmental factors. In such systems, the role of RLC components may extend beyond static functions, serving as dynamic elements that contribute to the adaptive behavior of the control loop.

Adaptive Tuning and Real-Time Response

With the advent of microcontrollers and digital signal processing, RLC circuits are often paired with software algorithms that monitor system performance and dynamically adjust circuit parameters. This adaptive approach allows for:

Real-time tuning for evolving operational conditions.
Enhanced compensation for unpredictable transients.
Improved overall efficiency and reduced wear on system components.

The simultaneous use of hardware and software creates robust systems that can self-optimize and react instantly to changes. This integration is increasingly seen in advanced robotics, industrial automation, and cutting-edge communication systems, where stability and efficiency are paramount.

Real-World Examples and Case Studies

Applications in Industry and Technology

RLC circuits contribute significantly to real-world applications:

Radio Frequency (RF) Communications: Precise tuning and filtering are essential for frequency selection and noise reduction in wireless communication devices.
Medical Devices: In devices such as MRI machines, RLC filters help in managing the electromagnetic interference ensuring clarity in imaging.
Automotive Systems: Engine control units (ECUs) and sensor feedback systems rely on RLC circuits for stable signal transmission and effective transient management.
Renewable Energy Systems: Power inverters and converters in solar and wind energy systems utilize RLC circuits for smoothing output and improving energy efficiency.

These examples underscore the versatility of RLC circuits in addressing unique challenges posed by different industries. Each application is tailored by careful selection and integration of resistive, inductive, and capacitive components to achieve the desired control goals.

Design Considerations in RLC Circuit Applications

Parameter Selection and Optimization

The effectiveness of an RLC circuit in a control engineering context largely depends on the appropriate selection of its components. Factors such as resistor values, inductor specifications, and capacitor ratings must be considered based on the specific application. The design process involves:

Frequency Characteristics: Determining the target resonant frequency and ensuring that the circuit’s natural oscillation aligns with system requirements.
Damping Requirements: Choosing component values to achieve critically damped or underdamped responses depending on whether rapid stabilization or controlled oscillations are needed.
Power Handling Capability: Ensuring that the circuit can manage the expected power levels and transient conditions without degradation or failure.

Engineers often use simulation tools and iterative testing to refine the circuit design. Advanced computational models simulate transient behaviors and frequency responses, thereby optimizing component values and circuit layout. This process is vital for high-stakes applications in aerospace, automotive, and industrial automation, where precision and reliability are non-negotiable.

Integration with Modern Technologies

Bridging Hardware and Software in Control Systems

As control engineering evolves, the integration of RLC circuits with digital control systems becomes increasingly prominent. Microcontrollers and embedded processors now interface with analog RLC circuits, enabling system monitoring and dynamic adjustments. Digital signal processors (DSPs) facilitate real-time analysis, allowing algorithms to compensate for drift, temperature variations, and component aging.

The Role of Simulation and Modeling

Advanced simulation tools, such as finite element analysis (FEA) software and circuit simulators, help engineers model and predict the behavior of RLC circuits under various conditions. These tools provide insights into transient phenomena, resonance patterns, and system damping, thus ensuring that the actual implementations meet theoretical expectations. The convergence of simulation and real-world data ultimately results in more robust control systems.

Applications Summary

To summarize, RLC circuits hold critical importance in control engineering for several reasons:

Signal Filtering: They are used to selectively condition signals, greatly enhancing the control system's resilience and accuracy.
Oscillation Generation and Tuning: Oscillator circuits based on RLC components are fundamental in providing stable and accurate reference frequencies.
Transient Analysis: By studying and tailoring transient responses, these circuits ensure safety and reliability during sudden changes in system conditions.
Impedance Matching: They optimize power distribution and minimize losses, which is essential for efficient system performance.
Adaptive Control Integration: The ability to incorporate RLC circuits within advanced digital adaptive systems is a growing trend that further amplifies their importance in modern engineering.
