Secure Boot in Embedded Systems

Ensuring Trust and Integrity from Power-On to Application Execution

Key Takeaways

Foundation of Security: Secure Boot establishes a trusted environment by verifying each component's integrity before execution.
Cryptographic Assurance: The use of public and private key pairs ensures authentication, integrity, and non-repudiation of firmware.
Diverse Implementations: Various types of Secure Boot cater to different security needs, balancing hardware and software solutions.

Introduction to Secure Boot in Embedded Systems

Secure Boot is a pivotal security mechanism embedded within modern electronic devices, particularly embedded systems. It ensures that only authenticated and authorized firmware or software is executed during the device's startup process. By establishing a chain of trust from the moment the device is powered on, Secure Boot prevents unauthorized or malicious code from compromising the system's integrity.

Core Concepts of Secure Boot

Root of Trust

The foundation of Secure Boot lies in the Root of Trust (RoT), a trusted component embedded either in hardware or immutable firmware. RoT is the initial point of trust upon device startup, ensuring that the first pieces of code executed are legitimate and untampered.

Verification Process

Each stage of the boot process involves verifying the integrity and authenticity of the subsequent software components. This verification is achieved using cryptographic signatures and hash functions, ensuring that only trusted software progresses through the boot sequence.

Chain of Trust

Secure Boot establishes a hierarchical trust model known as the Chain of Trust. Starting from the Root of Trust, each verified component is responsible for verifying the next component in the sequence. This continuous verification ensures that at no point does untrusted code execute, maintaining system integrity throughout the boot process.

How Secure Boot Works

Step-by-Step Boot Process Verification

Hardware Initialization

Upon powering on, the device's hardware initializes, executing the Root of Trust stored in read-only memory (ROM). This immutable code serves as the first checkpoint for verifying subsequent software components.
Bootloader Authentication

The Bootloader, often divided into multiple stages, is signed using a private key held securely by the manufacturer. The device uses the embedded public key to verify the Bootloader's signature. Successful verification leads to executing the Bootloader, while failure halts the boot process.
Operating System Verification

Following the Bootloader, the Operating System (OS) kernel and other critical components are similarly signed and verified. This ensures that the OS loaded is authentic and free from tampering.
Application Integrity

Finally, user applications or additional software modules undergo the same verification process, maintaining the Trust Chain up to the highest software levels.

Cryptographic Foundations

Secure Boot leverages asymmetric cryptography, utilizing a pair of keys:

Private Key: Held exclusively by the firmware/software developer or manufacturer, it's used to sign software components. This key must remain confidential to prevent unauthorized signing.
Public Key: Embedded within the device's hardware or firmware, it verifies the signatures of incoming software components, ensuring they originate from a trusted source.

Public and Private Keys in Secure Boot

Necessity of Key Pair

The implementation of Secure Boot relies heavily on the use of public and private keys to establish authenticity and integrity:

Authentication: The private key ensures that only authorized entities (e.g., the manufacturer) can sign firmware, establishing the software's legitimacy.
Integrity: Cryptographic hash functions generate unique fingerprints for firmware. Any alteration in the firmware results in a mismatched hash, preventing execution of tampered code.
Non-Repudiation: Since only the private key holder can sign firmware, it provides undeniable proof of the software's origin.

Usage of Keys

Private Key: Used during the development phase to sign firmware and bootloaders. Its security is paramount; exposure of the private key compromises the entire Secure Boot process.
Public Key: Stored securely within the device, it verifies the signatures of incoming firmware. It ensures that only firmware signed by the corresponding private key is executed.

Types of Secure Boot Implementations

Basic Secure Boot

This implementation involves a singular verification step where the initial bootloader is authenticated using the Root of Trust. Subsequent software stages may or may not undergo additional verification.

Authenticated Boot

Authenticated Boot extends Basic Secure Boot by requiring each software component to verify its integrity before execution. It includes optional encryption of code segments to prevent reverse engineering.

Measured Boot

Measured Boot not only verifies each component's integrity but also records cryptographic hashes of each stage. Utilizing hardware components like TPM (Trusted Platform Module), it maintains an audit trail for security assessments and forensic analysis.

Hardware-Backed Secure Boot

Integrating hardware security modules or secure elements (e.g., Secure Enclaves), this implementation enhances security by protecting keys and performing cryptographic operations within tamper-resistant hardware, thereby mitigating software-based attacks.

Full Chain of Trust Boot

This comprehensive approach ensures that every single component, from the firmware to the user applications, undergoes verification. It provides end-to-end security, maintaining the integrity and authenticity of the entire system lifecycle.

UEFI Secure Boot

Primarily used in x86 platforms, UEFI (Unified Extensible Firmware Interface) Secure Boot employs multiple key databases (DB and DBX) and supports Machine Owner Key (MOK) for user-added keys. It provides a standardized framework for Secure Boot across diverse hardware.

Schematic Overview and Examples

Schematic of Secure Boot Process

The following schematic outlines the Secure Boot process:


+----------------------+        +----------------------+        +----------------------+
|   Root of Trust (RoT) | ----> |   Bootloader (BL)     | ----> |   Operating System    |
|   (Public Key Stored) |        |   (Signed with PK)   |        |   (Signed with PK)    |
+----------------------+        +----------------------+        +----------------------+
             |                              |                              |
             v                              v                              v
+----------------------+        +----------------------+        +----------------------+
|   Verify BL Signature |        |   Execute BL          |        |   Verify OS Signature |
+----------------------+        +----------------------+        +----------------------+

Example: Secure Boot in Zynq UltraScale+ MPSoC

The Zynq UltraScale+ MPSoC utilizes an asymmetric authentication scheme:

The Bootloader is signed with the manufacturer's private key.
The embedded public key within the hardware verifies the Bootloader's signature during boot.
Upon successful verification, the Bootloader executes, continuing the secure boot process.

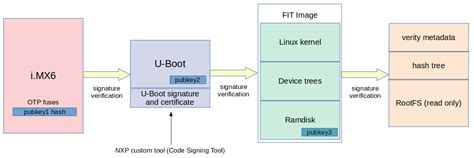

Example: Secure Boot in NXP i.MX Processors

NXP i.MX processors employ a Hardware Unique Key (HUK) stored in One-Time Programmable (OTP) memory.
The Bootloader, signed with a private key, is verified using the embedded public key during the boot sequence.
This ensures that only trusted firmware can execute on the device.

Advanced Example: Apple’s Secure Boot Mechanism

Apple integrates Secure Boot across its devices using the Secure Enclave:

The device initializes with a Root of Trust embedded in the hardware.
Each subsequent firmware component is verified against known signatures before execution.
The Secure Enclave ensures that cryptographic operations are protected from tampering, providing an additional layer of security.

Security Measures in Secure Boot

Hardware Security

Disabled Debug Interfaces: Prevent unauthorized access to debugging ports that could be exploited to bypass security measures.
Protected Memory Regions: Ensure that critical code and data are stored in secure memory areas, inaccessible to unauthorized entities.
Secure Key Storage: Utilize TPMs or secure elements to store cryptographic keys, shielding them from extraction or tampering.
Anti-Tampering Mechanisms: Implement physical and logical protections to detect and prevent unauthorized modifications to the device's hardware or firmware.

Cryptographic Security

Strong Encryption Algorithms: Employ robust algorithms like RSA and ECDSA to secure signatures and key exchanges.
Adequate Key Lengths: Utilize minimum 2048-bit keys for RSA and 256-bit keys for ECC to ensure computational security against brute-force attacks.
Secure Hash Functions: Implement SHA-256 or stronger hash functions to generate unique firmware fingerprints.
Signature Verification at Each Stage: Enforce continuous verification throughout the boot process to maintain the Chain of Trust.

Importance of Secure Boot

Prevention of Unauthorized Code Execution

Secure Boot ensures that only authorized and verified firmware is executed, effectively blocking any attempt to run malicious or unauthorized code during the boot process. This foundational security measure is critical in preventing malware infections and unauthorized modifications.

Protection Against Firmware Tampering

By validating the integrity of firmware before execution, Secure Boot guards against tampering attempts. Any alteration in the firmware results in failed signature verification, halting the boot process and safeguarding the device from compromised states.

Ensuring Device Integrity

Maintaining the integrity of the device throughout its lifecycle is paramount. Secure Boot achieves this by establishing a trusted chain from the moment power is applied, ensuring that every subsequent software component is authentic and unaltered.

Compliance with Security Standards

Industries such as automotive, healthcare, and IoT mandate stringent security standards. Implementing Secure Boot is often a requisite to meet regulatory compliance, demonstrating a commitment to robust security practices and protecting sensitive data.

Protection of Intellectual Property (IP)

Secure Boot safeguards proprietary firmware and software by preventing unauthorized distribution or modification. This protection is crucial for manufacturers to preserve their IP and maintain competitive advantages.

Secure Boot in Real-World Applications

IoT Devices: Smart Thermostats

Consider a smart thermostat equipped with Secure Boot:

The manufacturer signs the firmware with a private key during development.
The device stores the corresponding public key securely in hardware.
Upon startup, the Root of Trust verifies the Bootloader's signature.
If verification succeeds, the Bootloader executes, continuing to verify and execute the main firmware.
Any attempt to load uncertified firmware results in a halted boot process, preventing potential compromises.

Automotive Systems: Infotainment Units

Modern vehicles integrate complex infotainment systems where Secure Boot plays a crucial role:

Ensures that only manufacturer-approved firmware is loaded, preventing malicious software from interfering with vehicle operations.
Maintains the integrity of critical systems, enhancing overall vehicle security.
Facilitates over-the-air updates by verifying the authenticity of new firmware before installation.

Medical Devices: Implantable Equipment

In the medical field, devices such as pacemakers and insulin pumps utilize Secure Boot to:

Prevent unauthorized firmware updates that could jeopardize patient safety.
Ensure that only certified software operates critical medical functions.
Maintain compliance with stringent healthcare regulations for device security.

Implementing Secure Boot: Best Practices

Secure Key Management

Robust management of cryptographic keys is essential for effective Secure Boot:

Store private keys in highly secure environments, utilizing Hardware Security Modules (HSMs) or similar devices.
Regularly rotate keys and revoke compromised keys to maintain system security.
Ensure that public keys are securely embedded within the device to prevent unauthorized modifications.

Multi-Layered Verification

Implementing multi-stage verification processes across all software components enhances the overall security posture:

Verify not just the Bootloader and OS, but also critical drivers and applications.
Use measured boot techniques to record and audit system integrity continuously.

Hardware Security Enhancements

Leveraging hardware-based security features can significantly bolster Secure Boot implementations:

Utilize TPMs or secure enclaves to store and manage cryptographic keys.
Implement physical tamper detection mechanisms to prevent unauthorized access or modifications.

Regular Firmware Updates

Maintaining up-to-date firmware is crucial for security:

Ensure that firmware updates are properly signed and verified through Secure Boot processes.
Address vulnerabilities promptly by deploying secure and authenticated updates.

Challenges and Considerations

Key Management Complexity

Managing cryptographic keys securely across diverse devices and environments can be intricate. Ensuring the protection of private keys while facilitating seamless updates requires meticulous planning and robust infrastructure.

Performance Overheads

Implementing Secure Boot can introduce additional processing steps during the boot process, potentially affecting device startup times. Balancing security with performance is essential, especially in resource-constrained embedded systems.

Compatibility and Flexibility

Ensuring that Secure Boot implementations are compatible with various hardware and software configurations can be challenging. Additionally, providing flexibility for legitimate firmware updates without compromising security requires careful design.

Physical Security

Physical access to devices can pose risks, such as attempts to bypass Secure Boot mechanisms or extract cryptographic keys. Incorporating physical tamper-resistant features is vital to mitigate these threats.

Future Trends in Secure Boot

Integration with Advanced Security Technologies

Emerging technologies like blockchain and AI are being explored to enhance Secure Boot processes:

Blockchain can provide decentralized verification mechanisms, ensuring transparency and immutability of firmware signatures.
AI-driven anomaly detection can identify unusual patterns during the boot process, adding an intelligent layer of security.

Enhanced Standardization

Standardization efforts are underway to streamline Secure Boot implementations across different platforms and industries, facilitating interoperability and simplifying deployment processes.

Quantum-Resistant Cryptography

With the advent of quantum computing, there is a growing emphasis on developing quantum-resistant cryptographic algorithms to future-proof Secure Boot mechanisms against potential breakthroughs in computational capabilities.

Conclusion

Secure Boot is an indispensable security feature in embedded systems, providing a robust foundation for establishing trust and maintaining system integrity from the moment power is applied. By leveraging cryptographic principles and establishing a comprehensive Chain of Trust, Secure Boot effectively mitigates risks associated with unauthorized code execution, firmware tampering, and malicious attacks. As technology evolves, Secure Boot continues to adapt, integrating advanced security measures and embracing emerging standards to address the ever-growing landscape of cyber threats.
