Unlocking the Power of Multimodal Sensor Fusion with Kalman Filters in Robot Localization

A deep dive into how Kalman filtering elevates sensor fusion for robust robot localization

Key Highlights

Enhanced Accuracy: Fusing multiple sensors minimizes errors and boosts precision.
Real-Time Adaptability: Kalman filters enable continuous real-time tracking through prediction and measurement updates.
Robust Localization: Integration of data from diverse sensor modalities protects against single sensor failures.

Introduction to Multimodal Sensor Fusion

In the realm of robotics, accurate localization is paramount. Multimodal sensor fusion brings together data from different sensor types such as LiDAR, cameras, IMUs, GPS, and odometry-based sensors. The goal is to generate a comprehensive and robust estimate of a robot's position and orientation in real-time. This integrated approach is vital especially in dynamic or uncertain environments where individual sensor limitations can otherwise compromise system performance.

One of the most effective techniques to achieve such sensor fusion is through the use of Kalman filters. These filters provide a mathematical framework for iteratively predicting and updating the state of a system from noisy measurements. The recursive nature of Kalman filters makes them ideally suited for real-time applications in mobile robotics.

Fundamentals of Kalman Filters

Understanding the Core Mechanism

A Kalman filter combines two primary steps: prediction and update. During the prediction phase, the robot's future state (i.e., position, velocity, and orientation) is estimated based on a motion model. In the measurement update phase, real sensor data is incorporated to correct the predicted state, thereby reducing uncertainties.

Prediction Step

The prediction step utilizes a motion model, which can be as simple as assuming a constant velocity or acceleration. The predicted state accounts for the control inputs and previous state estimations. In mathematical terms, if we define the state vector as \( \mathbf{x}_{k} \), the predicted state is computed as:

\( \mathbf{x}_{k|k-1} = \mathbf{F}_{k}\mathbf{x}_{k-1} + \mathbf{B}_{k}\mathbf{u}_{k} \), where:
- \( \mathbf{F}_{k} \) is the state transition matrix,
- \( \mathbf{B}_{k} \) is the input control matrix,
- \( \mathbf{u}_{k} \) represents the control input.

Update Step

In the update phase, the filter integrates sensor measurements \( \mathbf{z}_k \) to correct the prior estimate. The Kalman Gain \( \mathbf{K}_k \) is computed to determine the weight of each sensor's contribution:

\( \mathbf{K}_k = \mathbf{P}_{k|k-1} \mathbf{H}_k^T \left(\mathbf{H}_k \mathbf{P}_{k|k-1} \mathbf{H}_k^T + \mathbf{R}_k\right)^{-1} \)

Here, \( \mathbf{H}_k \) is the observation matrix and \( \mathbf{R}_k \) represents the covariance of the measurement noise. The updated state estimate then becomes:

\( \mathbf{x}_{k} = \mathbf{x}_{k|k-1} + \mathbf{K}_k \left(\mathbf{z}_k - \mathbf{H}_k \mathbf{x}_{k|k-1}\right) \)

Multimodal Sensor Fusion in Robot Localization

Combining Diverse Sensor Inputs

Sensor fusion involves integrating information from multiple sensor modalities, with every sensor contributing unique strengths and compensating for others' weaknesses. A common implementation scenario for robotics is the simultaneous fusion of data from:

GPS: Provides global position with relatively high error margins, particularly in urban canyons or indoor environments.
IMU: Offers high-frequency measurement of acceleration and angular velocity but can suffer from drift over extended periods.
LiDAR: Generates detailed spatial maps of surroundings, excellent for obstacle detection and environment mapping.
Cameras: Capture rich visual data that can be processed for feature extraction; however, they might falter in low-light conditions.
Wheel Odometry: Measures rotational motion, ideal for short-range precision but prone to accumulated errors.

Fusion Techniques

The process of fusing these various sensor inputs begins with pre-processing steps to ensure that the relevant features from each sensor are accurately extracted. For instance:

GPS Data: Extracts position coordinates (latitude, longitude, altitude).
IMU Measurements: Uses accelerometer and gyroscope readings to deduce orientation and angular velocity.
Camera/Visual Data: Processes visual cues such as edges, textures, and corner points to aid in visual odometry.
LiDAR Point Clouds: Helps in generating vector-based maps and understanding distance measurements accurately.
Odometry: Uses wheel rotations for short-term precise movement tracking.

In environments where sensor reliability may vary, the fusion approach may prioritize certain sensor data over others. For instance, in GPS-denied environments, reliance is shifted to visual and inertial measurements.

Kalman Filter Variants in Sensor Fusion

Extended Kalman Filter (EKF) and Unscented Kalman Filter (UKF)

Many robotic applications involve nonlinear dynamics and sensor models. The standard Kalman filter, which is optimal for linear systems, is extended by:

Extended Kalman Filter (EKF)

The EKF manages nonlinearities by linearizing the system dynamics around the current estimate. It uses Jacobian matrices to approximate the nonlinear functions, making it one of the most popular choices for robot localization and sensor fusion.

EKF has been extensively applied in:

Mobile robot localization combining odometry, GPS, and IMU data.
Simultaneous Localization and Mapping (SLAM) systems where both the positions of robots and environmental landmarks are estimated concurrently.

Unscented Kalman Filter (UKF)

The UKF addresses the limitations of the EKF by propagating a set of sigma points through the nonlinear functions rather than relying on linear approximations. This method often yields more accurate results when dealing with highly nonlinear systems.

The UKF’s strength lies in its ability to capture the mean and covariance of the state distribution more precisely, albeit at a slightly higher computational cost than the EKF.

Practical Implementation Considerations

Sensor Selection and Data Synchronization

When implementing a sensor fusion system using Kalman filters, several practical concerns must be addressed:

Sensor Selection

Choosing the right set of sensors is crucial. Consider the following:

Coverage: Ensure that the chosen sensors collectively cover all necessary aspects of the robot's operational environment.
Redundancy: Include redundant sensors to mitigate the impact of potential sensor failures.
Cost and Complexity: Balance the benefits of additional sensors against the increased computational burden and calibration requirements.

Data Synchronization

The synchronization of sensor data is critical. Mismatches in time stamps or delays in sensor update rates can cause significant errors in the fusion process. Effective strategies include:

Time-stamping each sensor’s output accurately.
Using buffer management techniques to align data temporally.
Calibration of relative sensor delays to ensure minimal discrepancies.

A Comprehensive Overview: Fusion Process and Workflow

Step-by-Step Workflow Table

To summarize the workflow, below is a detailed table outlining the key steps and components involved in a typical multimodal sensor fusion system using Kalman filters:

Step	Description	Sensors Involved
Sensor Selection	Identify the suitable sensors for the operational environment, ensuring coverage, redundancy, and cost-effectiveness.	GPS, IMU, LiDAR, Camera, Odometry
Data Preprocessing	Extract relevant features from raw sensor data, such as coordinates, acceleration, visual features, and point clouds.	All sensors
Prediction Step	Utilize a motion model to estimate the robot's next state based on the previous state and control inputs.	IMU, Odometry
Fusion Update	Update the predicted state estimates by incorporating fresh measurements from all sensors.	GPS, LiDAR, Camera
Kalman Filter Algorithm	Combine the predicted states with measurements using either EKF or UKF to refine the robot’s state estimation.	All sensors
State Estimation	Determine the final estimated state of the robot including position, velocity, and orientation, using iterative updates.	All sensors

Real-World Applications and Challenges

Applications in Autonomous Systems

Kalman filtering based multimodal sensor fusion is instrumental in many modern robotics applications, including:

Autonomous Vehicles: Fuse data from cameras, LiDAR, RADAR, and GPS to navigate complex road environments.

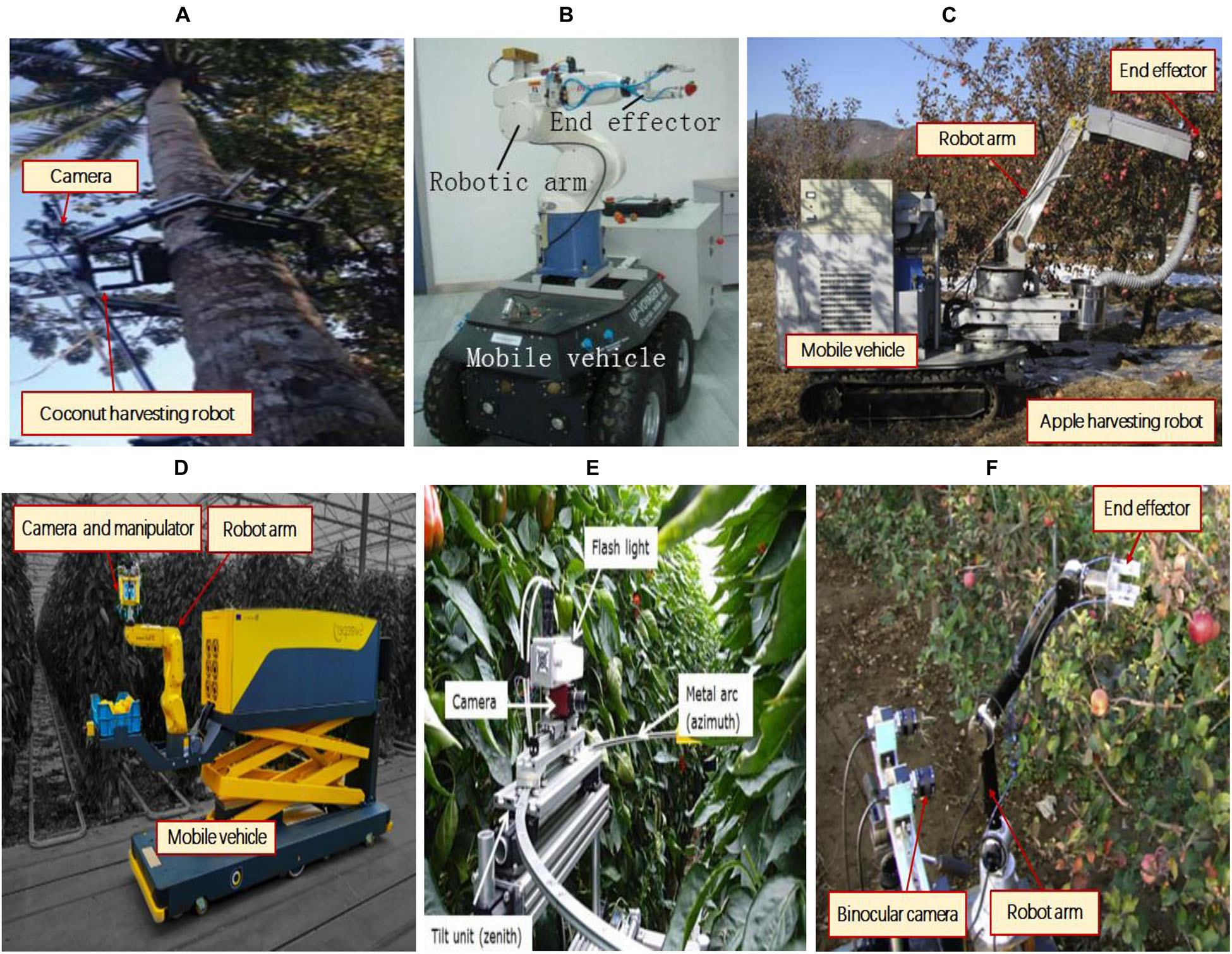

Mobile Robots: Perform indoor and outdoor navigation by integrating sensor data, ensuring accurate localization and mapping.
Unmanned Aerial Vehicles (UAVs): Utilize data fusion for stable flight control, obstacle avoidance, and mapping in dynamic settings.
Search and Rescue Robots: Rely on robust sensor fusion, particularly when operating in GPS-denied or visually challenging conditions.

Challenges and Limitations

Despite the advantages, several challenges must be tackled:

Sensor Calibration: Accurate alignment and calibration are necessary to prevent bias and inconsistencies in the data.
Computational Demands: Real-time implementations require optimized algorithms that can process high-dimensional sensor data efficiently.
Synchronization Issues: Ensuring that data from different modalities is time-aligned is critical for accurate state estimation.
Nonlinearities: In many practical applications, nonlinear dynamics challenge the assumptions of linear models, necessitating the use of EKF or UKF.
