Simplifying Boolean Expressions with De Morgan's Theorem

Boolean algebra is a fundamental mathematical system used in digital electronics and computer science to analyze and simplify logical expressions. Simplifying these expressions is crucial for optimizing logic circuits, leading to more efficient and cost-effective designs. This involves reducing the number of logic gates and connections required to perform a specific function. One of the powerful tools used in this simplification process is De Morgan's Theorem, which provides a way to transform expressions involving negations of conjunctions and disjunctions.

Key Insights into Boolean Simplification

De Morgan's Theorem is a cornerstone for simplifying complex Boolean expressions, particularly those with negated groups of terms.
Boolean algebra simplification relies on a set of fundamental laws and identities that allow for the manipulation and reduction of expressions.
The goal of simplification is often to achieve a form that requires the minimum number of logic gates for implementation.

Understanding De Morgan's Theorem

De Morgan's Theorem, named after Augustus De Morgan, consists of two key laws that relate the logical operators AND, OR, and NOT. These laws are invaluable for manipulating and simplifying Boolean expressions, especially when dealing with complemented terms or groups of terms.

The Two Laws of De Morgan

The two laws can be stated as follows:

Law 1: The complement of a union of two sets is the intersection of their complements.

\[ \overline{(A + B)} = \overline{A} \cdot \overline{B} \]

In terms of logic gates, this means a NOR gate is equivalent to an AND gate with inverted inputs.

Law 2: The complement of an intersection of two sets is the union of their complements.

\[ \overline{(A \cdot B)} = \overline{A} + \overline{B} \]

In terms of logic gates, this means a NAND gate is equivalent to an OR gate with inverted inputs.

These theorems can be extended to more than two variables. For example, for three variables A, B, and C:

\[ \overline{(A + B + C)} = \overline{A} \cdot \overline{B} \cdot \overline{C} \] \[ \overline{(A \cdot B \cdot C)} = \overline{A} + \overline{B} + \overline{C} \]

Applying De Morgan's Theorem in Simplification

De Morgan's Theorem is particularly useful when you have a negation over a group of variables connected by AND or OR operations. By applying the theorem, you can break the long negation bar and change the operator within the group, which can then allow for further simplification using other Boolean algebra laws.

Fundamental Boolean Algebra Laws and Identities

Beyond De Morgan's Theorem, a set of fundamental laws and identities govern Boolean algebra. These rules are analogous to those in ordinary algebra but with some key differences. Mastering these rules is essential for effective Boolean expression simplification.

Core Boolean Laws

Here are some of the fundamental laws:

Identity Law: \( A + 0 = A \) and \( A \cdot 1 = A \)
Null/Dominance Law: \( A + 1 = 1 \) and \( A \cdot 0 = 0 \)
Idempotent Law: \( A + A = A \) and \( A \cdot A = A \)
Involution Law (Double Negation): \( \overline{\overline{A}} = A \)
Complementary Law: \( A + \overline{A} = 1 \) and \( A \cdot \overline{A} = 0 \)
Commutative Law: \( A + B = B + A \) and \( A \cdot B = B \cdot A \)
Associative Law: \( (A + B) + C = A + (B + C) \) and \( (A \cdot B) \cdot C = A \cdot (B \cdot C) \)
Distributive Law: \( A \cdot (B + C) = (A \cdot B) + (A \cdot C) \) and \( A + (B \cdot C) = (A + B) \cdot (A + C) \)
Absorption Law: \( A + (A \cdot B) = A \) and \( A \cdot (A + B) = A \)

Using Laws for Simplification

Simplifying a Boolean expression often involves applying these laws strategically to eliminate terms, reduce the number of literals (instances of variables), or rearrange the expression into a simpler form. It can sometimes require creative application of the laws, even seemingly "un-simplifying" a part of the expression to enable further reduction elsewhere.

Simplifying the Given Expression

Let's simplify the expression \( \overline{x} \overline{y} \cdot (xy + \overline{y}) \) using the Boolean algebra laws, including De Morgan's Theorem where applicable.

Step-by-Step Simplification

The expression to simplify is: \( \overline{x} \overline{y} \cdot (xy + \overline{y}) \)

Step 1: Apply the Distributive Law

We can distribute \( \overline{x} \overline{y} \) across the terms inside the parentheses:

\[ \overline{x} \overline{y} \cdot (xy + \overline{y}) = (\overline{x} \overline{y} \cdot xy) + (\overline{x} \overline{y} \cdot \overline{y}) \]

Step 2: Simplify the terms using Commutative and Associative Laws

Rearrange the terms within each part of the expression:

\[ (\overline{x} \overline{y} \cdot xy) + (\overline{x} \overline{y} \cdot \overline{y}) = (\overline{x} \cdot x \cdot \overline{y} \cdot y) + (\overline{x} \cdot \overline{y} \cdot \overline{y}) \]

Step 3: Apply the Complementary Law and Idempotent Law

Using the Complementary Law (\( A \cdot \overline{A} = 0 \)) and the Idempotent Law (\( A \cdot A = A \)):

\[ (\overline{x} \cdot x \cdot \overline{y} \cdot y) + (\overline{x} \cdot \overline{y} \cdot \overline{y}) = (0 \cdot 0) + (\overline{x} \cdot \overline{y}) \]

Step 4: Apply the Null/Dominance Law and Identity Law

Using the Null/Dominance Law (\( A \cdot 0 = 0 \)) and the Identity Law (\( A + 0 = A \)):

\[ (0 \cdot 0) + (\overline{x} \cdot \overline{y}) = 0 + (\overline{x} \cdot \overline{y}) = \overline{x} \overline{y} \]

So, the simplified expression is \( \overline{x} \overline{y} \).

Let's verify this with a truth table:

x	y	x	y	xy	y	xy + y	xy	xy • (xy + y)
0	0	1	1	0	1	1	1	1
0	1	1	0	0	0	0	0	0
1	0	0	1	0	1	1	0	0
1	1	0	0	1	0	1	0	0

Truth Table Verification of Simplification

As the truth table shows, the original expression \( \overline{x} \overline{y} \cdot (xy + \overline{y}) \) has the same output as the simplified expression \( \overline{x} \overline{y} \) for all possible inputs of x and y. This confirms our simplification is correct.

Visualizing Boolean Expressions and Simplification

Boolean expressions can be represented by logic circuits, which are built using logic gates like AND, OR, and NOT gates. Simplifying a Boolean expression directly translates to simplifying the corresponding logic circuit, resulting in fewer gates and connections. This is where the practical application of Boolean algebra becomes apparent.

Logic Gates

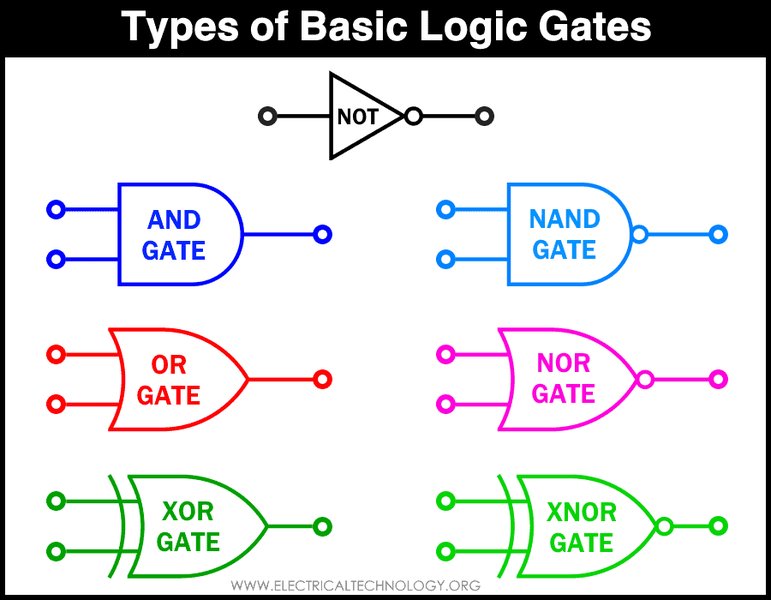

Here are some basic logic gates and their symbols:

Basic Logic Gates

Common Logic Gates

The original expression \( \overline{x} \overline{y} \cdot (xy + \overline{y}) \) would require several logic gates to implement. The simplified expression \( \overline{x} \overline{y} \), on the other hand, only requires two NOT gates and one AND gate, representing a significant reduction in circuit complexity.

Simplification in Practice

The process of simplifying Boolean expressions is a core skill in digital circuit design. It allows engineers to create smaller, faster, and more power-efficient circuits. While manual simplification is possible for simple expressions, more complex ones often benefit from automated tools or techniques like Karnaugh maps (K-maps) or the Quine-McCluskey algorithm.

The following video provides examples of Boolean expression simplification using Boolean algebra laws:

Example Problems Boolean Expression Simplification

Advanced Simplification Techniques

For more complex Boolean expressions with multiple variables, manual simplification using just the basic laws can become cumbersome and error-prone. In such cases, more advanced techniques are employed.

Karnaugh Maps (K-Maps)

Karnaugh maps provide a graphical method for simplifying Boolean expressions. They are particularly useful for expressions with up to four or five variables. K-maps arrange the truth table in a way that allows for visual identification of adjacent terms that can be combined using the Boolean laws, thereby simplifying the expression.

Quine-McCluskey Algorithm

The Quine-McCluskey algorithm is a tabular method for simplifying Boolean expressions. It is more systematic than K-maps and can be used for expressions with a larger number of variables. This algorithm is often implemented in computer programs for automated logic simplification.

FAQ

What is the main goal of Boolean expression simplification?

The main goal is to reduce the complexity of the expression, leading to simpler and more efficient logic circuits with fewer gates and connections. This results in lower cost, reduced power consumption, and potentially faster operation.

When is De Morgan's Theorem most useful?

De Morgan's Theorem is most useful when simplifying expressions that involve the negation of a group of terms connected by AND or OR operators. It allows you to break the negation bar and change the operator, which can facilitate further simplification.

Are there online tools for simplifying Boolean expressions?

Yes, there are several online Boolean algebra calculators and simplifiers available that can help simplify expressions and often show the step-by-step process.

Does simplifying a Boolean expression change its functionality?

No, simplifying a Boolean expression does not change its logical functionality. The simplified expression is equivalent to the original expression, meaning it will produce the same output for all possible inputs.
