Simulating a Capacitor: Mathematical Models and Python Implementations

A comprehensive guide to capacitor simulation using mathematical formulas and Python code

Key Takeaways

• Understanding Fundamental Equations: Accurately simulating a capacitor relies on foundational electrical formulas governing charge, voltage, and current relationships.
• Diverse Simulation Methods: Various approaches, including analytical solutions, numerical methods, and specialized simulation libraries, offer flexibility based on simulation complexity and accuracy requirements.
• Python's Versatility: Python, with libraries like NumPy, Matplotlib, and PySpice, provides robust tools for implementing both simple and advanced capacitor simulations.

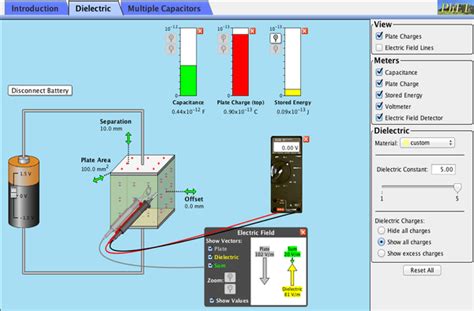

Mathematical Foundations of Capacitor Simulation

Fundamental Equations

Simulating a capacitor involves understanding its key electrical characteristics, defined by the following equations:

1. Charge-Voltage Relationship:

   $$ Q = C \times V $$

   Where:

   • Q = Charge stored in the capacitor (Coulombs)
   • C = Capacitance (Farads)
   • V = Voltage across the capacitor (Volts)

2. Current-Voltage Relationship:

   $$ I(t) = C \times \frac{dV(t)}{dt} $$

   Where:

   • I(t) = Current through the capacitor (Amperes)
   • \frac{dV(t)}{dt} = Rate of change of voltage with respect to time

3. Energy Stored:

   $$ E = \frac{1}{2} C \times V^2 $$

   Where:

   • E = Energy stored (Joules)
   • C and V as defined above

4. RC Circuit Differential Equation:

   $$ V(t) = V_0 \times e^{-\frac{t}{RC}} $$

   Where:

   • V(t) = Voltage across the capacitor at time t
   • V_0 = Initial voltage
   • R = Resistance (Ohms)
   • C = Capacitance (Farads)

Python Implementations for Capacitor Simulation

Method 1: Simple RC Circuit Simulation

This method models the charging behavior of a capacitor in an RC circuit using basic differential equations and Euler's method for numerical integration.

Mathematical Formulas:

1. Capacitor Voltage: $$ V_c(t) = V_s \left(1 - e^{-\frac{t}{RC}}\right) $$

   Where V_s is the source voltage.

2. Capacitor Current: $$ I_c(t) = C \frac{dV_c(t)}{dt} = \frac{V_s}{R} e^{-\frac{t}{RC}} $$

Python Code:

import numpy as np
import matplotlib.pyplot as plt

# Constants
R = 1000  # Resistance in ohms
C = 1e-6  # Capacitance in farads
Vs = 5    # Source voltage in volts
dt = 1e-6  # Time step in seconds
t_max = 0.01  # Total time in seconds

# Time array
t = np.arange(0, t_max, dt)

# Initialize capacitor voltage array with zeros
Vc = np.zeros_like(t)

# Initial condition: Capacitor voltage is zero
Vc[0] = 0

# Simulation loop
for i in range(1, len(t)):
    dVc = (Vs - Vc[i-1]) / (R * C) * dt
    Vc[i] = Vc[i-1] + dVc

# Plot the results
plt.figure(figsize=(10, 6))
plt.plot(t, Vc, label='Capacitor Voltage (V)')
plt.xlabel('Time (s)')
plt.ylabel('Voltage (V)')
plt.title('RC Circuit Simulation')
plt.legend()
plt.grid(True)
plt.show()


Method 2: DEVSIM Simulation

DEVSIM is a device simulator that solves semiconductor device equations. It's suitable for detailed capacitor simulations requiring high accuracy.

Mathematical Formulas:

1. Potential Equation: $$ \nabla \cdot (\epsilon \nabla \psi) = -\rho $$

   Where \epsilon is the permittivity and \rho is the charge density.

2. Electric Field Equation: $$ E = -\nabla \psi $$

Python Code (DEVSIM):

# Python code using DEVSIM
node_solution(device=device, region=region, name="Potential")
edge_from_node_model(device=device, region=region, node_model="Potential")

edge_model(device=device, region=region, name="DField",
           equation="Permittivity*ElectricField")
edge_model(device=device, region=region, name="DField:Potential@n0",
           equation="diff(Permittivity*ElectricField, Potential@n0)")

edge_model(device=device, region=region, name="DField:Potential@n1",
           equation="-DField:Potential@n0")


Method 3: Matplotlib Streamplot for Electric Field Visualization

This method visualizes the electric field around a capacitor using Matplotlib's quiver plot functionality.

Mathematical Formulas:

1. Electric Field Equation: $$ E = \frac{q}{4\pi\epsilon_0} \frac{\mathbf{r} - \mathbf{r}_0}{|\mathbf{r} - \mathbf{r}_0|^3} $$

Python Code:

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Circle

WIDTH, HEIGHT, DPI = 700, 700, 100

def E(q, r0, x, y):
    """Return the electric field vector E=(Ex,Ey) due to charge q at r0."""
    den = ((x - r0[0])**2 + (y - r0[1])**2)**1.5
    return q * (x - r0[0]) / den, q * (y - r0[1]) / den

# Grid of x, y points
nx, ny = 128, 128
x = np.linspace(-5, 5, nx)
y = np.linspace(-5, 5, ny)
X, Y = np.meshgrid(x, y)

# Create a capacitor, represented by two rows of nq opposite charges separated by distance d.
nq, d = 20, 2
charges = [{'q': 1e-9, 'r0': (-d/2, 0)}, {'q': -1e-9, 'r0': (d/2, 0)}]  # Example charges

# Plotting the electric field
plt.figure(figsize=(10, 6))
for charge in charges:
    Ex, Ey = E(charge['q'], charge['r0'], X, Y)
    plt.quiver(X, Y, Ex, Ey, color='blue', alpha=0.5)
plt.title('Electric Field of a Capacitor')
plt.xlabel('X Position')
plt.ylabel('Y Position')
plt.grid(True)
plt.show()


Comparison of Simulation Methods

The table below compares various capacitor simulation methods based on key criteria.

Alternative Simulation Methods

Analytical Solutions

Closed-form equations provide high accuracy for simple, linear circuits but lack flexibility for more complex systems. They are ideal for scenarios where the system can be described with basic exponential functions, as shown in the RC Circuit Simulation.

Numerical Methods

Numerical methods like Euler's Method offer flexibility for non-linear and complex circuits. Their accuracy depends on the chosen algorithm and step size. These methods are particularly useful when analytical solutions are infeasible.

Circuit Simulation Libraries

Libraries such as PySpice allow detailed modeling of circuits with high accuracy, integrating well with complex designs. They are suitable for professional and industrial applications where precision is paramount.

Dedicated Simulation Tools

Tools like DEVSIM are tailored for precision simulations at the device level but are more complex to implement. They offer extensive features for detailed simulations, especially in semiconductor device modeling.

Machine Learning Models

Emerging methods use machine learning models to predict capacitor behavior based on data. While not directly referenced in the provided sources, this approach represents an innovative method requiring substantial training data and computational resources.

Hybrid Methods

Combining multiple approaches can balance accuracy, flexibility, and computational efficiency for specific simulation needs. For example, integrating analytical solutions with numerical methods can enhance both speed and precision.

Conclusion

• Selection of Simulation Method: Choose based on circuit complexity, required accuracy, and available computational resources.
• Python's Capabilities: Leveraging Python's libraries enables versatile and robust capacitor simulations.
• Balancing Accuracy and Complexity: Simple methods suffice for basic simulations, while advanced methods provide greater accuracy for detailed analyses.
• Further Learning Resources: Utilize available simulation libraries and tools, and refer to comprehensive guides to deepen understanding.
