Understanding Soft Start Technology

A deep dive into soft start methods, benefits, and applications

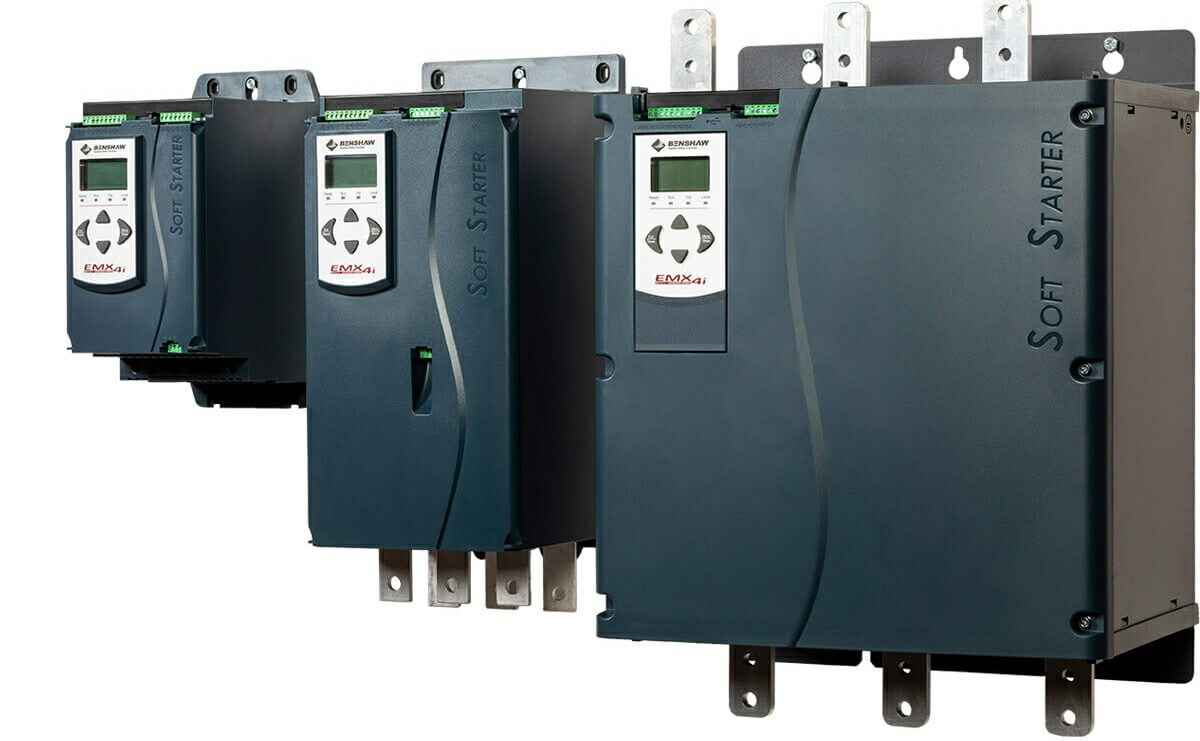

industrial machinery soft start equipment

Highlights

Gradual Voltage Ramp-Up: Soft starts help in gradually increasing voltage to minimize surge currents during motor startup.
Enhanced Equipment Protection: They significantly reduce mechanical and electrical stresses, extending motor and system lifespan.
Versatile Applications: Soft starters are widely utilized in industries like HVAC, water treatment, and manufacturing to ensure smooth and efficient motor operations.

Introduction to Soft Start

Soft start technology is an essential method implemented to control the startup process of electric motors and power systems by gradually increasing the voltage or current applied. This technique mitigates the harsh electrical and mechanical surges that occur when motors are started directly from the supply. By controlling the startup process, soft starters prevent sudden inrush currents and high torque surges that could otherwise cause wear and tear on components, potentially leading to premature failure.

The Principle Behind Soft Start

How Voltage and Current are Controlled

At its core, a soft start functions by regulating the voltage supplied to the motor at startup. In a conventional direct-on-line (DOL) starter, the motor experiences a significant surge in current during startup (inrush current), which can be several times higher than the normal operating current. Soft starters reduce this surge by gradually ramping up the voltage.

This gradual increase is achieved through electronic components such as Silicon Controlled Rectifiers (SCRs) or thyristors, which modulate the power supplied to the motor. These devices adjust the conduction angle, allowing only a portion of the AC waveform to pass through during the early stages of startup. Consequently, the motor accelerates slowly to its intended operating speed, mitigating mechanical shocks and electrical surges.

Mechanisms of Operation

Soft starters can integrate both electrical and mechanical methods to achieve a controlled startup. On the electrical side, the use of semiconductor devices is prevalent:

Electronic Regulation: SCRs and thyristors precisely control the voltage by adjusting the phase angle during the AC cycle. This technology not only reduces inrush currents but also allows for configurable ramp-up timings tailored to specific motor or load requirements.
Closed-Loop vs. Open-Loop Systems: While open-loop systems deliver a predetermined voltage ramp, closed-loop systems use feedback mechanisms (such as hall effect sensors or encoders) to dynamically adjust the input power based on real-time motor performance.
Bypass Mechanism: Once the motor reaches its designated speed and the soft start phase concludes, many systems incorporate bypass circuits that effectively short-circuit the soft start device. This bypass minimizes energy losses and ensures the motor operates at optimum efficiency.

On the mechanical side, some systems employ coupling mechanisms that use fluid clutches, magnetic forces, or other physical components such as steel shot to gradually transmit torque, though these are less common compared to their electronic counterparts.

Benefits of Implementing a Soft Start

Reduced Inrush Current and Energy Savings

One of the most significant benefits of using a soft start device is the reduction of inrush current. When a motor is started abruptly, the initial current can spike to levels between 7 and 10 times the normal running current. With soft start technology, this surge is typically limited to only 2-3 times the normal running current. The decrease in inrush current does not just reduce energy consumption during startup but also lowers the risk of electrical overloads on the distribution network.

Lower Mechanical and Electrical Stress

Soft starts play a crucial role in minimizing mechanical shock and electrical stress on motors and their associated equipment. The controlled acceleration helps in several key areas:

Protection of Mechanical Components: By reducing sudden stresses, soft starters help prevent damage to the motor shaft, bearings, and connected mechanical components. This is particularly important in heavy-duty industrial applications where torque variations can lead to misalignment or premature wear.
Enhanced Connectivity Protection: The soft start serves as a buffer, reducing the electrical strain on cables, connectors, and distribution panels. This lessens the likelihood of overheating or insulation failure due to repeated electrical shocks.
Mitigated Belt Slippage: In conveyor and belt-driven systems, gradual startup prevents sudden jerks that might lead to belt slippage. This translates into less maintenance downtime and longer belt service life.

Extended Lifespan of Equipment

The soft start methodology is crucial for extending the operational lifespan of motors and associated mechanical systems. Continuous exposure to harsh starting conditions can result in premature deterioration. The controlled energy application ensures that the mechanical components operate within their ideal stress thresholds, reducing fatigue and extending maintenance intervals. The long-term benefits are a decrease in unplanned downtime and associated repair costs.

Overall Efficiency and Operational Advantages

Implementing soft start technology can significantly improve a system's overall operational efficiency. A smooth and gradual startup reduces the risk of voltage drops and power surges, ensuring that the motor and related systems operate efficiently once running. Optimized energy consumption during startup phases also translates to lower operational costs, especially in high-demand industrial settings. Furthermore, the improved control allows for adjustable ramp-up times, meaning operators can finely tune the startup curve to meet specific requirements of the load and environment.

Applications of Soft Start

Industrial and Manufacturing

In industrial settings, soft starters are indispensable. They are routinely employed in environments where heavy machinery and high-performance motors are common. Industries such as manufacturing, chemical processing, and material handling benefit from the reduced mechanical stress and smoother operations. For example, in conveyor systems, a soft start prevents shock loads which could otherwise damage motors or cause misalignment of belts.

HVAC Systems

Heating, Ventilation, and Air Conditioning systems often involve fans and pumps that require precise voltage control to avoid damaging sensitive components. Soft starters ensure that fans and blowers within these systems reach operational speed gradually, keeping energy consumption in check while reducing potential electrical and mechanical overloads. The smooth startup process also increases the comfort level in environments where HVAC systems are in frequent cyclic operation.

Water Treatment and Pumping Systems

In water treatment plants and pumping stations, controlling the pressure and preventing water hammer is critical. Water hammer, a surge in pressure that can damage pipes and fittings, is effectively mitigated by the soft start methodology. By slowly ramping up the operation of pumps, the system avoids sudden surges, thereby preserving the longevity and reliability of the entire water pumping and distribution system.

Transportation and Material Handling

Soft starters are also vital in applications like rail systems, conveyors, and escalators, where the sudden initiation of movement may result in mechanical oscillations or slippage in belt systems. In automated systems where the synchronization of components is critical, the soft start ensures that all parts engage uniformly, thus minimizing forces that could lead to misalignment or operational hazards.

Comparing Soft Start With Other Technologies

Soft Start versus Variable Frequency Drive (VFD)

Although both soft starters and Variable Frequency Drives (VFDs) control the motor's start-up process, they are designed with distinct purposes and mechanisms in mind. Soft starters primarily focus on the startup phase, ensuring a smooth ramp-up in voltage and torque. They are generally simpler to implement and cost-effective compared to VFDs. Whereas VFDs not only control startup but also provide a means for continuous control of motor speed through frequency regulation, making them ideal for applications that require precise variable speed control during operation.

To offer a clear comparison, consider the table below:

Feature	Soft Starter	Variable Frequency Drive (VFD)
Primary Function	Controlled motor startup	Variable speed control throughout operation
Cost	Generally lower for basic startups	Higher due to advanced control capabilities
Complexity	Simpler design, mainly for startup phase	More complex, requires tuning for steady operation
Applications	Industrial pumps, conveyors, HVAC	Applications requiring continuous speed variation (e.g., compressors, fans)

Economic and Operational Considerations

From an economic standpoint, selecting between a soft starter and a VFD requires analyzing both the initial investment and the operational efficiency gains. In systems where the primary concern is to mitigate the stress during startup, a soft starter offers a cost-effective solution. In contrast, VFDs provide both startup control and continuous regulation of motor speed, which may lead to substantial energy savings in systems that operate under variable load conditions.

Operations that entail frequent start-stop cycles benefit significantly from soft start devices since they minimize electrical and mechanical wear each time the motor is activated. Regular maintenance costs are thereby reduced, and the overall efficiency of the system is increased. Manufacturers often weigh these benefits against the relatively simple design of soft starters, which, although potentially less versatile than VFDs, still provide a highly effective solution for many industrial applications.

Implementation and Maintenance

Installation and Configuration

The installation of a soft start device is typically straightforward, involving integration into the existing motor control circuit. During installation, technicians must configure the soft start parameters, such as the ramp-up time and the maximum torque threshold, to match the specific operational characteristics of the motor and the mechanical load. This configuration is crucial to ensure that the soft start operates efficiently and that the motor receives the appropriate voltage profile during its startup phase.

Many modern soft starters come with user-friendly interfaces and programmable settings to allow on-site adjustments without the need for extensive re-wiring. This flexibility is particularly valuable in industrial environments where different operational conditions may require periodic recalibration. The soft start should be selected based on motor size, application requirements, and environmental factors, ensuring that the device provides optimal protection and performance.

Maintenance and Longevity

Regular maintenance of soft start devices is essential to guarantee reliability and long-term effectiveness. Preventative maintenance includes routine inspections of electronic components, monitoring of operation parameters such as voltage and current, and periodic calibration of the ramp-up settings. Failure to maintain these devices can lead to erratic behavior or reduced performance over time.

Furthermore, soft start devices are often built with protective features that alert operators to potential issues, such as overheating or component degradation. These features help in diagnosing problems early, thus avoiding costly breakdowns. In industrial settings, where downtime can be drastically expensive, ensuring that the soft start is properly maintained supports the reliability of the entire power system.

Future Trends and Technological Advancements

Integration with Smart Systems

The evolution of soft start technology is closely linked with the broader trend towards smart and connected devices in industrial automation. With the advent of the Industrial Internet of Things (IIoT), soft starters are increasingly being equipped with remote monitoring capabilities. Sensors within these devices can now transmit real-time data to central control systems, allowing operators to monitor performance, predict failures, and optimize settings dynamically.

Improved Energy Efficiency and Sustainability

As energy efficiency and sustainability become key operational targets, advancements in soft start technology continue to focus on minimizing energy losses during the startup process. Improved designs and smarter control algorithms help reduce the overall energy footprint of industrial operations. Additionally, advancements in semiconductor technology have led to devices that operate with lower electrical losses and greater reliability, ensuring that not only is the startup process controlled, but it is also more energy efficient.

Customization and Adaptability

Future soft start systems are expected to offer more extensive customization options. Enhanced adaptation to various motor sizes and load characteristics and the integration of machine learning algorithms to optimize startup profiles are on the horizon. These innovations will allow soft start devices to adapt in real-time to fluctuating demands, bolstering overall system performance and reducing the need for manual recalibration.

Conclusion

To conclude, soft start technology has emerged as a pivotal innovation in the realm of electrical and mechanical control systems. Its primary function—to gradually ramp up voltage during motor startup—significantly decreases the risk of high inrush currents, thereby reducing both electrical and mechanical stress on components. This controlled startup mechanism not only extends the operational lifespan of motors and connected systems but also improves overall energy efficiency and operational reliability.

From industrial manufacturing and HVAC systems to water treatment plants and transportation mechanisms, the applications are wide-ranging and vital for maintaining system integrity. The economic benefits of reduced maintenance, fewer breakdowns, and energy cost savings make soft start devices an excellent investment for many industries. Moreover, with ongoing technological advancements, including smart integrations and enhanced energy efficiency, soft start systems are evolving to meet future challenges in an ever-demanding industrial landscape.

In summary, understanding and utilizing soft start technology is crucial for any modern electrical system aimed at reducing operational stresses and enhancing equipment longevity. Whether used in isolation or as part of a broader automated control system, the benefits of a soft start are both tangible and significant, positioning it as an essential tool in the contemporary industrial and technological toolkit.
