Designing a 220VAC Soft Start for a 60Amp Load

A comprehensive guide to building a safe and effective soft starter circuit

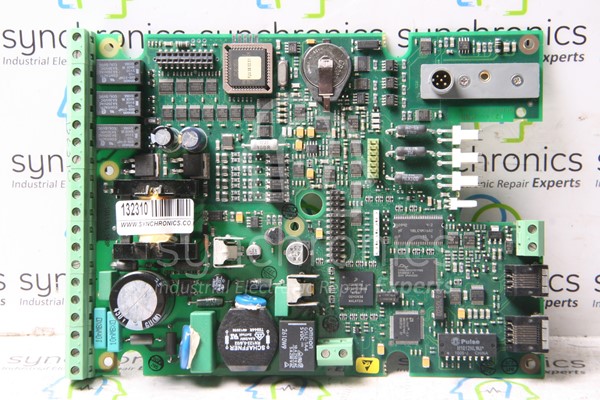

industrial soft starter circuit components

Highlights

Gradual Voltage Ramp-Up: Essential for reducing inrush current and mechanical stresses.
Component Selection: Carefully selected high-current rating components, such as triacs, thyristors, and relays, ensure safe operation at 220VAC and 60A.
Safety and Protection: Integrated measures like overcurrent, thermal protection, and proper isolation are critical for reliability.

Introduction

When designing a soft starter for a high-current application like a 220VAC system with a 60-amp load, it is important to ensure that the circuit minimizes inrush current, often the primary cause of voltage sags and potential damage to motors and other sensitive equipment. This guide provides an in-depth look at the principles behind soft starters, the components required, and a step-by-step design approach. Although several configurations exist—ranging from simple resistor-capacitor networks to more sophisticated microcontroller-based designs—the focus here is on a robust and reliable design that meets industrial-grade requirements.

Fundamental Concepts

Understanding Soft Starters

A soft starter is an electronic device that temporarily reduces the voltage supply to a motor during startup, and thereby limits the initial inrush current. In a standard 220VAC, 60A circuit, the soft starter gradually increases the applied voltage allowing the motor to begin turning slowly before reaching full speed. This ramping prevents sudden rotations that stress mechanical components and lowers the risk of tripping circuit breakers due to high current draws.

Inrush Current Challenges

The inrush current that occurs during the startup of motors or high-power loads can be several times higher than the running current. Without a mitigating device, this surge could lead to:

Electrical Stress: Damage to the motor windings and connected electrical components.
Voltage Dips: Interruptions or fluctuations in the supply that may affect other loads on the same line.
Thermal Overload: Increased heat generation that can shorten component lifespan or cause immediate failure.

Key Components and Their Roles

Power Switching Devices

The heart of any AC soft start circuit is its ability to modulate voltage. This can be effectively achieved using components such as:

Triacs/Thyristors

For single-phase applications, high-current triacs are usually deployed. These devices allow phase-angle control where the conduction delay is progressively decreased until full voltage is applied. In designs where more precise control is needed, thyristors could be used in place of or alongside triacs, particularly in more complex circuits.

Control Circuitry

The timing and ramping control can be implemented using a microcontroller or a dedicated soft start IC. Such controllers adjust the firing angle of the triac or thyristor, thus controlling the gradual increase in voltage. Key features of control circuits include:

Voltage Ramping: Providing adjustable soft start time (commonly ranging from a few seconds to over 30 seconds).
Current Sensing: Ensuring that inrush current remains within safe operating limits through real-time monitoring.
Protection Functions: Including overcurrent, overvoltage, and thermal protective mechanisms.

Auxiliary Components

Other components play supportive but crucial roles in ensuring a smooth start and continuous operation:

Resistors and Capacitors

These are typically used in the control circuitry to set timing delays and manage the phase ramp. For instance, an RC network can define how quickly the control circuit charges to a voltage that triggers the commencement of full conduction.

Bypass Mechanism

After the soft start phase, it is optimal to bypass the soft starter circuitry to eliminate additional power losses. This is often achieved using a relay or contactor that shorts out the soft start circuit once the motor has reached full speed.

Design and Implementation

A well-designed soft starter circuit for a 220VAC 60A load must harmonize several subsystems to ensure efficiency, reliability, and safety. Below is a detailed step-by-step design process, including example schematics and dropdown explanations.

Step 1: Power Input and Initial Protection

Begin by integrating a proper input protective mechanism:

Fuse: A fuse rated around 1A–2A (or higher depending on specific requirements) should be placed near the AC input to protect against catastrophic faults.
Mains Isolation: Use an isolation transformer or proper isolation barriers in the design for added safety and to meet regulatory standards.

Step 2: Voltage Reduction and Signal Conditioning

A reduction mechanism is necessary for controlling the relay or control circuitry:

Capacitive Dropper or Resistive Divider: Reduce the 220VAC to a working voltage (typically 24V or 12V) suitable for the control circuit’s power supply section.
Rectification: Incorporate a bridge rectifier to convert AC to DC. This is essential for powering the microcontroller or dedicated soft start IC.
Regulation and Filtering: Use regulators such as LM317 along with filtering capacitors to produce a stable DC supply.

Step 3: Designing the Voltage Ramping Circuit

The core functionality of the soft starter lies in its ability to gradually ramp up the voltage. Achieve this through:

Phase Angle Control

Use a triac or thyristor in combination with a diac for triggering in your AC circuit. The control circuit will adjust the firing angle to slowly increase the voltage:

The design can involve a programmable microcontroller able to modify the phase angle based on the charging profile of an RC network. Initially, the control circuit sets a small conduction angle, and as the capacitor in the RC circuit charges, the firing angle is progressively reduced.

Component Sizing for High Current

For a 60-amp requirement, all switching devices must be rated for both high voltage and current:

Triacs / Thyristors: Choose devices with minimum 60A ratings and appropriate voltage headroom (typically rated for 400V or more to manage voltage spikes).
Heat Sinks: Given the high current, thermal management is vital. Consider attaching heat sinks to these devices to maintain safe operating temperatures.

Step 4: Integrating the Bypass Mechanism

Once the motor or load attains full operating speed, bypassing the soft starter circuit minimizes losses:

Relay or Contactor: Incorporate a relay (rated at 24V or 12V coil voltage) that automatically engages when full voltage is applied to the load. This bypass mechanism should be pre-calibrated to activate after the soft start period has ended.
Control Logic: Integrate the bypass activation trigger with your microcontroller. This ensures that the soft start circuit is isolated from the main power once the load stabilizes.

Step 5: Protection Systems

To ensure durability and safety, integrate multiple layers of protection into your design:

Overcurrent Protection: Employ current sensors to monitor real-time current levels. If the current exceeds a predetermined threshold, the control circuit should be able to either limit the current further or shut down the system.
Thermal Protection: Install temperature sensors near high-current components; if the temperature exceeds safe levels, the system can reduce power or shut down to prevent component failure.
Voltage Overstress Protection: Consider using voltage clamping circuits or varistors to protect against sudden voltage spikes.

Step 6: Finalizing the Circuit Design with a Schematic

Below is an example of a simplified circuit diagram layout that summarizes the design principles discussed:

Section	Function	Key Components
Input Protection	Limits surge current and isolates mains voltage.	Fuse, Isolation Transformer
Voltage Reduction & Rectification	Lowers AC voltage to a suitable level for control circuitry.	Capacitive Dropper, Bridge Rectifier, Voltage Regulator
Voltage Ramping	Gradually increases conduction using phase angle control.	Triac/Thyristor, Diac, RC Network, Microcontroller/Soft Start IC
Bypass Circuit	Removes soft start components once full load speed is reached.	Relay/Contactor, Bypass Activation Logic
Protection Systems	Monitors and reacts to prevent overload and spikes.	Current Sensor, Temperature Sensor, Voltage Clamp / Varistor

This table serves as a quick reference for each segment of the design, outlining functionality and key components. The components must be selected based on their ability to handle a 220VAC supply and a continuous current of 60A.

Practical Considerations and Testing

Building the Prototype

Before deploying the soft starter in a production environment, it is crucial to build a prototype and evaluate its performance under controlled conditions. Begin by using a lower current load to verify:

Voltage Ramping Response: Observe if the triac or thyristor’s firing angle adjusts as expected.
Relay Activation: Ensure that the bypass relay engages correctly after the motor reaches its near-operational speed.
Thermal Performance: Monitor heat generation near power switching devices and ensure that the cooling system (heat sinks or fans) is adequate.

Performance Testing

Utilize instrumentation such as oscilloscopes and current probes to examine the startup characteristics. Key parameters to monitor include:

Inrush Current: Verify that the inrush is limited to a safe level.
Voltage Waveforms: Ensure the ramping profile is smooth and as configured. Look for any distortions that might indicate faulty triggering of thyristors or triacs.
Operational Stability: After the bypass relay is activated, confirm that voltage and frequency remain stable under load.

Compliance and Safety Standards

Electrical designs, especially those handling mains voltage and high currents, must comply with local and international safety standards. It is essential to:

Follow guidelines for adequate creepage and clearance on PCBs.
Utilize components that carry safety certifications such as UL, CE, or similar depending on your region.
Understand and design according to regulatory specifications for thermal management and isolation.

Advanced Design Enhancements

Digital Control and Adjustability

For added flexibility and precise control, consider incorporating a microcontroller or a dedicated soft start controller IC. Benefits of digital control include:

Programmable Ramp Profiles: Users can adjust the ramp time dynamically to suit different operational scenarios.
Real-Time Monitoring: Integration of sensors allows for continuous monitoring of current, voltage, and temperature, with the system automatically adjusting parameters or triggering shutdowns if unsafe conditions are detected.
Communication Interfaces: With protocols such as RS485 integrated into some industrial controllers, remote monitoring and diagnostics become possible.

Commercial vs. DIY Solutions

While the DIY approach outlined provides an excellent educational resource and can be suitable for custom applications, commercial soft starter devices offer plug-and-play reliability with built-in diagnostic features, easier compliance with safety standards, and professional support. When considering a DIY solution, it is critical to have a sound understanding of high voltage circuitry and the proper safety procedures.

Implementation Summary and Final Thoughts

Key Steps Recap

In summary, creating a soft starter for a 220VAC, 60A load involves:

Designing input protection and voltage reduction circuits to safely adapt mains power for control circuitry.
Implementing a phase angle-controlled voltage ramp using high-current triacs or thyristors regulated by either a microcontroller or a dedicated soft start IC.
Incorporating a bypass relay mechanism, which minimizes energy losses by removing the soft start components once full operating speed is achieved.
Integrating multitudes of safety and protection features such as overcurrent sensors, thermal sensors, and voltage clamping circuits.
Testing the prototype rigorously under simulated loads to ensure performance and safety, followed by final refinements based on observed behavior.

Conclusion

Designing a 220VAC soft starter for a 60A load is a multifaceted engineering challenge that requires a systematic approach to circuit design, a thorough understanding of electrical components, and careful consideration of safety and regulatory standards. By gradually ramping the voltage and minimizing inrush currents through the use of phase-angle control via triacs or thyristors, complemented by a microcontroller or soft start controller, designers can significantly mitigate the adverse effects of sudden power surges. The design not only protects sensitive equipment but also prolongs the life of motors and other inductive loads. Additionally, robust testing and validation play key roles in ensuring that the circuit meets the intended performance metrics. Whether opting for a DIY approach or employing commercial soft starter solutions, adherence to best practices in component selection, thermal management, and safety measures remains paramount.

Conclusion and Final Thoughts

The design of a 220VAC soft start circuit for a 60A load demands a well-integrated approach that combines gradual voltage ramping, high-current capable switching components, and robust protection systems. This guide has outlined a detailed methodology, from circuit input protection and voltage reduction to phase control and bypass mechanisms. Emphasis on safety, performance testing, and compliance is critical, ensuring that your design not only prevents the harmful effects of inrush current but also adheres to international standards. Such a design would be well-suited for applications including industrial motors, compressors, and variable load systems, providing a reliable starting process that reduces physical and electrical stress throughout the system.
