Security Features in STM32 Microcontrollers

An in-depth look into STM32's robust multi-layered security mechanisms

Essential Insights

Layered Security Architecture: STM32 integrates hardware and software components to form a multi-tier security framework including secure boot, memory protection, and cryptography.
Robust Memory Control: Fine-grained control over read/write access through Memory Protection Units, TrustZone, and secure configuration parameters ensures data and firmware integrity.
Immutable Data and Secure Updates: Features such as secure storage, write protection, and secure firmware update mechanisms protect critical data and enable trusted system upgrades.

Comprehensive Security Mechanisms

1. Secure Boot and Root of Trust

The STM32 microcontroller series includes a Secure Boot mechanism that forms the cornerstone of its security design. Secure Boot verifies the authenticity and integrity of the firmware before it is executed. During the initial startup, a built-in Root of Trust (RoT) is established to ensure that only trusted and signed code is allowed to run.

Secure Boot Process

In the secure boot process, STM32 devices employ digital signatures and hash algorithms to authenticate the bootloader and the application firmware. If the signature or hash does not match the expected value, the system refuses to execute the code, thereby aborting any unauthorized update attempts or tampering. This is crucial for preventing attacks that involve malicious modification of the boot sequence.

2. Memory Protection and Access Control

Controlling access to memory is vital for preserving firmware integrity and protecting sensitive data.

Memory Protection Units (MPU)

STM32 microcontrollers are equipped with Memory Protection Units (MPUs) that allow developers to configure multiple memory regions with specific access permissions. With the MPU, parameters such as read, write, and execute permissions can be set on a per-region basis. This helps in segregating memory used for different functions and ensures that sensitive code or data is accessed only by trusted processes.

For architectures supporting TrustZone, regions can be designated as secure or non-secure. This adds an extra layer of isolation, ensuring that secure memory areas are only accessible by privileged code. Parameters like region size, start address, and access rights are adjusted during system initialization to tailor the memory layout according to the threat model.

Read-Out Protection (RDP)

Read-Out Protection (RDP) is another key feature that prevents unauthorized access to the flash memory. STM32 microcontrollers implement varying levels of RDP:

Level 1: This level disables standard debug access while still allowing flash memory reading, thereby offering a basic level of protection.
Level 2: A higher level which locks the flash memory completely, effectively preventing any accessing or debugging attempts, albeit at the cost of rendering the chip permanently inaccessible without a mass erase.

Dynamic Access Controls and Access Control Lists

STM32 devices can dynamically modify access controls during runtime using configurable parameters, which decide if an attempted read, write, or execute operation is permitted. Access control lists and privilege levels determine allowed operations by matching the originating request with pre-defined secure configurations. These configurations are enforced by the MPU and, when applicable, by the Security Attribution Unit (SAU) in TrustZone-enabled architectures.

3. Hardware Cryptography and Secure Storage

Hardware-accelerated encryption is integral to protecting data in transit and at rest. STM32 microcontrollers provide specialized encryption modules that support industry-standard algorithms such as AES and DES. Some advanced models, like those in the STM32H5 series, integrate secure AES cryptography IP (SAES) that leverages a hardware unique key (HUK) for encrypting sensitive data, including configuration and option bytes.

Secure Storage Mechanisms

To safeguard sensitive data such as encryption keys and security parameters, STM32 features dedicated secure storage regions, often referred to as secure flash. In these regions, data can be marked as read-only after programming. Once configured, the critical data held in these regions cannot be modified, providing an immutability guarantee essential for long-term security.

4. Product State Management and Write Protection

Making selected data permanently not modifiable is crucial for protecting intellectual property and system configurations.

Write Protection (WRP)

STM32 microcontrollers allow developers to configure write protection over flash memory sectors. This configuration is often done in a bitmap fashion, where each bit represents a segment of memory (for example, 1kB blocks), ensuring a granular control mechanism to lock specific areas against updates or tampering. This method is crucial when certain firmware segments, once written, must remain immutable during the device’s lifecycle.

Immutable Data Regions

Beyond WRP, secure storage areas, sometimes referred to as "secure storage" or "secure flash", help make selected data permanently non-modifiable. Critical configurations, keys, or important boot parameters are programmed into these regions. Often, once set and locked via hardware fuses or software configurations, these regions cannot be rewritten, thereby ensuring that the integrity of this data remains intact, even in the face of potential attacks.

5. Secure Firmware Updates: Application Code and Bootloader Code

Keeping firmware up-to-date without compromising security is a common challenge in IoT and embedded devices. STM32 microcontrollers incorporate Secure Firmware Update (SBSFU) frameworks that facilitate the trusted updating of both application code and bootloader code.

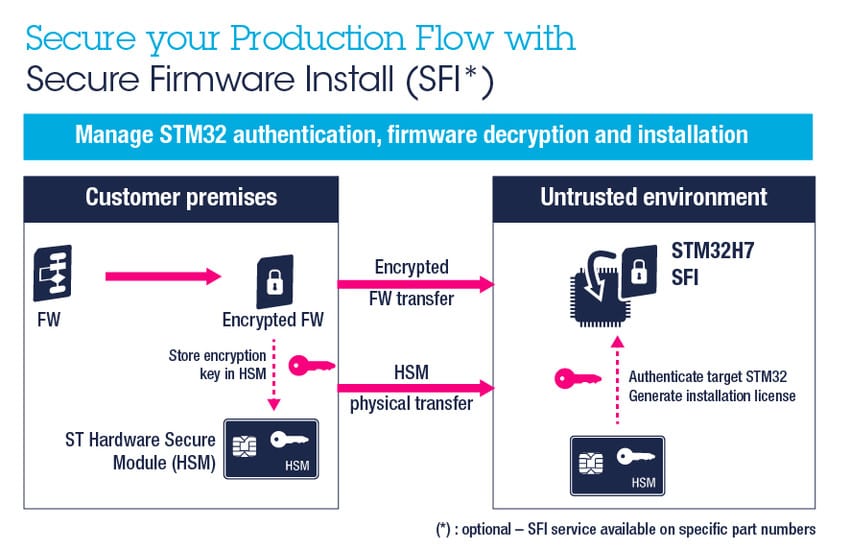

Secure Firmware Update Process

The Secure Firmware Update mechanism verifies the integrity and authenticity of new firmware images before they are applied. This is done through digital signatures and cryptographic hashed checks, ensuring that only firmware images originating from a trusted source are installed. During the update process, firmware is often encrypted during transmission and stored temporarily in secure flash before being validated and activated.

Tools and Frameworks

STMicroelectronics provides robust tools and software packages, such as the X-CUBE-SBSFU, to help developers integrate secure update functionalities. Alongside, Trusted Firmware-M (TF-M) frameworks help separate secure boot components from non-secure application code, ensuring any update maintains robust isolation between different operational domains of the microcontroller.

Comparative Table of STM32 Security Mechanisms

Security Feature	Description	Key Implementation Details
Secure Boot and RoT	Verifies firmware authenticity before execution	Digital signatures, hash verification, immutable root code
Memory Protection (MPU/SAU)	Enforces access policies for memory regions	Configurable region permissions, TrustZone integration, dynamic access controls
Read-Out Protection (RDP)	Prevents unauthorized flash memory access	Multiple security levels (Level 1 and Level 2) for debug and read protection
Hardware Cryptography	Accelerates secure data encryption and decryption	AES and DES hardware modules, SAES with HUK for advanced models
Secure Storage & Write Protection	Locks critical system data to prevent modification	Bitmap-based flash write protection, secure storage areas for immutable data
Secure Firmware Update (SBSFU)	Ensures authenticated and secure firmware updates	Encryption of firmware images, digital signature verification, frameworks like TF-M and X-CUBE-SBSFU

Implementation Parameters for Memory Access Control

Determining Access Rights

STM32 microcontrollers use several configurable parameters to decide whether an access attempt is allowed. These include:

Region Base Address and Size: Each memory region is defined by a start address and size, enabling strict segmentation of memory areas.
Permissions: Memory regions are assigned specific access rights (read, write, execute) based on the intended usage and security requirements.
Privilege Levels: Access is further controlled by differentiating between privileged and non-privileged code execution, ensuring that only authorized processes can modify sensitive areas.
Security Flags: Additional parameters such as secure/non-secure designations in TrustZone-enabled architectures further restrict access based on operational context.
Dynamic Configuration: During runtime, access permissions can be modified dynamically to adapt to different operational states or security contexts.

Mechanisms for Immutable Data

To ensure that critical security configurations and data remain unaltered, STM32 microcontrollers offer robust immutable data regions via two main approaches:

Hardware Write Protection (WRP): Critical memory sectors can be locked using hardware-configurable flags. Once these flags are activated, the corresponding sectors become permanently non-writable, effectively barring any future modifications.
Secure Storage Areas: Specific flash areas are designated for sensitive data like encryption keys or boot parameters. These regions are inherently read-only after initial configuration, making them impervious to later alterations.

Practical Applications and Developer Tools

Developer Resources and Software Packages

STMicroelectronics provides an extensive set of development tools and resources that help in integrating these security mechanisms. The X-CUBE-SBSFU package, for instance, simplifies the implementation of secure boot and secure firmware update processes by providing configurable software components. Trusted Firmware-M (TF-M) frameworks are also utilized to clearly separate secure and non-secure computing environments, ensuring operational efficiency while maintaining a high security standard.

Additionally, detailed application notes and online wiki resources document best practices during firmware development, securing not only the boot processes but also runtime operations via memory access control. Such comprehensive documentation aids developers in designing systems that are resistant to counterfeiting, tampering, and cyber-attacks.
