Structuring Your House as a BIM Model Using Python

Building Information Modeling (BIM) has transformed the architecture, engineering, and construction (AEC) industries by enabling better collaboration, improved efficiency, and reduced errors throughout the project lifecycle. By creating detailed digital models of physical structures, BIM allows teams to visualize and analyze projects before construction begins. While BIM software provides a robust framework, integrating Python into your BIM workflow can unlock even greater potential, offering automation, data extraction, and custom tool development.

This guide explores how you can effectively structure a house as a BIM model using Python, highlighting the synergies between these two powerful technologies. We will delve into the benefits, essential tools, and practical approaches to leverage Python for creating intelligent and data-rich BIM representations of residential structures.

Key Insights into Python for BIM

Python enhances BIM by automating repetitive tasks, extracting valuable data, and enabling custom workflows, significantly boosting efficiency and accuracy.
Several open-source libraries and software integrations like IfcOpenShell, BlenderBIM, FreeCAD, Dynamo (for Revit), and BricsCAD offer Python scripting capabilities specifically tailored for BIM.
Structuring a house in BIM with Python involves defining geometric elements and attaching rich data, allowing for detailed analysis, simulation, and seamless collaboration.

Understanding the Foundation: BIM and Python

Before diving into the specifics of structuring a house, it's crucial to understand the core concepts of both BIM and Python in this context.

What is BIM?

BIM is more than just a 3D model; it's a process involving the creation and management of digital information throughout the entire lifecycle of a built asset. BIM models are typically based on 3D geometry and include layers of additional information, such as material properties, structural data, cost estimations, and scheduling information. This data-rich environment facilitates better decision-making and communication among all project stakeholders.

The exact definition of BIM can vary, but it fundamentally represents how buildings and other large structures are planned, designed, constructed, and managed. BIM encompasses every aspect of a project, from conception through design, construction, and even into the operational phase.

Key components of a BIM model include:

3D Geometry: The visual representation of the building elements.
Parametric Data: Information embedded within the geometric elements, such as dimensions, materials, and relationships to other components.
Documentation: Drawings, schedules, and reports generated from the model data.
Collaboration Tools: Platforms and processes that allow different disciplines to work together on the same model.

Why Python for BIM?

Python is a versatile and widely-used programming language known for its readability and extensive libraries. Its application in the BIM industry is growing rapidly due to its ability to automate tasks, handle data, and integrate with various software platforms. Knowledge of Python, alongside other languages like C#, is increasingly preferred for building custom API plugins and enhancing workflows.

The power of Python in BIM lies in its ability to:

Automate Repetitive Tasks: Scripts can perform tedious actions like renaming elements, creating sheets, or checking for clashes, freeing up time for more complex design work.
Extract and Analyze Data: Python can be used to pull data from BIM models for analysis, reporting, and generating insights that would be difficult to obtain manually.
Customize Workflows: Develop tailored solutions that meet specific project requirements and integrate different software tools and platforms used in the BIM process.
Generate Parametric Models: Create complex 3D models with programmable logic, allowing for rapid iteration and design exploration.

Essential Tools and Libraries for Python BIM

Several software platforms and Python libraries facilitate the integration of Python with BIM workflows. Choosing the right tools depends on your specific needs and the BIM software you are using.

Open-Source Solutions

IfcOpenShell

IfcOpenShell is a powerful open-source library that allows you to work with Industry Foundation Classes (IFC) files, a neutral format for BIM data exchange. Using Python with IfcOpenShell enables you to read, write, and manipulate BIM data programmatically, providing a high degree of control over the model's information.

Here's a simple example of how you might use IfcOpenShell in Python:


import ifcopenshell

# Open an IFC file
ifc_file = ifcopenshell.open("your_house_model.ifc")

# Get all walls in the model
walls = ifc_file.by_type("IfcWall")

# Print the global ID of each wall
for wall in walls:
    print(wall.GlobalId)

BlenderBIM

BlenderBIM is an add-on for the popular open-source 3D modeling software Blender. It extends Blender's capabilities to support BIM workflows and the IFC format. Since Python is the primary scripting language for Blender, BlenderBIM provides a powerful environment for creating custom BIM solutions and automating tasks within a visual modeling interface.

Blender's Python API allows you to interact with almost every aspect of the software, including creating and modifying objects, accessing data, and automating rendering.

FreeCAD

FreeCAD is another open-source parametric 3D CAD modeler. It has a dedicated Arch Workbench and BIM capabilities, and it is highly customizable using Python. You can write Python scripts to automate modeling tasks, create custom BIM objects, and manage project data within FreeCAD.

Creating BIM models in FreeCAD often involves working with objects like walls, windows, and doors, which can be manipulated and queried using Python.

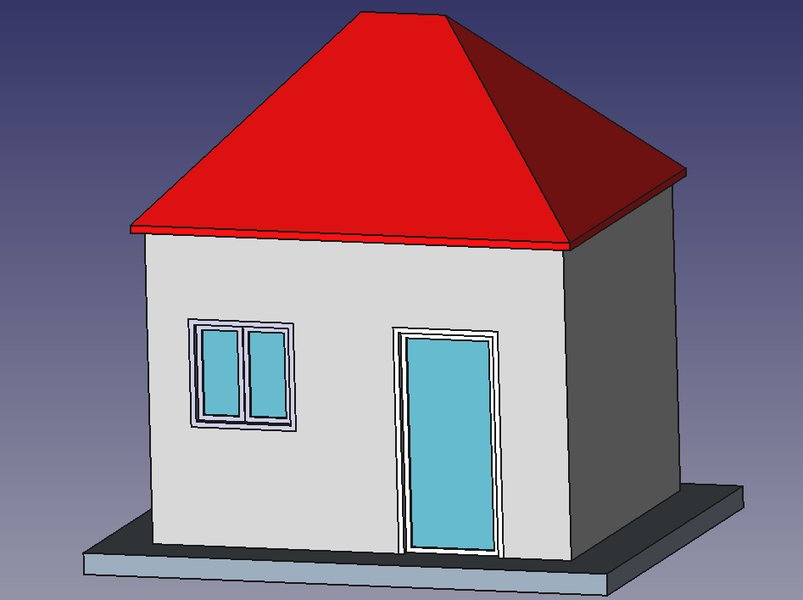

Screenshot of a house model in FreeCAD's BIM workbench, demonstrating its BIM capabilities.

Commercial Software Integrations

Dynamo for Revit

Dynamo is a visual programming environment that integrates tightly with Autodesk Revit, a widely used commercial BIM software. Dynamo allows users to create visual scripts (graphs) to automate tasks and extend Revit's functionality. Python nodes within Dynamo enable you to write more complex scripts and access the Revit API directly.

Many BIM professionals use Dynamo and Python together to streamline tasks in Revit, such as creating and modifying elements, managing data, and generating documentation.

This video demonstrates how to create room plans in Revit using Dynamo, the Revit API, and Python, showcasing a practical application of Python scripting in a commercial BIM environment.

PyRevit

PyRevit is an open-source extension for Revit that provides a framework for developing powerful Python scripts and tools. It simplifies accessing the Revit API with Python (IronPython), making it easier to create custom add-ins and automate workflows directly within Revit.

BricsCAD BIM

BricsCAD BIM is another commercial BIM software that has Python scripting embedded within it. The BIMPYTHON command in BricsCAD BIM allows you to execute Python scripts to query and manage data within your BIM models. This provides a flexible way to automate tasks and extract information from your BricsCAD BIM projects.

You can use Python in BricsCAD BIM for tasks ranging from obtaining quantities of objects to implementing complex calculations based on model parameters.

Structuring Your House Model with Python

Structuring a house as a BIM model using Python involves defining its components, their properties, and their relationships. This goes beyond simple 3D modeling to include the information necessary for the entire building lifecycle.

Defining Building Elements

At the core of a BIM model are the building elements such as walls, slabs, roofs, windows, and doors. When using Python for BIM, you'll programmatically create and define these elements. Each element needs to have its geometric representation and associated data.

Geometric Definition

Python libraries like IfcOpenShell or the APIs of BIM software allow you to define the geometry of building elements. This might involve specifying points, lines, extrusions, or more complex shapes. For example, you can define a wall by its baseline, height, thickness, and material.

Using libraries like CadQuery with Python can also be beneficial for creating complex parametric 3D models that can then be integrated into BIM workflows.

Attaching Information

Beyond geometry, the power of BIM lies in the information attached to each element. Using Python, you can programmatically add and manage this data. This includes:

Material Properties: Assigning materials to elements (e.g., concrete for a foundation, brick for a wall).
Thermal and Structural Properties: Including data relevant for energy analysis or structural calculations.
Cost Data: Linking cost information to components for quantity take-offs and budgeting.
Scheduling Information: Associating elements with construction phases and timelines.

This data can be stored as attributes of the BIM objects or linked through external databases, managed and accessed via Python scripts.

Organizing the Structure

A well-structured BIM model is organized logically to represent the different parts of the building and their hierarchy. Python can assist in creating and managing this structure.

Levels and Stories

Houses are typically organized into levels or stories (e.g., ground floor, first floor, basement). In BIM, these levels define horizontal planes that help organize the model vertically. Python scripts can be used to define these levels and associate elements with the correct story.

In software like FreeCAD, you can organize elements using groups or building parts, which can be managed programmatically with Python.

Zones and Spaces

Rooms and other spaces within the house can be defined as zones or spaces in the BIM model. These spaces have properties like area, volume, and intended use. Python can be used to automatically create these spaces based on the building geometry and assign relevant data.

Systems

BIM models can also include building systems like HVAC, plumbing, and electrical. Python can assist in modeling these systems, defining their components, and establishing connections between them.

Automating Tasks for House Design

Python's strength lies in automation. For house design in BIM, this can include:

Generating Standard Elements: Create scripts to quickly generate common elements like walls with specific properties or standard window types.
Performing Design Checks: Write scripts to check for code compliance, analyze spatial requirements, or identify potential clashes between elements.
Generating Reports: Automatically create schedules of quantities, material lists, or energy performance reports directly from the BIM model data.
Parametric Design: Develop scripts that allow you to easily adjust design parameters (e.g., wall thickness, room dimensions) and automatically update the entire model.

Practical Steps and Considerations

Getting Started

If you're new to using Python for BIM, consider starting with these steps:

Learn the Basics of Python: Familiarize yourself with Python's syntax, data types, and programming concepts. There are many online resources and courses available.
Choose a BIM Software with Python Integration: Select a BIM software that supports Python scripting, such as FreeCAD, Blender with BlenderBIM, Revit with Dynamo/PyRevit, or BricsCAD BIM.
Explore the Software's API: Understand how to access and interact with the BIM model data and functions through the software's Python API or a relevant library like IfcOpenShell.
Start with Simple Scripts: Begin by automating small, repetitive tasks to get comfortable with the workflow.
Utilize Online Resources and Communities: Engage with online forums, tutorials, and communities dedicated to Python in BIM to learn from others and get help.

Structuring Your Python Code

For larger and more complex house models, it's important to structure your Python code effectively:

Use Functions and Classes: Organize your code into reusable functions and classes to represent different building elements or tasks.
Comment Your Code: Add comments to explain your code and make it easier to understand for yourself and others.
Version Control: Use a version control system like Git to track changes to your scripts.

Data Management

Managing the data within your BIM model is crucial. Python can help with:

Data Validation: Write scripts to check the integrity and consistency of the data in your model.
Data Exchange: Use libraries like IfcOpenShell to export and import data in open formats like IFC, facilitating collaboration.
Linking External Data: Connect your BIM model to external databases or spreadsheets to enrich the model with additional information.

Illustrative Example: Automating Wall Creation

Let's consider a simple example of how you might use Python to automate the creation of walls in a BIM model. The specific code will vary depending on the BIM software and API you are using, but the general principle remains the same.

Imagine you have a list of wall segments defined by their start and end points, height, and type. A Python script could iterate through this list and create the corresponding wall objects in your BIM software.

Here's a conceptual Python code snippet:


# This is a conceptual example and requires a specific BIM software API

def create_wall(start_point, end_point, height, wall_type):
    # Code to create a wall object in the BIM software
    # using the provided parameters
    pass

# List of wall definitions (example data structure)
walls_to_create = [
    {"start": (0, 0, 0), "end": (10, 0, 0), "height": 3, "type": "Exterior Wall"},
    {"start": (10, 0, 0), "end": (10, 10, 0), "height": 3, "type": "Exterior Wall"},
    {"start": (0, 0, 0), "end": (0, 10, 0), "height": 3, "type": "Exterior Wall"},
    {"start": (0, 10, 0), "end": (10, 10, 0), "height": 3, "type": "Exterior Wall"},
    {"start": (2, 2, 0), "end": (8, 2, 0), "height": 3, "type": "Interior Wall"}
]

# Iterate through the list and create walls
for wall_data in walls_to_create:
    create_wall(wall_data["start"], wall_data["end"], wall_data["height"], wall_data["type"])

print("Walls created successfully!")

This simple example demonstrates how Python can be used to automate the repetitive task of creating multiple building elements based on a structured input.

Advantages of Python for House BIM

Leveraging Python for your house BIM projects offers numerous benefits:

Increased Efficiency and Automation

Automating repetitive and time-consuming tasks like element creation, data entry, and report generation significantly speeds up the modeling process.

Enhanced Accuracy and Consistency

Programmatic creation and modification of elements reduce the risk of human error, leading to more accurate and consistent models.

Improved Data Management and Analysis

Python makes it easier to access, manage, and analyze the rich data embedded in BIM models, leading to better insights and informed decisions.

Here is a table summarizing some of the key benefits:

Benefit Category	Specific Advantages with Python
Efficiency	Task automation, reduced manual effort, faster modeling
Accuracy	Reduced human error, consistent data entry
Data Handling	Programmatic access, analysis, reporting, external data linking
Customization	Tailored workflows, custom tool development
Collaboration	Improved data exchange, clearer communication through visualizations

Greater Customization and Flexibility

Develop custom tools and workflows tailored to your specific design preferences and project requirements that may not be available in standard BIM software features.

Seamless Integration

Integrate your BIM workflow with other tools and systems used in the AEC industry, such as analysis software or project management platforms.

Advanced Visualization

Python can be used to create advanced visualizations of BIM data, which can improve communication and collaboration among project stakeholders.

Example of BIM for interior design
An example showcasing the detailed visualizations possible with BIM, which can be further enhanced with Python.

Challenges and Considerations

While the benefits are significant, there are also challenges to consider when using Python for BIM:

Learning Curve: Learning Python and the specific API of your chosen BIM software requires an investment of time and effort.
Debugging: Identifying and fixing errors in Python scripts can be challenging, especially for complex workflows.
Maintenance: Scripts may need to be updated when BIM software versions or APIs change.
Collaboration with Non-Programmers: Sharing and collaborating on Python-based workflows with team members who do not have programming experience can require careful planning and documentation.

FAQ

Can I design an entire house using only Python and no BIM software?

While you can use Python with libraries like CadQuery to create complex 3D geometric models, a full BIM model includes much more than just geometry (data, relationships, systems). You will typically use Python in conjunction with BIM software or libraries like IfcOpenShell to create a true BIM representation.

Do I need to be an expert programmer to use Python for BIM?

No, you don't need to be an expert. Starting with basic Python knowledge and focusing on the specific API of your BIM software or relevant libraries is a good approach. Many online resources cater to beginners.

Which BIM software is best for Python scripting?

Several BIM software options offer Python integration, each with its strengths. Revit with Dynamo and PyRevit is popular in the commercial space. FreeCAD and BlenderBIM are excellent open-source alternatives with strong Python support. BricsCAD BIM also provides embedded Python scripting.

What kind of tasks can I automate with Python in house BIM?

You can automate a wide range of tasks, including creating and modifying elements, assigning properties, generating reports, performing checks, and integrating with other software.

Is it possible to create parametric house designs with Python?

Yes, Python is well-suited for creating parametric designs. You can define relationships and rules in your scripts that allow you to easily adjust design parameters and automatically update the entire model.
