Understanding Misconceptions in Superposition in Electrical Circuit Analysis
Debunking Common Myths for Accurate Circuit Analysis
Key Takeaways
- Superposition is only valid for linear circuits. Attempting to apply it to non-linear circuits leads to inaccurate results.
- Dependent sources must remain active during superposition analysis. They cannot be turned off like independent sources.
- Superposition cannot be used to calculate power. It is applicable solely to voltages and currents.

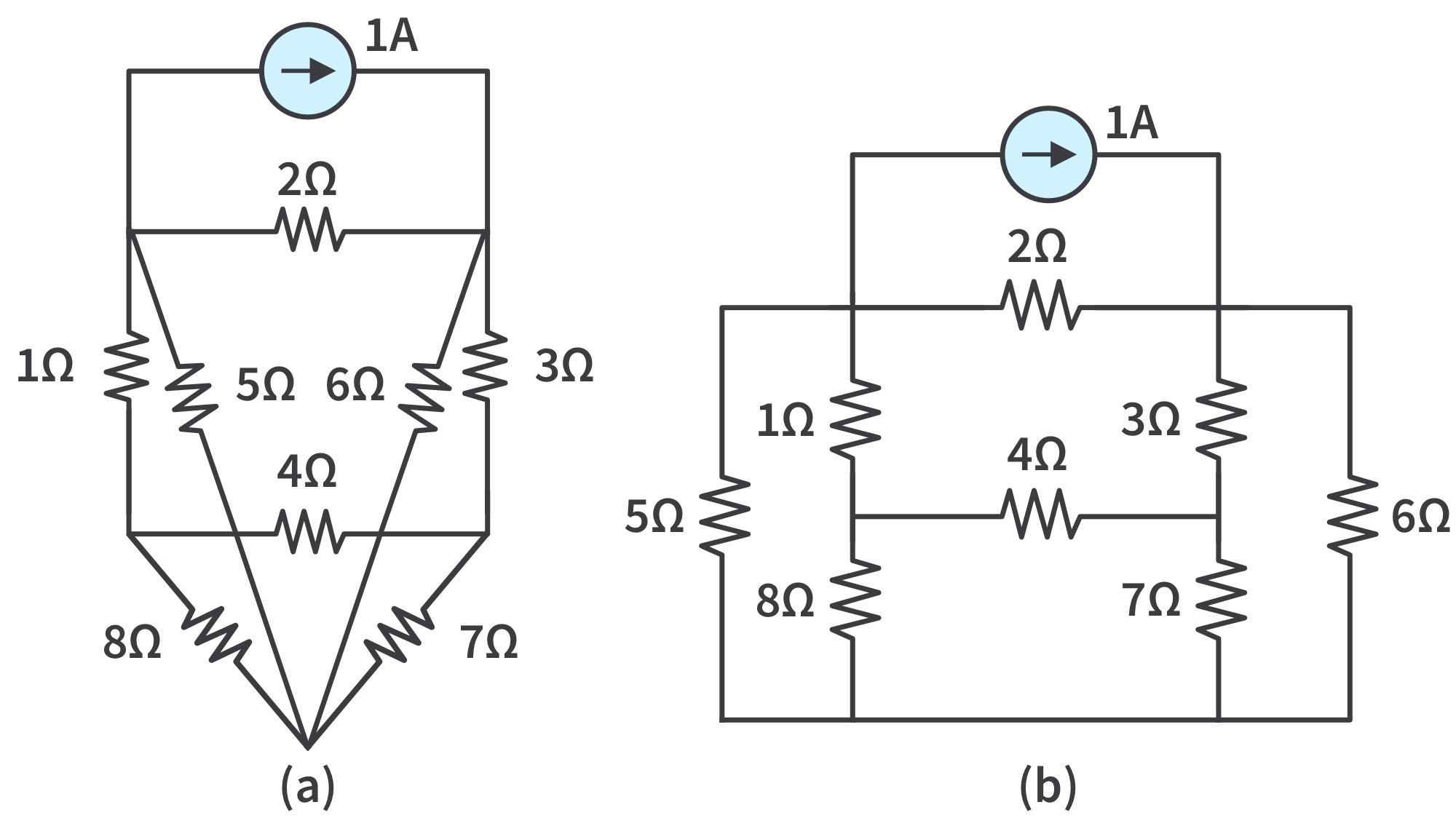

Introduction to Superposition Theorem
The Superposition Theorem is a pivotal principle in electrical circuit analysis, enabling the determination of the voltage and current in a complex circuit by considering each independent source separately. This method simplifies the analysis by breaking down the circuit into manageable parts. However, several misconceptions surround its application, leading to errors and misunderstandings. This comprehensive guide aims to clarify these misconceptions, ensuring accurate and effective use of the Superposition Theorem in circuit analysis.
Common Misconceptions in Superposition Theorem
1. Applicability to Non-Linear Circuits
A prevalent misunderstanding is the belief that the Superposition Theorem can be applied to non-linear circuits. Non-linear elements, such as diodes, transistors, and other semiconductor devices, do not adhere to the linear relationship between voltage and current. The Superposition Theorem strictly applies to linear circuits where the principle of linearity (scaling and additivity) holds true.
Why Superposition Fails in Non-Linear Circuits
In non-linear circuits, the response (voltage or current) is not directly proportional to the input. For instance, in diodes, the current through the device does not increase linearly with voltage. As a result, when multiple sources are present, their individual effects cannot be simply added to determine the total response. The non-linear interactions between elements distort the outcomes, rendering the Superposition Theorem ineffective.
Practical Implications
Engineers must identify non-linear components within a circuit and avoid applying superposition directly. Alternative methods, such as piecewise linear analysis or numerical techniques, are required to handle non-linear elements effectively.
2. Handling of Dependent Sources
Another significant misconception pertains to the treatment of dependent sources during superposition analysis. Dependent sources, unlike independent sources, rely on circuit variables such as voltage or current elsewhere in the circuit. The erroneous belief is that they can be turned off (replaced with an open or short circuit) like independent sources.
Correct Treatment of Dependent Sources
Dependent sources must remain active during superposition analysis. When analyzing the effect of one independent source, all other independent sources are turned off, but dependent sources stay on because their operation depends on current or voltage in the circuit. This ensures that the dependent sources continue to respond accurately to the active independent source.
Impact on Circuit Analysis
Failing to keep dependent sources active leads to incomplete or incorrect analysis, as the dependent sources play a crucial role in determining the overall behavior of the circuit. Properly handling dependent sources preserves the integrity of the superposition method.
3. Simultaneous Activation of Sources
A common misunderstanding is that the Superposition Theorem requires all sources to be active simultaneously during analysis. In reality, the theorem’s principle revolves around the individual consideration of each source while deactivating the others.
Superposition Principle Explained
Superposition involves analyzing the effect of each independent source separately by turning off all other independent sources. For voltage sources, this means replacing them with a short circuit, and for current sources, an open circuit. After determining the individual contributions, the total effect is found by algebraically summing these contributions.
Benefits of Individual Source Analysis
This approach simplifies the complex interaction between multiple sources, making it easier to calculate voltages and currents accurately. It isolates the impact of each source, ensuring that their combined effect is correctly represented in the final analysis.
4. Misconception About Circuit Simplification
Some believe that using the Superposition Theorem simplifies circuit analysis to the extent that a deep understanding of the circuit’s overall behavior is unnecessary. This misconception overlooks the necessity of a comprehensive understanding to apply the theorem correctly and interpret the results effectively.
Importance of Circuit Comprehension
While Superposition breaks down the problem into manageable parts, it does not replace the need to understand the circuit’s topology and the interplay between its elements. Analysts must grasp how different components interact and influence each other to apply superposition accurately and to synthesize the results meaningfully.
Ensuring Accurate Analysis
A thorough understanding aids in identifying which sources to analyze, determining the correct method to deactivate sources, and accurately summing individual contributions. Without this comprehension, the application of superposition may lead to errors and misinterpretations.
5. Limitation in Certain Configurations
Superposition fails in specific circuit configurations, particularly where ideal voltage sources are connected in parallel but with differing voltages. This setup creates a contradiction, making superposition inapplicable.
Understanding the Failure Point
When ideal voltage sources with different voltages are connected in parallel, it leads to an impossible scenario where the same node cannot have different voltages simultaneously. Superposition cannot resolve this contradiction, resulting in failure to analyze the circuit using this method.
Avoiding Analytical Pitfalls
Engineers must recognize such configurations and either avoid using superposition or first modify the circuit (e.g., by introducing resistance or replacing one of the voltage sources with an equivalent circuit) to make it amenable to superposition analysis.
6. Misinterpretation of Power Calculations
A critical misconception is the attempt to apply superposition directly to power calculations. Superposition is intended for voltage and current analysis, not for calculating power, as power is a non-linear quantity (P = V²/R).
Understanding the Limits of Superposition in Power Calculations
Since power depends on the square of voltage or current, the superimposed effects do not translate linearly. Adding the powers from individual analyses does not yield the correct total power. Instead, superposition should be used to determine the total voltage or current first, and then power should be calculated based on these aggregated values.
Correct Approach for Power Analysis
To accurately calculate power in a circuit involving multiple sources, first apply superposition to determine the total voltage across or current through the component of interest. Subsequently, use the appropriate power formula to compute the power based on these total values.
7. Overlooking Frequency Domain Considerations in AC Circuits
In the realm of AC circuits, another misconception is neglecting the phase and frequency differences between sources when applying superposition. Superposition is only straightforwardly applicable when sources share the same frequency or when their phasor forms can be appropriately combined.
Superposition in AC Circuits
When dealing with multiple AC sources of different frequencies, superposition cannot be directly applied unless the analysis is performed separately for each frequency component. This is because the responses to different frequencies interfere based on their phase relationships, complicating the additive process required by superposition.
Proper Techniques for AC Analysis
For AC circuits with multiple frequencies, techniques such as Fourier analysis or complex impedance methods are necessary. These methods allow for the decomposition of signals into their frequency components, enabling accurate application of superposition in the frequency domain.
8. Incorrect Source Deactivation Methods
Improperly deactivating sources when applying superposition is a frequent error. The correct methodology involves replacing voltage sources with short circuits and current sources with open circuits. Misapplying these deactivation techniques can lead to significant inaccuracies in analysis.
Correct Deactivation Procedures
-
Voltage Sources: Replace with a short circuit (i.e., connect the two terminals directly).
-
Current Sources: Replace with an open circuit (i.e., disconnect the terminals).
Consequences of Incorrect Deactivation
Incorrectly deactivating sources, such as shorting a current source or opening a voltage source, alters the circuit’s topology in unintended ways. This misapplication leads to erroneous voltage and current values, compromising the integrity of the analysis.
9. Misconception About Linearly Separable Effects
Another misunderstanding is the assumption that all circuit behaviors are linearly separable, even in the presence of non-linear phenomena like saturation or threshold effects. Superposition relies on linearity, so any non-linear interactions invalidate its application.
Recognizing Linear vs. Non-Linear Responses
In circuits exhibiting linear behavior, the effects of multiple sources can be separated and individually analyzed. However, in circuits where components behave non-linearly, such as after reaching saturation, the overall response cannot be simply decomposed into individual contributions.
Implications for Circuit Design and Analysis
Engineers must identify regions where components operate linearly and restrict the use of superposition within those regions. In areas of non-linearity, alternative analysis methods must be employed to accurately predict circuit behavior.
10. Measurement and Source Assumptions
Practitioners often overlook that the Superposition Theorem assumes ideal sources with no internal resistance and perfect independence. In real-world scenarios, sources have internal resistances, and measurement devices have finite input impedances, which can affect the analysis.
Understanding Ideal vs. Real Sources
Ideal voltage and current sources are theoretical constructs with perfect properties: voltage sources have zero internal resistance, and current sources have infinite internal resistance. Real sources deviate from these ideal behaviors, introducing additional complexities into the circuit.
Impact on Analysis Accuracy
Ignoring the non-ideal characteristics of sources can lead to discrepancies between theoretical predictions and actual circuit behavior. To enhance accuracy, models should incorporate realistic source parameters, and measurements should account for the influence of internal resistances and loading effects.
Addressing and Correcting Misconceptions
Educational Approaches
To mitigate these misconceptions, educators and practitioners should employ problem-based learning strategies that emphasize the foundational assumptions and limitations of the Superposition Theorem. Practical examples illustrating both correct and incorrect applications can reinforce understanding and highlight common pitfalls.
Problem-Based Learning
By presenting specific circuit scenarios that challenge the boundaries of superposition, learners can develop a nuanced appreciation of when and how to apply the theorem effectively. This approach fosters critical thinking and adaptability in complex circuit analysis.
Emphasis on Foundational Principles
Reinforcing the linearity requirement, proper source deactivation methods, and the handling of dependent sources ensures that learners grasp the core principles governing the Superposition Theorem. This foundational knowledge is essential for accurate and reliable circuit analysis.
Practical Tips for Accurate Superposition Analysis
1. Verify Linearity of the Circuit
Before applying superposition, ensure that all circuit elements exhibit linear behavior. Identify and isolate non-linear components to prevent erroneous analysis. If non-linear elements are present, consider alternative analytical methods or linearize the circuit around the operating point.
2. Correctly Deactivate Independent Sources
When analyzing each independent source, carefully replace voltage sources with short circuits and current sources with open circuits. Double-check the circuit configuration after deactivation to maintain accurate topology.
3. Maintain Dependent Sources
Ensure that dependent sources remain active during superposition analysis. Their values depend on circuit variables, and turning them off disrupts the relationship between circuit elements, leading to inaccurate results.
4. Analyze Voltages and Currents, Not Power
Use superposition solely for determining voltages and currents within the circuit. After obtaining the total voltage or current, calculate power using appropriate formulas. Avoid attempting to superimpose power contributions directly.
5. Consider Frequency Implications in AC Circuits
In AC analysis, account for phase and frequency differences between sources. Utilize techniques like phasor addition and complex impedance to handle multiple frequency components accurately.
6. Validate Results with Alternative Methods
Cross-check superposition results with other analysis methods, such as nodal or mesh analysis, to ensure consistency and accuracy. This practice helps identify and rectify any discrepancies arising from incorrect superposition application.
Comprehensive Example Illustrating Common Misconceptions
Consider a circuit containing both independent and dependent sources, along with a mixture of linear and non-linear elements. Applying the Superposition Theorem requires a meticulous approach to avoid the pitfalls discussed:
| Step | Action | Explanation |
|---|---|---|
| 1 | Identify Linear and Non-Linear Components | Ensure all active elements obey linear relationships. Isolate or remove non-linear components if possible. |
| 2 | Analyze Each Independent Source Individually | Deactivate all other independent sources while keeping dependent sources active. |
| 3 | Calculate Individual Voltages and Currents | Use appropriate analysis techniques for each source, considering the presence of dependent sources. |
| 4 | Sum the Individual Contributions | Algebraically add the voltages and currents from each individual analysis to obtain total values. |
| 5 | Validate Results | Cross-check with alternative methods to ensure accuracy. |
This structured approach helps navigate the complexities of circuits with mixed element types, ensuring that superposition is applied correctly and effectively.
Advanced Considerations
Frequency Domain Analysis in Superposition
When dealing with AC circuits, superposition must account for the frequency components of each source. Utilizing phasor representation and complex impedance allows for the accurate analysis of circuits with multiple AC sources operating at different frequencies.
Phasor Representation
Phasors convert time-domain sinusoidal functions into the frequency domain, simplifying the addition of multiple AC sources. This representation facilitates the application of superposition by allowing the separate analysis of each frequency component.
Complex Impedance
Impedance extends the concept of resistance to AC circuits, incorporating both magnitude and phase. Understanding and applying complex impedance is crucial for accurately summing the effects of multiple AC sources through superposition.
Non-Ideal Sources and Real-World Applications
In practical circuits, sources are rarely ideal. Incorporating the internal resistances of sources into analysis is essential for realistic and accurate results. This consideration ensures that the superposition method reflects actual circuit behavior.
Modeling Real Sources
Model each source with its internal resistance: voltage sources with series resistance and current sources with parallel resistance. This modeling allows for the accurate application of superposition by accounting for real-world source characteristics.
Impact on Analysis
Including internal resistances affects how sources influence the circuit, altering voltage and current distributions. Accurate modeling is critical for ensuring that the superposition method yields valid results reflective of actual conditions.
Conclusion
The Superposition Theorem is a powerful tool in electrical circuit analysis, offering a systematic approach to decompose complex circuits into simpler, manageable parts. However, its effective application hinges on a clear understanding of its limitations and proper handling of various circuit elements. Misconceptions, such as applying it to non-linear circuits, improperly deactivating sources, or attempting power calculations, can lead to significant inaccuracies and flawed analyses.
By adhering to the fundamental principles governing superposition—ensuring linearity, correctly managing dependent sources, and focusing on voltages and currents—engineers and students can leverage this theorem to simplify and solve intricate circuit problems accurately. Furthermore, recognizing and addressing common misconceptions enhances the reliability of circuit analysis, fostering a deeper comprehension of electrical systems and their behaviors.
