Comprehensive Overview of Patents on Surface Modification of Cellulose Nanocrystals for Composite Development
Innovative Strategies Enhancing Compatibility and Performance in Advanced Composites
Key Takeaways
- Diverse Modification Techniques: Patents employ various methods like chemical functionalization, polymer grafting, and surface coating to enhance CNC compatibility with different matrices.
- Enhanced Composite Properties: Surface-modified CNCs significantly improve mechanical strength, thermal stability, and dispersion within polymer matrices.
- Broad Application Spectrum: Modified CNCs are utilized across multiple industries, including automotive, electronics, packaging, and biomedical fields.
Introduction to Surface Modification of Cellulose Nanocrystals
Cellulose nanocrystals (CNCs) are derived from natural cellulose and have garnered significant interest due to their exceptional mechanical properties, biodegradability, and renewability. However, the inherent hydrophilicity of CNCs often limits their compatibility with hydrophobic polymer matrices used in composite materials. To address this challenge, extensive research and development have focused on the surface modification of CNCs to enhance their dispersibility, interfacial adhesion, and overall performance in composite applications. This comprehensive overview synthesizes information from various patents to elucidate the current landscape of CNC surface modification techniques aimed at composite development.
Common Approaches in Surface Modification
1. Chemical Functionalization
Chemical functionalization involves modifying the hydroxyl groups present on the surface of CNCs to introduce new functional groups that can interact more effectively with polymer matrices. Common functionalization methods include:
a. Esterification and Etherification
Esterification reacts CNC hydroxyl groups with acid chlorides or anhydrides, while etherification involves introducing ether groups. These modifications can increase hydrophobicity, enhancing compatibility with nonpolar polymers.
b. Silylation
Silylation introduces silane groups onto CNC surfaces, improving adhesion with inorganic matrices and enhancing thermal stability. This method is particularly effective in epoxy resin systems.
c. Acylation and Carboxylation
Acylation introduces acyl groups, while carboxylation adds carboxyl groups to CNC surfaces. These modifications can improve reactivity and facilitate better bonding with polymer matrices.
2. Grafting of Polymers
Grafting polymer chains onto CNC surfaces can significantly enhance their compatibility with various polymer matrices. This approach includes:
a. "Grafting From" and "Grafting Onto" Techniques
- "Grafting From": Polymer chains are grown directly from the CNC surface using controlled radical polymerization methods such as ATRP (Atom Transfer Radical Polymerization) or RAFT (Reversible Addition-Fragmentation Chain Transfer).
- "Grafting Onto": Pre-formed polymer chains are attached to CNC surfaces through reactive end groups, facilitating better dispersion within the polymer matrix.
3. Use of Coupling Agents
Coupling agents like silanes and titanates are employed to enhance interfacial adhesion between CNCs and nonpolar or hydrophobic polymer matrices. These agents form strong chemical bonds, improving the mechanical properties of the resulting composites.
4. Surface Coating and Layer-by-Layer Assembly
Surface coating involves depositing thin layers of materials onto CNC surfaces to impart additional functionalities such as improved thermal stability or UV resistance. Layer-by-layer assembly can create multilayered coatings that enhance dispersion and compatibility with polymer matrices.
Representative Patents and Their Key Features
1. Hydrophobic Surface Modifications
Several patents focus on making CNCs hydrophobic to improve their dispersion in nonpolar solvents and polymer matrices:
a. US20150368367A1 & CA2895292A1
These patents describe methods for surface modification of CNCs to render them dispersible in nonpolar solvents. Techniques include the use of hydrophobic agents like octadecylamine and tannic acid, facilitating the development of CNC-reinforced nanocomposites with enhanced water-resistant properties.
b. US9815910
This patent outlines the hydrophobic modification of CNCs through the grafting of hydrocarbons onto polyphenol-coated CNCs. The modified CNCs exhibit improved dispersion in organic solvents, making them suitable for nanocomposite applications that require non-aqueous formulations.
2. Polymer Grafting Techniques
Grafting polymers onto CNC surfaces enhances their compatibility with various polymer matrices:
a. US2019/0302347 A1
This patent details methods for grafting polymer chains onto CNC surfaces using controlled radical polymerization. The resultant CNCs demonstrate improved dispersion within the polymer matrix and enhanced mechanical performance of the composite materials.
b. WO2014070092A1
This international patent describes the grafting of amine and thiol-terminated hydrocarbons onto CNC surfaces, facilitating better integration with thermoplastic polymers such as polypropylene and polyethylene.
3. Use of Coupling Agents
Coupling agents are employed to strengthen the bond between CNCs and polymer matrices:
a. US2015/0283138 A1
This patent involves the modification of CNC surfaces with silane coupling agents to enhance compatibility with epoxy resins. The modified CNCs exhibit superior interfacial adhesion, resulting in composites with improved mechanical properties.
b. European Patents
European filings often emphasize environmentally friendly coupling agents, targeting composites that require both high performance and sustainability. These patents explore the use of green catalysts and bio-based agents to modify CNC surfaces.
4. Redispersible Cellulose Nanocrystals
Redispersible CNCs maintain their dispersibility in various solvents, enhancing their versatility in composite applications:
a. Redispersible CNCs by Suzano
Suzano’s patented process involves forming non-covalent ionic adducts with protonated amine compounds and titrable acidic groups on CNC surfaces. This modification allows CNCs to disperse in both polar and non-polar solvents, broadening their applicability in different composite systems.
5. Surface-Modified Nanocrystalline Cellulose by CelluForce
CelluForce has developed proprietary surface modification techniques for CNCs, tailored for industrial applications. While specific methods are proprietary, the focus remains on enhancing CNC performance in composites through improved dispersion and interfacial bonding.
Benefits of Surface-Modified CNCs in Composites
1. Enhanced Dispersion
Surface modification techniques significantly reduce the tendency of CNCs to agglomerate, ensuring a more uniform distribution within the polymer matrix. This uniform dispersion is critical in achieving consistent mechanical properties and preventing weak points in the composite material.
2. Improved Interfacial Adhesion
Modifying the surface chemistry of CNCs enhances their compatibility with various polymer matrices, leading to stronger interfacial bonds. Improved adhesion between CNCs and the matrix translates to better load transfer, resulting in composites with higher strength and durability.
3. Tailor-Made Functionalities
By selecting appropriate modifying agents, the properties of CNCs can be tailored to meet specific requirements. For instance, introducing hydrophobic groups can enhance water resistance, while incorporating reactive groups can facilitate cross-linking within the matrix, improving thermal and mechanical properties.
4. Broader Processing Windows
Surface-modified CNCs are more adaptable to standard composite manufacturing processes such as extrusion and injection molding. Enhanced dispersibility and compatibility allow for easier processing, reducing the need for specialized equipment or conditions.
Emerging Applications of Surface-Modified CNCs
The advancements in CNC surface modification are paving the way for their utilization in a wide array of applications:
1. Automotive Industry
Enhanced composites with modified CNCs are increasingly used in automotive components, offering lightweight and high-strength alternatives to traditional materials, contributing to fuel efficiency and reduced emissions.
2. Electronics and Packaging
CNC-reinforced composites provide improved barrier properties and mechanical strength, making them suitable for advanced packaging solutions and electronic device components.

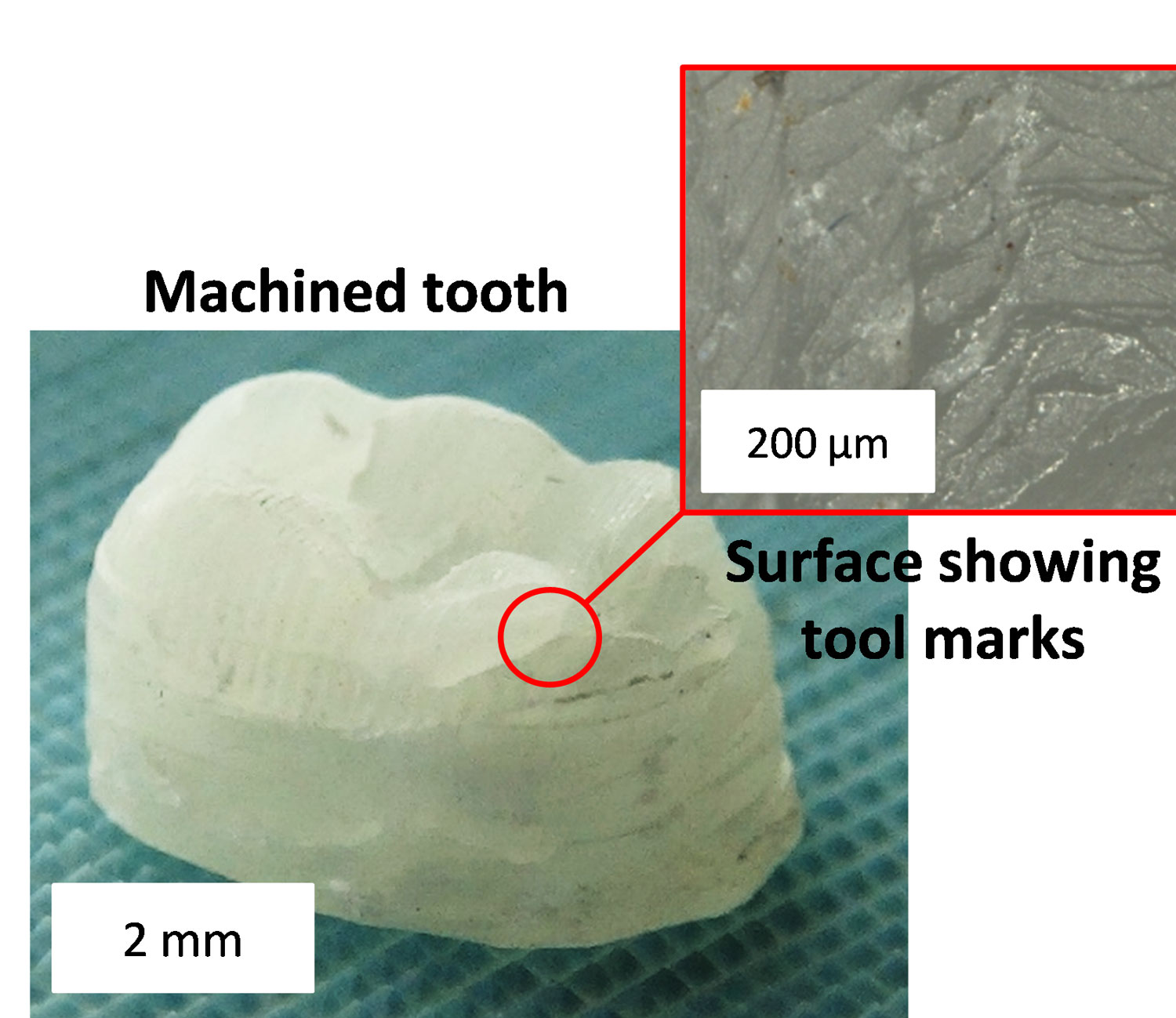

3. Biomedical and Pharmaceutical Fields
Surface-modified CNCs are explored for use in biomedical devices and pharmaceutical formulations, where their biocompatibility and tailored surface functionalities can be leveraged for specialized applications.
4. Construction and Building Materials
Incorporating modified CNCs into construction materials enhances their mechanical properties and durability, leading to more resilient and sustainable building solutions.
Comparative Analysis of Patented Surface Modification Techniques
| Patent Number | Modification Technique | Key Features | Applications |
|---|---|---|---|
| CA2895292A1 | Hydrophobic Modification | Use of hydrophobic agents for dispersion in nonpolar solvents | Nanocomposites, non-aqueous formulations |
| US20150368367A1 | Silanization | Surface modification with silane coupling agents | Epoxy resin systems, enhanced mechanical properties |
| US20150152197 | Chitosan Oligosaccharide Modification | Creation of NCC carriers for specific chemical compounds | Tailored composites, specialized applications |
| US9815910 | Hydrophobic Coating | Grafting tannic acid and octadecylamine onto CNCs | Water-resistant composites, organic solvent dispersion |
| WO2014070092A1 | Polymer Grafting | Amine and thiol-terminated hydrocarbon grafting | Thermoplastic polymer integration, enhanced dispersion |
Research and Development Considerations
1. Patent Search Strategies
Conducting a comprehensive patent search is essential for staying abreast of the latest developments. Utilizing databases such as Google Patents, USPTO, Espacenet, and WIPO’s PATENTSCOPE with keywords like "cellulose nanocrystals," "surface modification," "composites," "silanization," and "grafting" can yield relevant results.
2. Analyzing Filing Dates and Citations
Given the rapid advancements in CNC research, newer patents may incorporate more sophisticated techniques and environmentally sustainable methods. Evaluating filing dates and citation metrics can help identify groundbreaking innovations and emerging trends.
3. Jurisdictional Considerations
Patent rights are region-specific. Technologies patented in one jurisdiction may not be protected in others, affecting both commercial ventures and research collaborations. Navigating these differences is crucial for global applications and commercialization strategies.
4. Environmental and Sustainability Factors
With increasing emphasis on sustainability, patents exploring eco-friendly surface modification methods using green catalysts and bio-based agents are gaining prominence. Balancing high-performance metrics with environmental considerations is becoming a key focus area.
Challenges and Future Directions
1. Balancing Hydrophilicity and Hydrophobicity
While increasing hydrophobicity enhances compatibility with nonpolar polymers, it is often essential to maintain some degree of hydrophilicity for applications requiring moisture interaction. Achieving this balance through controlled surface modification is a significant challenge.
2. Scalability of Modification Processes
Many surface modification techniques are developed at the laboratory scale. Scaling these processes for industrial applications without compromising the efficiency and properties of CNCs remains a critical hurdle.
3. Cost-Effectiveness
Advanced modification techniques can be costly. Developing cost-effective methods that do not sacrifice the performance of CNCs is essential for widespread commercial adoption.
4. Multi-Functional Modifications
Future research is likely to focus on multi-functional surface modifications that can impart several desirable properties simultaneously, such as enhanced mechanical strength, thermal stability, and barrier properties, thereby broadening the application scope of CNC-reinforced composites.
Conclusion
The surface modification of cellulose nanocrystals is pivotal in advancing composite materials, enabling enhanced performance, and expanding their application range across various industries. Patented technologies highlight a diverse array of modification techniques, including chemical functionalization, polymer grafting, and the use of coupling agents, each contributing to improved compatibility and mechanical properties of composites. As research continues to evolve, the focus on sustainable and scalable modification methods promises to further integrate CNCs into mainstream composite manufacturing, fostering innovations that align with both performance and environmental sustainability goals.
