Synchronizing Circuit Breakers Across Multiple API Instances

Ensuring Consistent and Resilient API Behavior in Distributed Systems

Key Takeaways

Centralized State Management: Utilize shared services like Redis or ZooKeeper to maintain a unified circuit breaker state across all API instances.
Event-Driven Synchronization: Implement message brokers such as Kafka or RabbitMQ to broadcast state changes, ensuring all instances receive updates in real-time.
Service Mesh Integration: Leverage service meshes like Istio or Linkerd to handle circuit breaker policies at the infrastructure level, promoting consistency and reducing complexity.

Understanding the Challenge

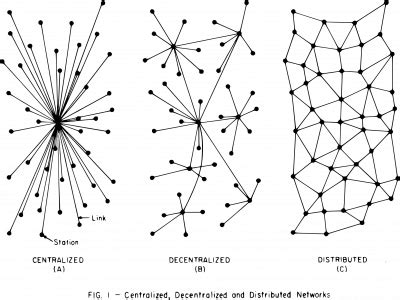

In a distributed system architecture, multiple instances of an API service operate concurrently to handle requests. Implementing the circuit breaker pattern at the individual instance level can lead to synchronization issues. Specifically, when a downstream service becomes unavailable, one API instance might trip its circuit breaker (opening it), while other instances continue to operate normally (with closed circuit breakers). This inconsistency can result in unpredictable behavior, increased failure rates, and degraded user experience.

Centralized State Management

Leveraging Distributed Caches and Configuration Stores

Centralized state management involves maintaining the state of the circuit breaker in a single, shared location accessible by all API instances. This ensures that when one instance changes the circuit breaker state, all other instances are immediately aware of this change.

Implementing with Redis

Redis, an in-memory data structure store, is a popular choice for centralized state management due to its speed and support for various data types. By storing the circuit breaker state in Redis, all API instances can query and update the state consistently.

import redis
import time

class CircuitBreaker:
    def __init__(self, service_name, redis_client, failure_threshold=3, cooldown_period=30):
        self.service_name = service_name
        self.redis_client = redis_client
        self.failure_threshold = failure_threshold
        self.cooldown_period = cooldown_period

    def is_open(self):
        state = self.redis_client.get(f"circuit_breaker:{self.service_name}:state")
        return state == b"open"

    def record_failure(self):
        failure_count = self.redis_client.incr(f"circuit_breaker:{self.service_name}:failure_count")
        if failure_count >= self.failure_threshold:
            self.redis_client.set(f"circuit_breaker:{self.service_name}:state", "open")
            self.redis_client.expire(f"circuit_breaker:{self.service_name}:state", self.cooldown_period)

    def record_success(self):
        self.redis_client.set(f"circuit_breaker:{self.service_name}:state", "closed")
        self.redis_client.delete(f"circuit_breaker:{self.service_name}:failure_count")

Advantages and Disadvantages

Advantages	Disadvantages
Simplifies state management by having a single source of truth. Ensures all instances respond uniformly to downstream service availability. Reduces the likelihood of cascading failures.	Potential latency added due to centralized state queries. Reliance on the availability and performance of the central state store. Scalability concerns if the centralized store becomes a bottleneck.

Event-Driven Synchronization

Broadcasting State Changes with Message Brokers

Event-driven synchronization involves using message brokers to propagate circuit breaker state changes across all API instances. When one instance alters the circuit breaker state, it publishes an event that other instances subscribe to, ensuring real-time updates and synchronization.

Implementing with Kafka

Apache Kafka is a highly scalable and reliable message broker that can handle large volumes of events with low latency. By publishing state change events to a Kafka topic, all API instances can subscribe and update their local circuit breaker states accordingly.

// Java example using Kafka for event-driven synchronization
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;

public class CircuitBreakerSynchronizer {
    private KafkaConsumer<String, String> consumer;

    public CircuitBreakerSynchronizer() {
        // Initialize Kafka consumer
        // Subscribe to the circuit breaker state changes topic
    }

    public void listenForStateChanges() {
        while (true) {
            ConsumerRecords<String, String> records = consumer.poll(Duration.ofMillis(100));
            for (ConsumerRecord<String, String> record : records) {
                // Update local circuit breaker state based on the event
            }
        }
    }
}

Advantages and Disadvantages

Advantages	Disadvantages
Facilitates real-time synchronization across instances. Decouples state management from a centralized store, enhancing scalability. Allows for flexible and extensible integration with various services.	Increases system complexity due to the addition of message brokers. Requires robust handling of message delivery guarantees to prevent state inconsistencies. Potential delays in event propagation can lead to temporary synchronization gaps.

Hybrid Approaches

Combining Centralized and Event-Driven Methods

Hybrid approaches leverage the strengths of both centralized state management and event-driven synchronization. For instance, using a centralized cache for immediate state access while also broadcasting state changes ensures redundancy and enhanced reliability.

Periodic Synchronization with Central Authority

Each API instance maintains its local circuit breaker state but periodically reconciles it with a central authority. This method ensures that even if event-driven synchronization experiences delays, the centralized state periodically corrects any inconsistencies.

Configuration Management Integration

Integrating configuration management tools like etcd or Consul allows dynamic updates to circuit breaker configurations. Instances can listen for configuration changes and adjust their behavior accordingly, maintaining consistency across the system.

Advantages and Disadvantages

Advantages	Disadvantages
Enhances reliability by combining multiple synchronization mechanisms. Reduces the risk of complete synchronization failure by having fallback methods. Provides flexibility to adjust synchronization strategies based on system needs.	Increases implementation complexity by combining multiple systems. Requires careful coordination to avoid conflicts between synchronization methods. May introduce additional latency due to multiple layers of synchronization.

Service Mesh Integration

Utilizing Infrastructure-Level Circuit Breaker Policies

Service meshes abstract and manage communication between services at the infrastructure layer. By integrating a service mesh like Istio or Linkerd, circuit breaker policies can be enforced uniformly across all service instances without modifying application code.

Implementing with Istio

Istio provides robust networking features, including circuit breaker capabilities. By defining circuit breaker rules in Istio's configuration, all ingress and egress traffic for a service adheres to these policies, ensuring consistent behavior across all instances.

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: downstream-service
spec:
  host: downstream-service.namespace.svc.cluster.local
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 100
      http:
        http1MaxPendingRequests: 100
        maxRequestsPerConnection: 1000
    outlierDetection:
      consecutive5xxErrors: 1
      interval: 1s
      baseEjectionTime: 30s
      maxEjectionPercent: 100

Advantages and Disadvantages

Advantages	Disadvantages
Centralizes circuit breaker management, reducing the need for application-level implementations. Provides uniform policies across all service instances. Enhances observability with integrated metrics and tracing.	Requires adoption and configuration of a service mesh, which can introduce operational overhead. May add additional latency due to proxying of traffic through the service mesh. Increases complexity, particularly in larger or legacy systems.

Comparative Analysis of Synchronization Strategies

Evaluating Centralized, Event-Driven, and Service Mesh Approaches

Strategy	Advantages	Disadvantages	Best For
Centralized State Management	Single source of truth Easy to implement with existing tools like Redis Consistent state across all instances	Potential latency issues Central point of failure Scalability concerns	Small to medium-sized systems requiring straightforward implementation.
Event-Driven Synchronization	Real-time updates Scalable and decoupled architecture Flexible integration with multiple services	Increased system complexity Requires reliable message delivery Potential for eventual consistency	Large-scale systems needing high scalability and real-time synchronization.
Service Mesh Integration	Infrastructure-level management Uniform policies without code changes Enhanced observability and security	Operational overhead Potential latency from proxies Steep learning curve	Enterprises seeking comprehensive infrastructure management and advanced networking features.

Best Practices for Implementing Synchronized Circuit Breakers

Ensuring Robustness and Reliability

1. Implement Robust Monitoring and Alerting

Utilize monitoring tools like Prometheus and Grafana to track circuit breaker states and transitions. Set up alerts to notify the operations team when circuit breakers open or remain open for extended periods, enabling proactive responses to system issues.

2. Fine-Tune Circuit Breaker Parameters

Adjust failure thresholds, cooldown periods, and retry intervals based on the specific characteristics and traffic patterns of your services. Dynamic adjustments can help minimize false positives and ensure the circuit breaker responds appropriately to real failures.

3. Ensure Idempotent Operations

Design your services to handle repeated requests safely. Idempotent operations prevent unintended side effects when requests are retried after a circuit breaker closes, enhancing system stability.

4. Graceful Degradation

Implement strategies to gracefully degrade functionality when circuit breakers open. Providing limited or cached responses can maintain a level of service while downstream dependencies are restored.

Case Studies and Real-World Implementations

Learning from Established Systems

1. Netflix's Hystrix

Netflix's Hystrix was one of the pioneering frameworks for circuit breaker implementation in microservices architectures. While Hystrix is now deprecated, it served as a foundation for understanding fault tolerance and inspired modern alternatives like Resilience4j. Hystrix employed per-instance circuit breakers synchronized through real-time telemetry aggregated in monitoring services.

2. Resilience4j

Resilience4j is a lightweight, modular library designed for Java applications to implement fault tolerance patterns, including circuit breakers. It supports integration with distributed caches and event-driven architectures, allowing synchronization of circuit breaker states across multiple instances.

3. Service Meshes: Istio and Linkerd

Modern service meshes like Istio and Linkerd provide built-in support for circuit breakers at the network level. By defining circuit breaker policies within the mesh configuration, these tools ensure that all services adhere to the same fault tolerance strategies, simplifying management and enhancing consistency.

Advanced Techniques for Enhanced Synchronization

Beyond Basic Synchronization

1. Distributed Consensus Algorithms

Implementing distributed consensus protocols like Raft or Paxos can ensure strong consistency of circuit breaker states across all instances. These algorithms facilitate agreement on state changes, even in the presence of network partitions or instance failures, though they introduce significant complexity.

2. Time-Based State Expiration

Incorporate time-based rules that automatically transition the circuit breaker state after a predefined cooldown period. This allows instances to periodically reassess the health of downstream services and attempt to close the circuit breaker, promoting recovery from transient failures.

3. Health Status Aggregation

Aggregate health check data from all instances to determine the overall health status of downstream services. This approach ensures that the circuit breaker reflects the collective state of all instances, reducing the chances of individual discrepancies affecting the system's resilience.

Conclusion

Achieving Consistent Circuit Breaker Behavior in Distributed APIs

Implementing synchronized circuit breakers across multiple API instances is crucial for maintaining consistent and resilient behavior in distributed systems. Centralized state management, event-driven synchronization, and service mesh integrations offer robust solutions to address the challenges of synchronization. By carefully selecting and combining these strategies, and adhering to best practices such as comprehensive monitoring and dynamic configuration, organizations can effectively manage downstream service failures, reduce system instability, and enhance overall reliability.
